Ropeway Database - 8-KBK Anzère-Pas de Maimbré (Anzère)
8-KBK Anzère-Pas de Maimbré
Last update: 10.03.2021 18:07 (Updated by swisstrains)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1552 | m |
| Top station altitude | 2362 | m |
| Difference in altitude | 810 | m |
| Length | 2133 | m |
| Capacity | 2000 | P/h |
| Travel time | 9,3 | min |
| Speed | 5 | m/s |
| Number of towers | 20 | |
| Number of carriers | 63 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
8-KBK Anzère-Pas de Maimbré
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

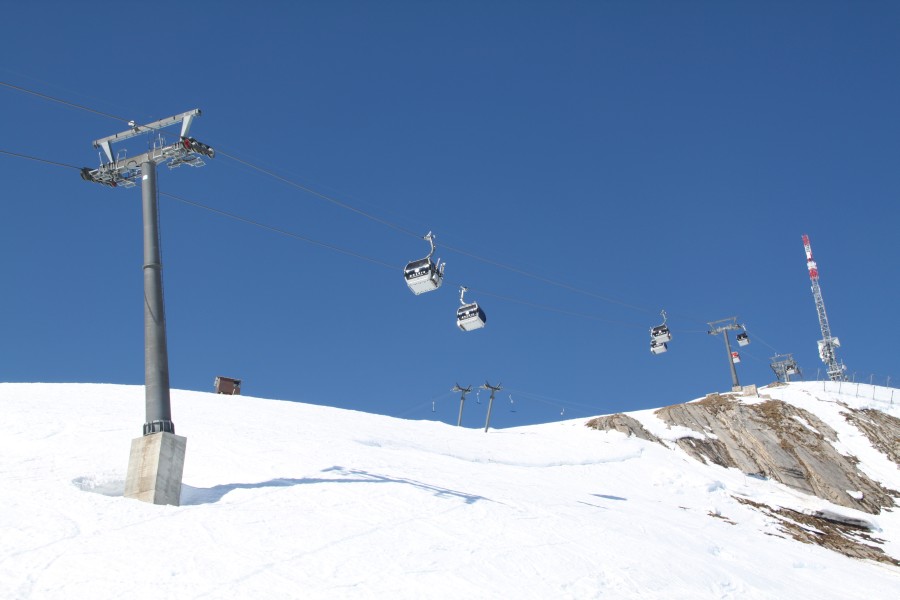

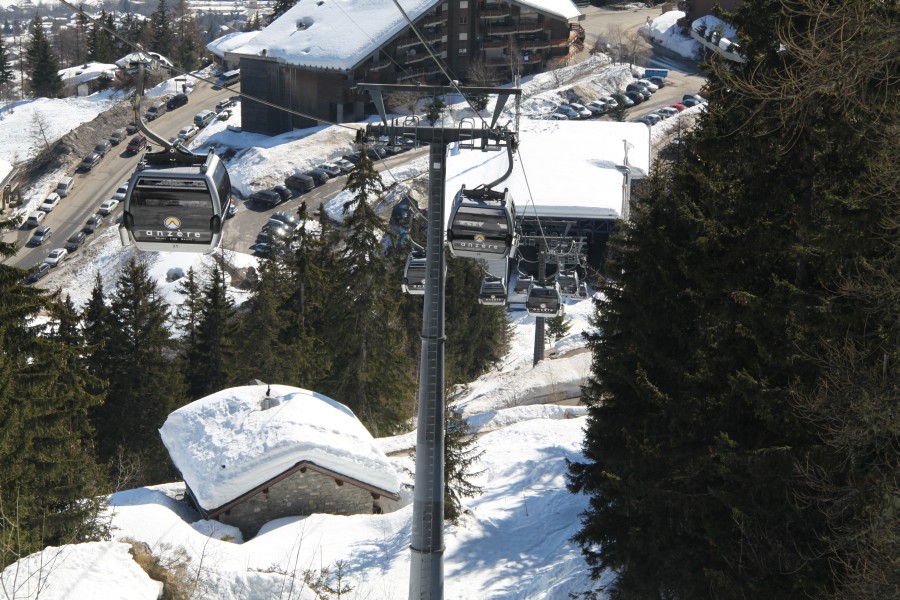

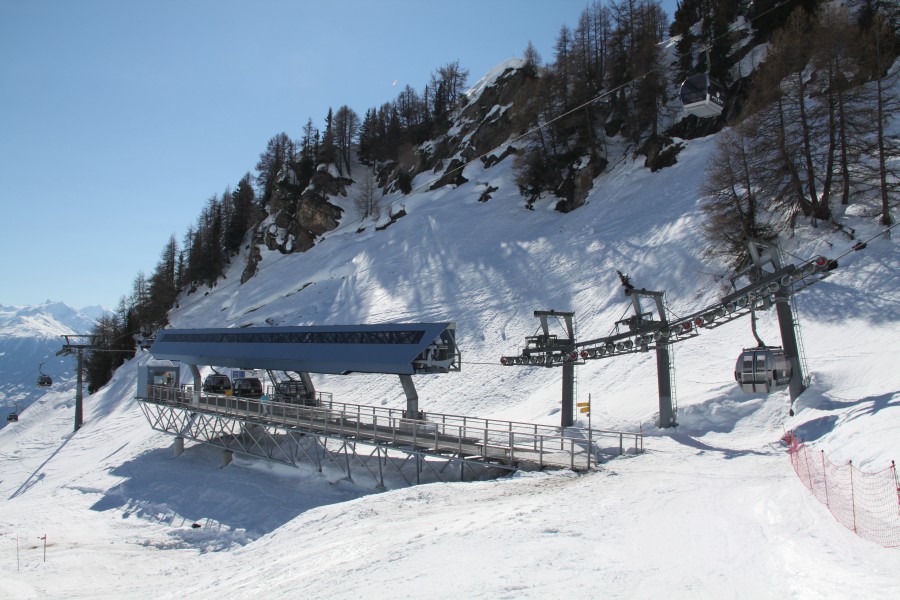

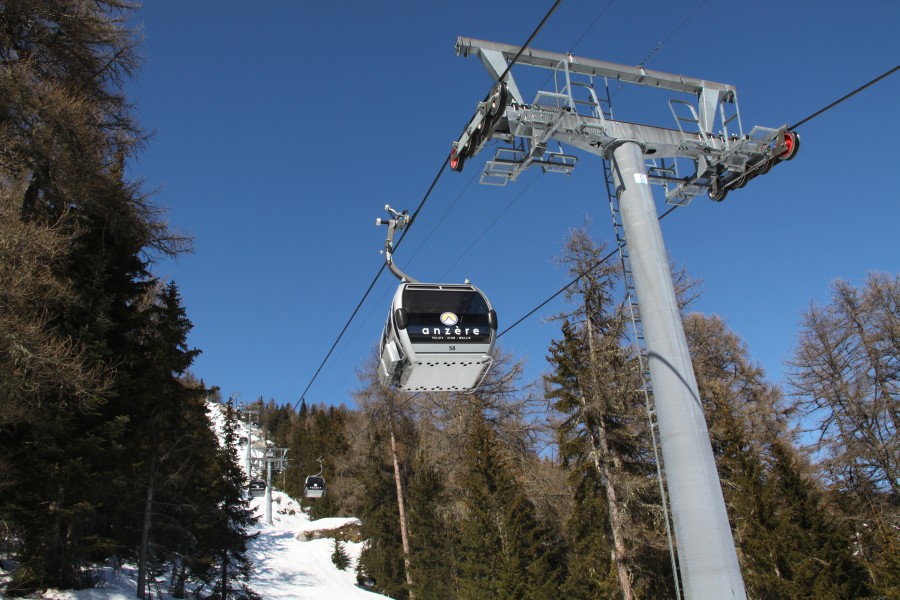

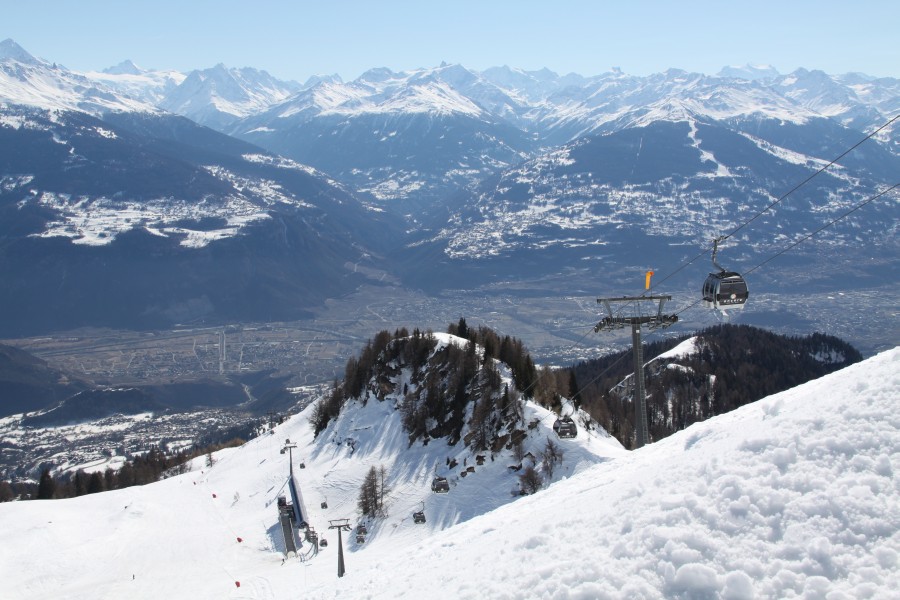

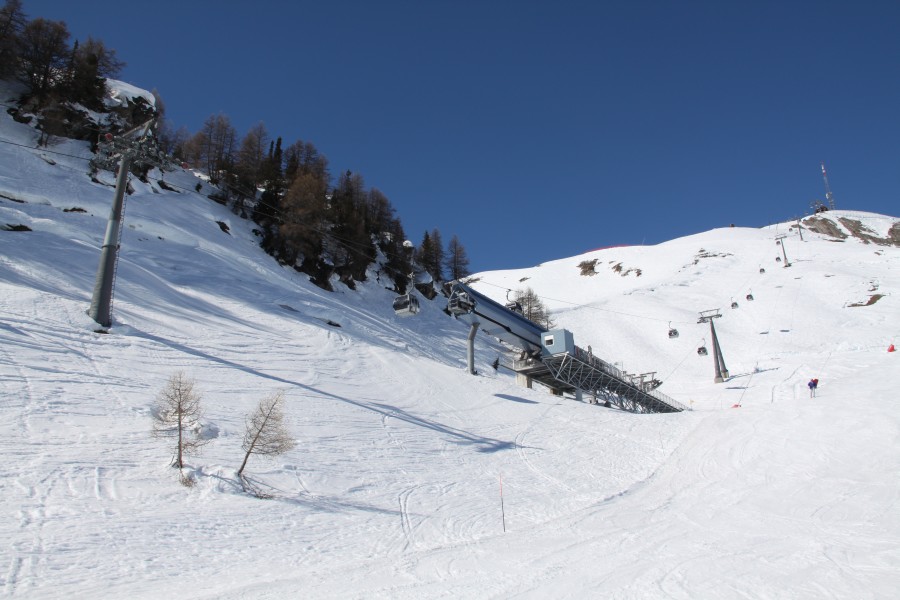

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.29537 N / 7.39482 E, Top station 46.31225 N / 7.38581 E
Location of the installation: Google Maps • Swisstopo
