Ropeway Database - 10-LPB Gampel-Jeizinen (Jeizinen)
10-LPB Gampel-Jeizinen
Last update: 15.01.2023 19:25 (Updated by swisstrains)
Photo provided by: Felix
Technical data
| Bottom station altitude | 640 | m |
| Top station altitude | 1525 | m |
| Difference in altitude | 885 | m |
| Length | 1957 | m |
| Capacity | 70 | P/h |
| Travel time | 7 | min |
| Speed | 5,4 | m/s |
| Number of towers | 6 | |
| Number of carriers | 2 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Inauen-Schätti | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
10-LPB Gampel-Jeizinen
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

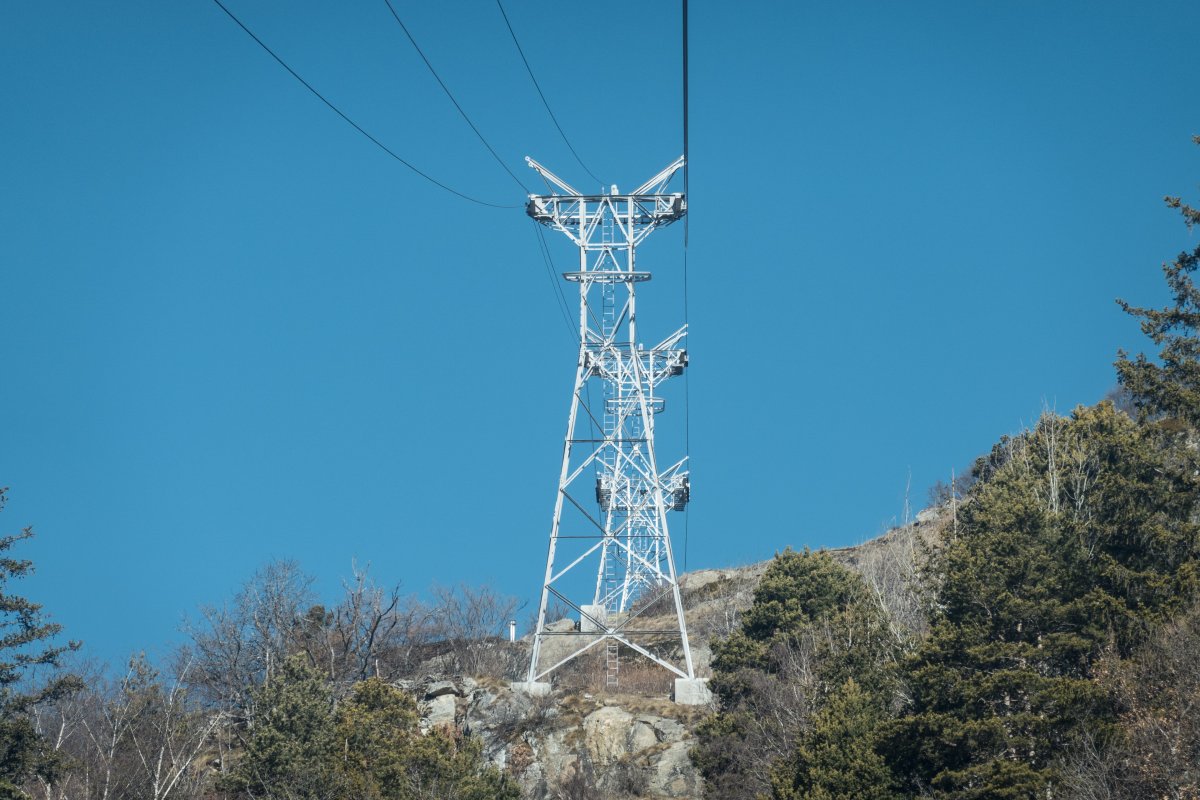

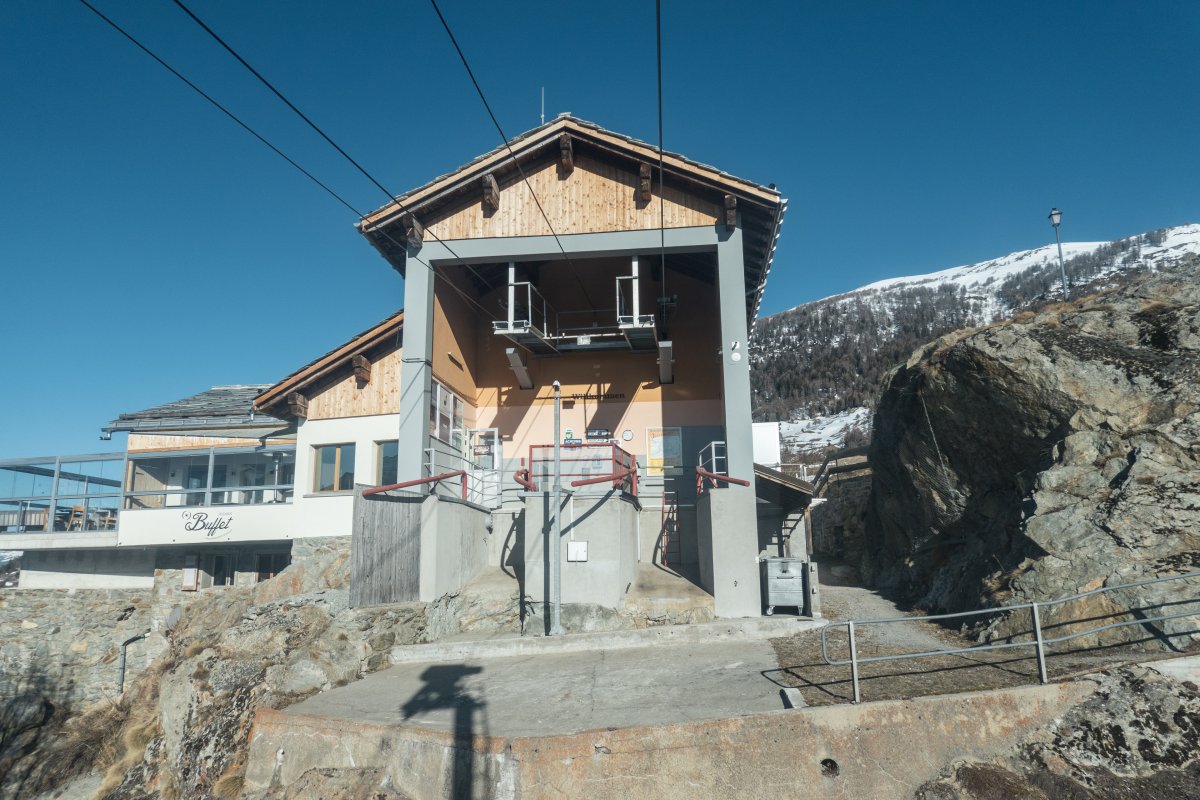

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.31553 N / 7.73931 E, Top station 46.32638 N / 7.72288 E
Location of the installation: Google Maps • Swisstopo
