Chairlift Bruchegg-Schönbiel in Blatten
4-person Chairlift Bruchegg-Schönbiel
AI Abstract
The Bruchegg-Schönbiel cable car in Blatten (built in 1997) spans a distance of 585 meters, covering an elevation difference between 2143 m and 2305 m. It was built by Garaventa. The maximum capacity is 1000 people per hour.
| Country |
|
|---|---|
| Canton / State |
|
| Location | Blatten (Belalp) |
| Name | Bruchegg-Schönbiel |
| Type | 4-SBF (LUMF-S4) |
| Operating Time | 1997 - To date |
| Manufacturer | Garaventa |
| Status |
|
- Country: Switzerland
- Canton / State: Valais
- Location: Blatten (Belalp)
- Name: Bruchegg-Schönbiel
- Type: 4-SBF
- Operating Time: 1997-To date
- Year of construction: 1997
- Manufacturer: Garaventa
- Status: In operation
- Bottom station altitude: 2143 m
- Difference in altitude: 162 m
- Length: 585 m
- Capacity: 1000 P/h
- Travel time: 4 min
- Speed: 2,3 m/s
- Number of towers: 8
- Number of carriers: 36
- Drive terminal: Top station
- Tensioning terminal: Top station
- Carrier manufacturer: Garaventa
- Rope manufacturer: Fatzer
- Electronics manufacturer: Sisag
- Transportation uphill: Yes
- Transportation downhill: Yes
Frequently asked questions
What is the ropeway Bruchegg-Schönbiel?
The Bruchegg-Schönbiel ropeway is a 4-person Chairlift in Blatten and connects the valley station at 2143 m to the mountain station at 2305 m.
What is the hourly passenger capacity of the Bruchegg-Schönbiel ropeway?
The maximum capacity of the Bruchegg-Schönbiel ropeway is 1000 people per hour.
When was the Bruchegg-Schönbiel ropeway constructed?
The Bruchegg-Schönbiel ropeway was constructed in 1997.
Where is the Bruchegg-Schönbiel ropeway located?
The Bruchegg-Schönbiel ropeway is operating in Blatten (Switzerland).
How long is the Bruchegg-Schönbiel ropeway?
The diagonal length of the Bruchegg-Schönbiel ropeway is 585 meters.
What is the elevation gain of the Bruchegg-Schönbiel ropeway?
The Bruchegg-Schönbiel ropeway covers an elevation gain of 162 meters.
Who is the manufacturer of the Bruchegg-Schönbiel ropeway?
The Bruchegg-Schönbiel ropeway was constructed by the company Garaventa.
Technical data
| Bottom station altitude | 2143 | m |
|---|---|---|
| Top station altitude | 2305 | m |
| Difference in altitude | 162 | m |
| Length | 585 | m |
| Capacity | 1000 | P/h |
| Travel time | 4 | min |
| Speed | 2,3 | m/s |
| Number of towers | 8 | |
| Number of carriers | 36 | |
| Drive terminal | Top station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Garaventa | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
-
-
-
-

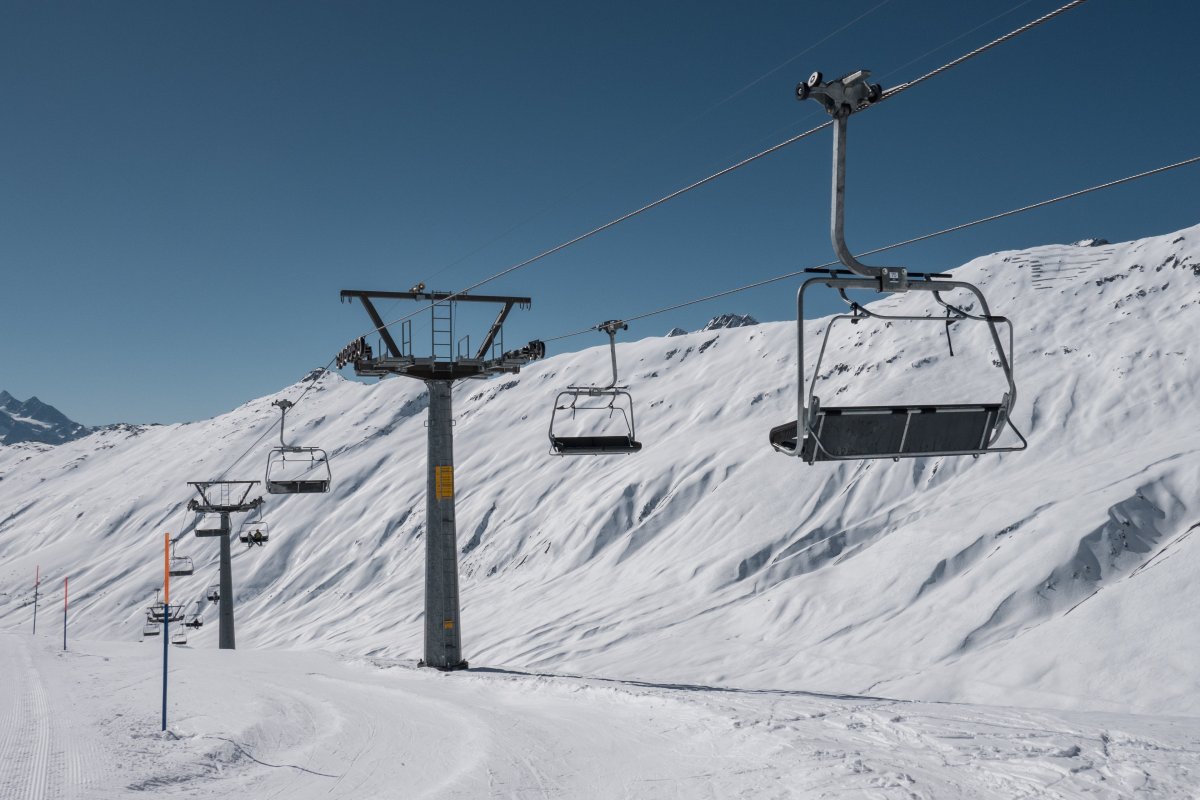

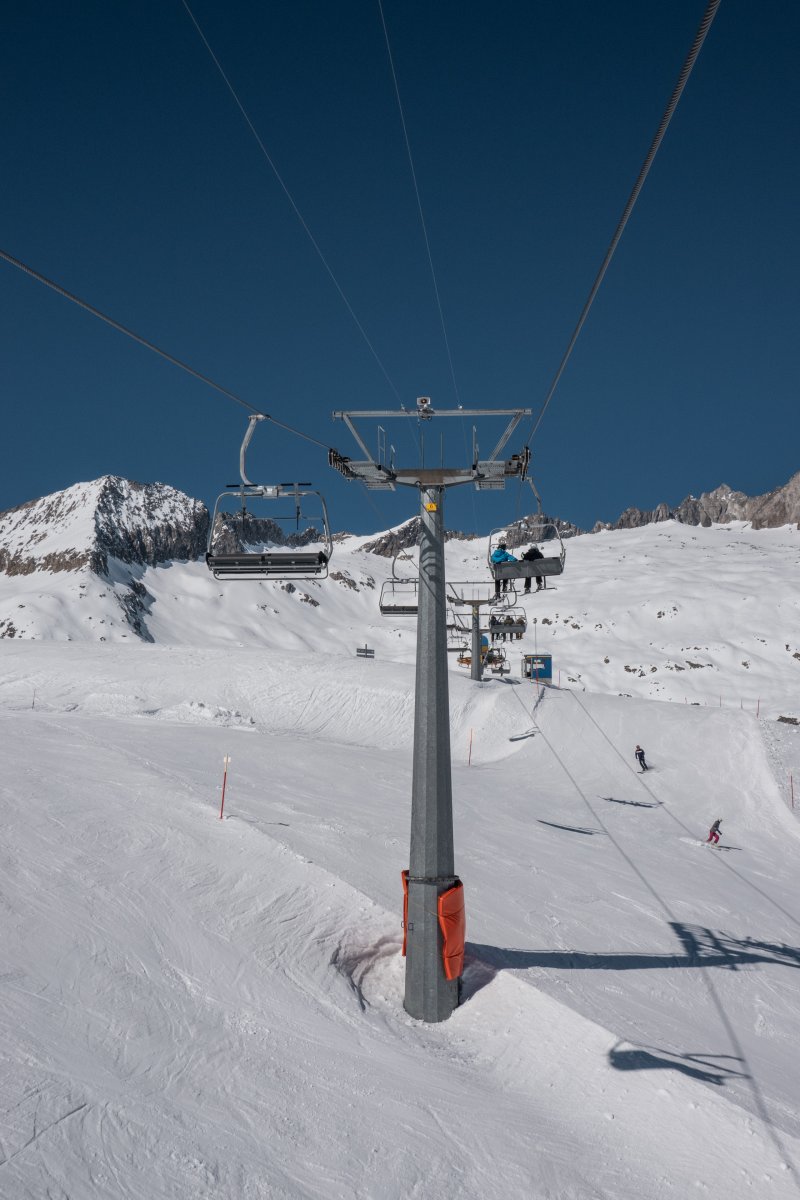

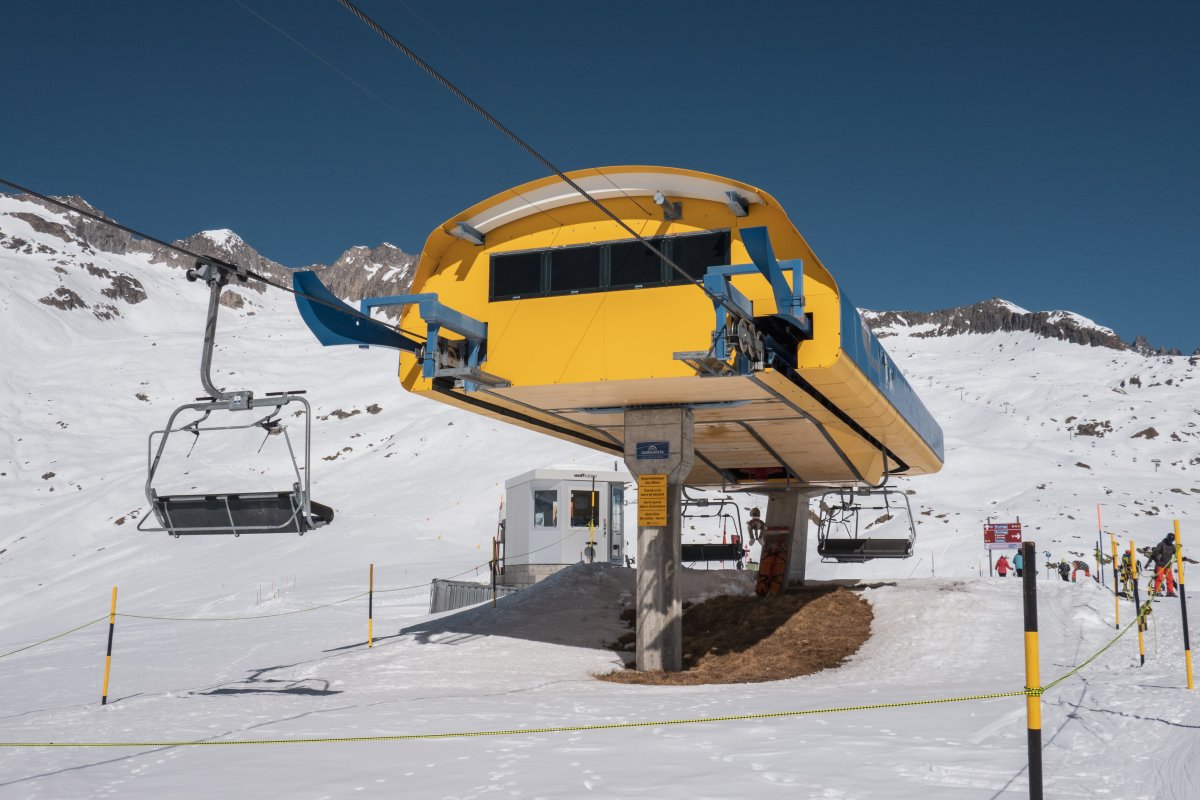

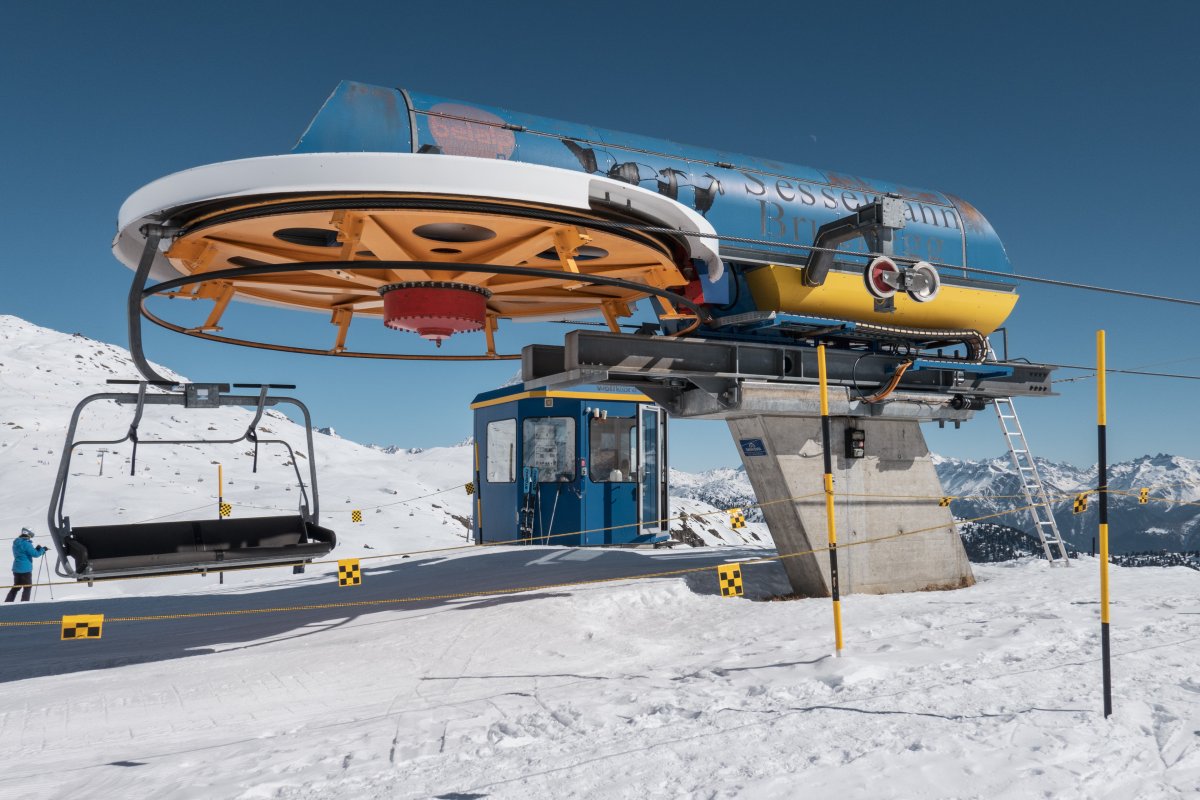

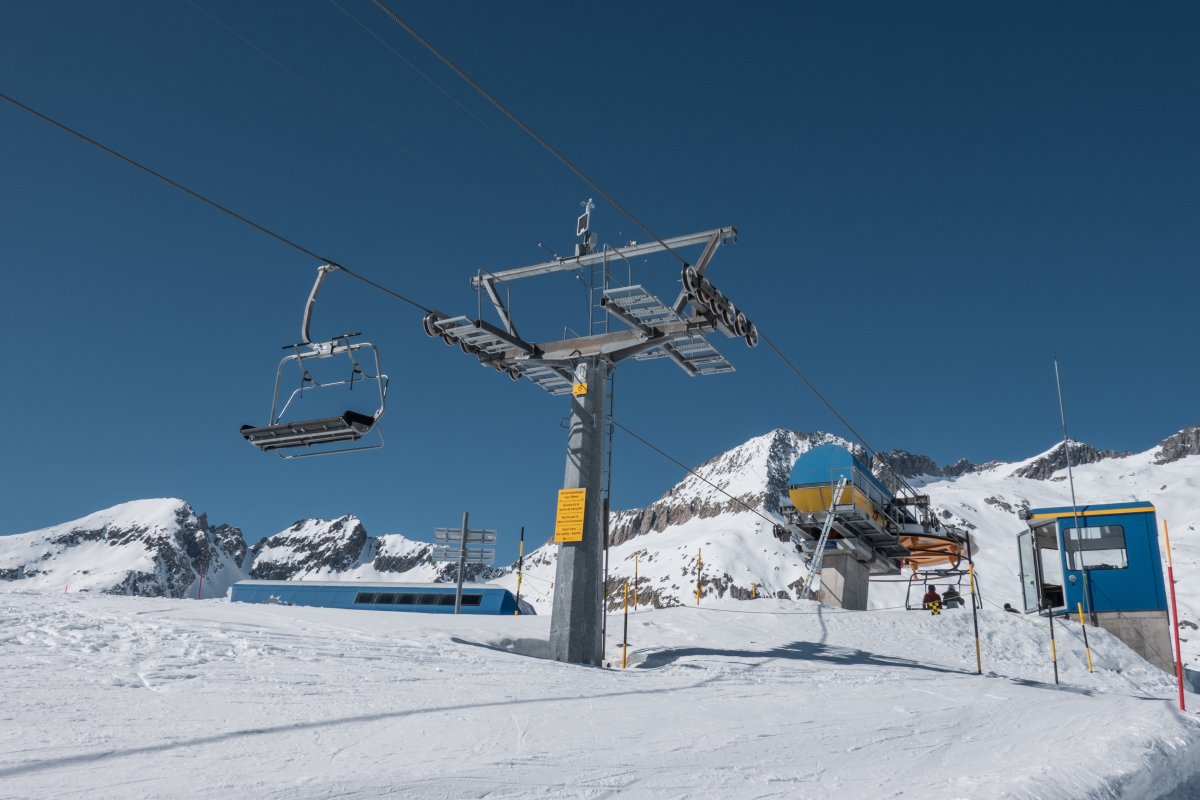

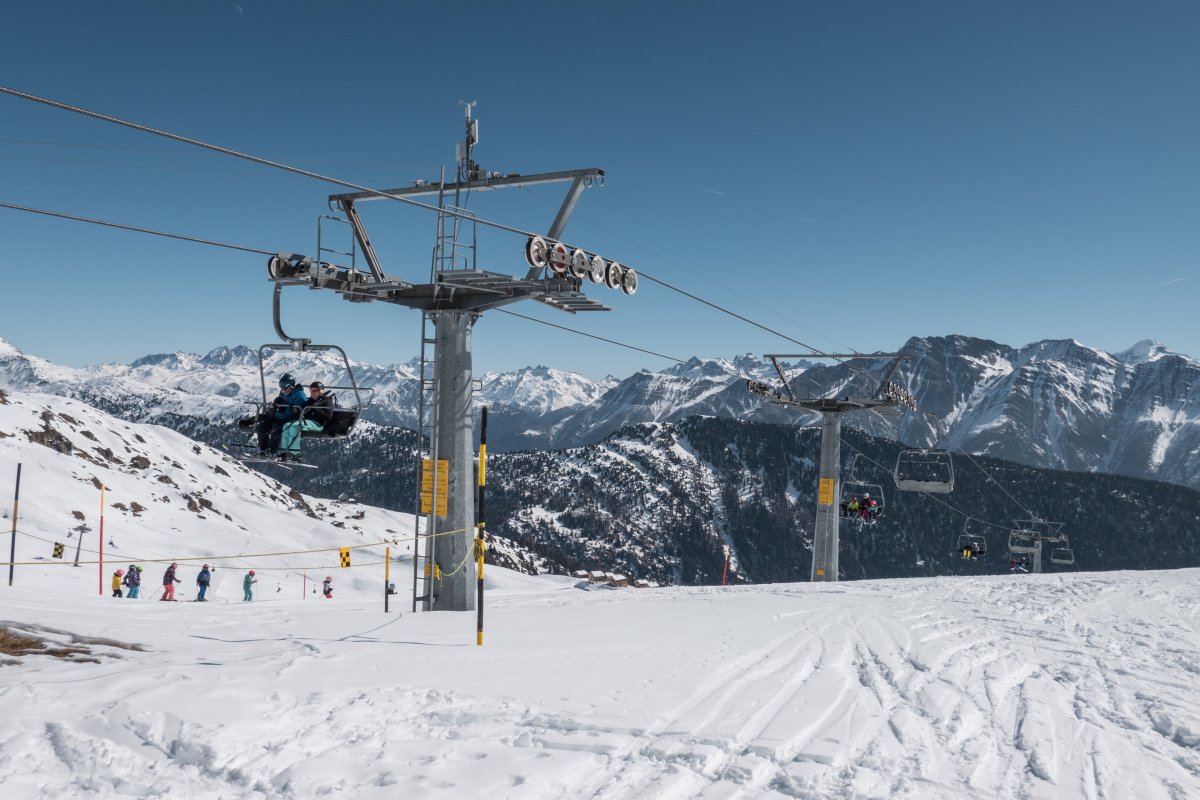

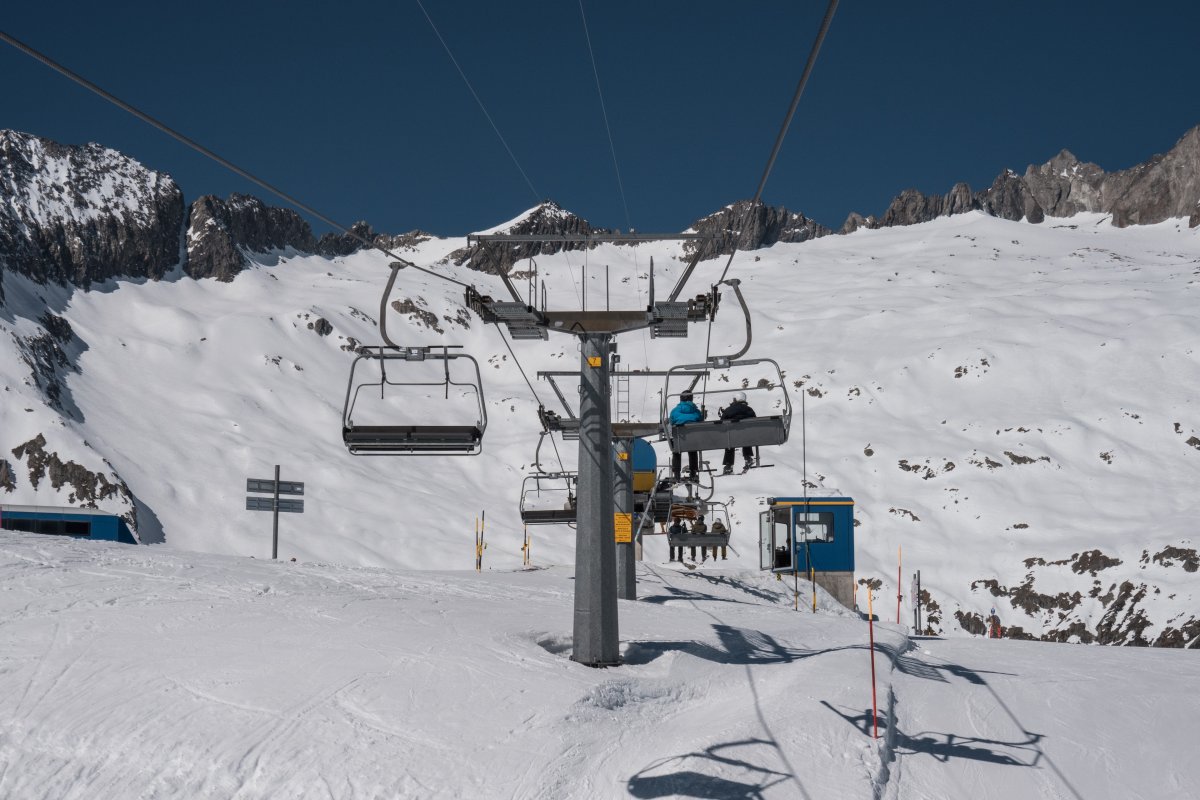

Photos of this ropeway
Videos of this ropeway
Location of the installation
Coordinates (decimal): Bottom station 46.37632 N / 7.9777 E, Top station 46.37943 N / 7.97204 E
Location of the installation: Google Maps • Swisstopo
