Aerial Tramway Robiei-Cortino in San Carlo
50-person Aerial Tramway Robiei-Cortino
AI Abstract
The Robiei-Cortino cable car in San Carlo (built in 1965) spans a distance of 1780 meters, covering an elevation difference between 1905 m and 2227 m. It was built by Habegger. The maximum capacity is 200 people per hour.
| Country |
|
|---|---|
| Canton / State |
|
| Location | San Carlo |
| Name | Robiei-Cortino |
| Type | 50-LPB (LPBF-K50) |
| Operating Time | 1965 - To date |
| Manufacturer |
Habegger (1988 Habegger) |
| Status |
 |
- Country: Switzerland
- Canton / State: Ticino
- Location: San Carlo
- Name: Robiei-Cortino
- Type: 50-LPB
- Operating Time: 1965-To date
- Year of construction: 1965
- Manufacturer: Habegger
- Status: In operation
- Bottom station altitude: 1905 m
- Difference in altitude: 322 m
- Length: 1780 m
- Capacity: 200 P/h
- Travel time: 15 min
- Speed: 2 m/s
- Number of towers: 7
- Number of carriers: 1
- Drive terminal: Bottom station
- Tensioning terminal: Top station
- Carrier manufacturer: Habegger
- Electronics manufacturer: BBC
- Transportation uphill: Yes
- Transportation downhill: Yes
Frequently asked questions
What is the ropeway Robiei-Cortino?
The Robiei-Cortino ropeway is a 50-person Aerial Tramway in San Carlo and connects the valley station at 1905 m to the mountain station at 2227 m.
What is the hourly passenger capacity of the Robiei-Cortino ropeway?
The maximum capacity of the Robiei-Cortino ropeway is 200 people per hour.
When was the Robiei-Cortino ropeway constructed?
The Robiei-Cortino ropeway was constructed in 1965.
Where is the Robiei-Cortino ropeway located?
The Robiei-Cortino ropeway is operating in San Carlo (Switzerland).
How long is the Robiei-Cortino ropeway?
The diagonal length of the Robiei-Cortino ropeway is 1780 meters.
What is the elevation gain of the Robiei-Cortino ropeway?
The Robiei-Cortino ropeway covers an elevation gain of 322 meters.
Who is the manufacturer of the Robiei-Cortino ropeway?
The Robiei-Cortino ropeway was constructed by the company Habegger.
Technical data
| Bottom station altitude | 1905 | m |
|---|---|---|
| Top station altitude | 2227 | m |
| Difference in altitude | 322 | m |
| Length | 1780 | m |
| Capacity | 200 | P/h |
| Travel time | 15 | min |
| Speed | 2 | m/s |
| Number of towers | 7 | |
| Number of carriers | 1 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Habegger | |
| Rope manufacturer | ||
| Electronics manufacturer | BBC | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
-
-
-
-

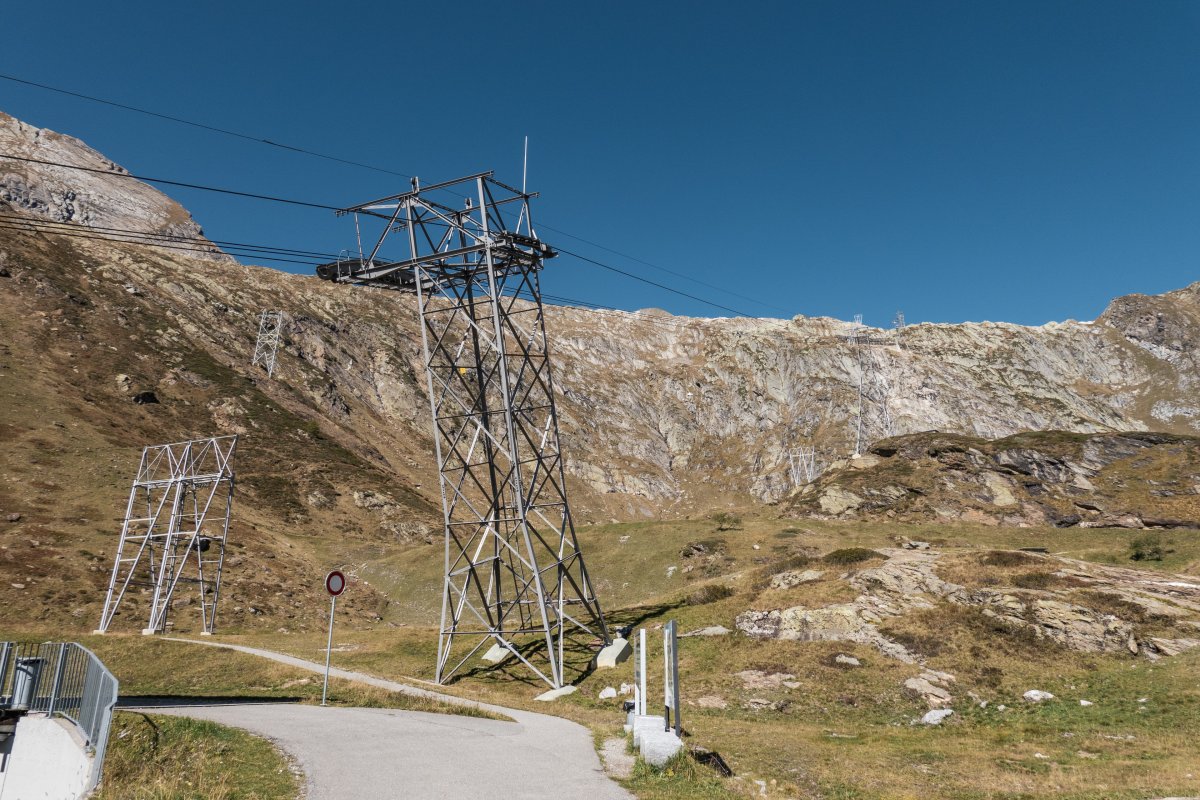

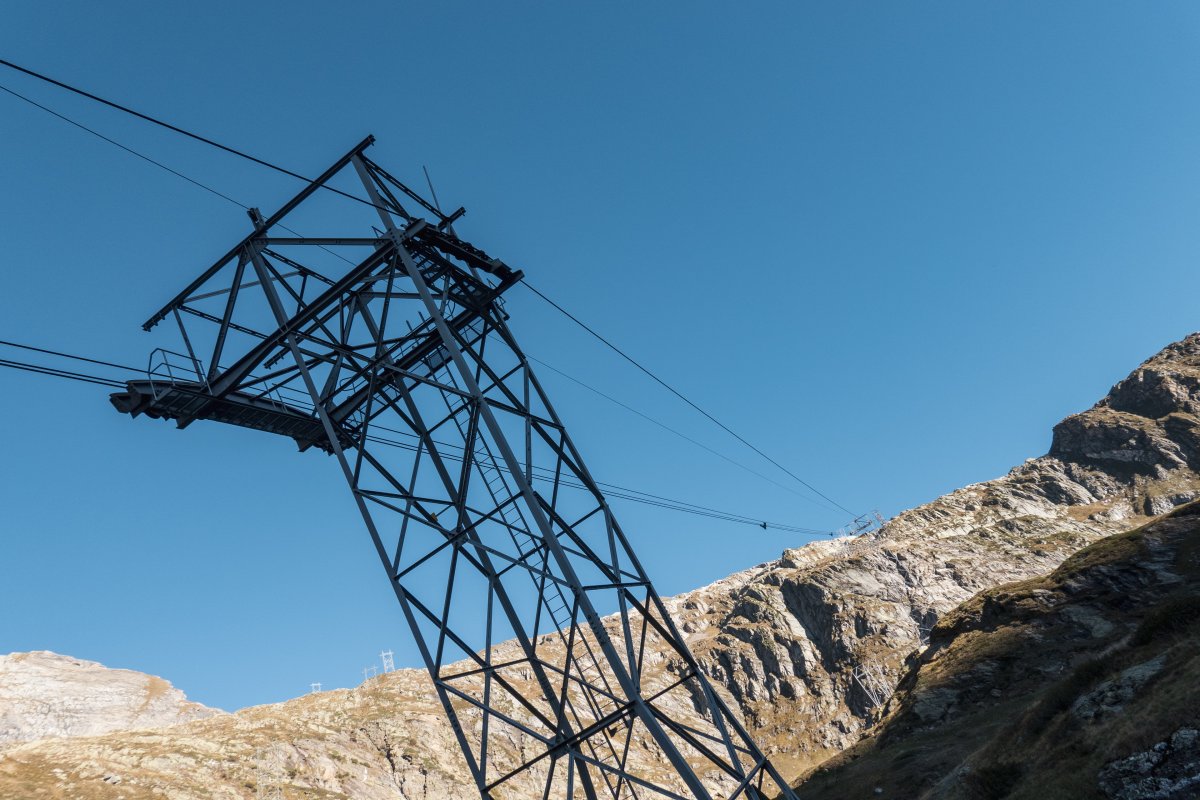

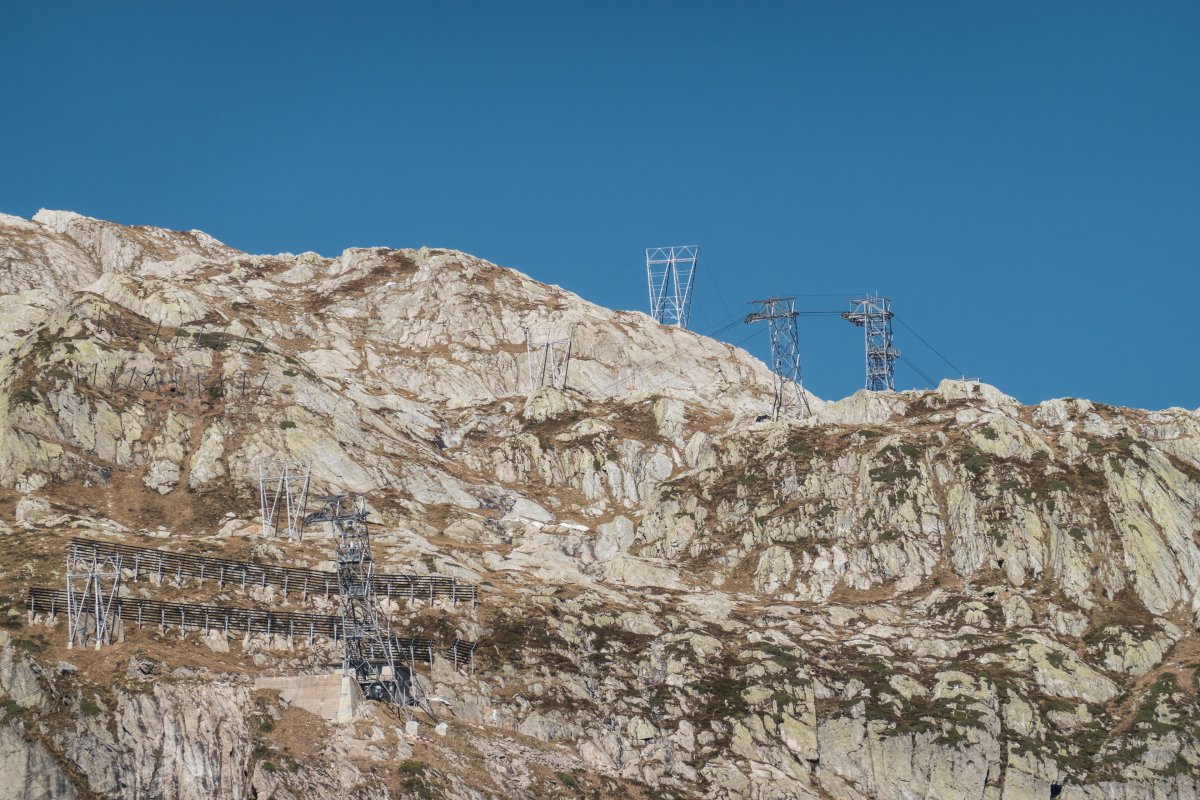

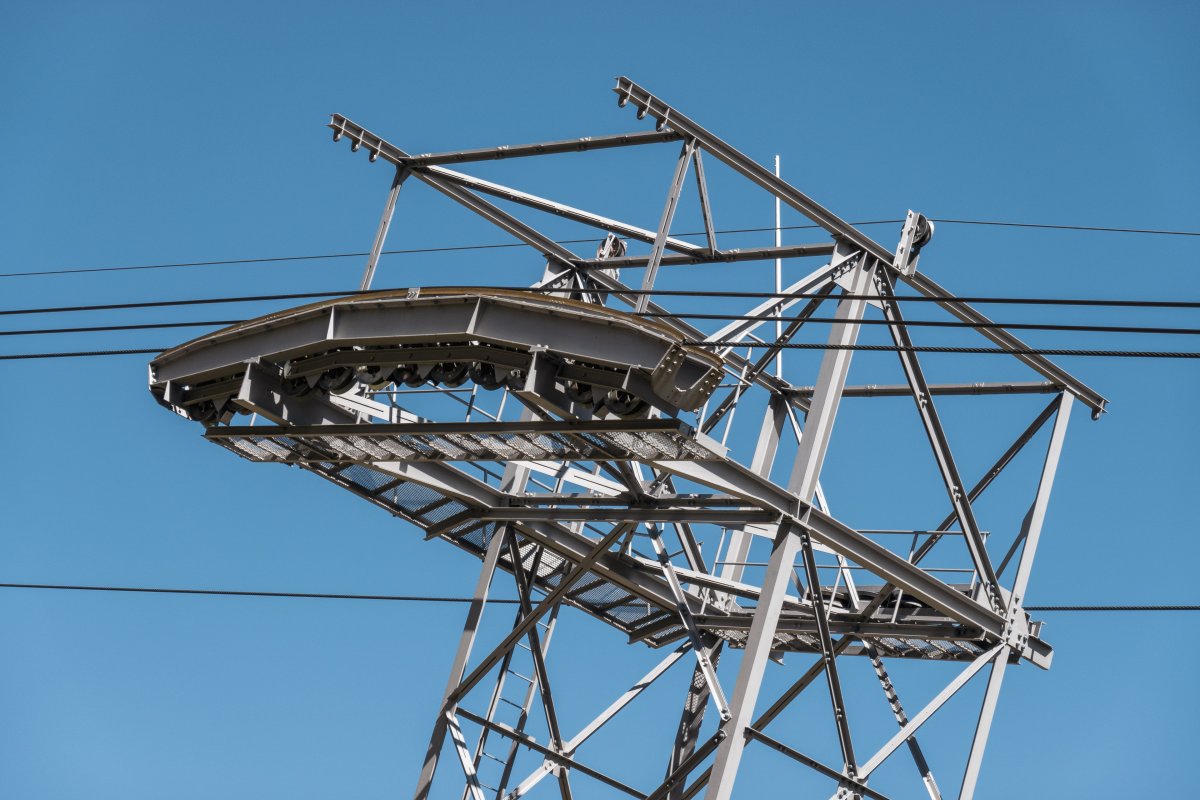

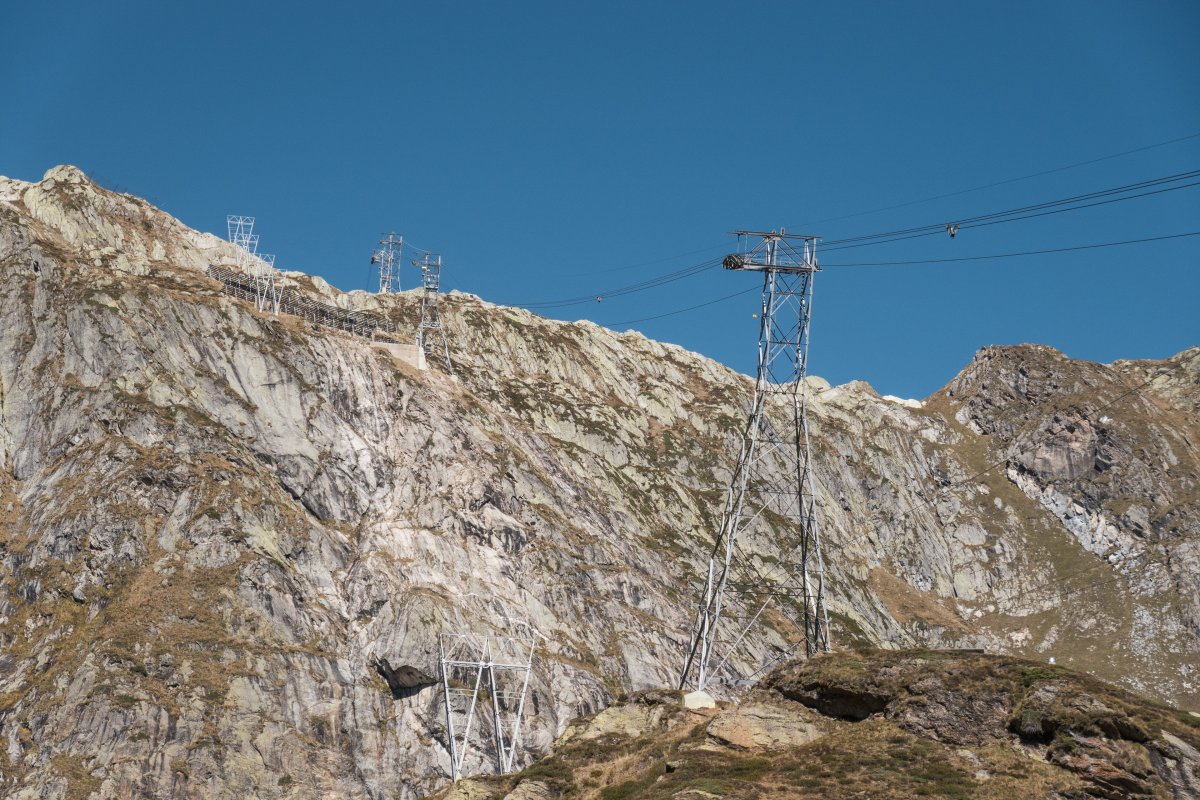

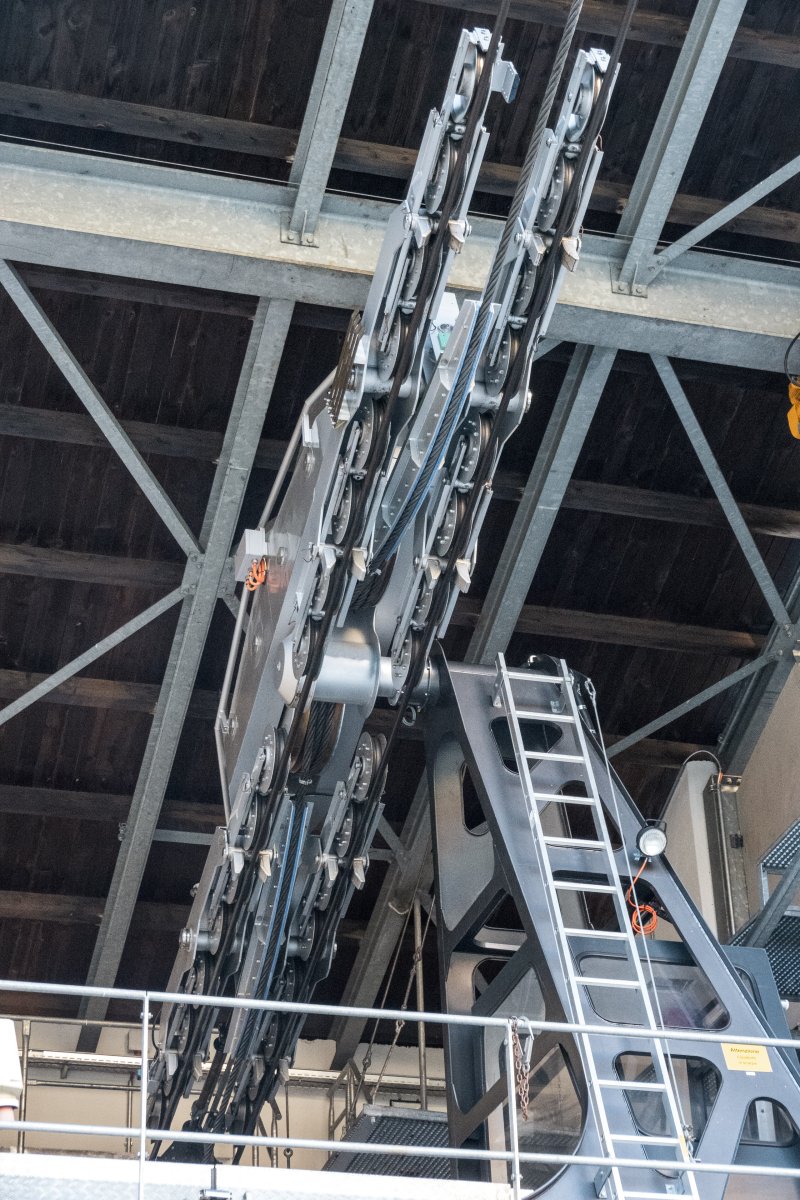

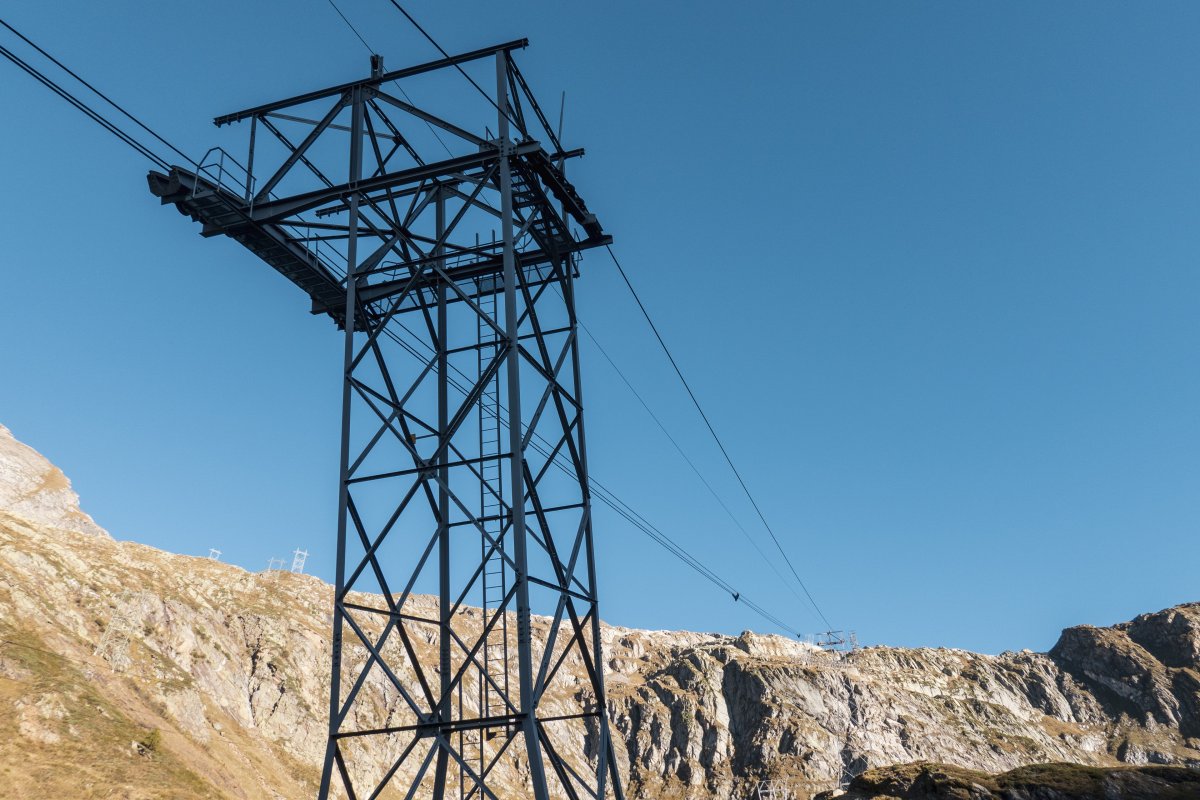

Photos of this ropeway
Videos of this ropeway
Location of the installation
Coordinates (decimal): Bottom station 46.44315 N / 8.51271 E, Top station 46.45839 N / 8.51239 E
