8-KBK Unterterzen-Oberterzen

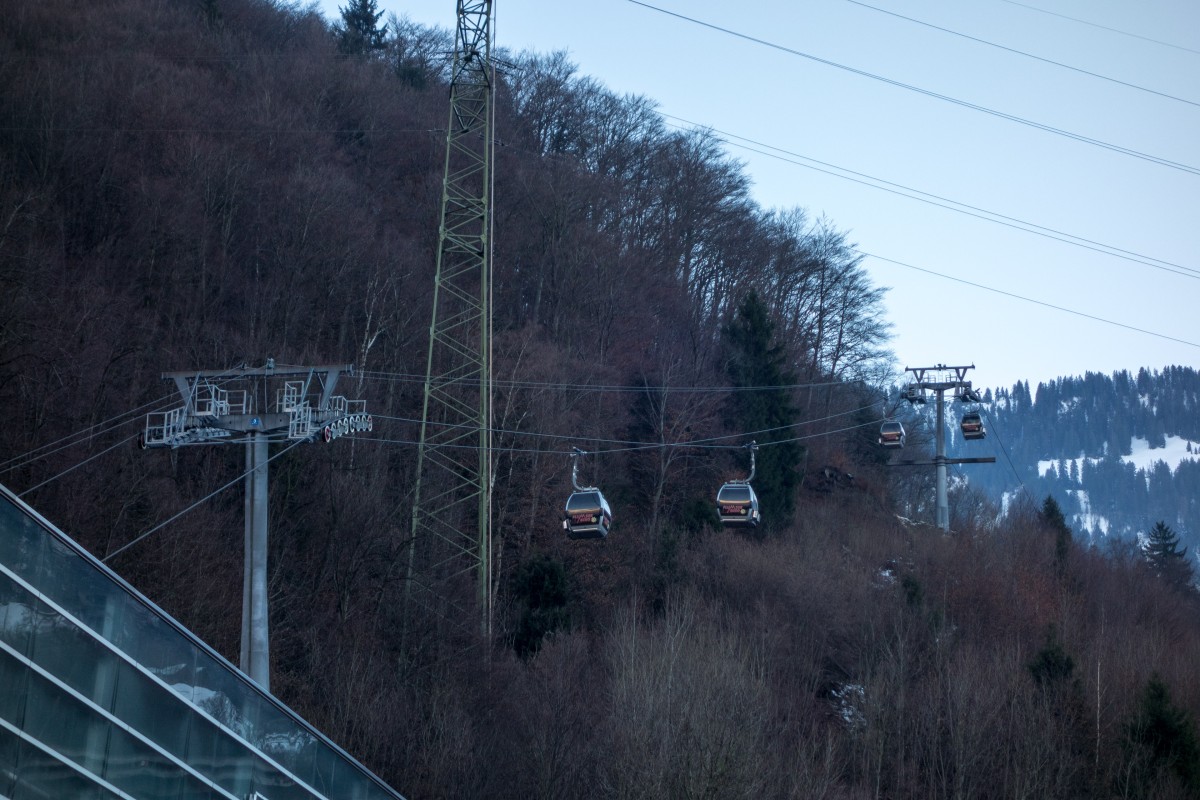

Photo provided by: Felix
Technical data
| Bottom station altitude | 437 | m |
| Top station altitude | 669 | m |
| Difference in altitude | 232 | m |
| Length | 1191 | m |
| Capacity | 1200 | P/h |
| Travel time | 4,2 | min |
| Speed | 5 | m/s |
| Number of towers | 8 | |
| Number of carriers | 24 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
8-KBK Unterterzen-Oberterzen
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-
Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 47.11334 N / 9.25504 E, Top station 47.10287 N / 9.25719 E
Location of the installation: Google Maps • Swisstopo
