15-GUB Hüttenberg-Grotzenbüel
Last update: 19.07.2011 17:23 (Updated by Schöditaz)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1308 | m |
| Top station altitude | 1561 | m |
| Difference in altitude | 253 | m |
| Length | 1166 | m |
| Capacity | 1000 | P/h |
| Travel time | 4,8 | min |
| Speed | 6,3 | m/s |
| Number of towers | 12 | |
| Number of carriers | 8 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | ||
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
15-GUB Hüttenberg-Grotzenbüel
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

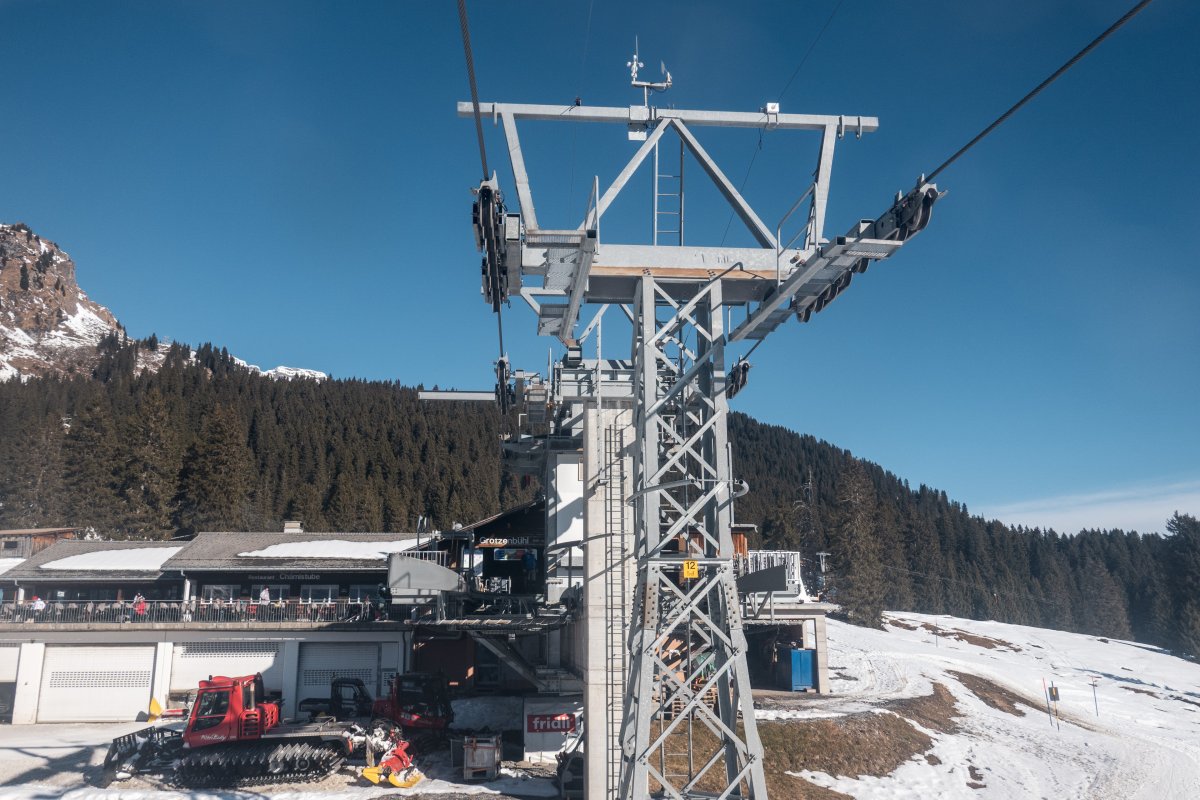

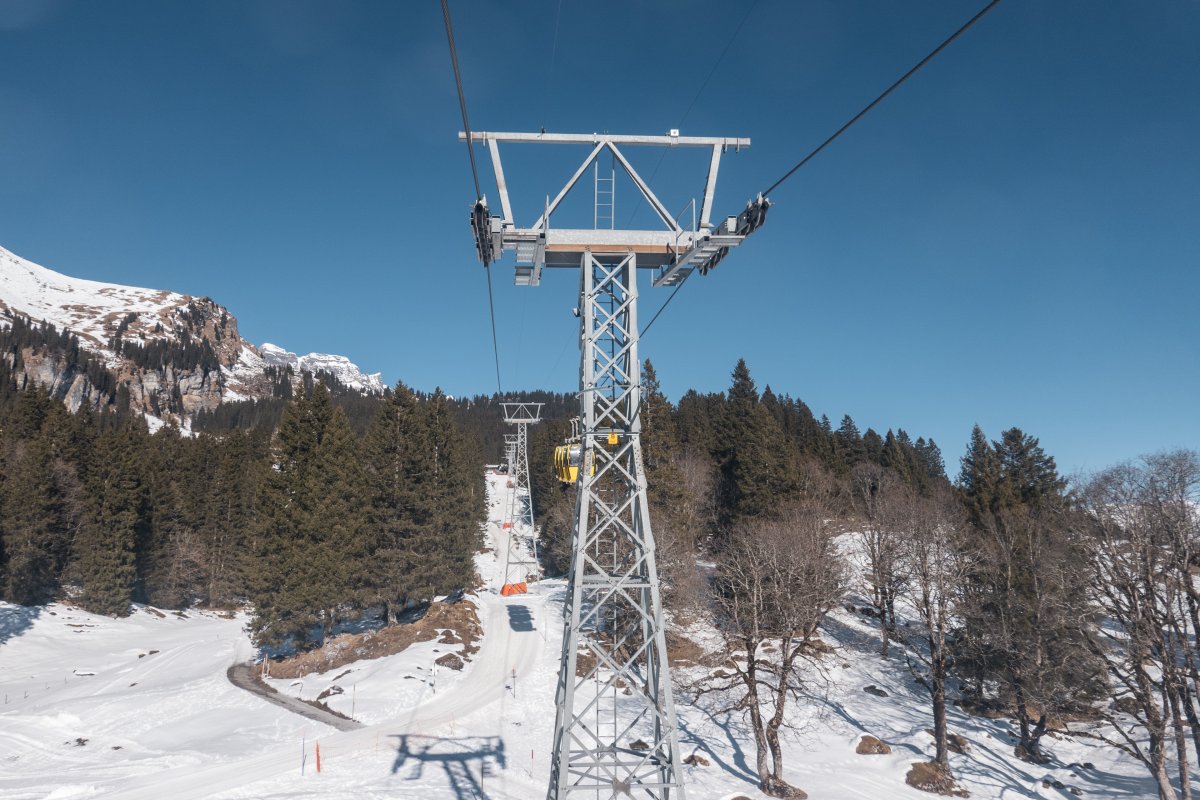

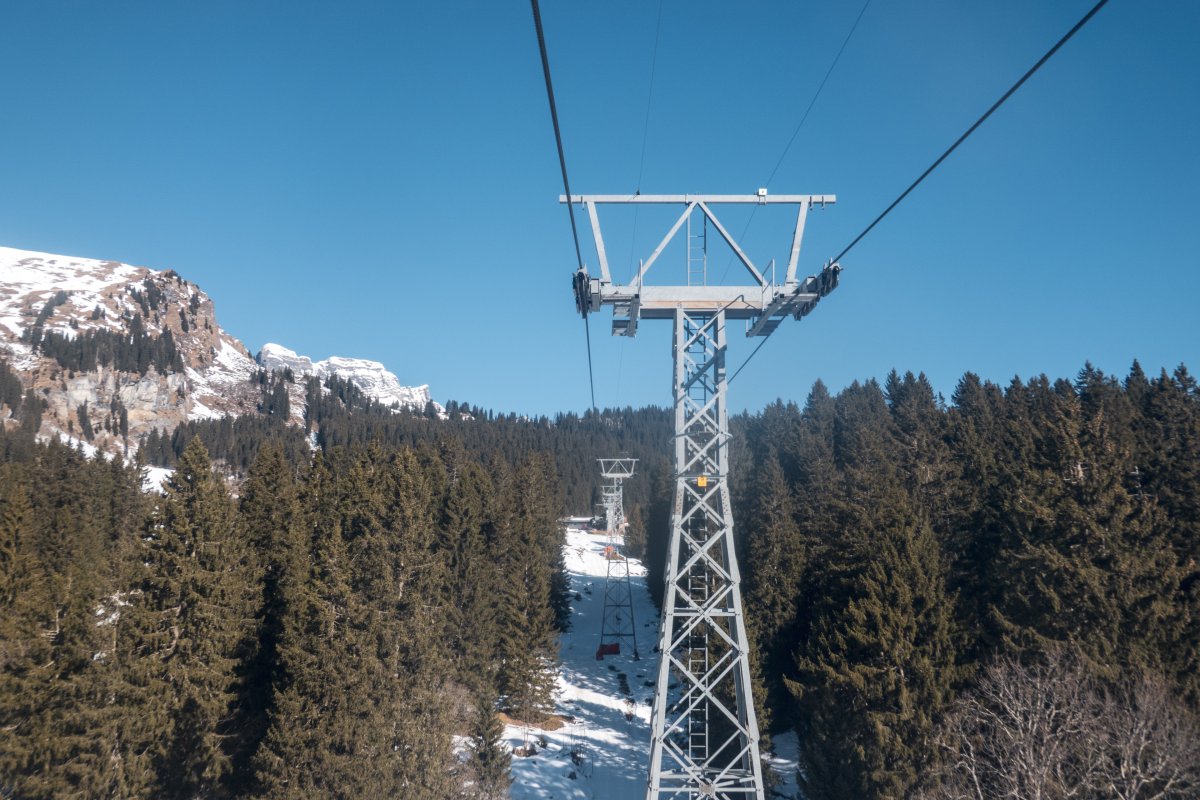

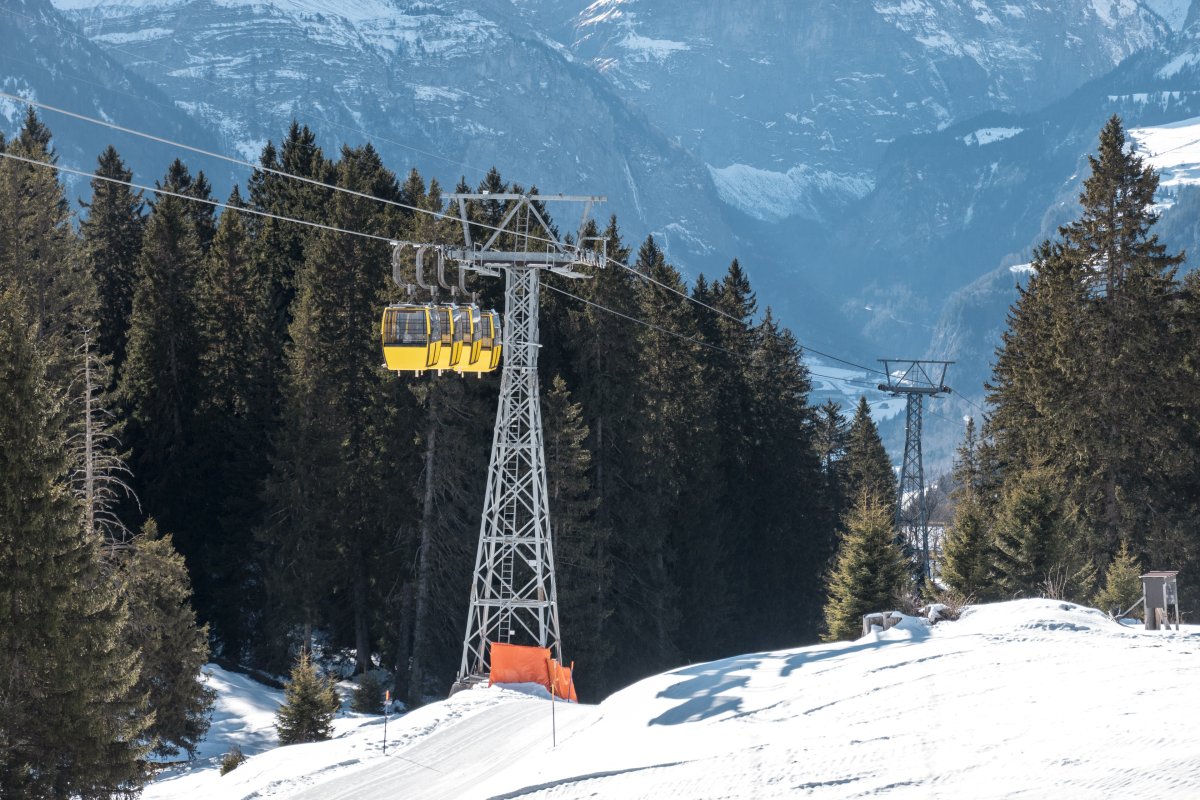

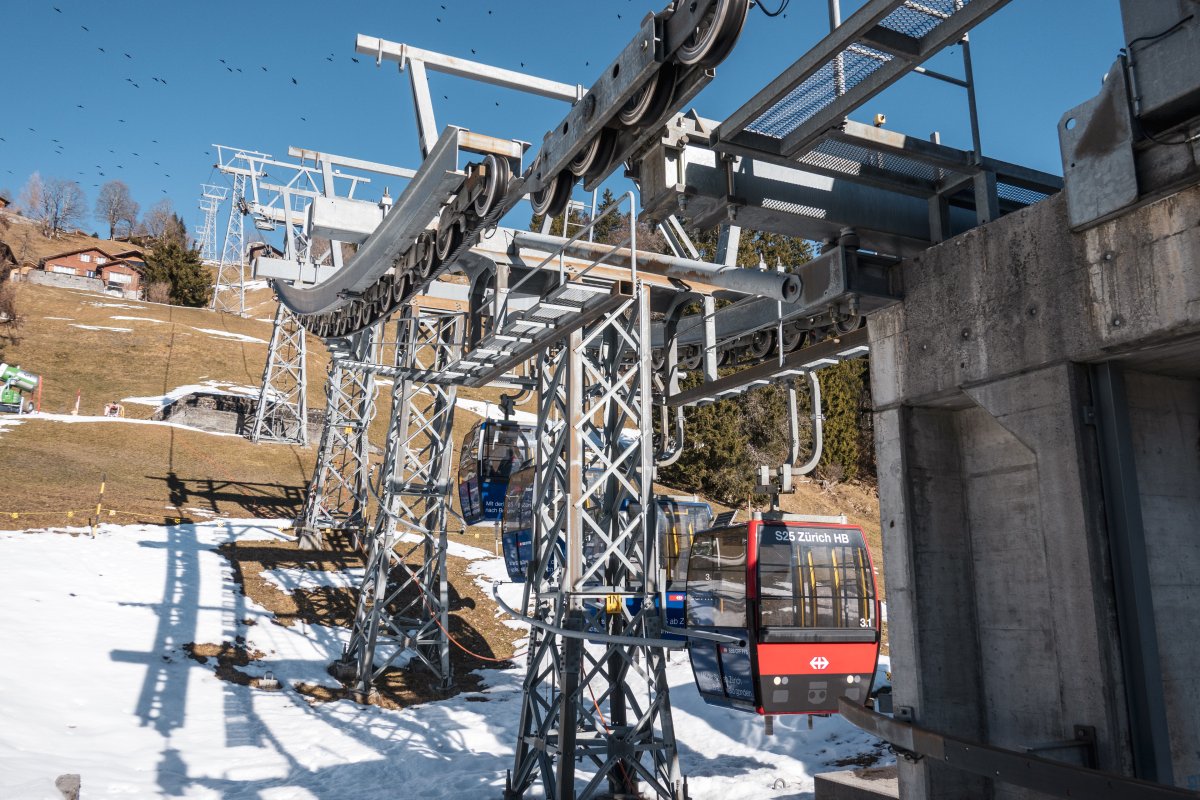

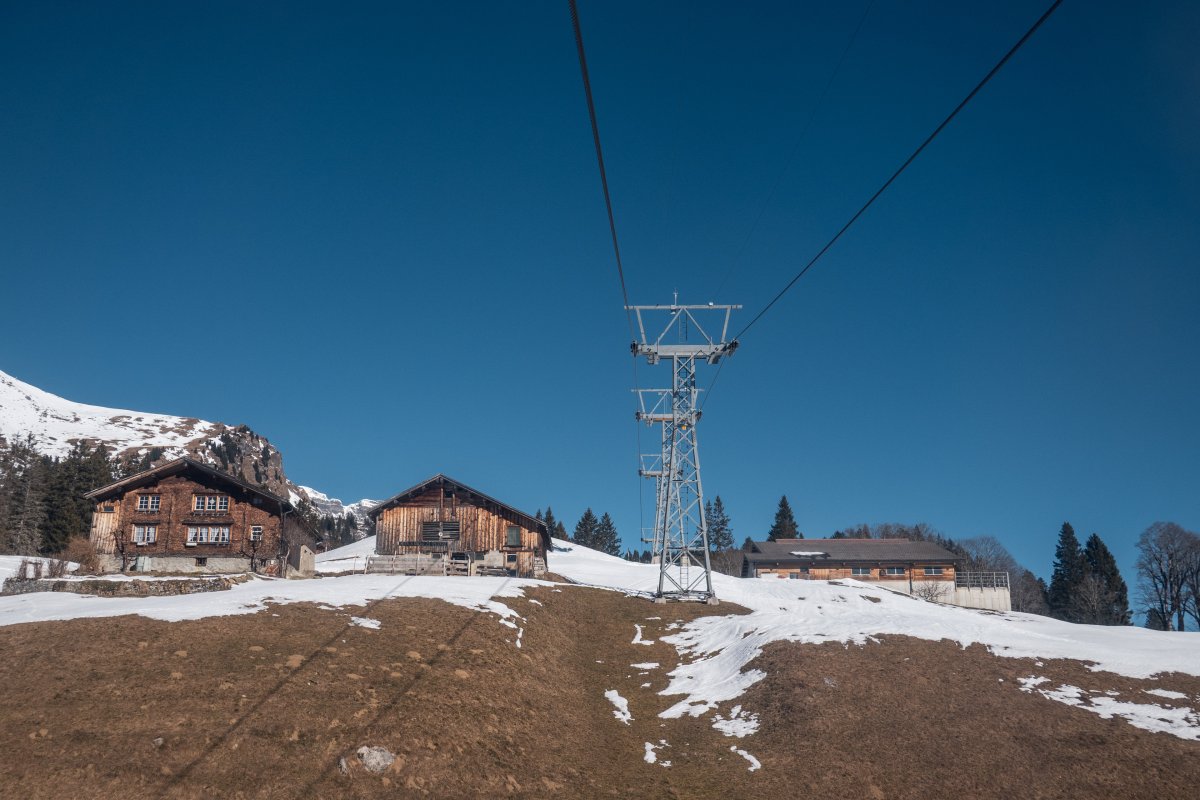

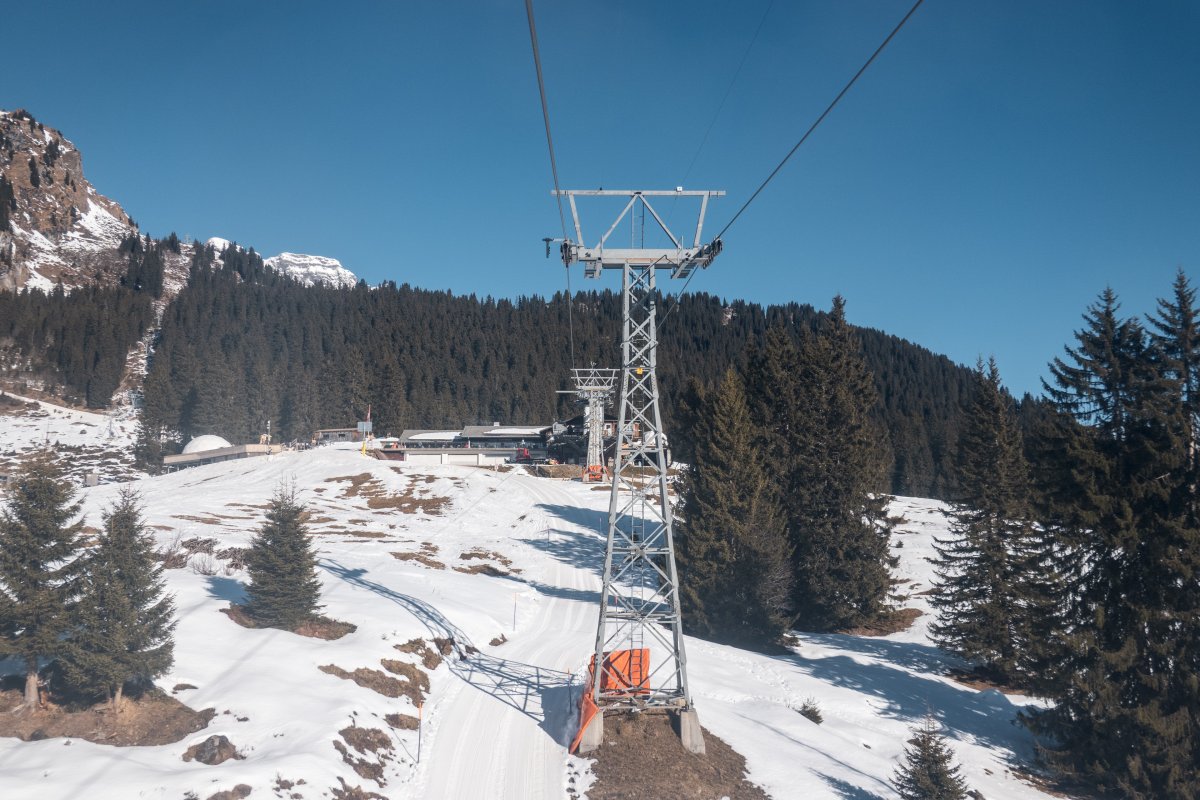

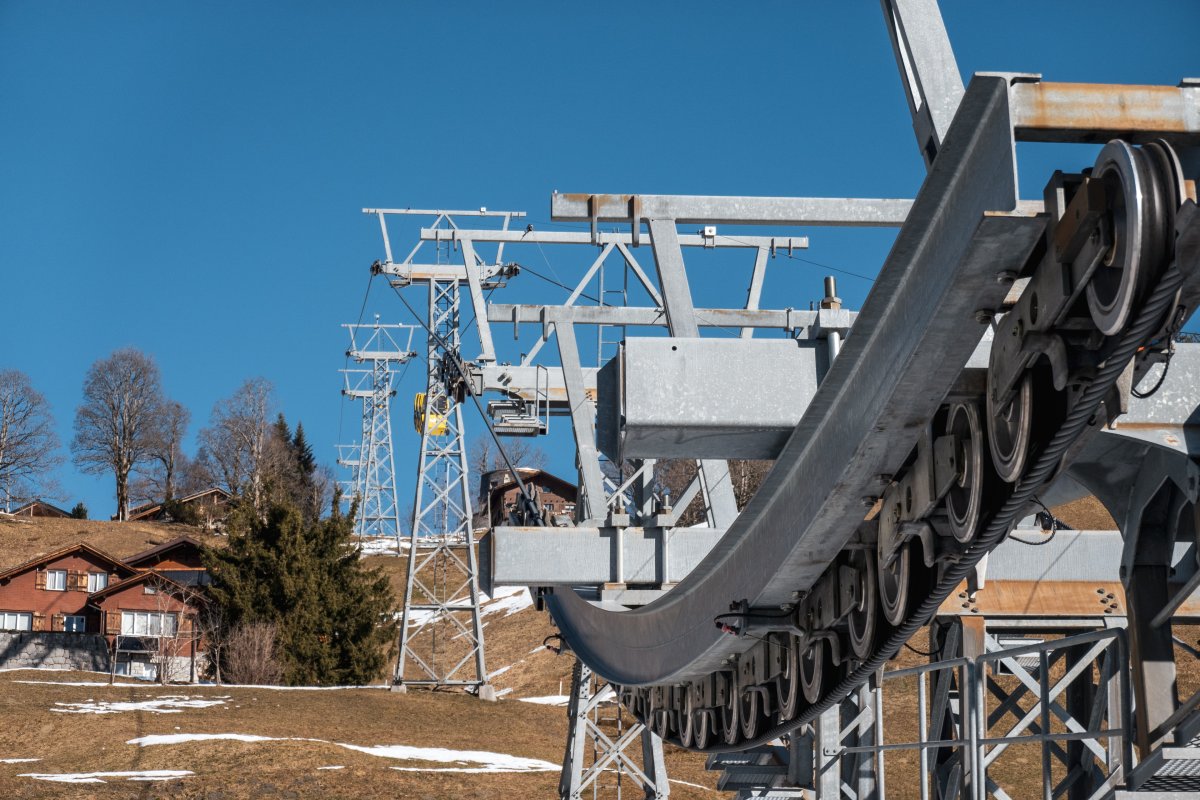

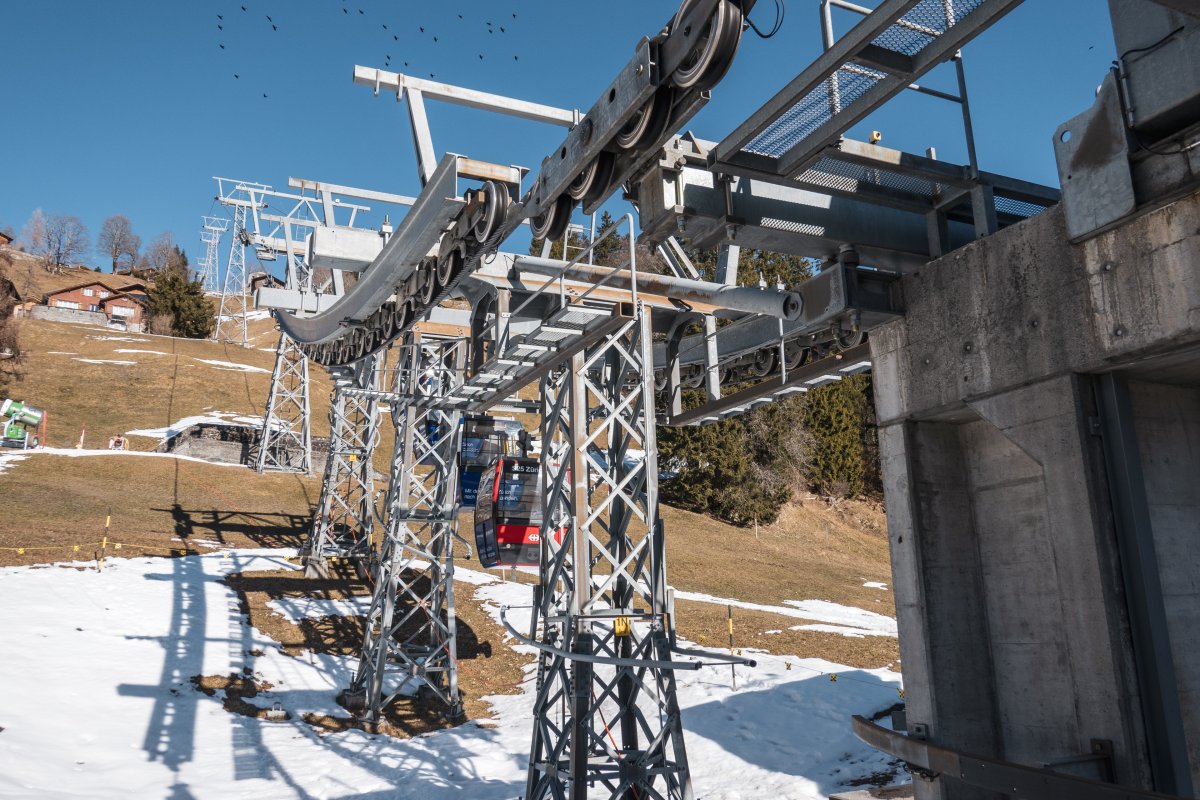

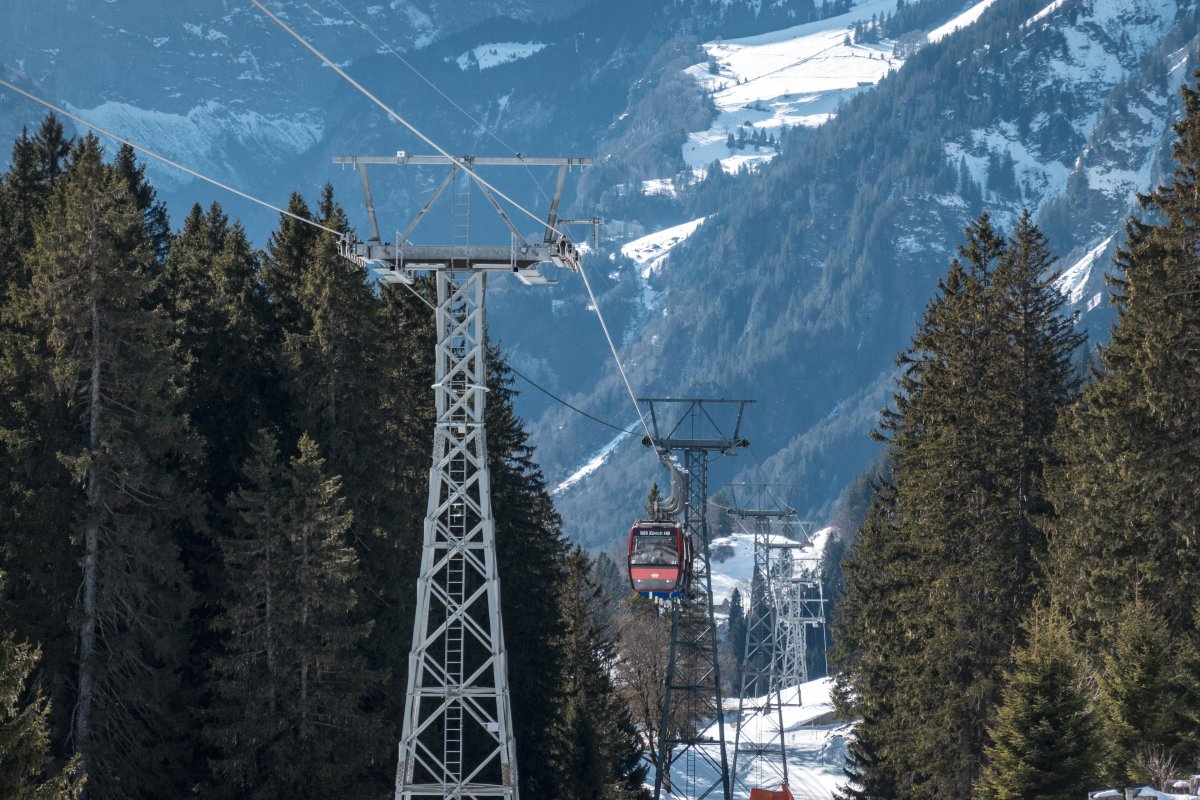

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.93906 N / 8.99086 E, Top station 46.94893 N / 8.99417 E
Location of the installation: Google Maps • Swisstopo
