Ropeway Database - 2-SBF Grotzenbüel-Seblengrat (Braunwald)
2-SBF Grotzenbüel-Seblengrat
Last update: 25.10.2021 15:45 (Updated by Sicht11)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1558 | m |
| Top station altitude | 1895 | m |
| Difference in altitude | 337 | m |
| Length | 1177 | m |
| Capacity | 1100 | P/h |
| Travel time | 8,5 | min |
| Speed | 2,2 | m/s |
| Number of towers | 13 | |
| Number of carriers | 135 | |
| Drive terminal | Top station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Streiff | |
| Rope manufacturer | ||
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | 2012 durch Garaventa saniert. Es gab neue Sessel von Garaventa und die Rollenbaterien wurden ersetzt. Ebenfalls wurde der Antrieb und die Steuerung durch Frey ersetzt. | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
2-SBF Grotzenbüel-Seblengrat
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

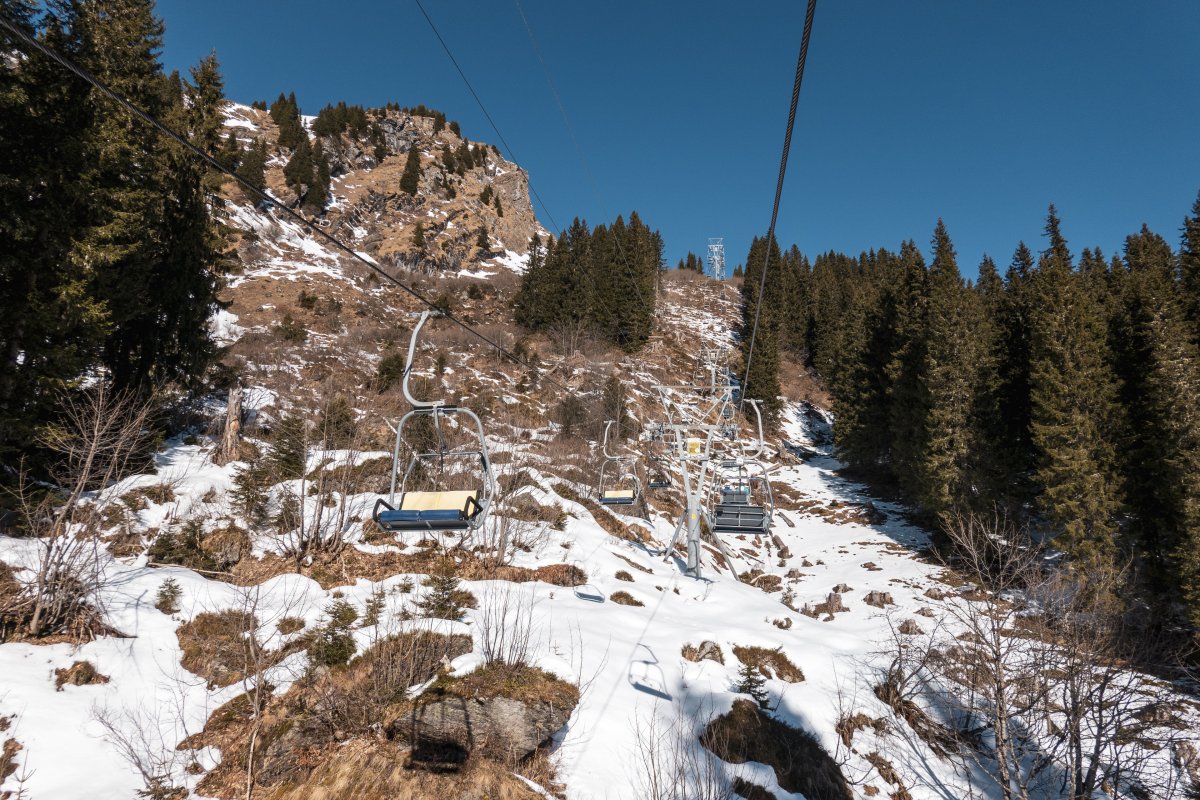

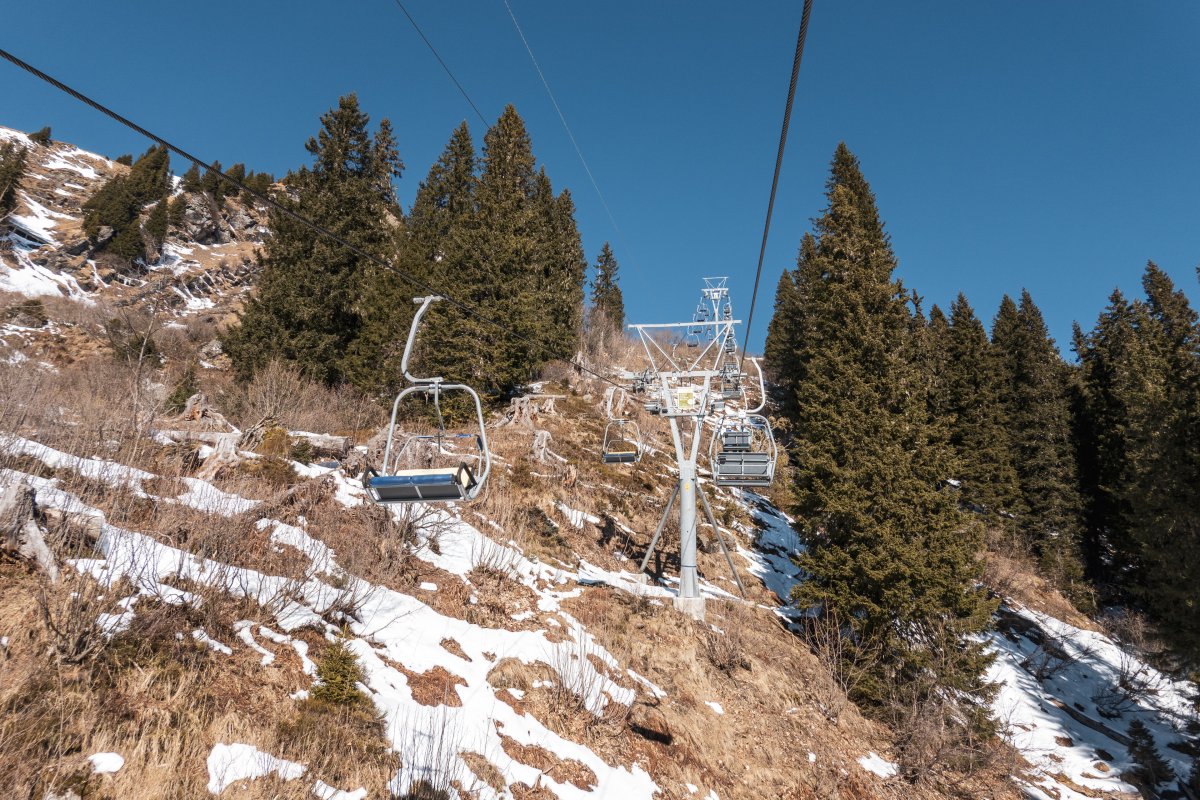

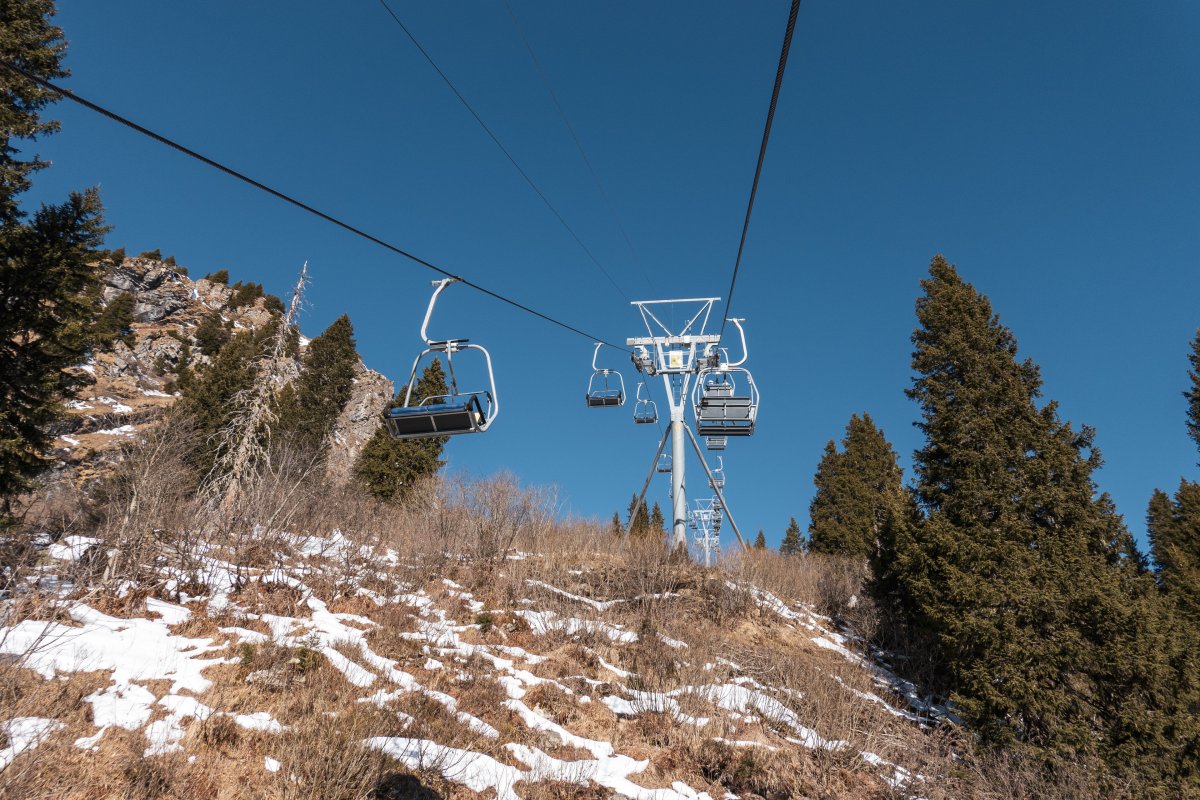

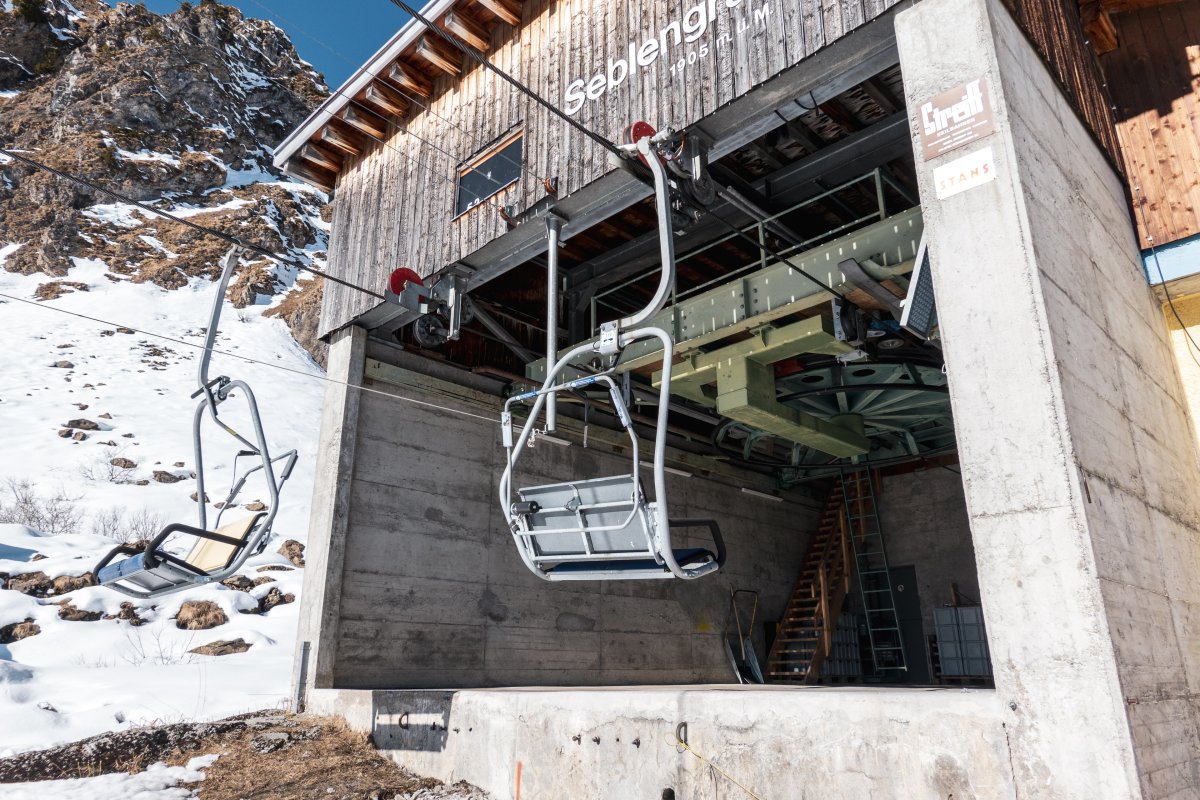

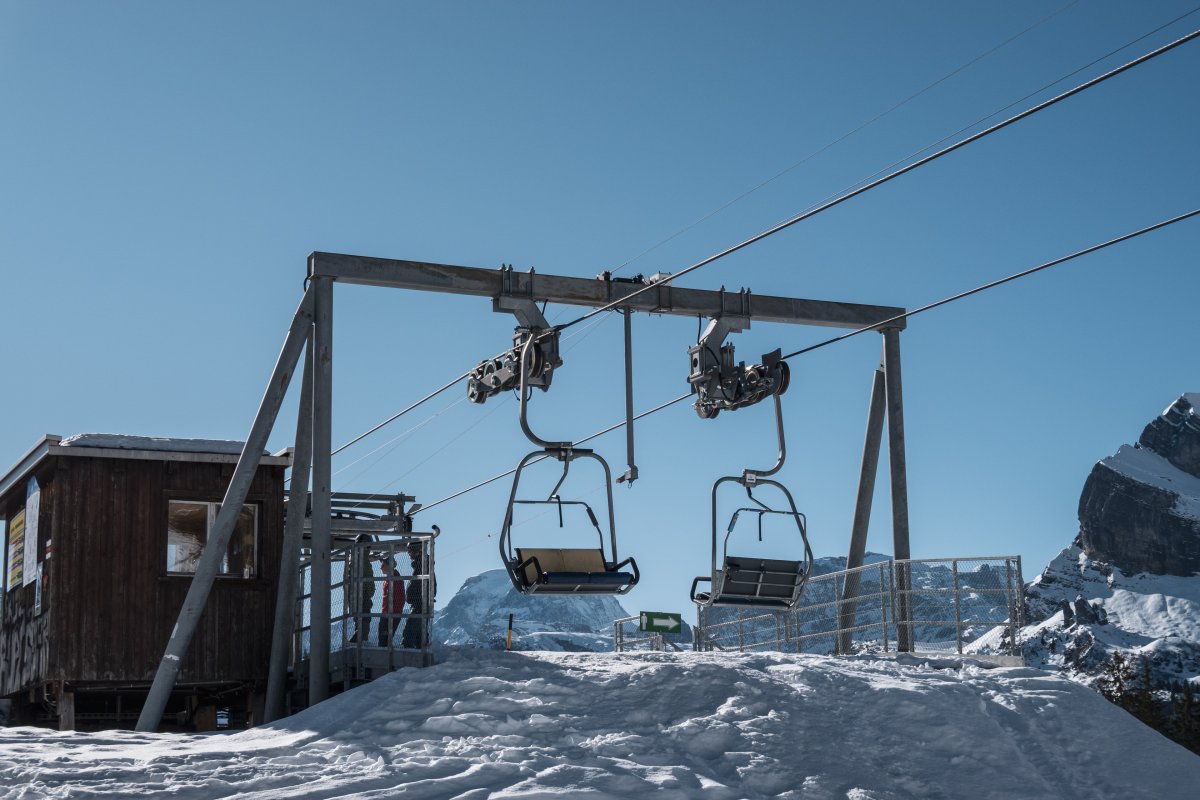

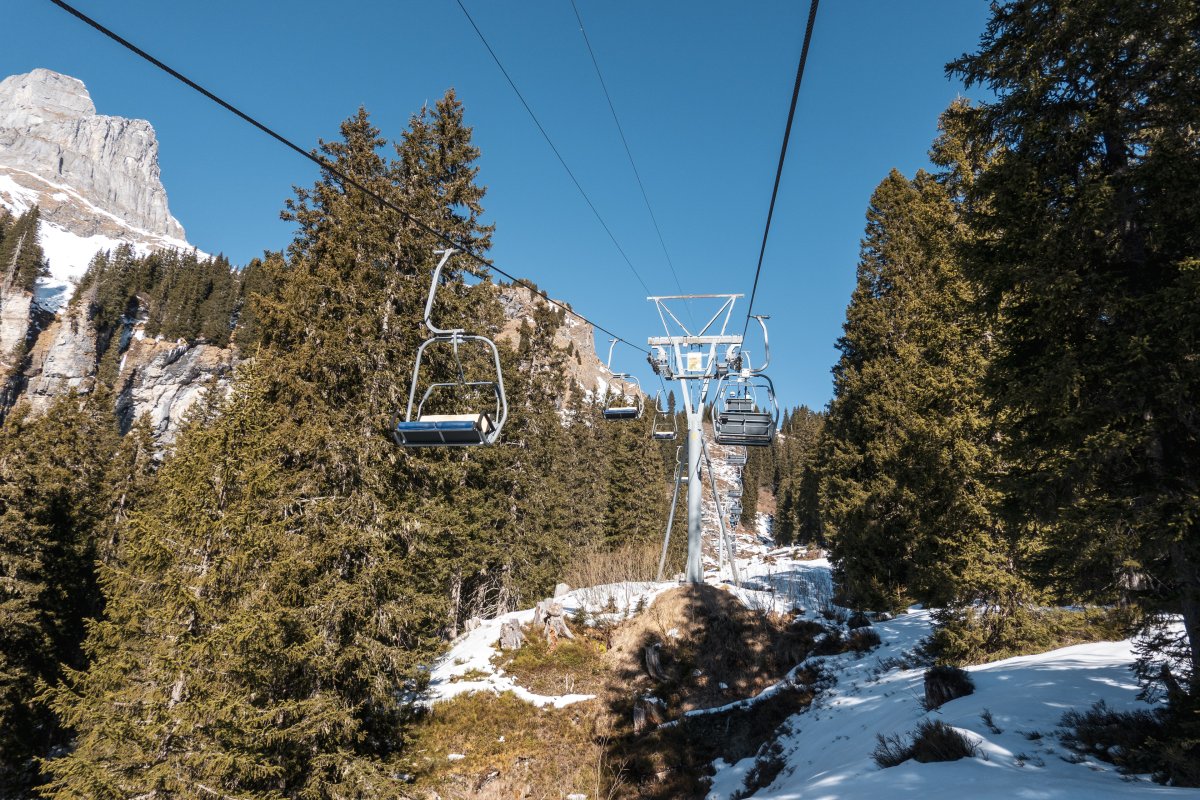

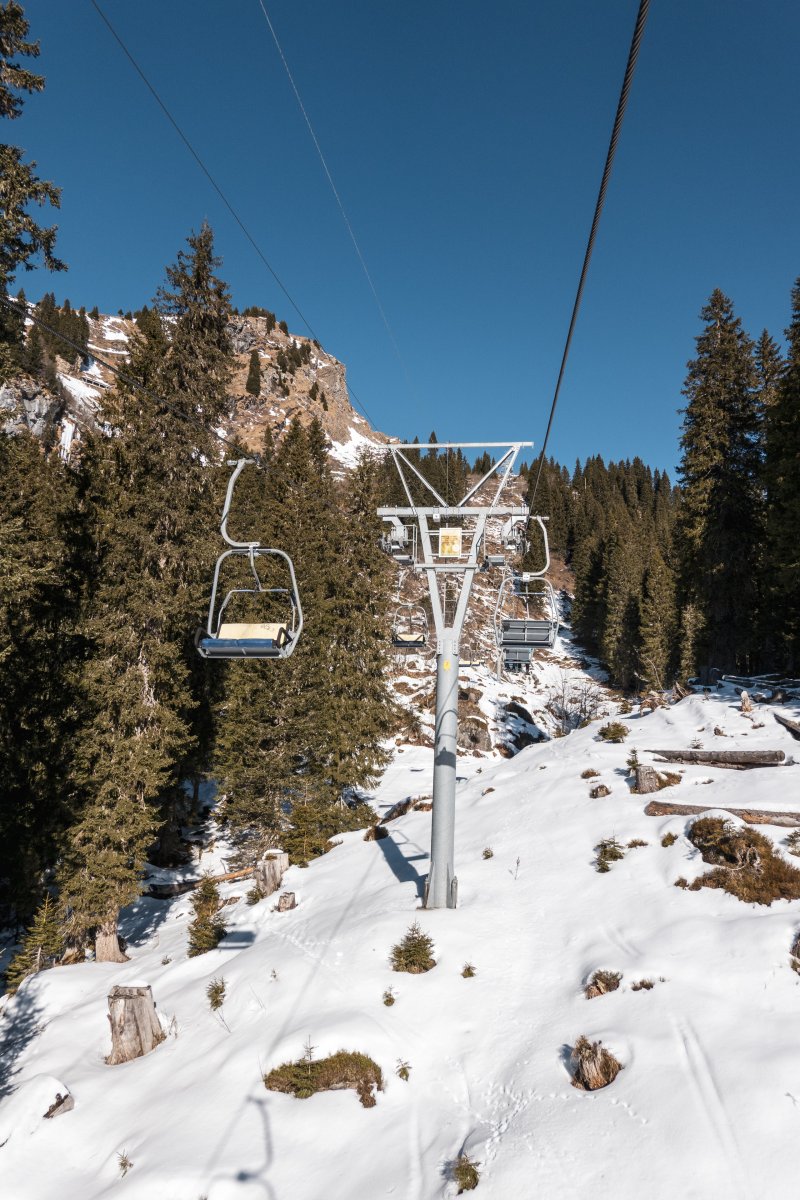

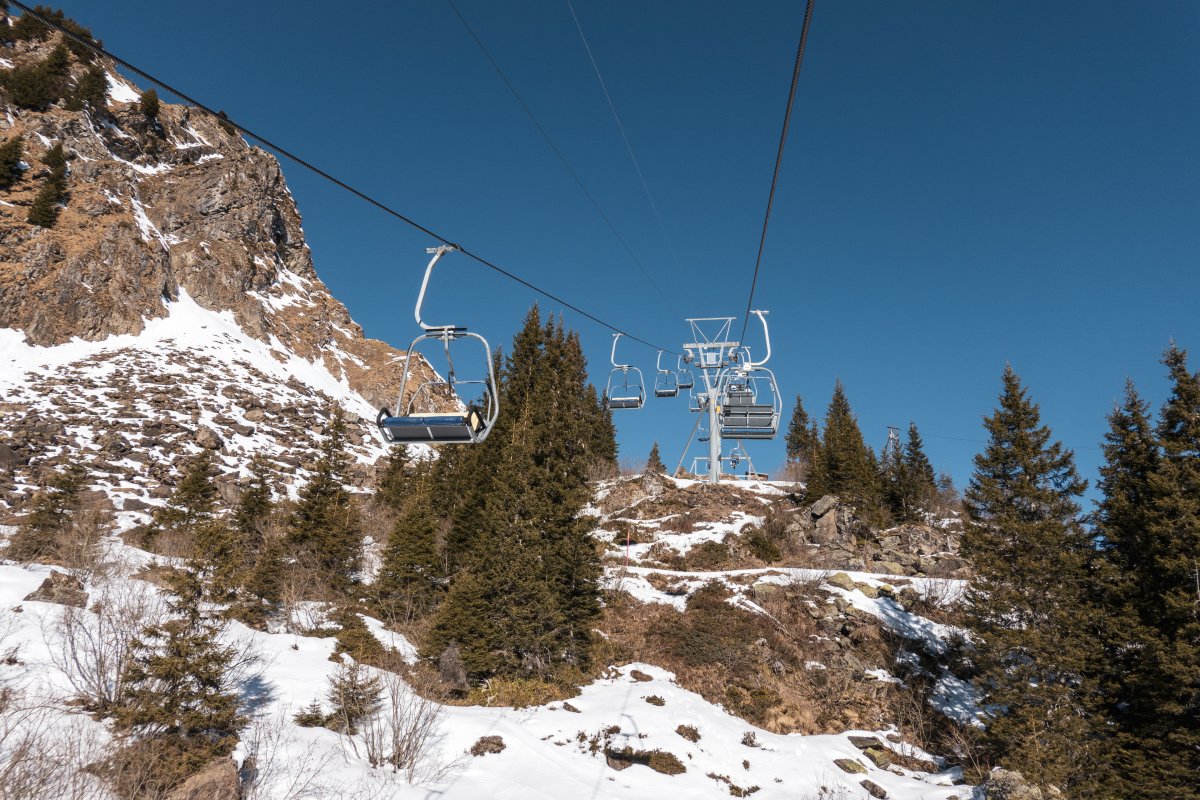

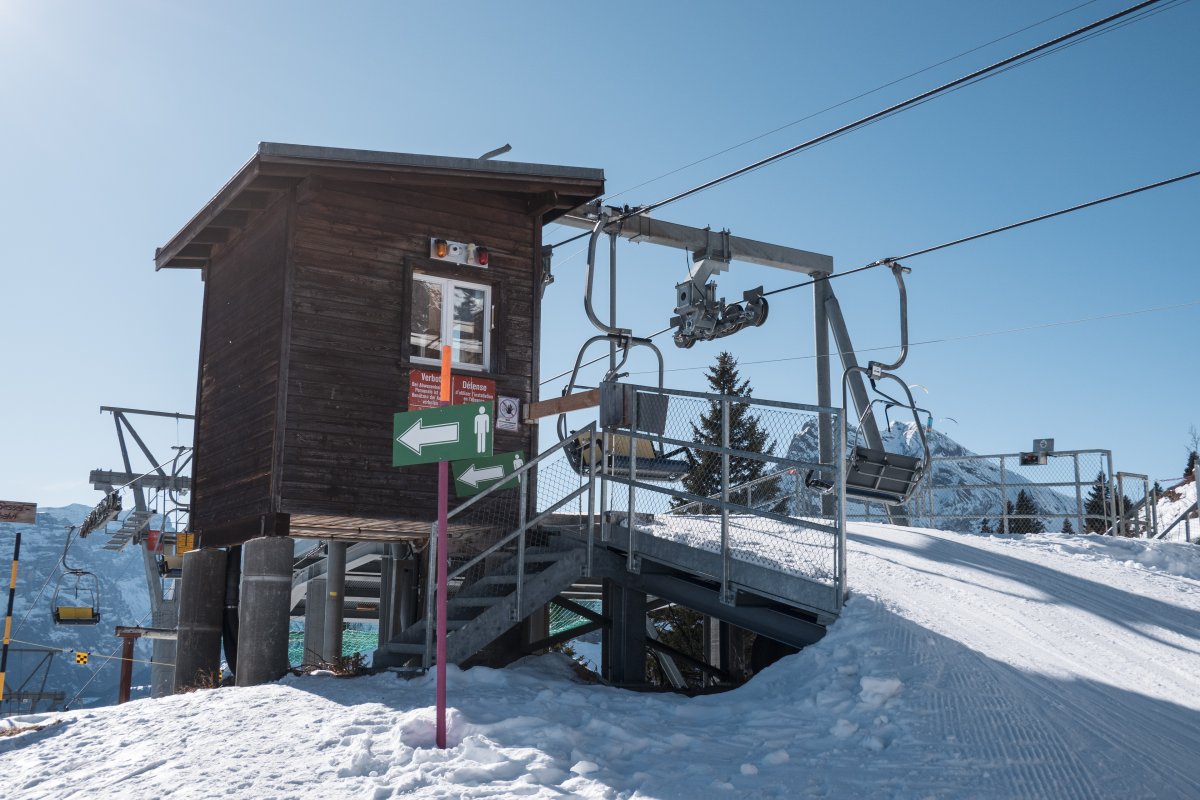

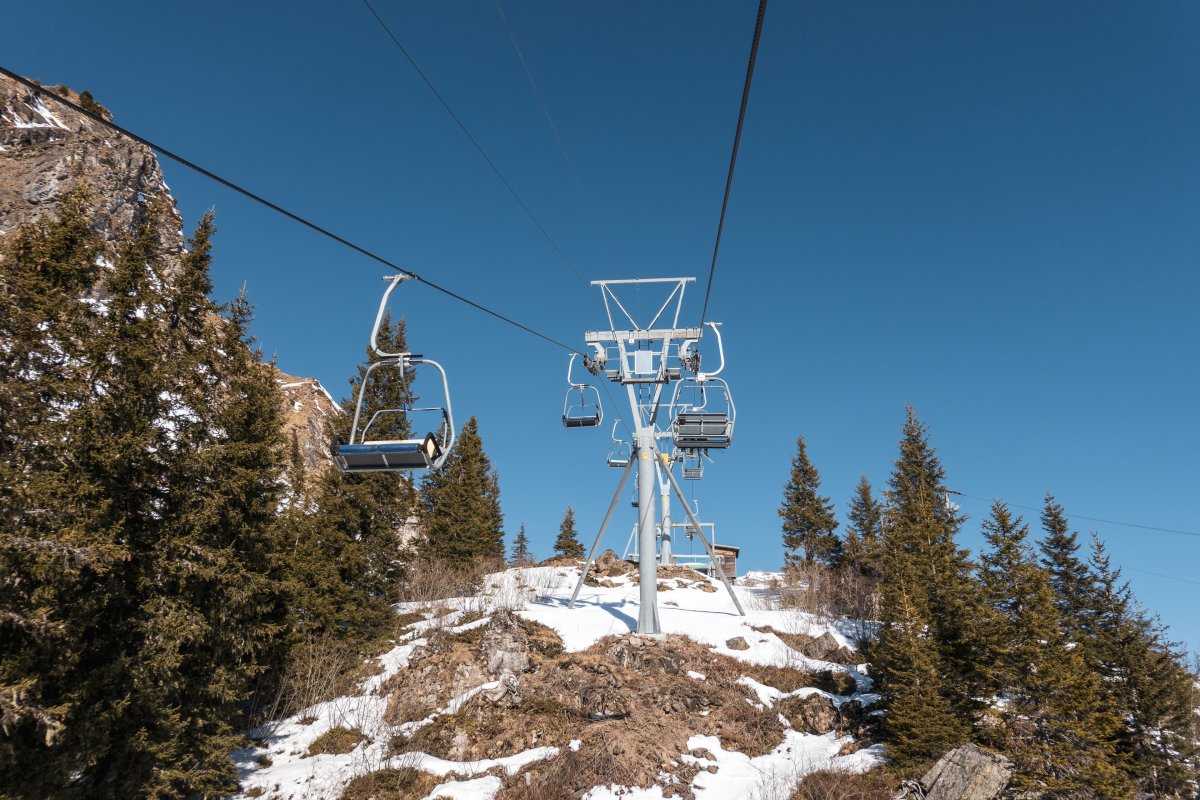

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.94963 N / 8.9929 E, Top station 46.95956 N / 8.99197 E
Location of the installation: Google Maps • Swisstopo
