Ropeway Database - 6-SBK Unter Ämpächli-Schabell (Elm)
6-SBK Unter Ämpächli-Schabell
Last update: 02.12.2011 21:54 (Updated by Schöditaz)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1450 | m |
| Top station altitude | 2036 | m |
| Difference in altitude | 586 | m |
| Length | 1630 | m |
| Capacity | 2400 | P/h |
| Travel time | 8 | min |
| Speed | 5 | m/s |
| Number of towers | 16 | |
| Number of carriers | 78 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Doppelmayr | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
6-SBK Unter Ämpächli-Schabell
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

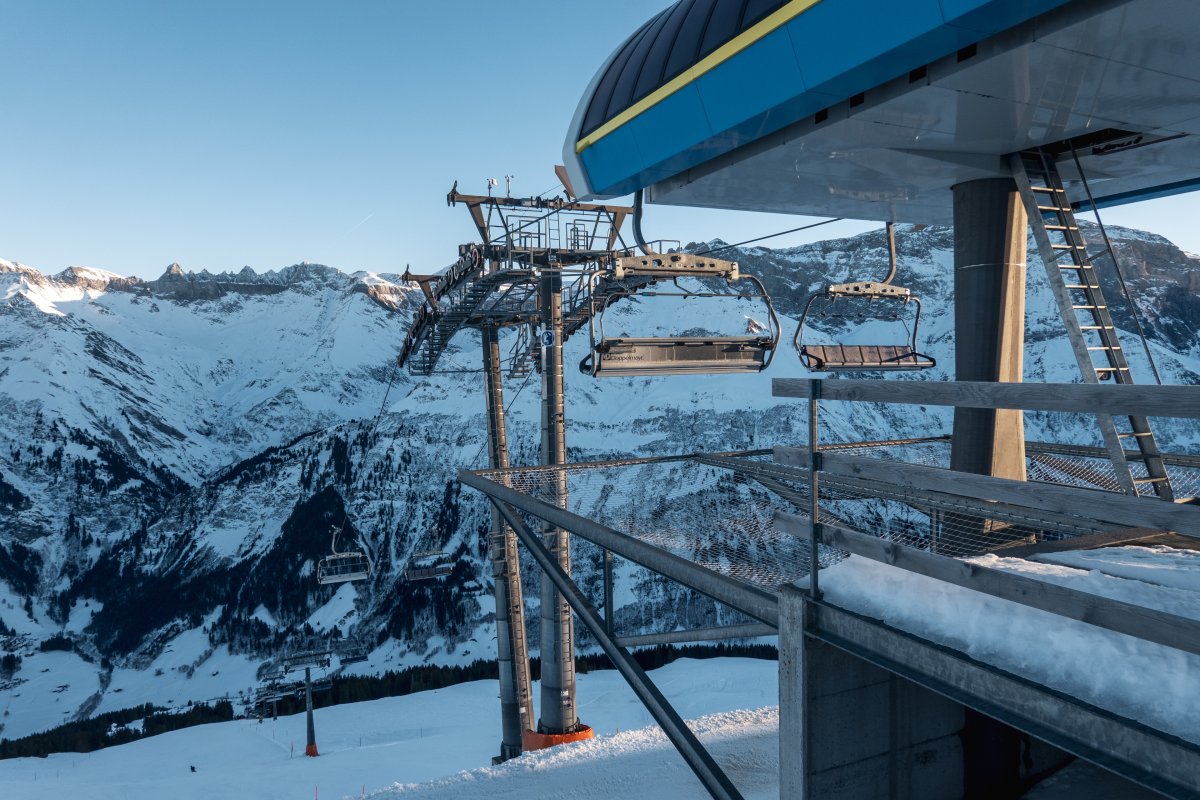

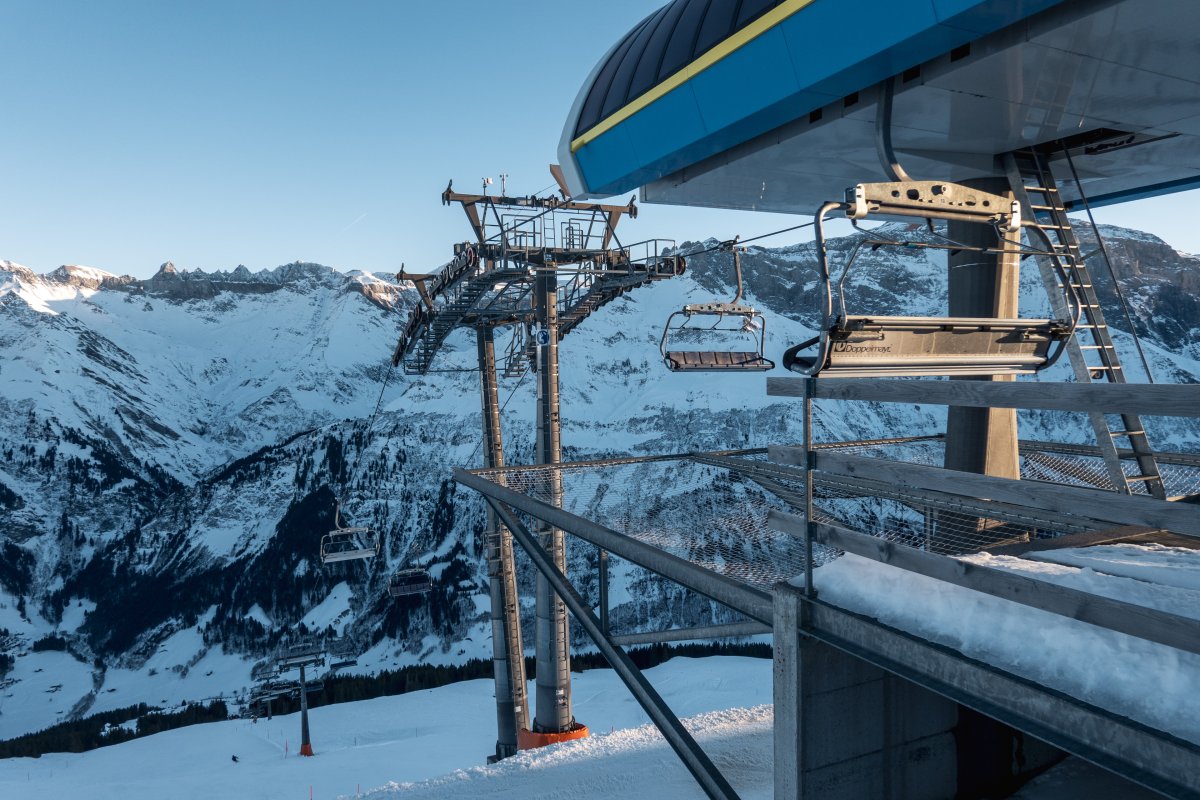

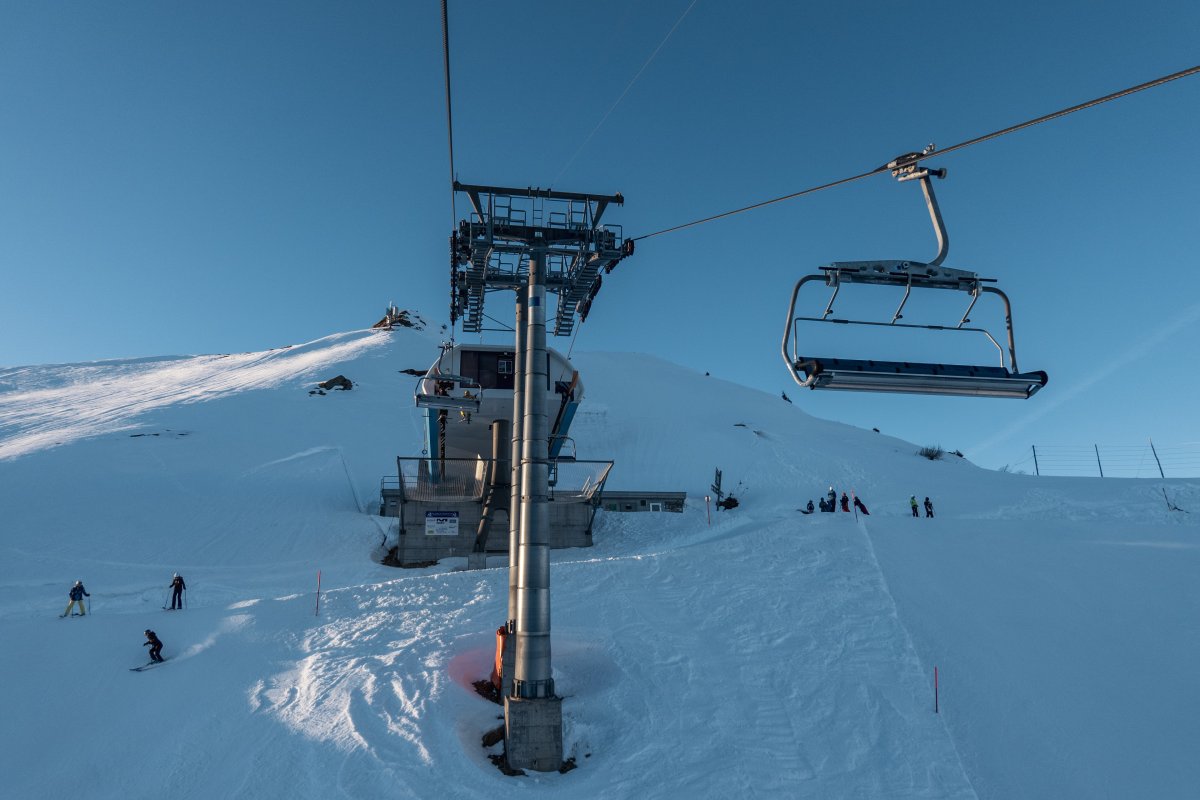

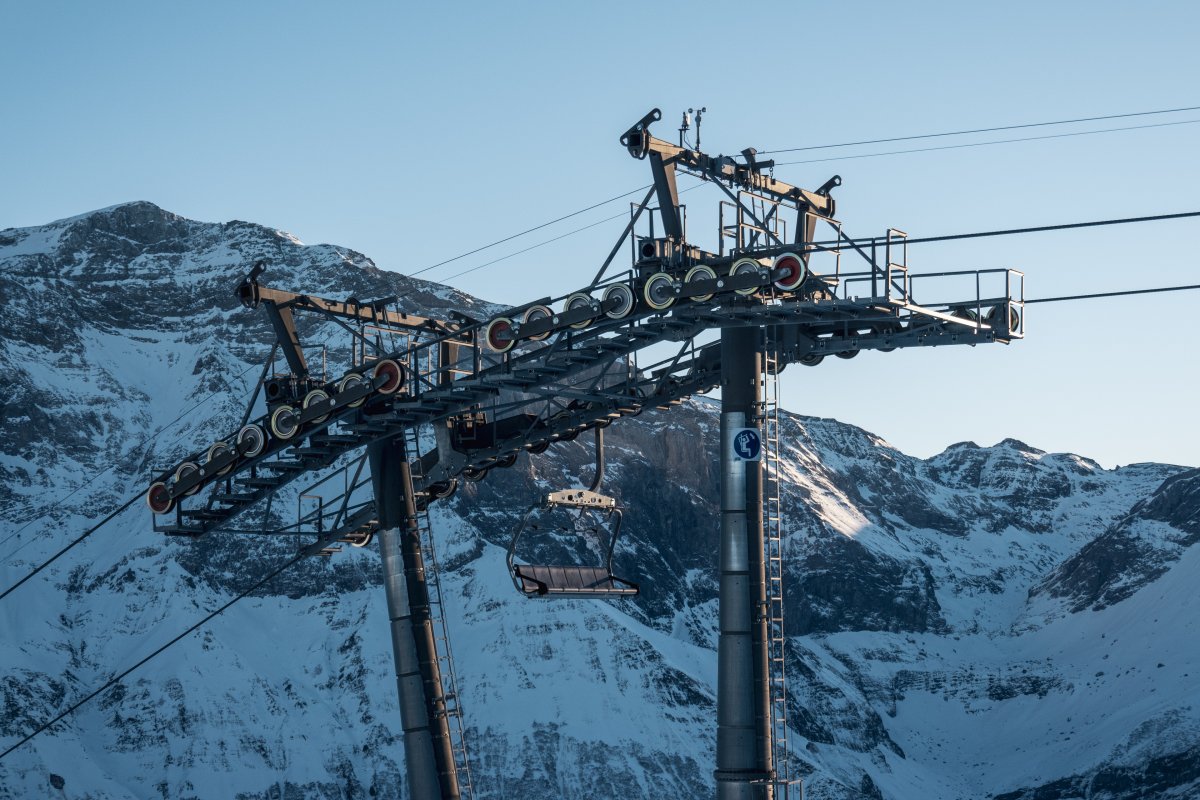

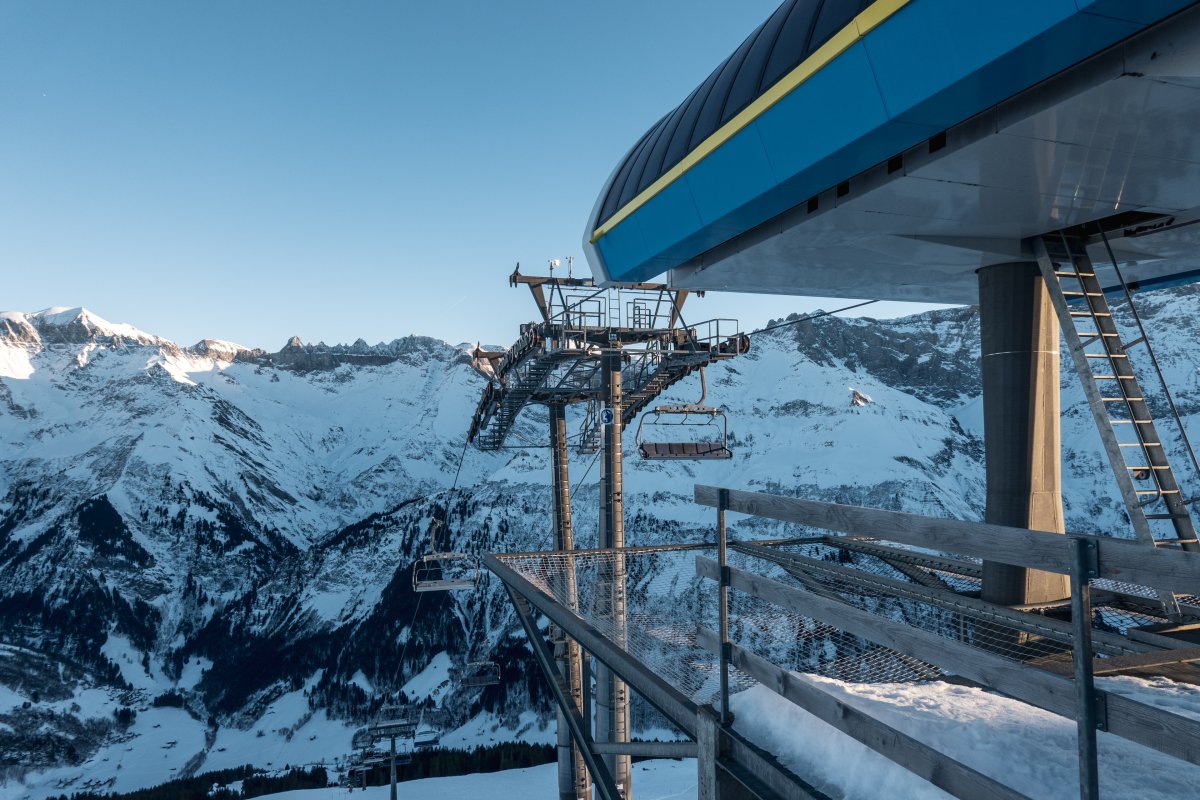

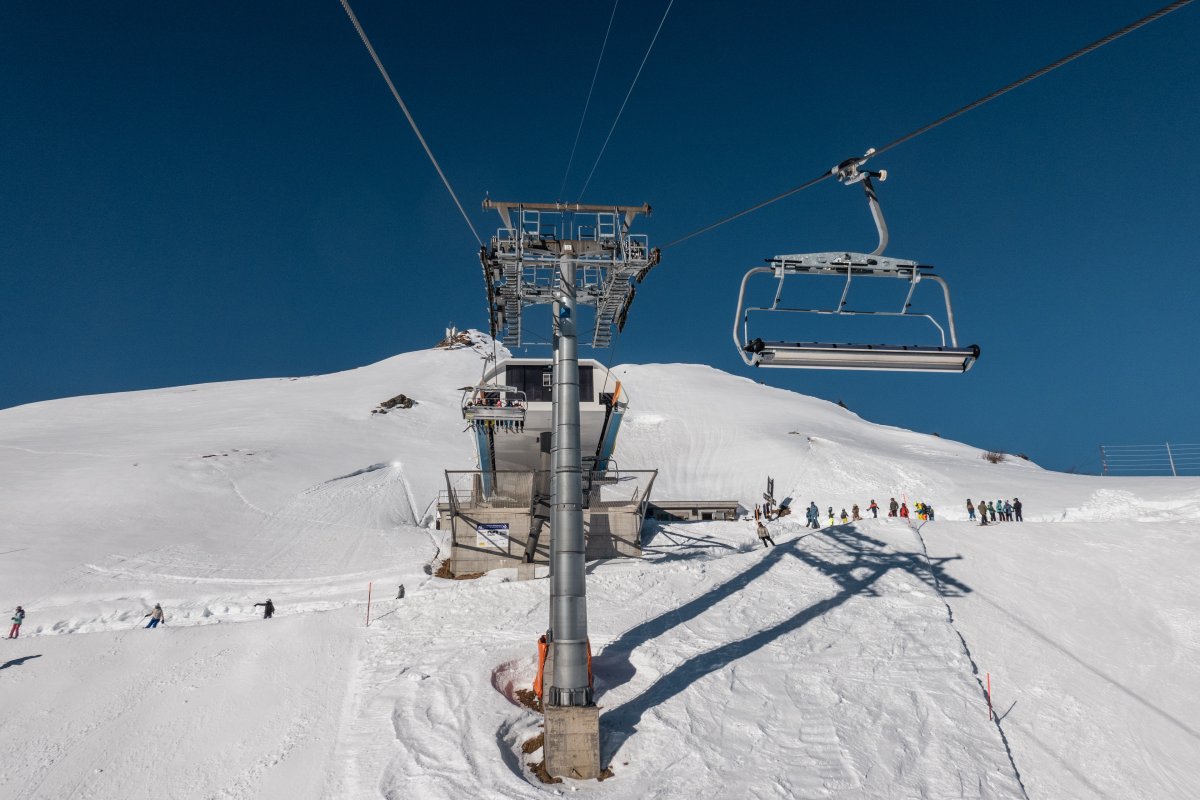

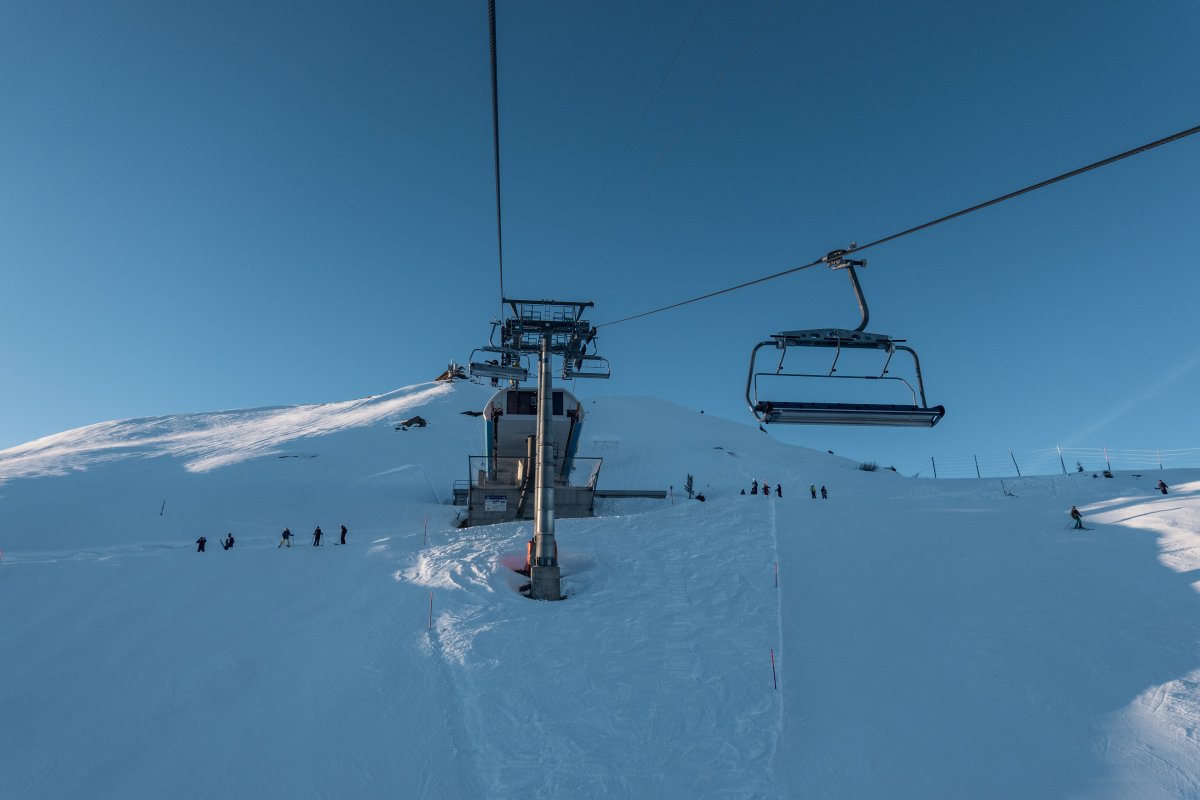

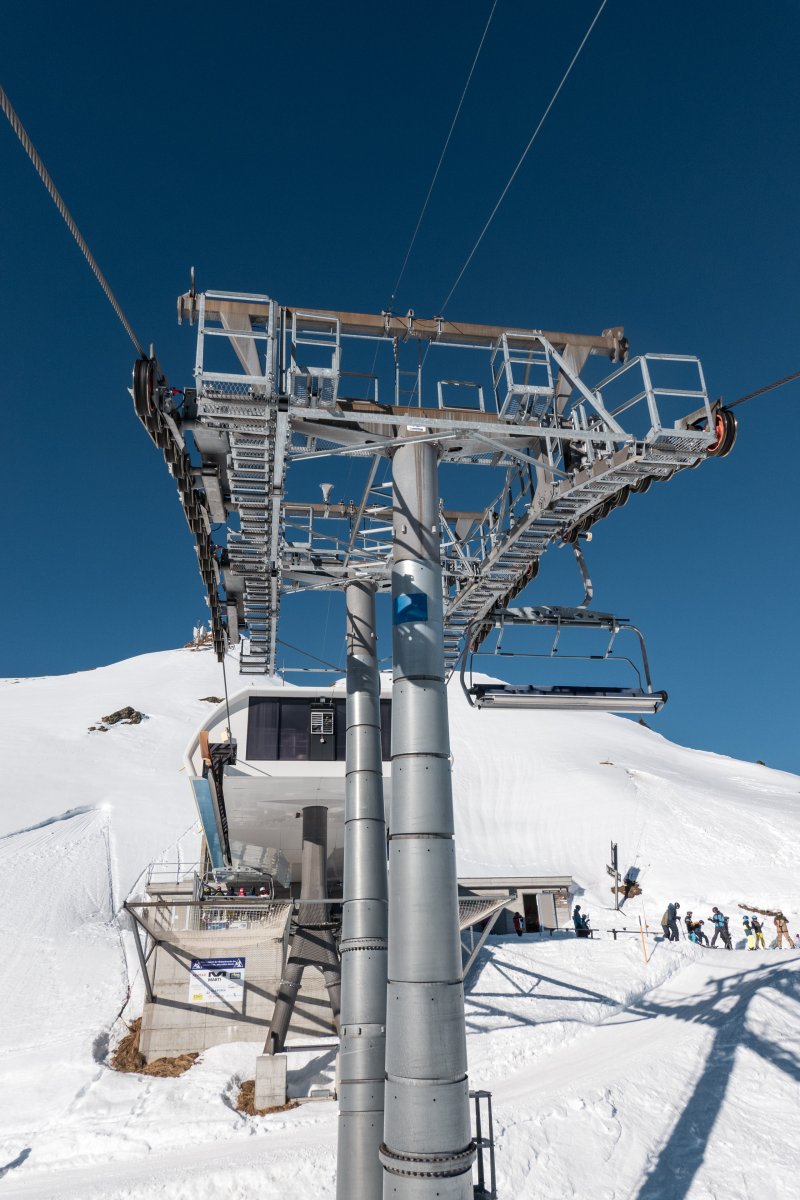

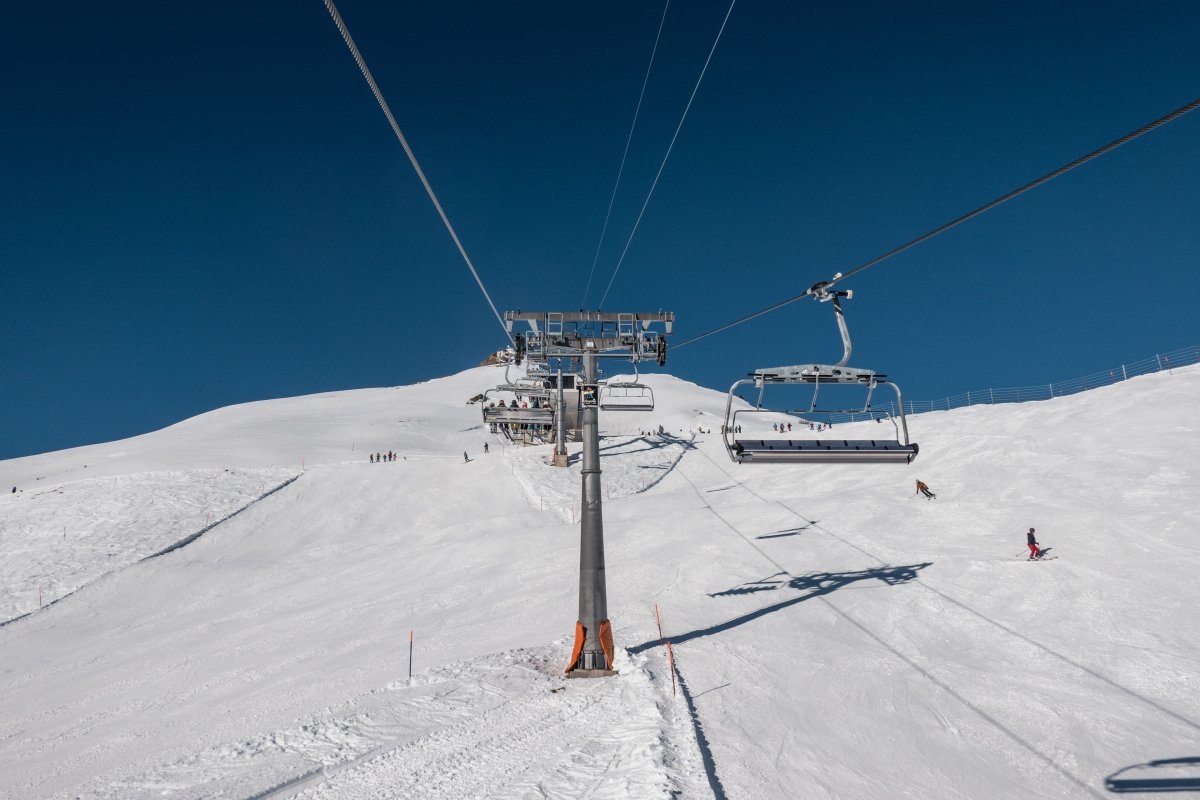

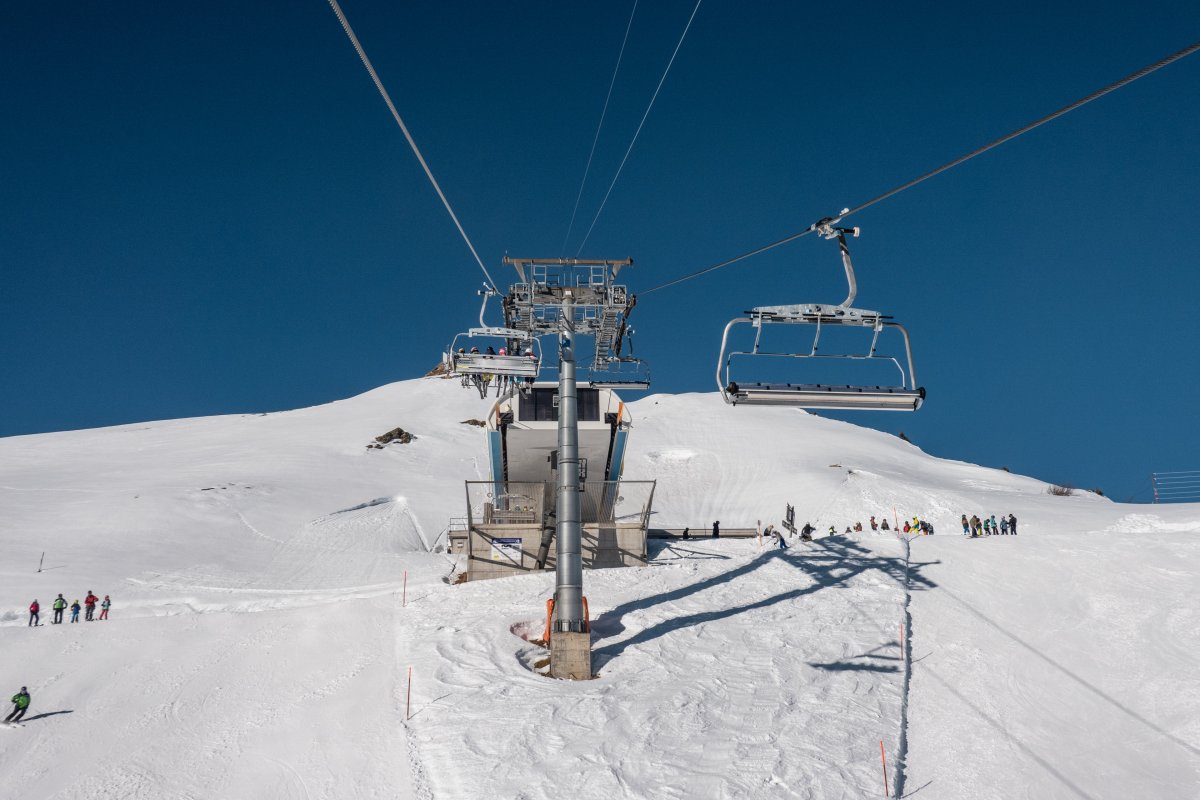

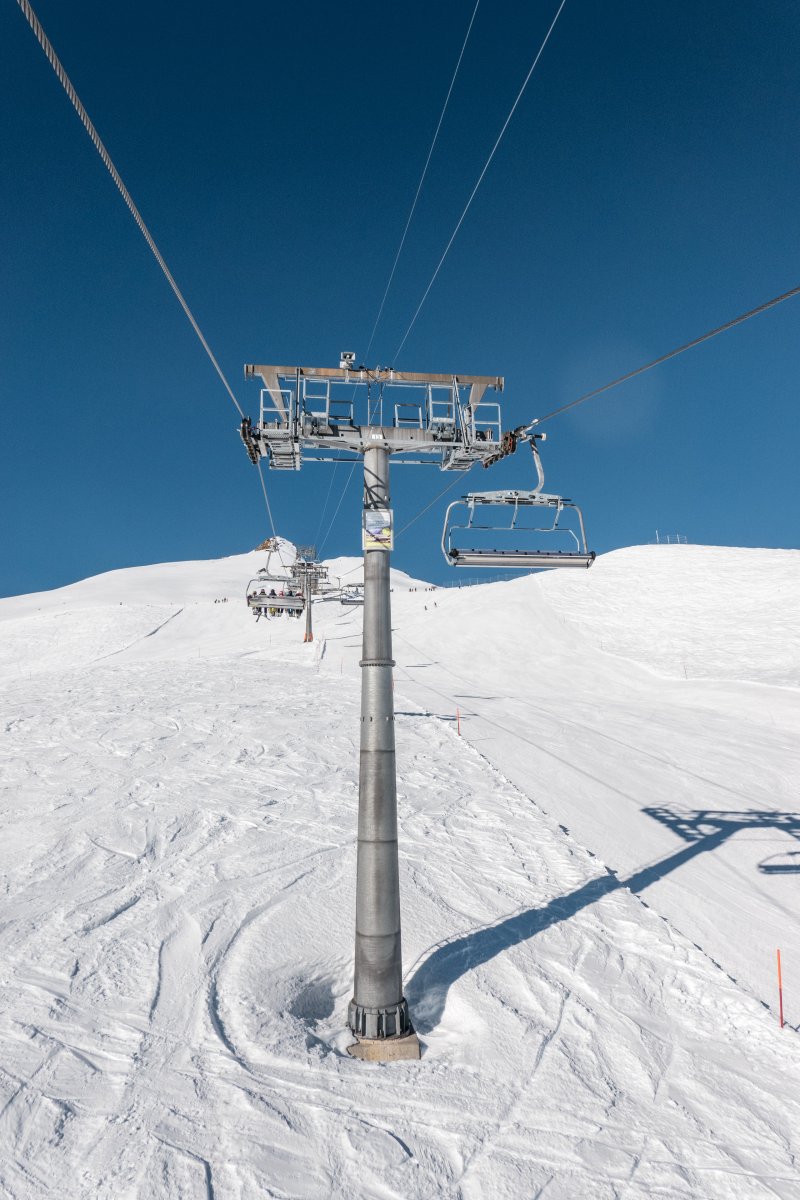

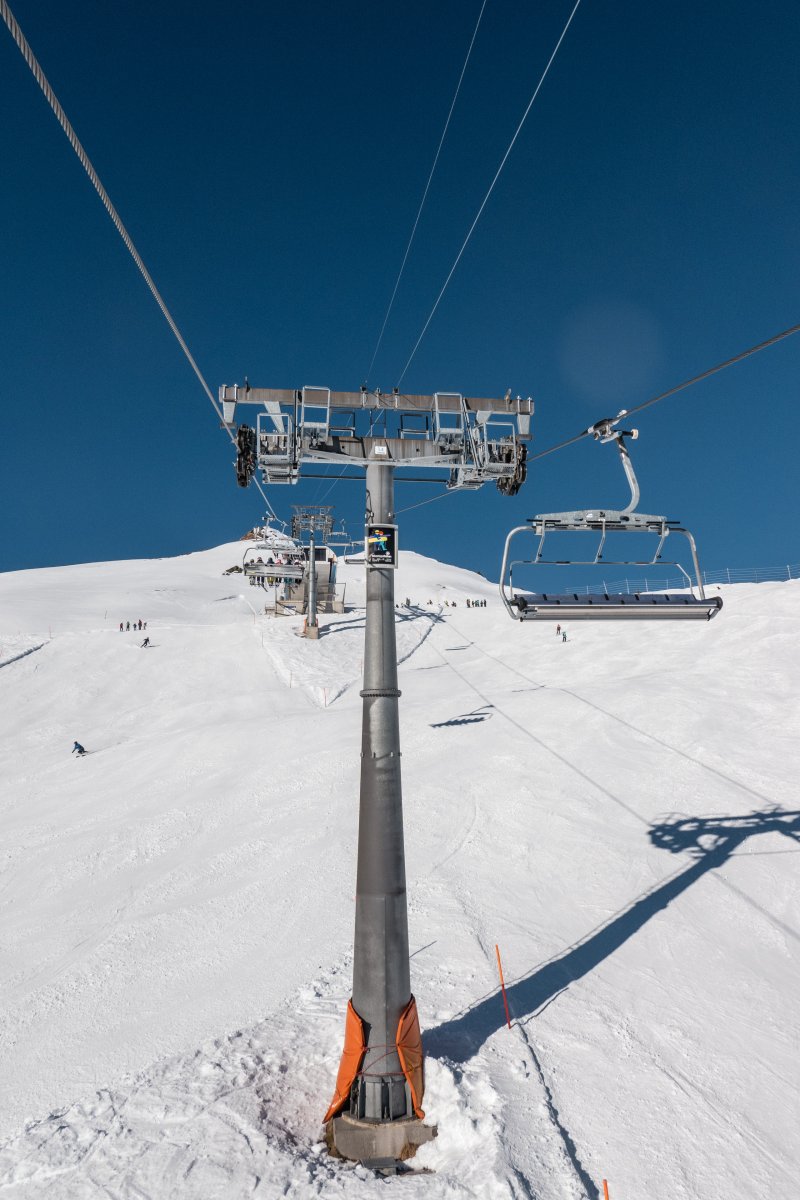

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.92201 N / 9.15806 E, Top station 46.92941 N / 9.14105 E
Location of the installation: Google Maps • Swisstopo
