4-SBK Curnius-Crap Sogn Gion

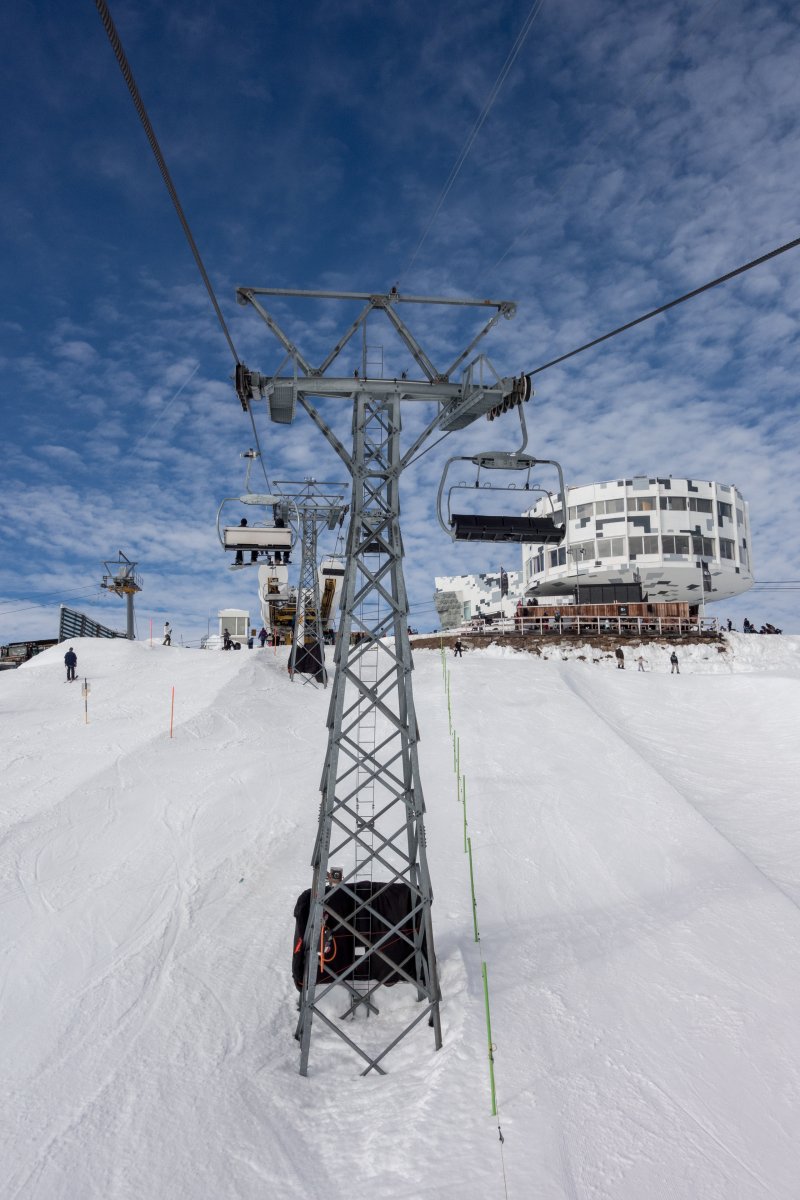

Photo provided by: Felix
Technical data
| Bottom station altitude | 1640 | m |
| Top station altitude | 2210 | m |
| Difference in altitude | 570 | m |
| Length | 2103 | m |
| Capacity | 2400 | P/h |
| Travel time | ||
| Speed | 5 | m/s |
| Number of towers | 23 | |
| Number of carriers | 165 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Von Roll | |
| Rope manufacturer | ||
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
4-SBK Curnius-Crap Sogn Gion
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

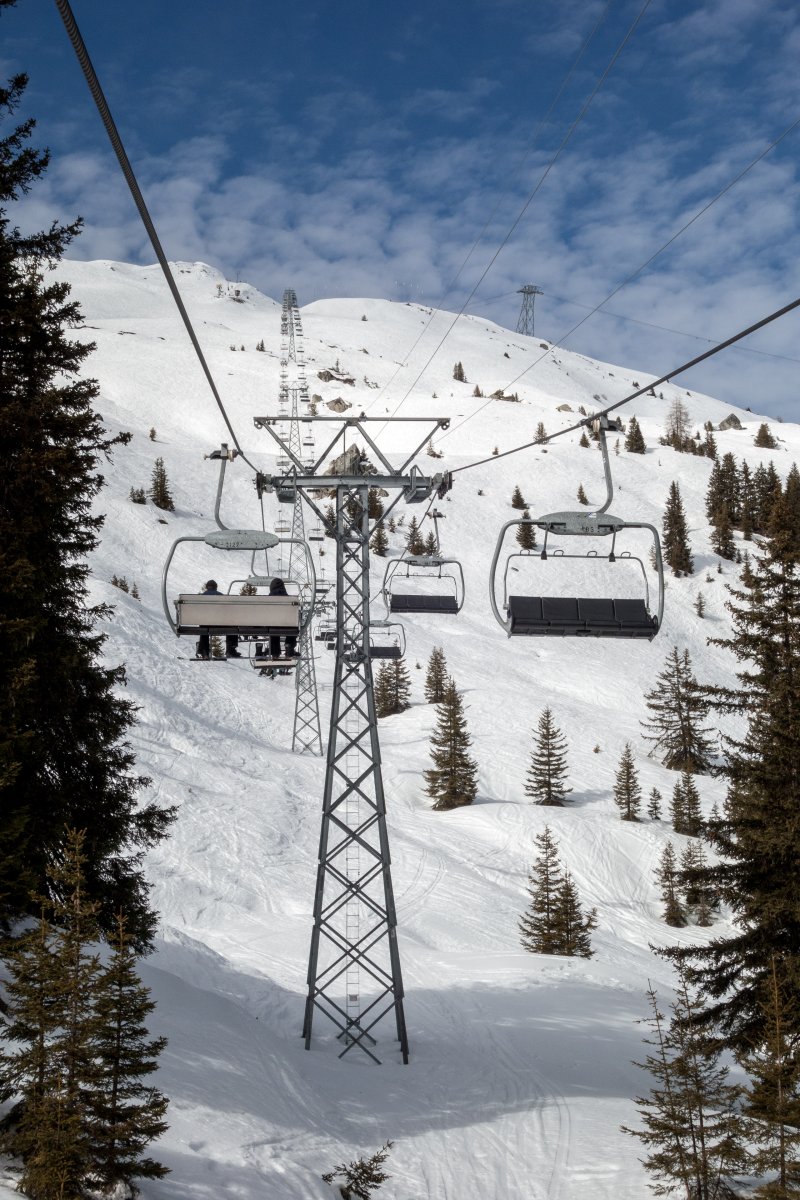

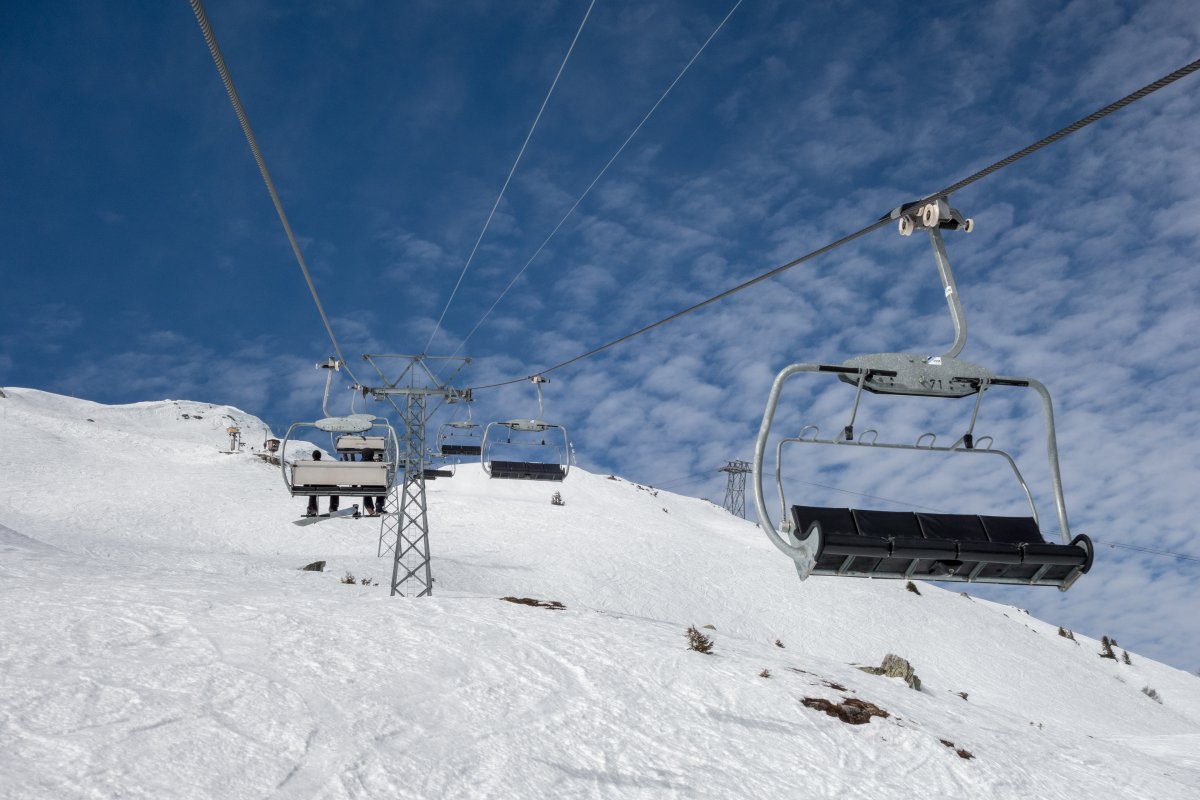

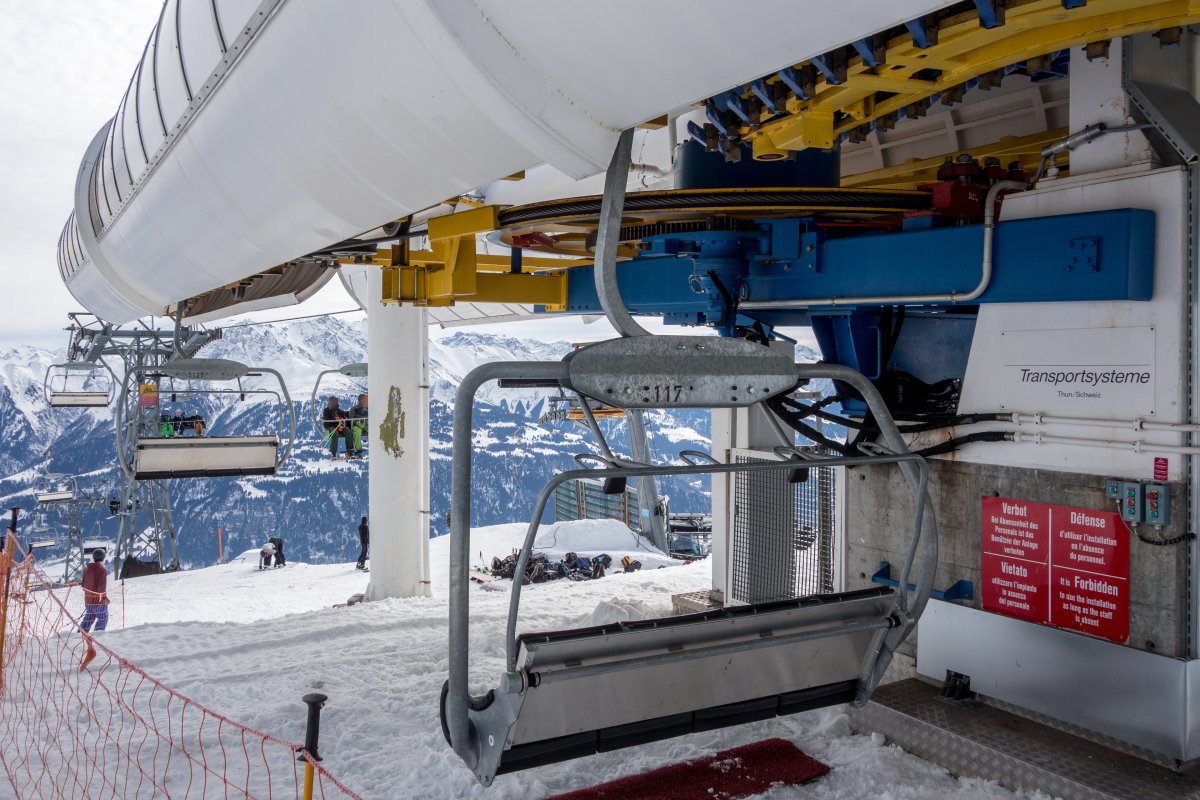

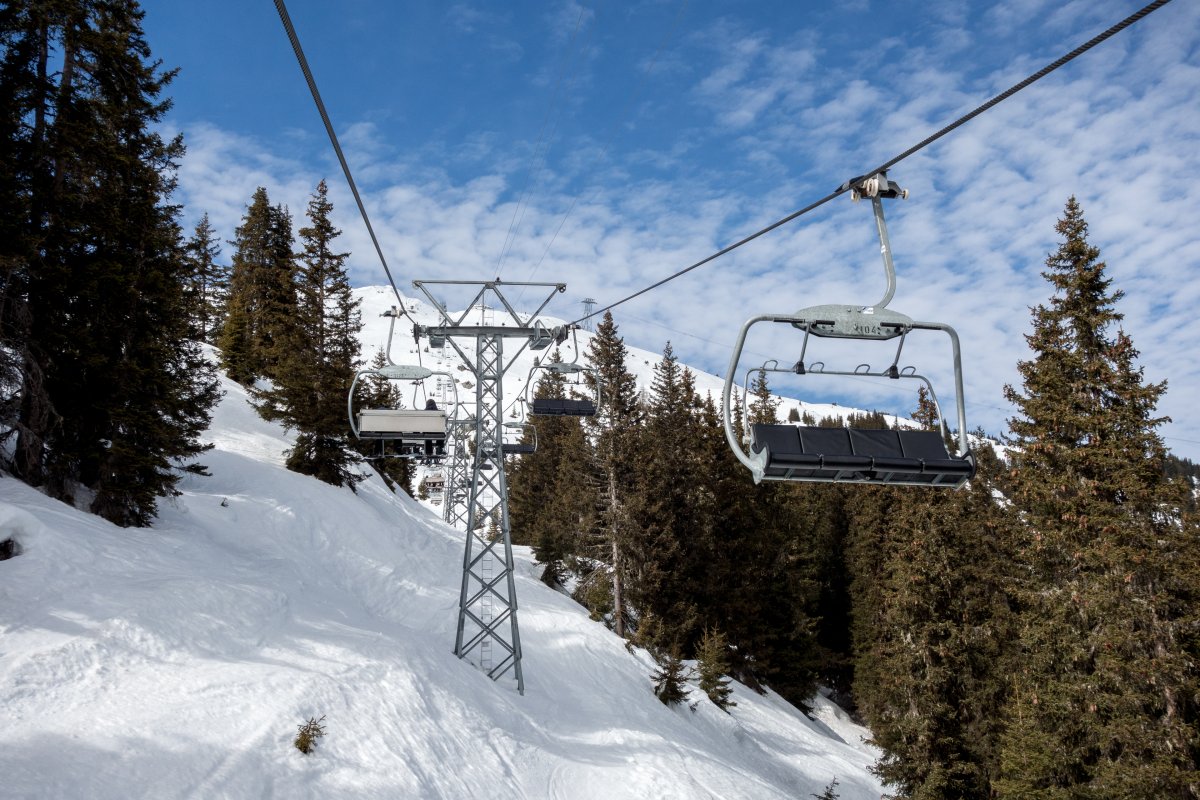

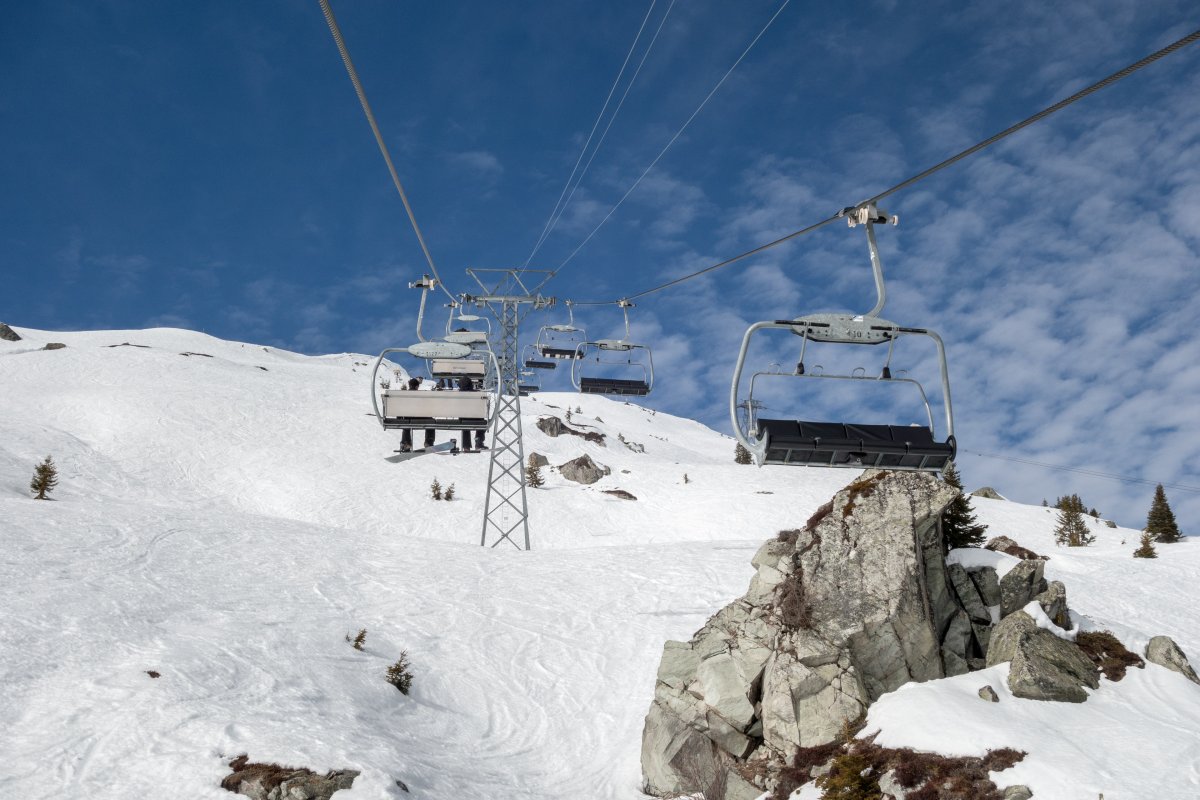

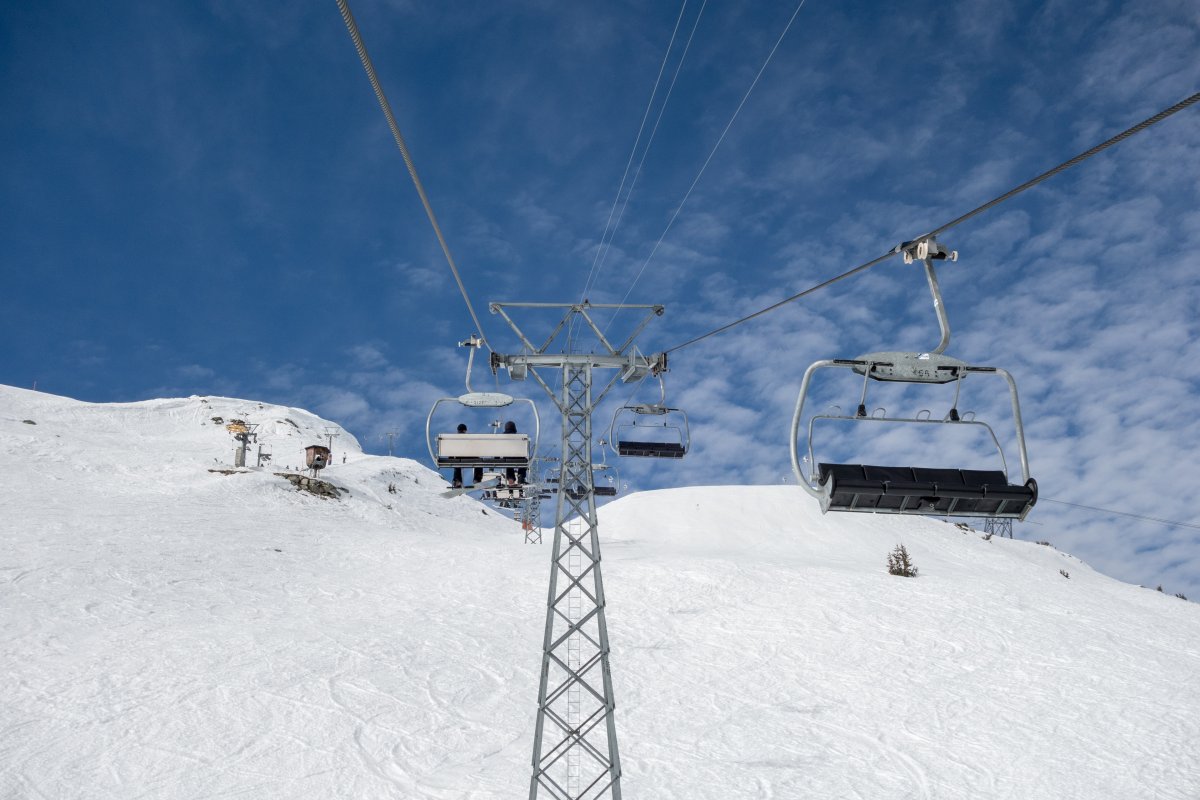

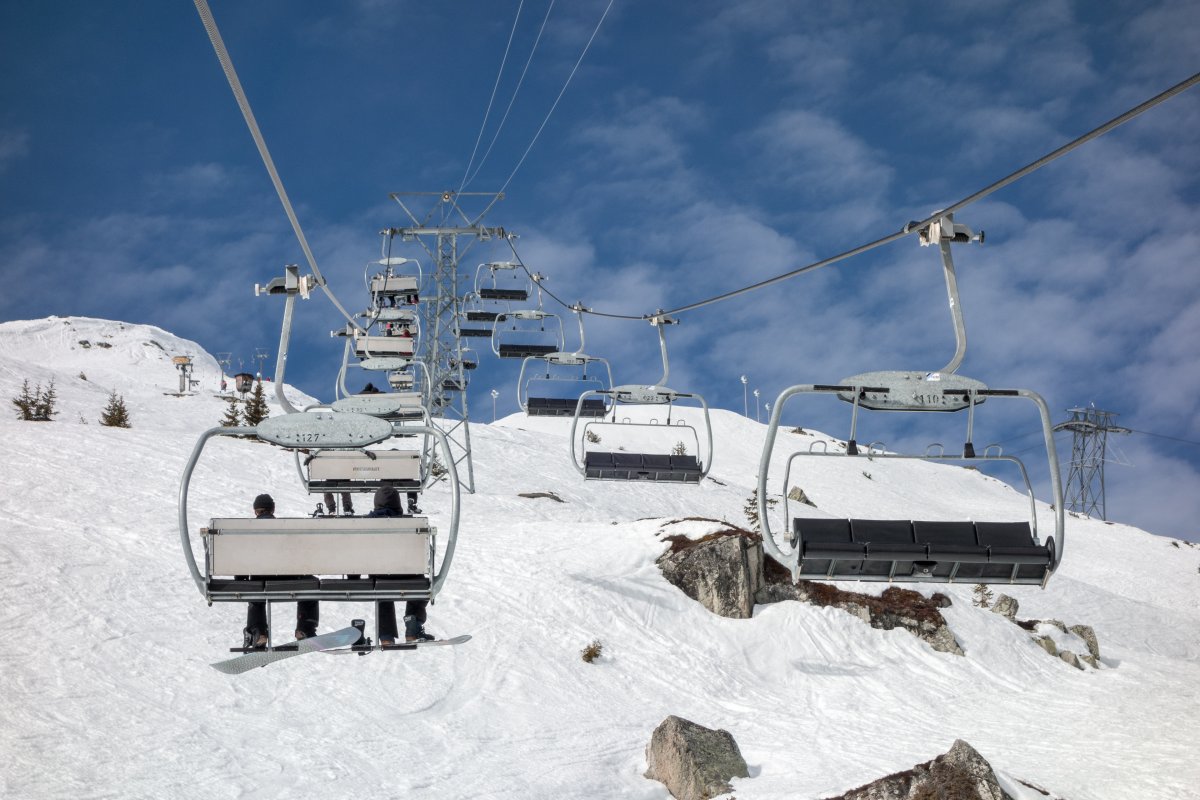

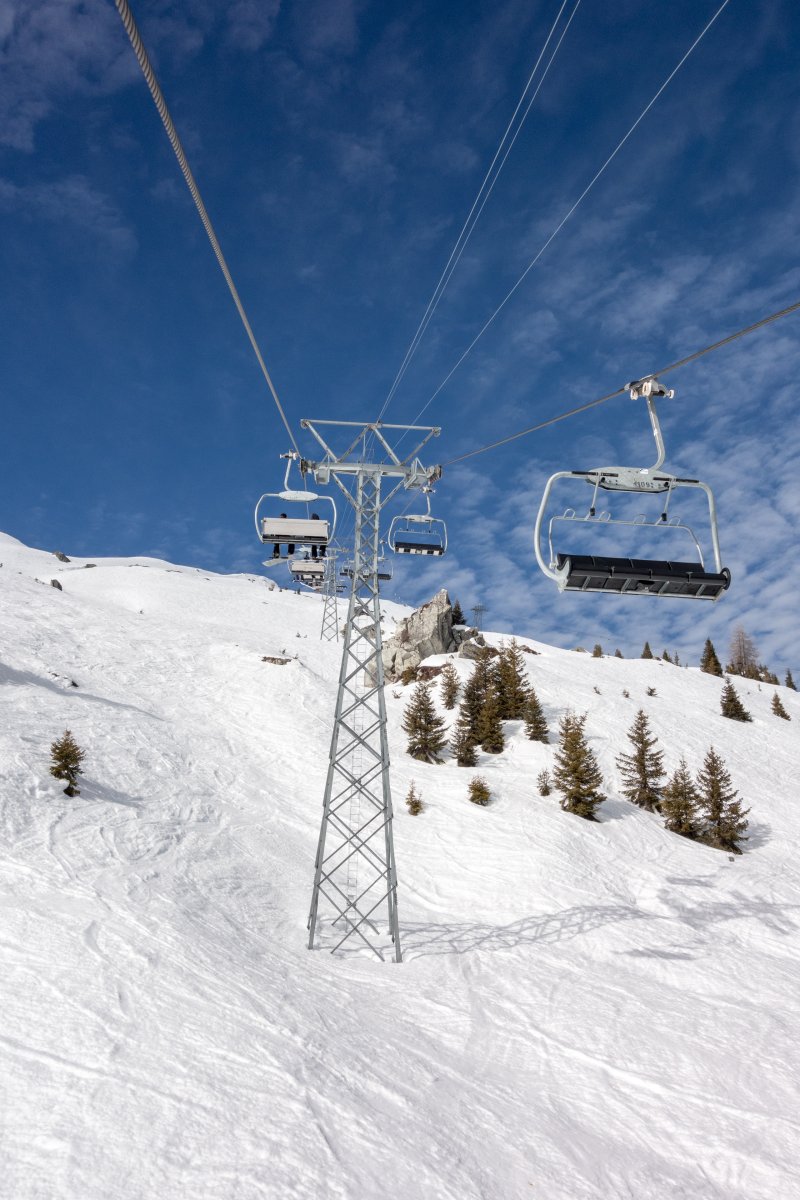

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.82065 N / 9.23307 E, Top station 46.83434 N / 9.21574 E
Location of the installation: Google Maps • Swisstopo
