Chairlift Wali-Stein in Obersaxen
3-person Chairlift Wali-Stein
AI Abstract
The Wali-Stein cable car in Obersaxen (built in 1985) spans a distance of 1483 meters, covering an elevation difference between 1717 m and 2155 m. It was built by Städeli. The maximum capacity is 900 people per hour.
| Country |
|
|---|---|
| Canton / State |
|
| Location | Obersaxen (Obersaxen-Lumnezia) |
| Name | Wali-Stein |
| Type | 3-SBF (LUMF-S3) |
| Operating Time | 1985 - To date |
| Manufacturer |
Städeli (2005 Garaventa) |
| Status |
 |
- Country: Switzerland
- Canton / State: Grisons
- Location: Obersaxen (Obersaxen-Lumnezia)
- Name: Wali-Stein
- Type: 3-SBF
- Operating Time: 1985-To date
- Year of construction: 1985
- Manufacturer: Städeli
- Status: In operation
- Bottom station altitude: 1717 m
- Difference in altitude: 438 m
- Length: 1483 m
- Capacity: 900 P/h
- Number of towers: 17
- Number of carriers: 139
- Drive terminal: Bottom station
- Tensioning terminal: Bottom station
- Carrier manufacturer: Städeli
- Rope manufacturer: Fatzer
- Electronics manufacturer: Sisag
- Transportation uphill: Yes
- Transportation downhill: Yes
Frequently asked questions
What is the ropeway Wali-Stein?
The Wali-Stein ropeway is a 3-person Chairlift in Obersaxen and connects the valley station at 1717 m to the mountain station at 2155 m.
What is the hourly passenger capacity of the Wali-Stein ropeway?
The maximum capacity of the Wali-Stein ropeway is 900 people per hour.
When was the Wali-Stein ropeway constructed?
The Wali-Stein ropeway was constructed in 1985.
Where is the Wali-Stein ropeway located?
The Wali-Stein ropeway is operating in Obersaxen (Switzerland).
How long is the Wali-Stein ropeway?
The diagonal length of the Wali-Stein ropeway is 1483 meters.
What is the elevation gain of the Wali-Stein ropeway?
The Wali-Stein ropeway covers an elevation gain of 438 meters.
Who is the manufacturer of the Wali-Stein ropeway?
The Wali-Stein ropeway was constructed by the company Städeli.
Technical data
| Bottom station altitude | 1717 | m |
|---|---|---|
| Top station altitude | 2155 | m |
| Difference in altitude | 438 | m |
| Length | 1483 | m |
| Capacity | 900 | P/h |
| Travel time | ||
| Speed | ||
| Number of towers | 17 | |
| Number of carriers | 139 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Städeli | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
-
-
-
-

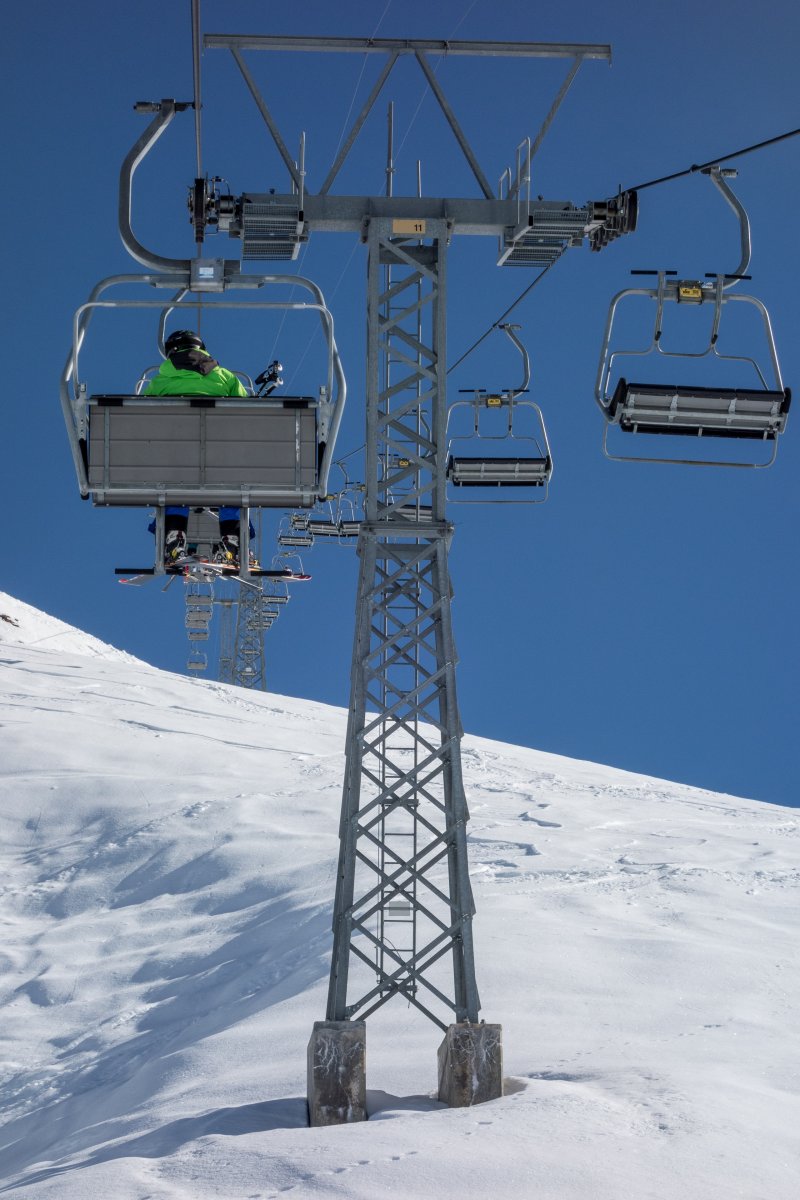

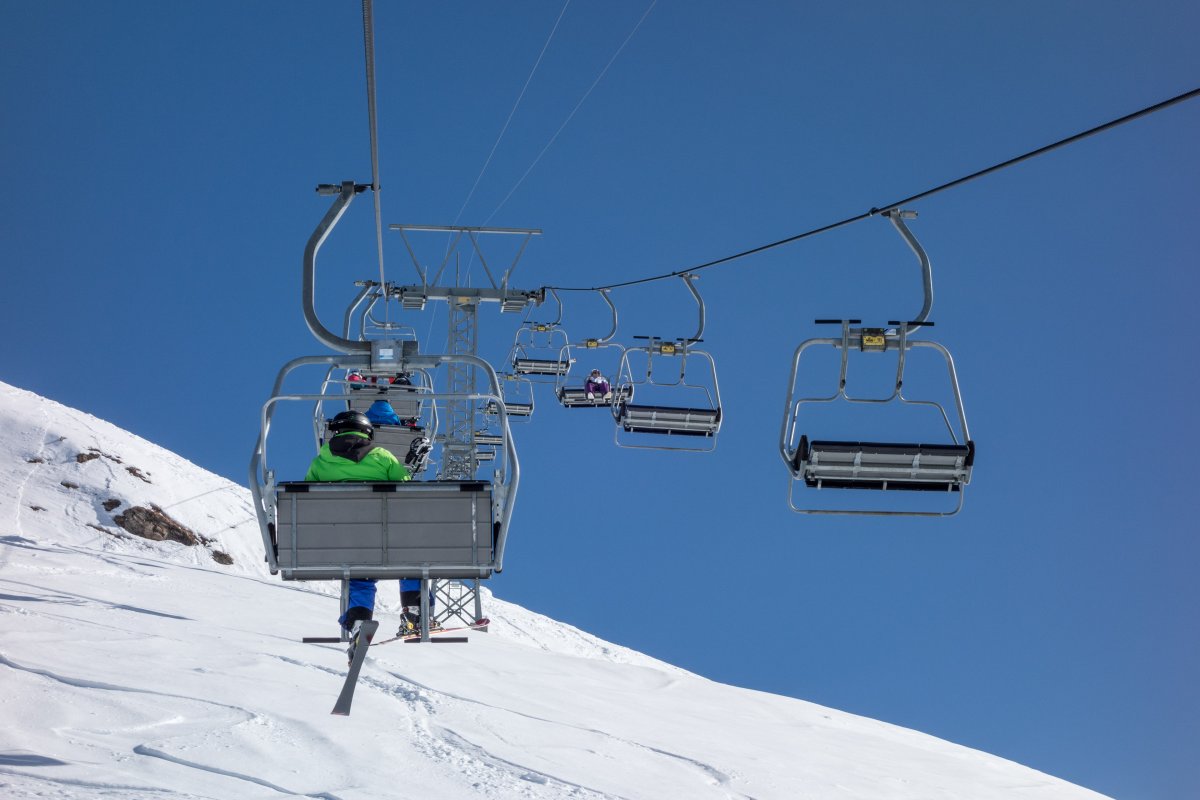

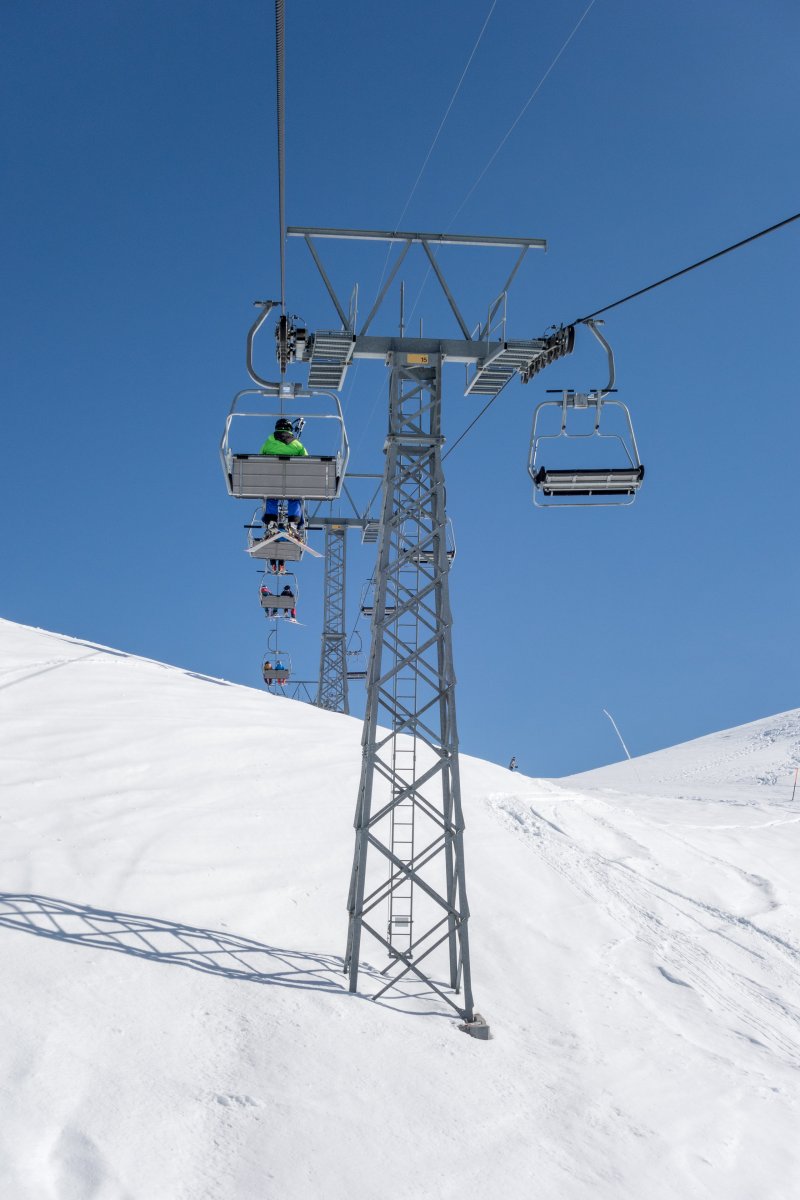

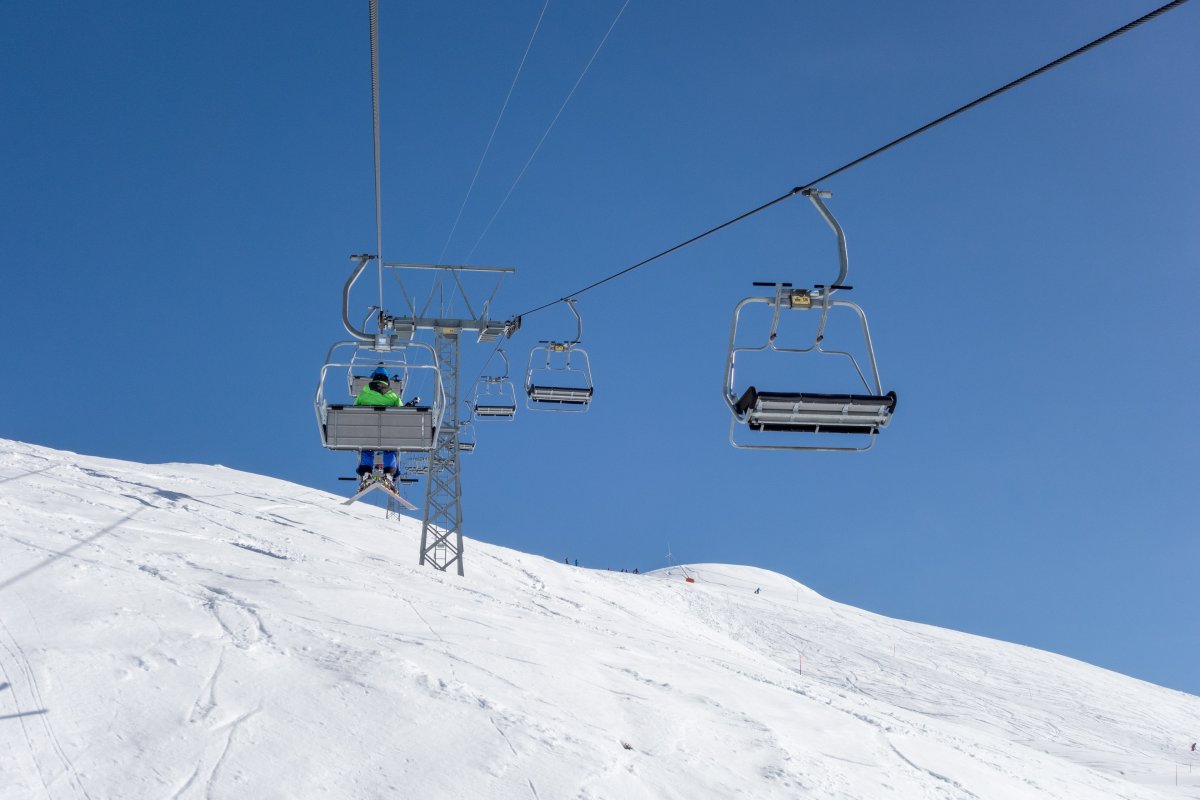

Photos of this ropeway
Videos of this ropeway
Location of the installation
Coordinates (decimal): Bottom station 46.72503 N / 9.10857 E, Top station 46.72643 N / 9.12606 E
Location of the installation: Google Maps • Swisstopo
Map legend:
Ropeway in operation
Ropeway out of operation
Ropeway dismantled
