Ropeway Database - 2-SBK Schwarzseealp-Gotschnagrat (Klosters)
2-SBK Schwarzseealp-Gotschnagrat
Last update: 26.12.2011 23:09 (Updated by Schöditaz)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1841 | m |
| Top station altitude | 2299 | m |
| Difference in altitude | 458 | m |
| Length | 1558 | m |
| Capacity | 1000 | P/h |
| Travel time | 6 | min |
| Speed | 5 | m/s |
| Number of towers | 15 | |
| Number of carriers | 101 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Garaventa | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
2-SBK Schwarzseealp-Gotschnagrat
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

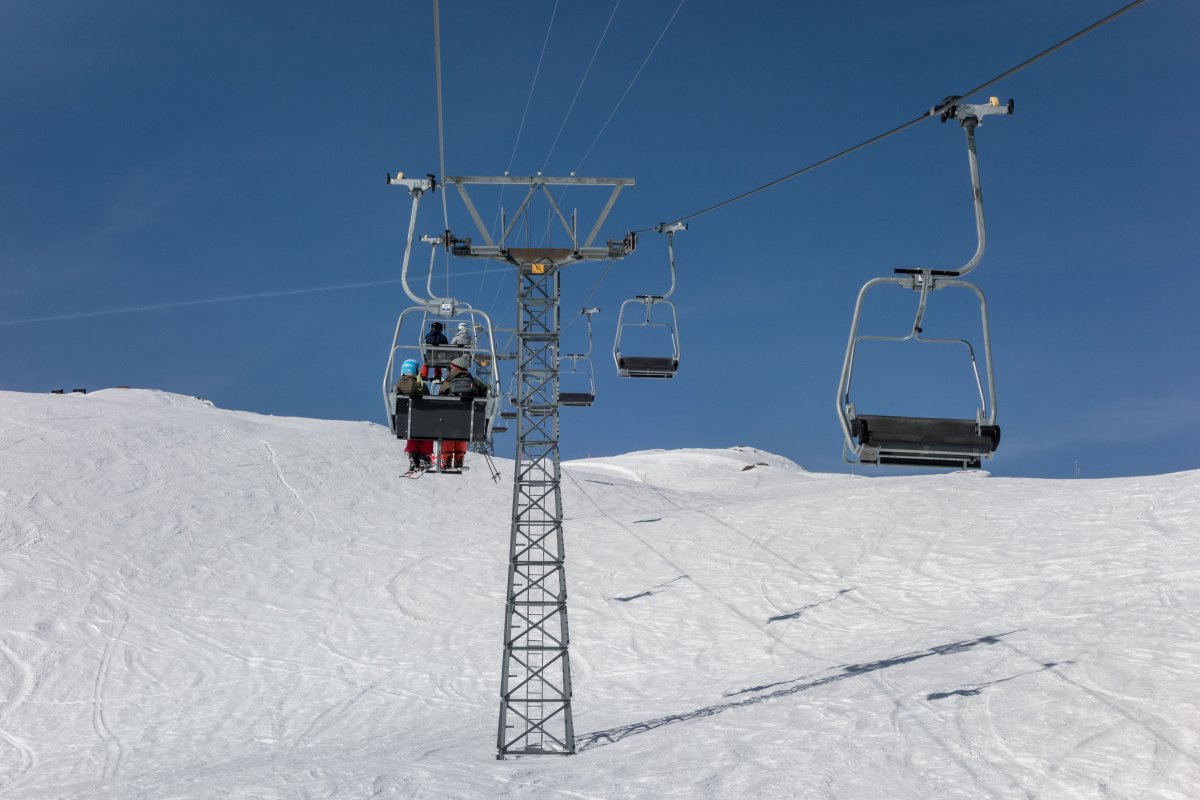

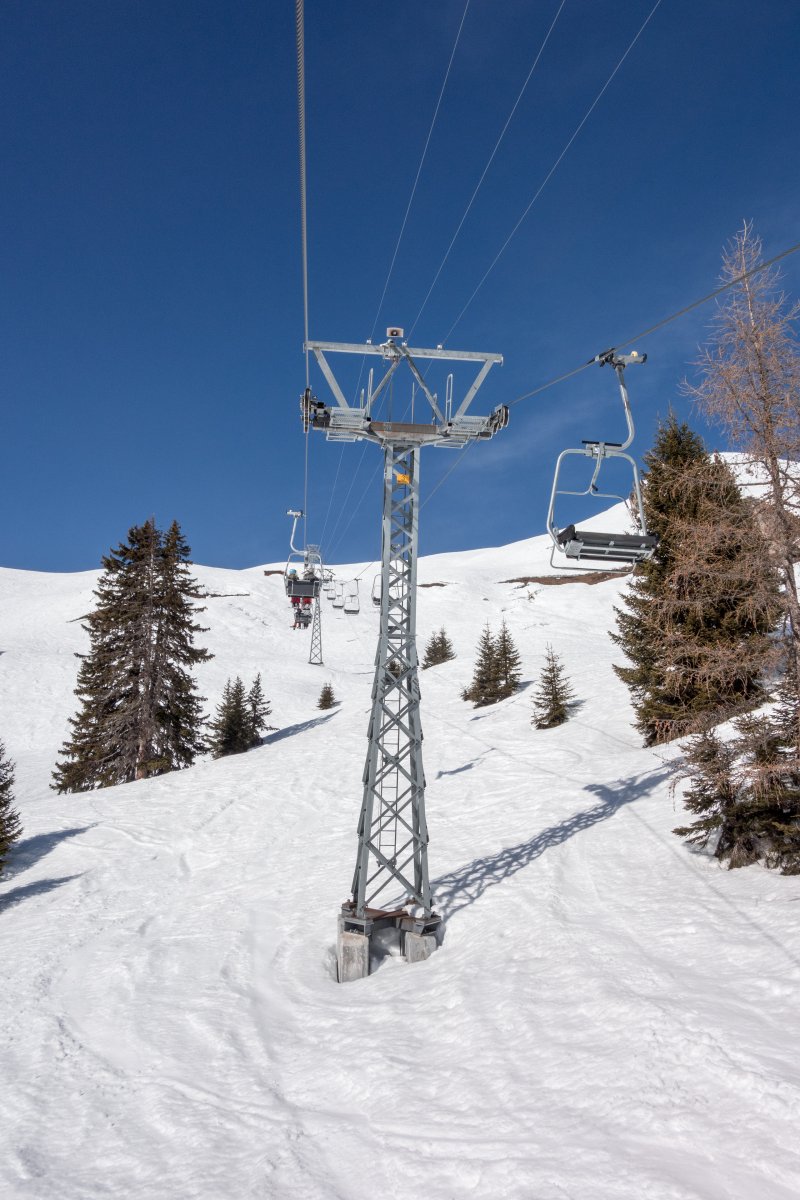

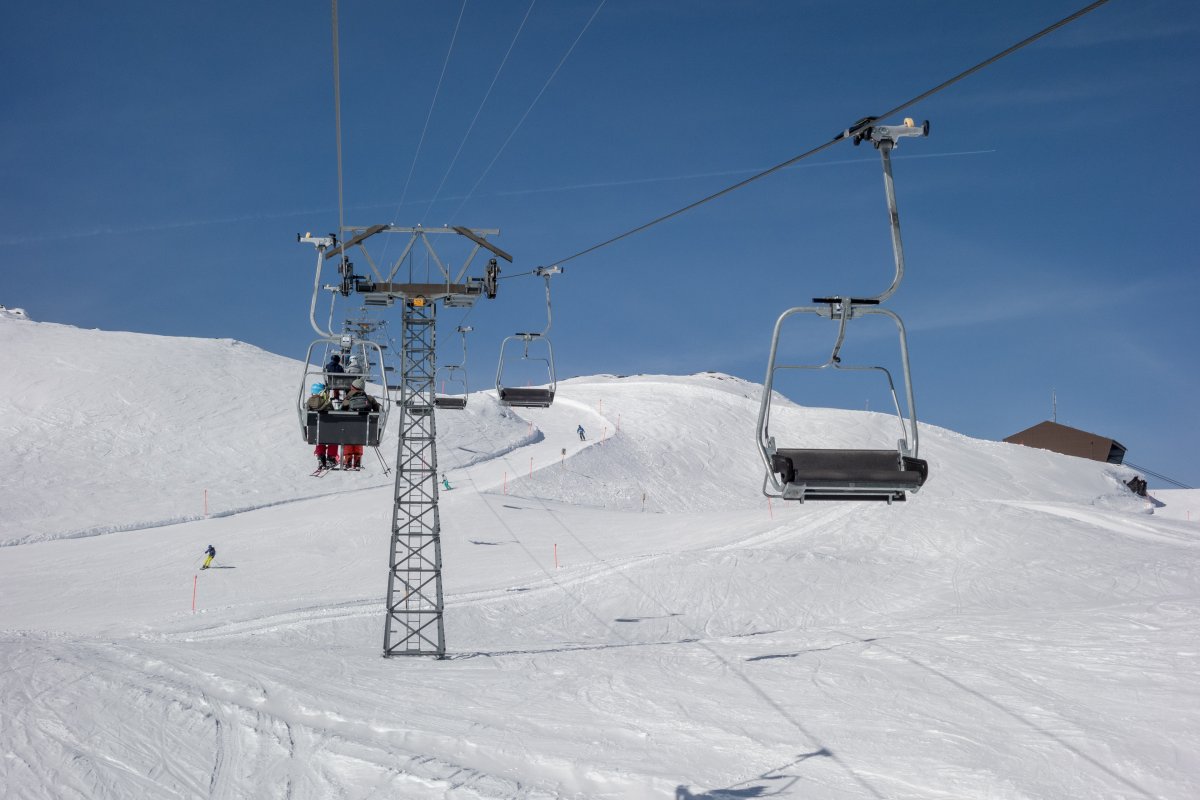

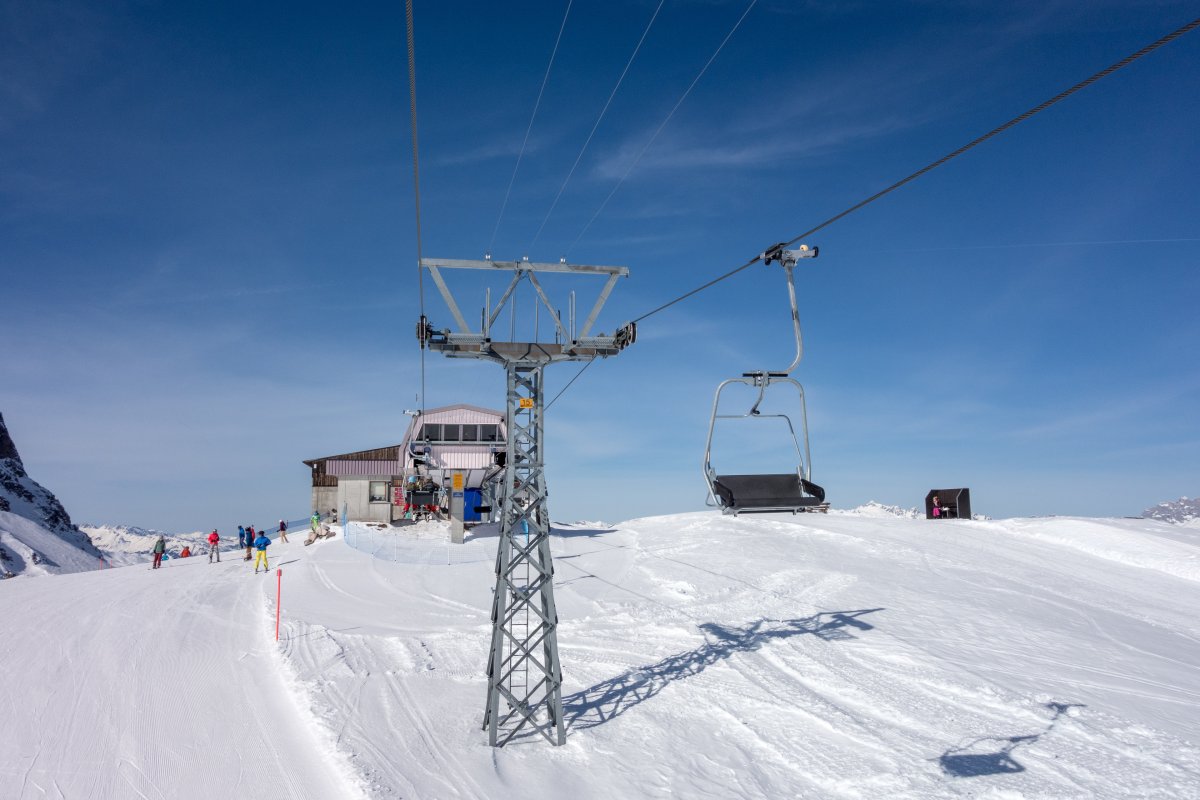

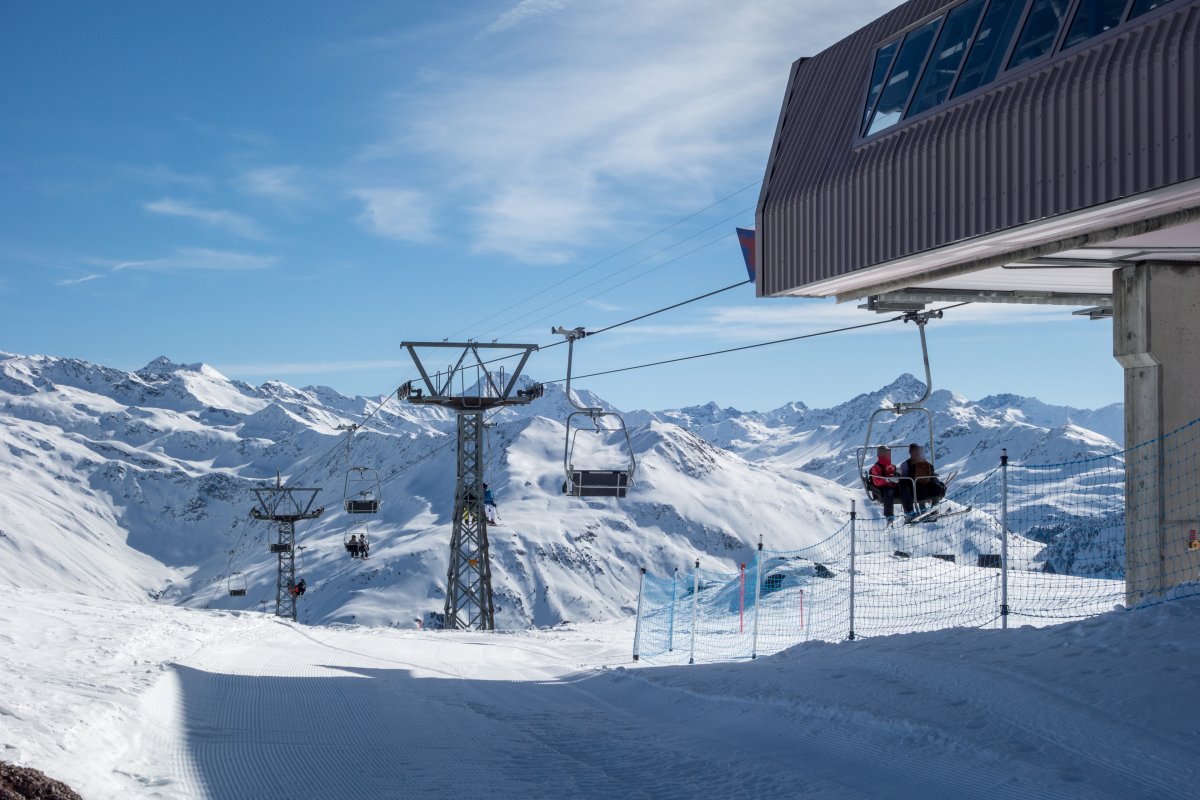

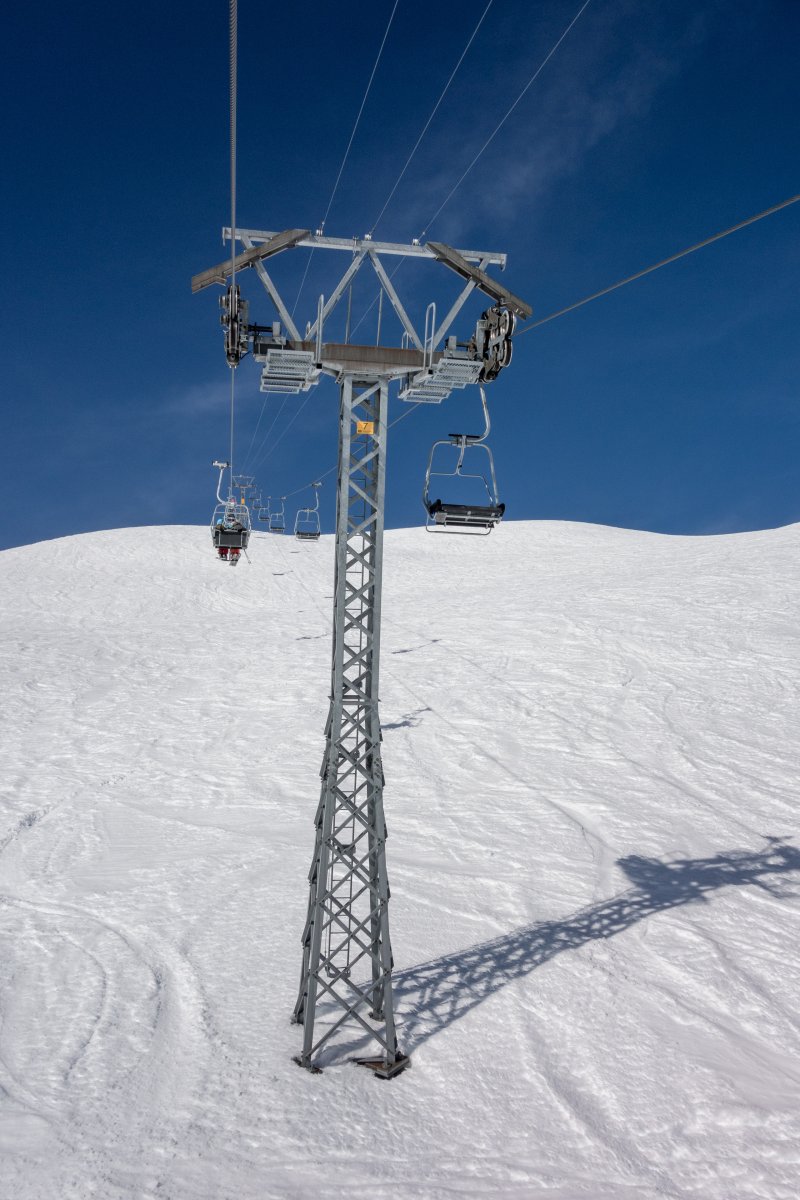

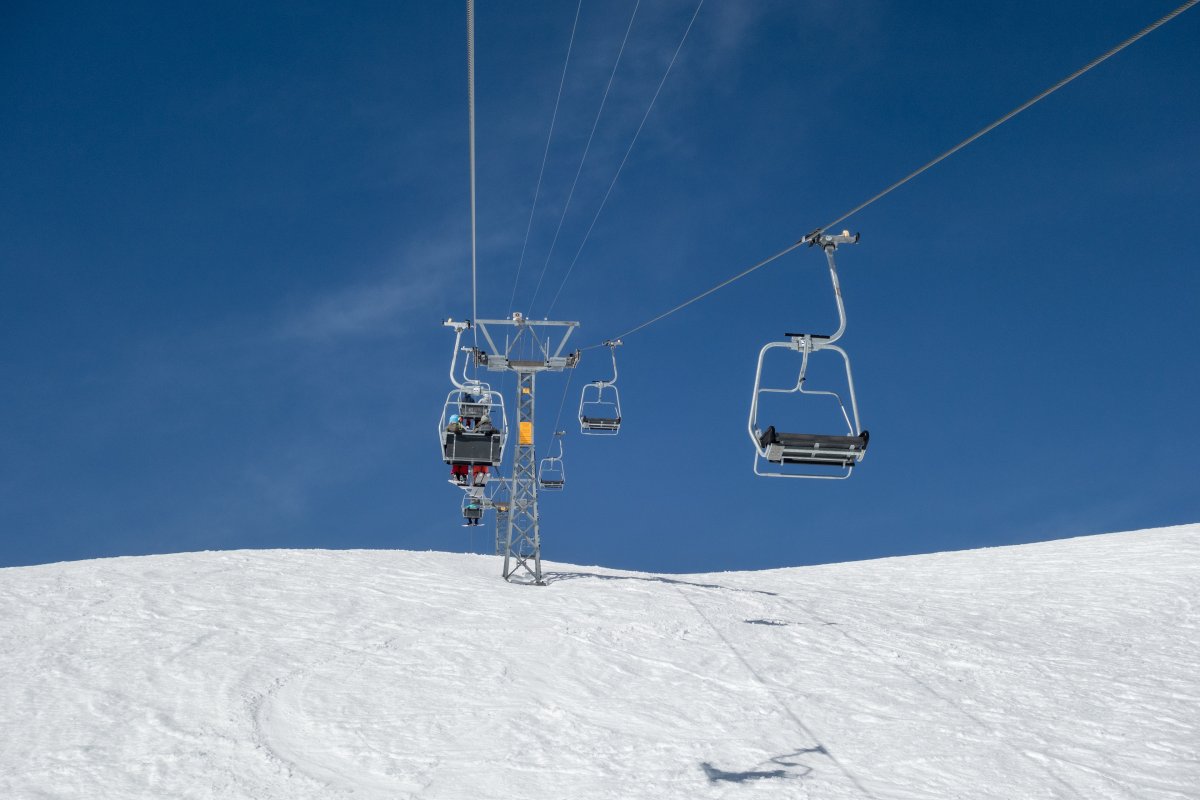

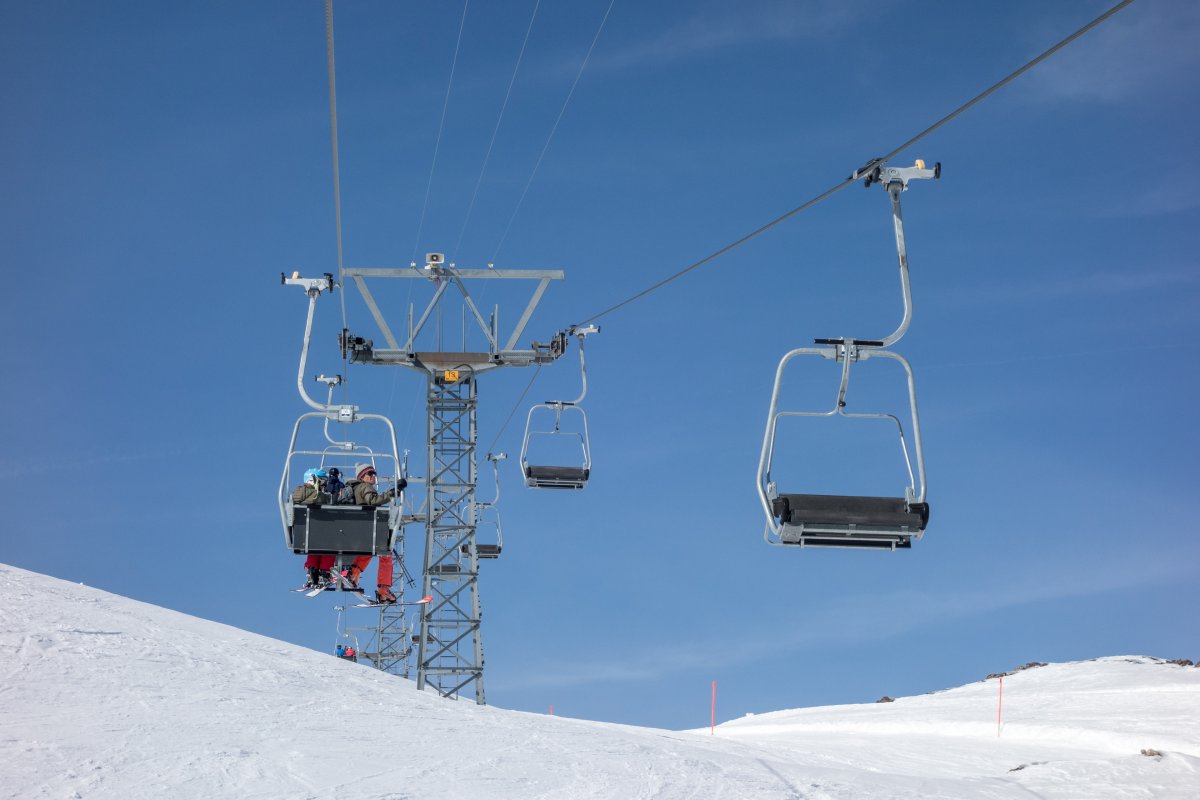

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.84989 N / 9.86206 E, Top station 46.85797 N / 9.84681 E
Location of the installation: Google Maps • Swisstopo
Please enable marketing cookies to view this content.
Map legend:
Ropeway in operation
Ropeway out of operation
Ropeway dismantled
