125-LPB Klosters-Gotschnaboden
Last update: 09.01.2025 18:07 (Updated by edgarkaelin68)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1191 | m |
| Top station altitude | 1783 | m |
| Difference in altitude | 592 | m |
| Length | 1956 | m |
| Capacity | 1200 | P/h |
| Travel time | 6 | min |
| Speed | 10 | m/s |
| Number of towers | 3 | |
| Number of carriers | 2 | |
| Drive terminal | ||
| Tensioning terminal | ||
| Carrier manufacturer | CWA | |
| Rope manufacturer | Brugg | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
125-LPB Klosters-Gotschnaboden
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

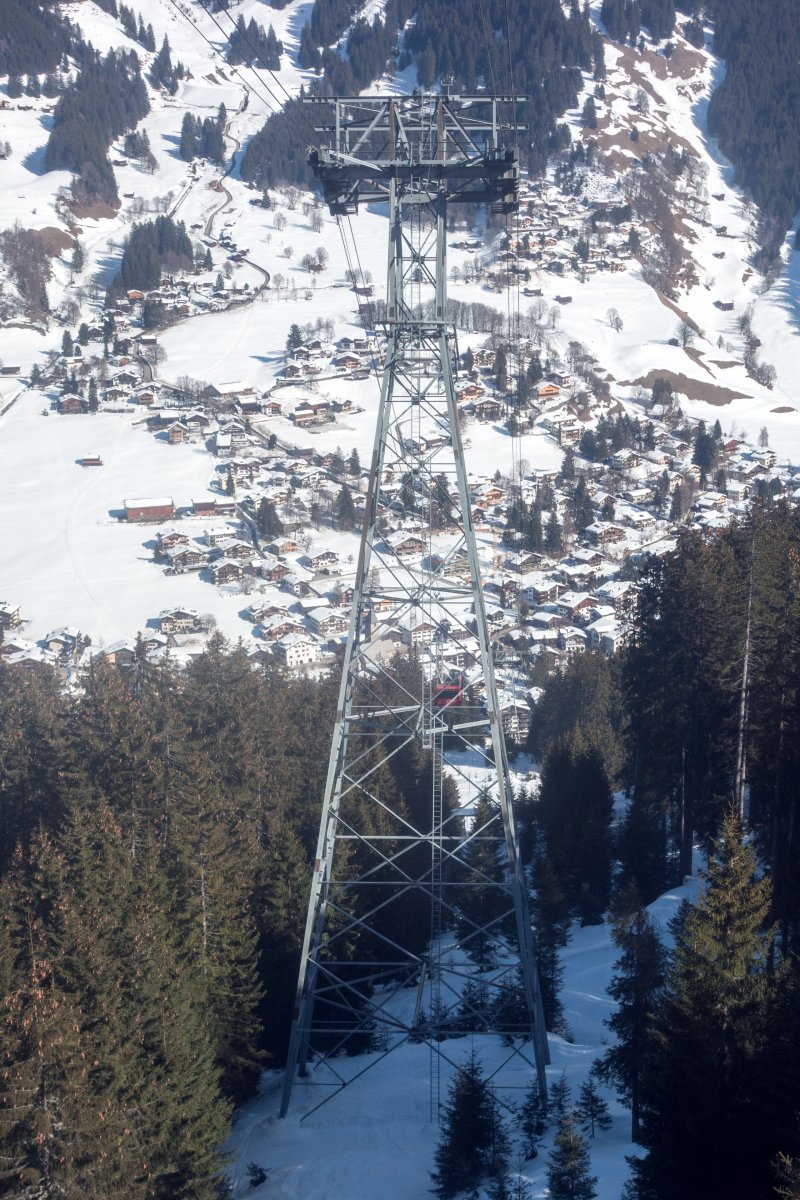

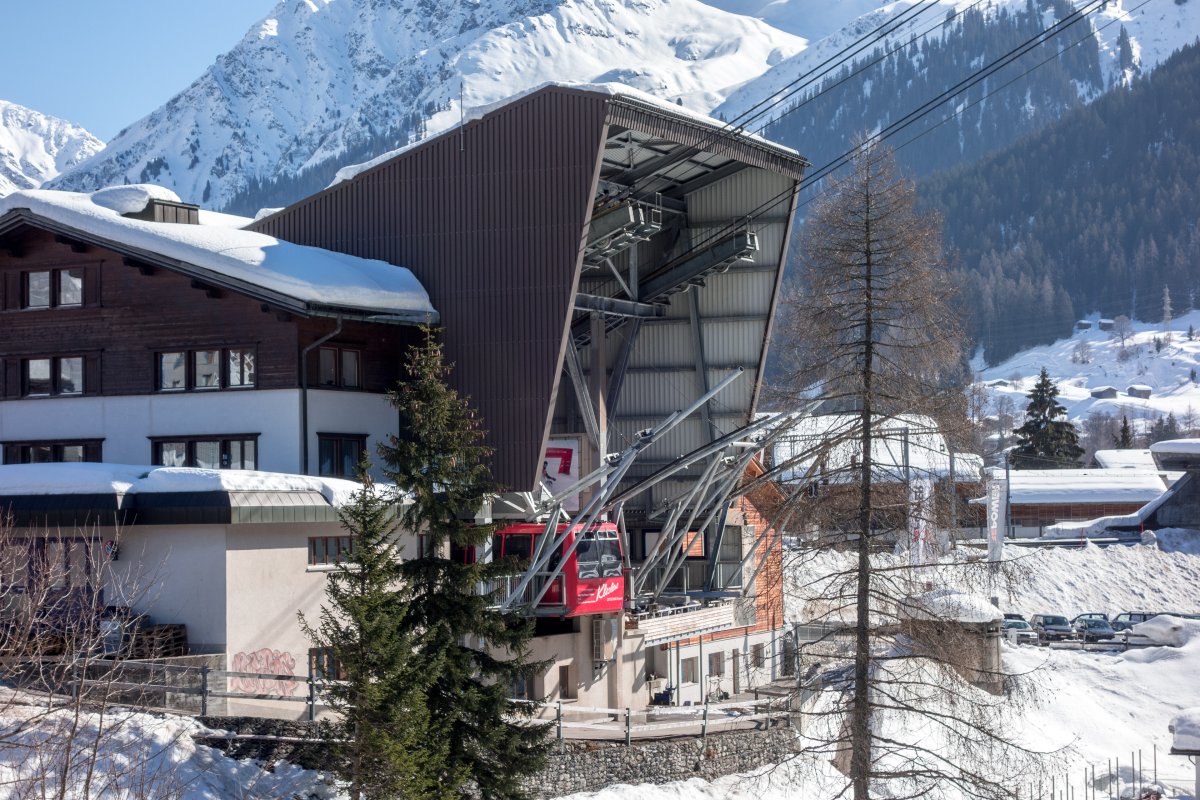

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.86898 N / 9.8803 E, Top station 46.86203 N / 9.85806 E
Location of the installation: Google Maps • Swisstopo
