3-SBK Arosa-Tschuggen
Last update: 09.12.2011 23:09 (Updated by Schöditaz)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1750 | m |
| Top station altitude | 2051 | m |
| Difference in altitude | 301 | m |
| Length | 955 | m |
| Capacity | 1800 | P/h |
| Travel time | 4 | min |
| Speed | 4 | m/s |
| Number of towers | 15 | |
| Number of carriers | 88 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Städeli | |
| Rope manufacturer | ||
| Electronics manufacturer | ||
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
3-SBK Arosa-Tschuggen
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

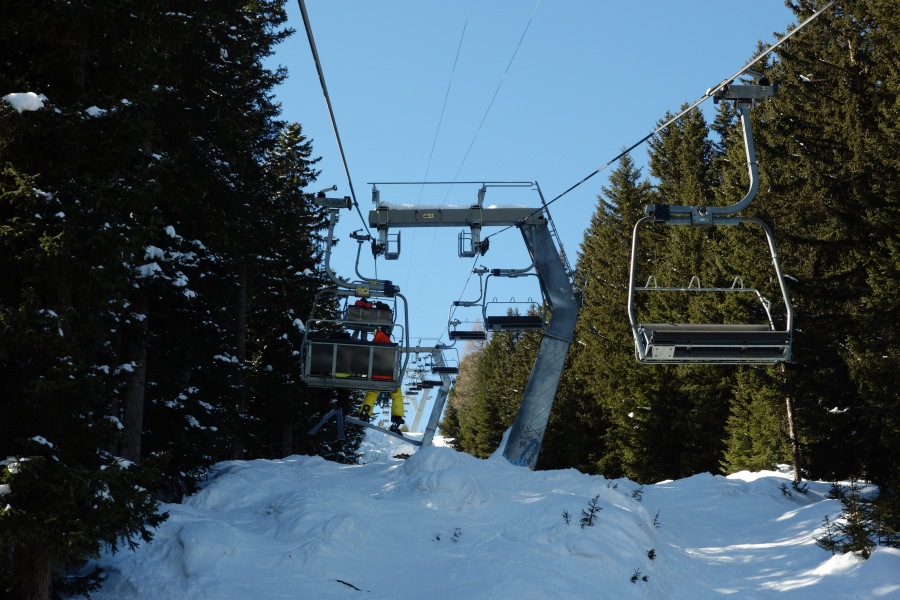

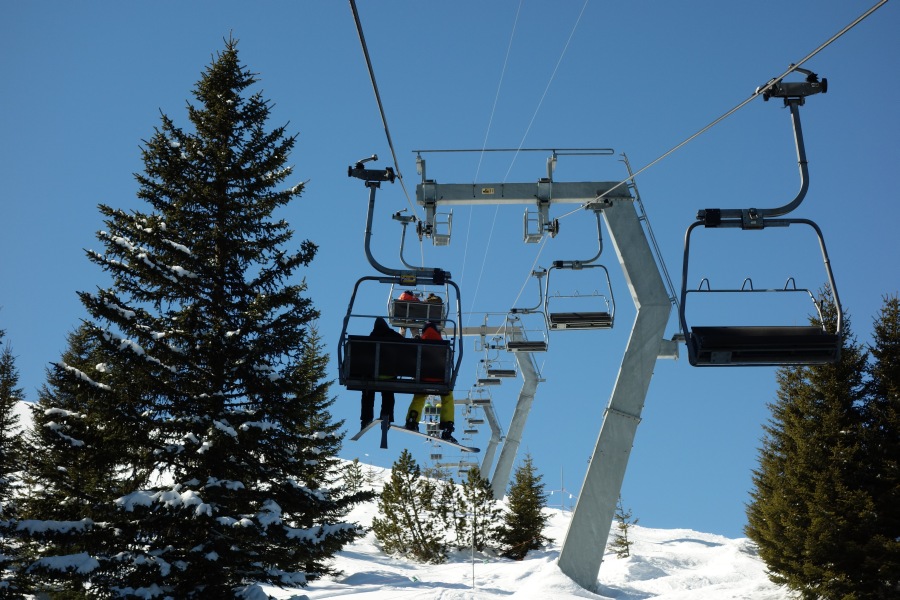

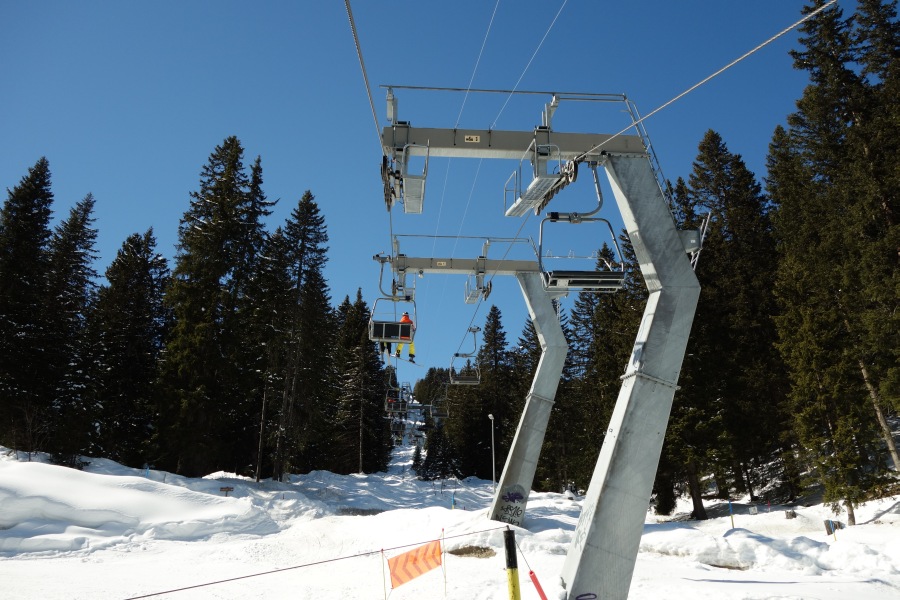

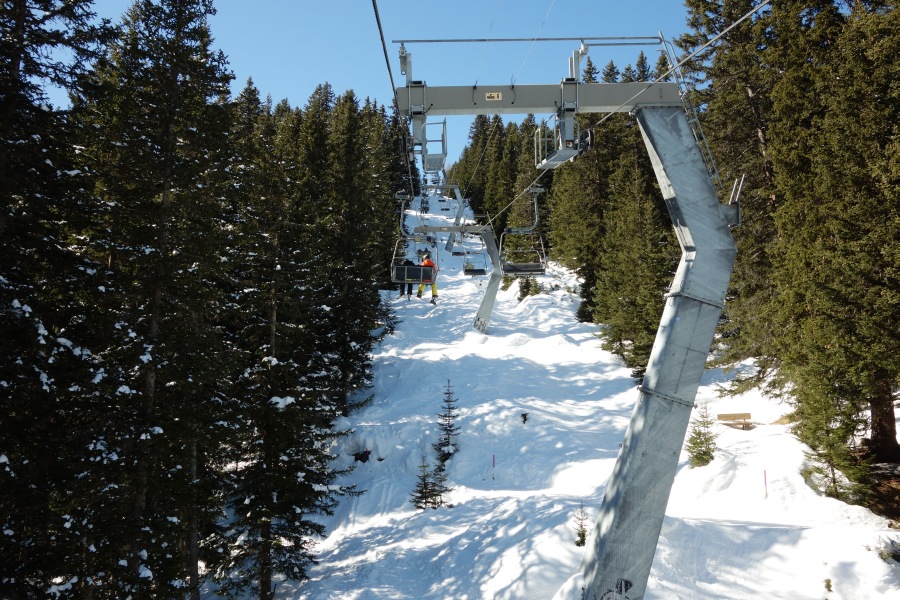

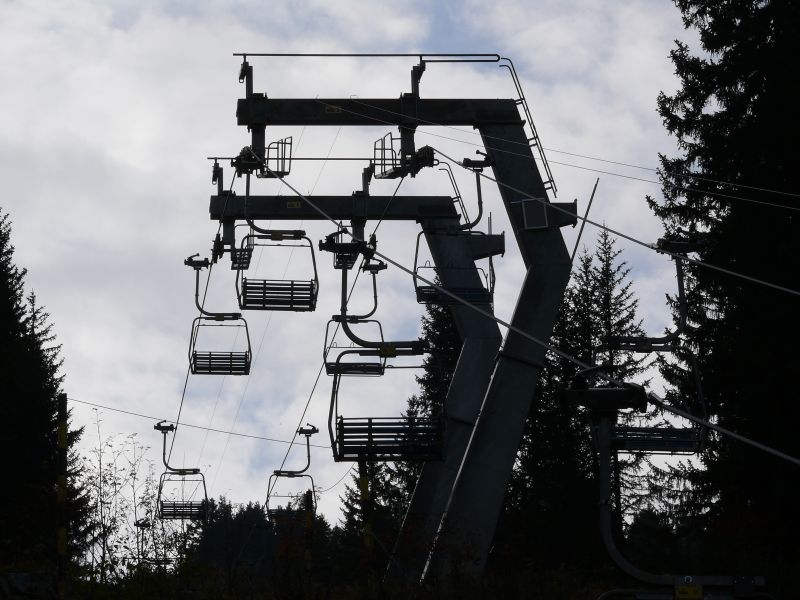

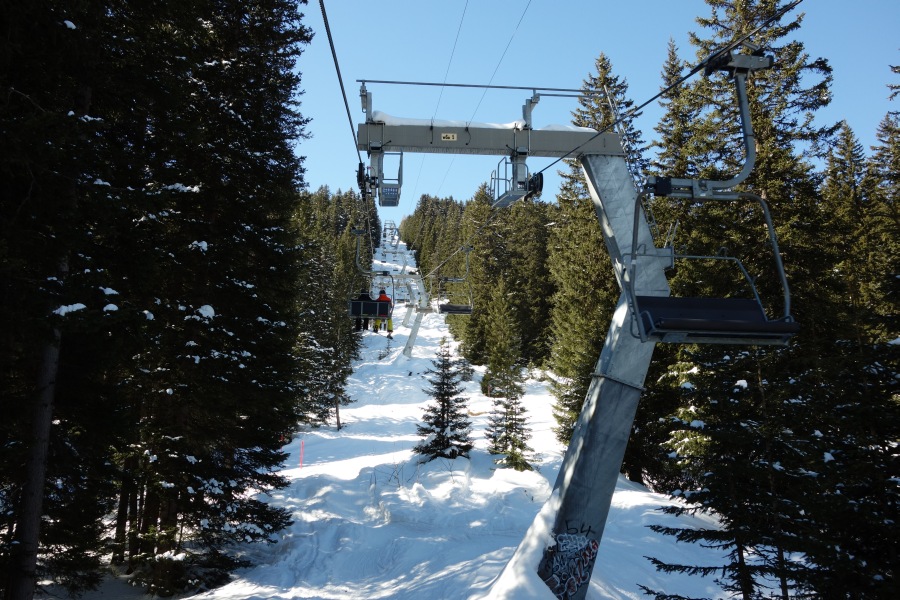

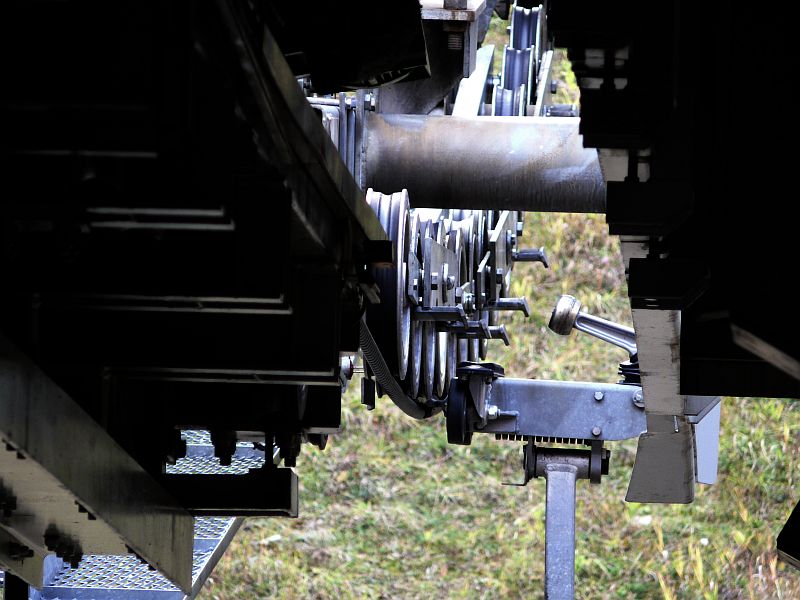

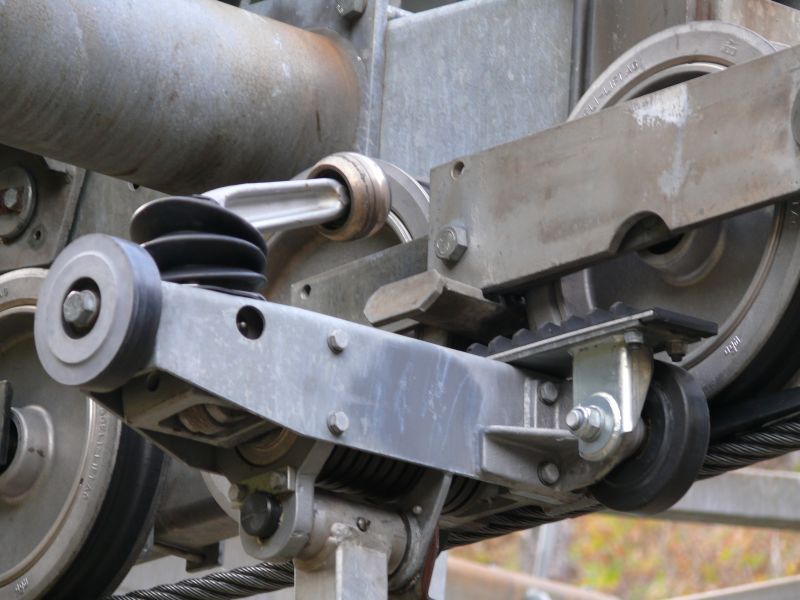

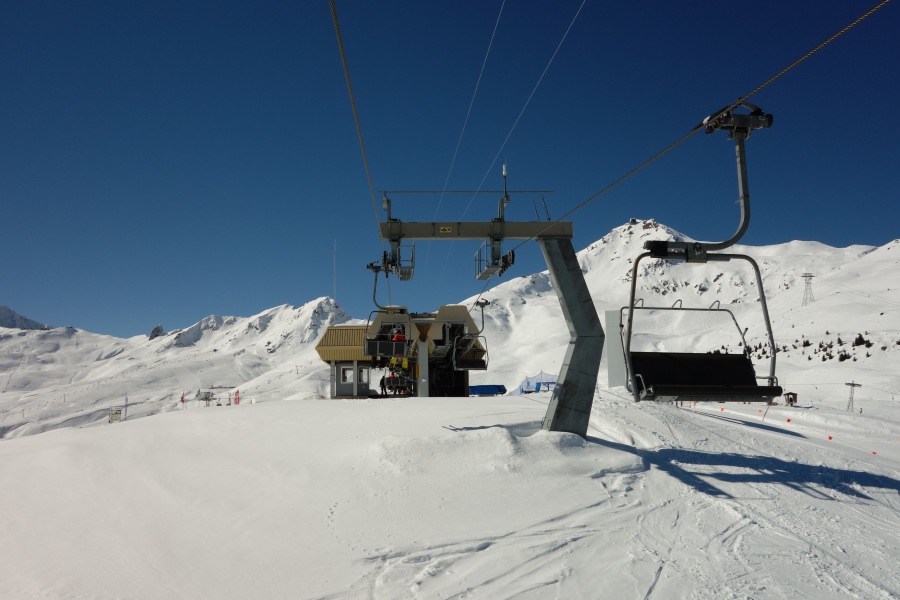

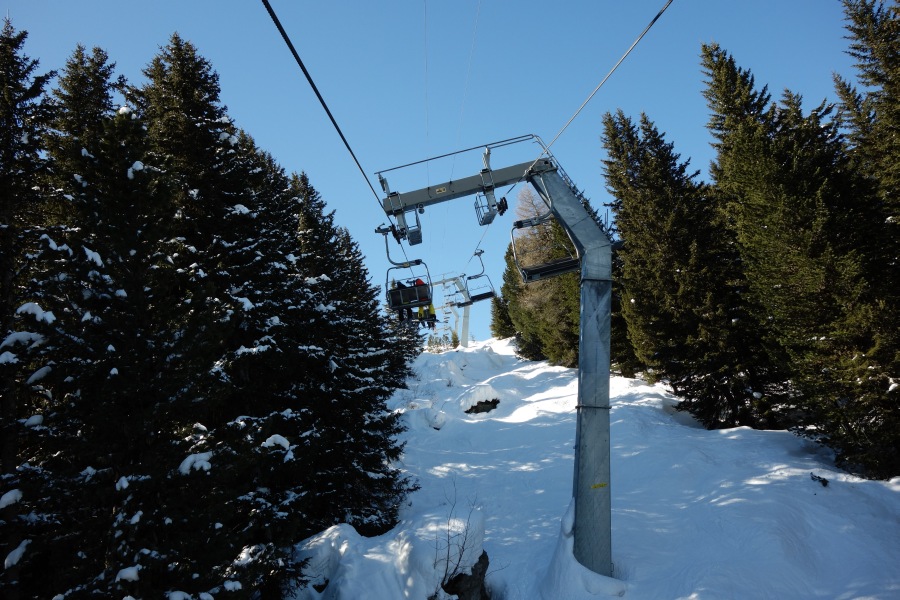

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.78296 N / 9.67833 E, Top station 46.7829 N / 9.66631 E
Location of the installation: Google Maps • Swisstopo
