Ropeway Database - 4-SBF Scex Rouge (Les Diablerets)
4-SBF Scex Rouge

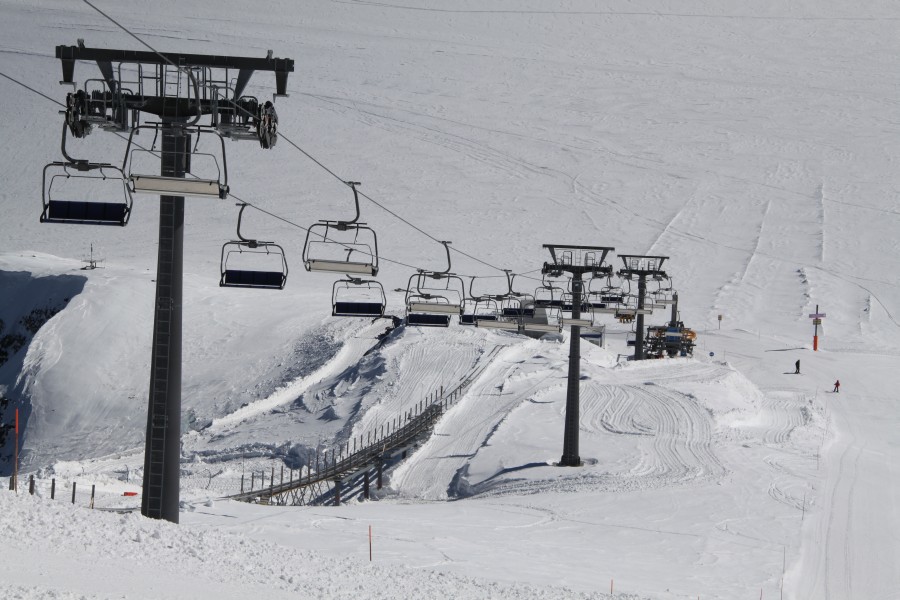

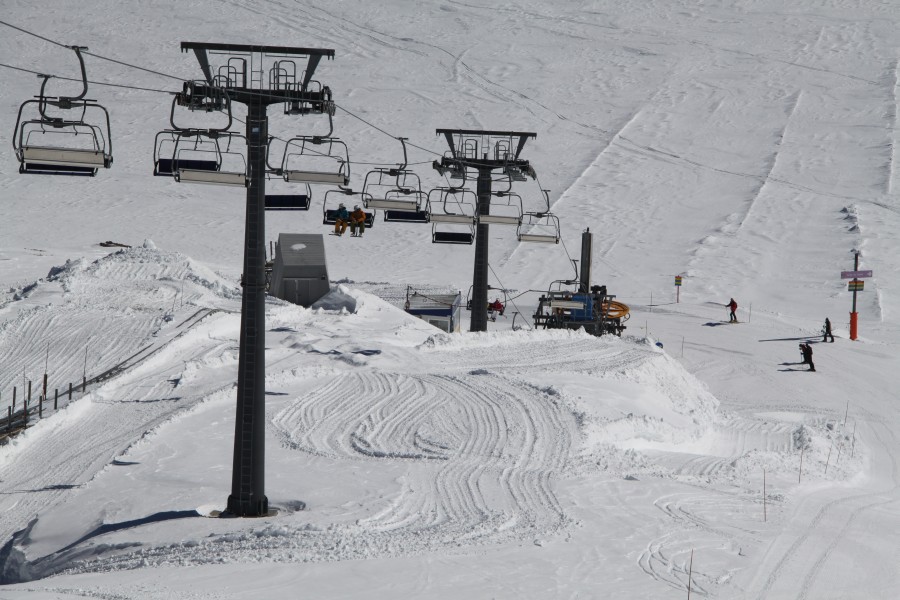

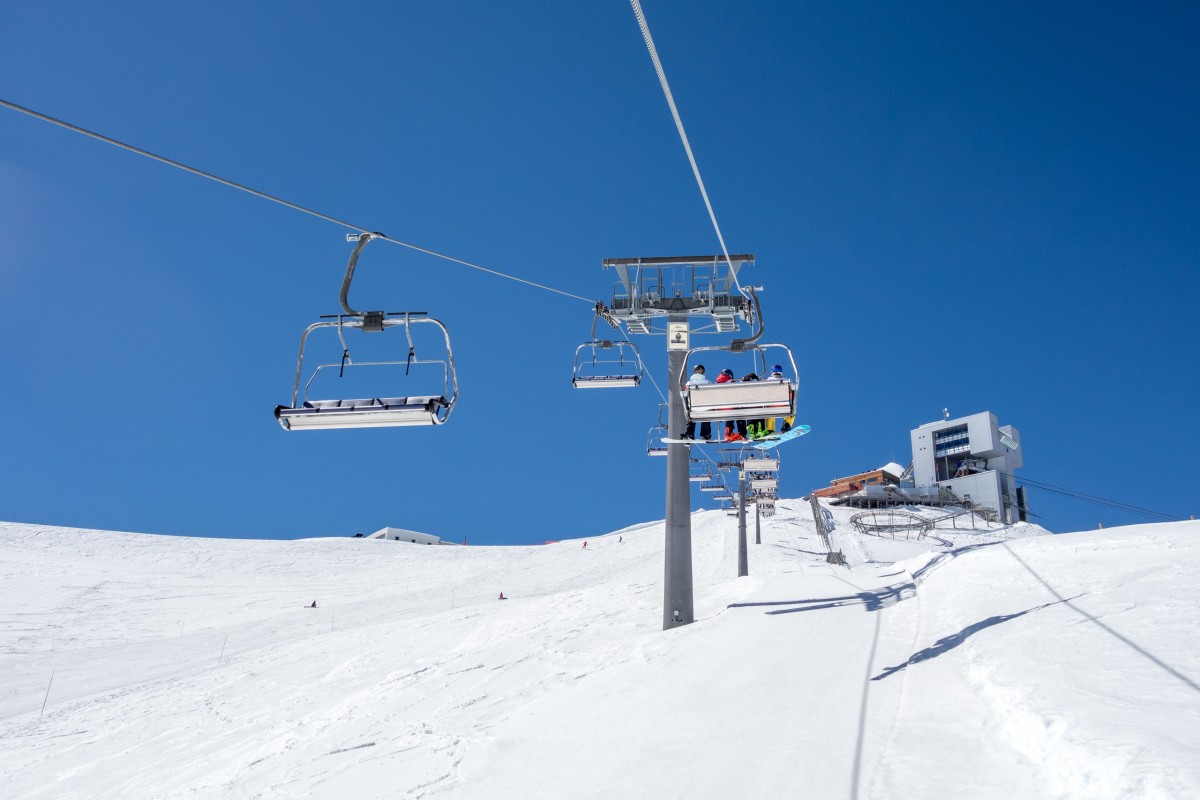

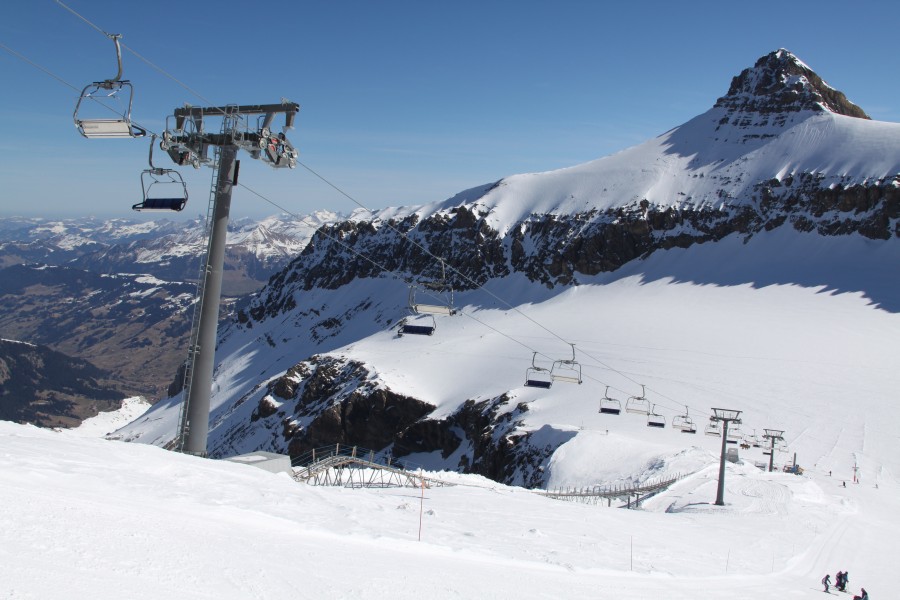

Photo provided by: Felix
Technical data
| Bottom station altitude | 2826 | m |
| Top station altitude | 2935 | m |
| Difference in altitude | 109 | m |
| Length | 362 | m |
| Capacity | 1212 | P/h |
| Travel time | ||
| Speed | 1,8 | m/s |
| Number of towers | 4 | |
| Number of carriers | 36 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Doppelmayr | |
| Rope manufacturer | ||
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
4-SBF Scex Rouge
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-
Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.32689 N / 7.20942 E, Top station 46.32639 N / 7.20483 E
Location of the installation: Google Maps • Swisstopo
