2-SBK / 4-KBK Braunwald-Kleiner Gumen
Last update: 15.12.2011 13:51 (Updated by Schöditaz)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1314 | m |
| Top station altitude | 1904 | m |
| Difference in altitude | 590 | m |
| Length | 2039 | m |
| Capacity | 800 | P/h |
| Travel time | 6,78 | min |
| Speed | 5 | m/s |
| Number of towers | 19 | |
| Number of carriers | 84 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | ||
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | Die Bahn besitzt 21 Vierergondeln und 63 Zweiersessel. | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
2-SBK / 4-KBK Braunwald-Kleiner Gumen
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

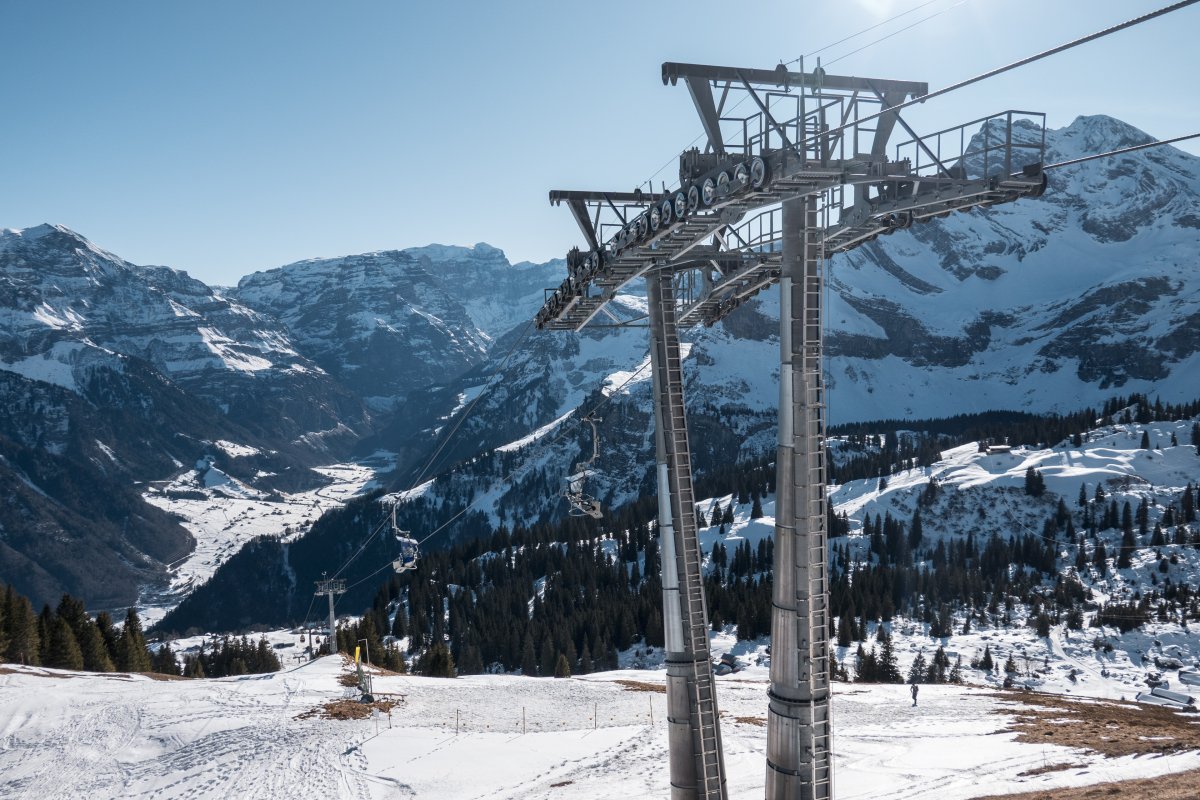

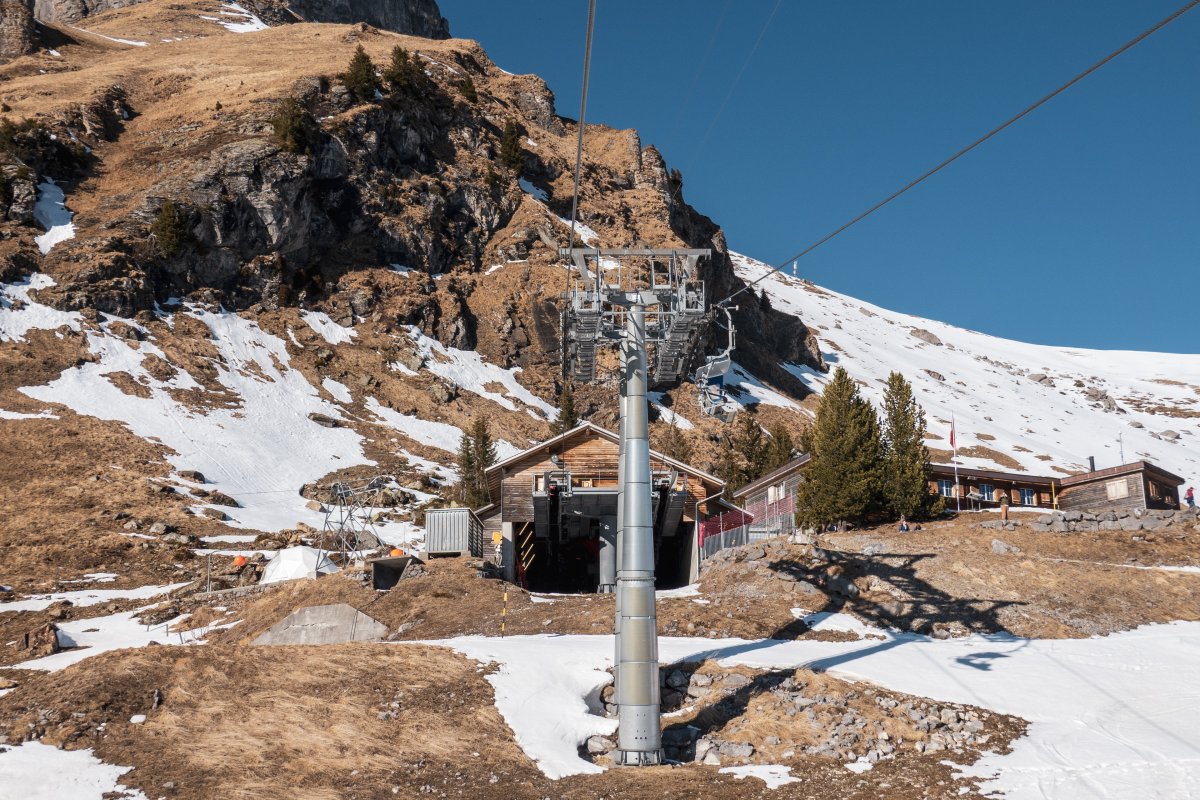

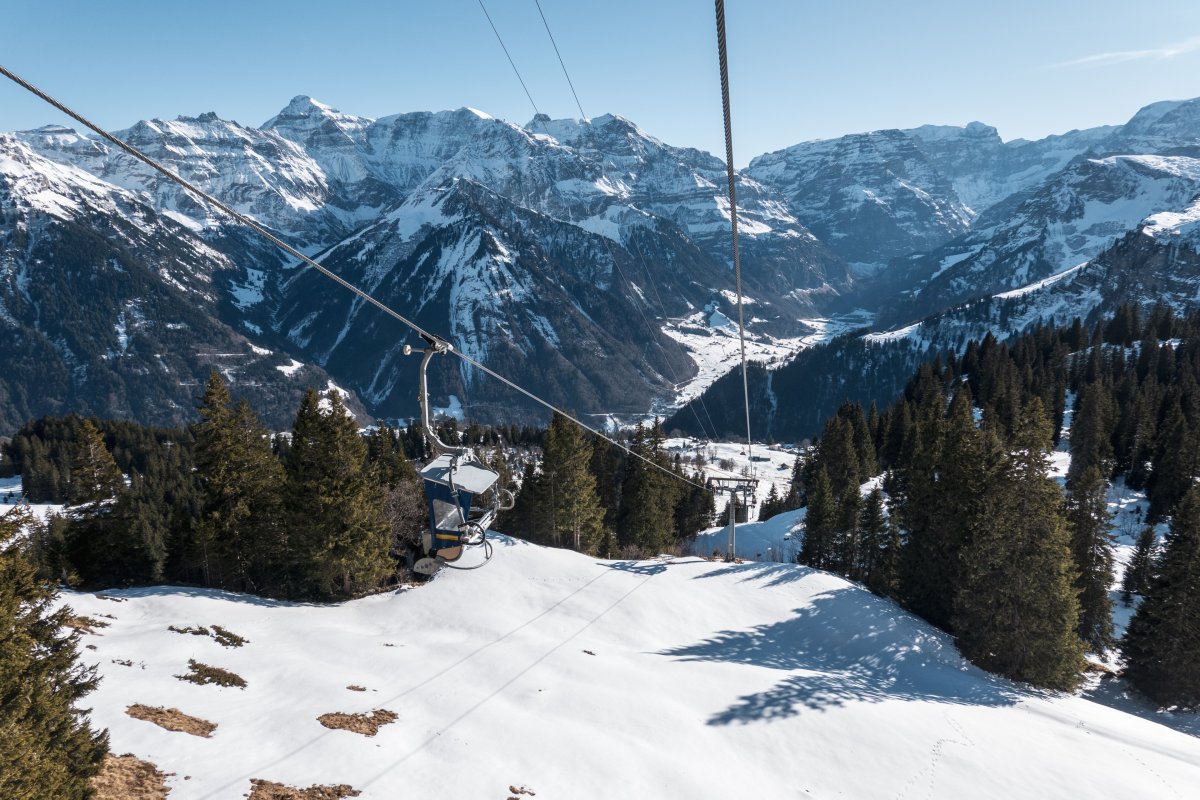

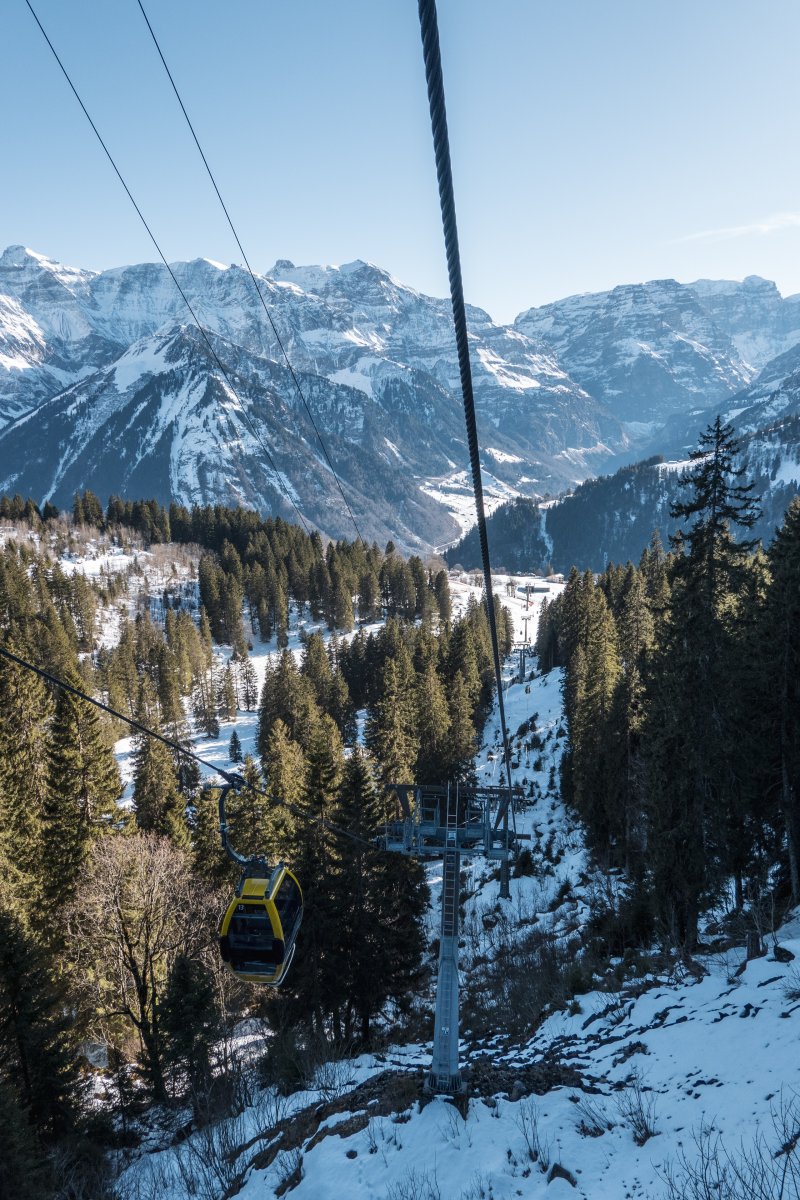

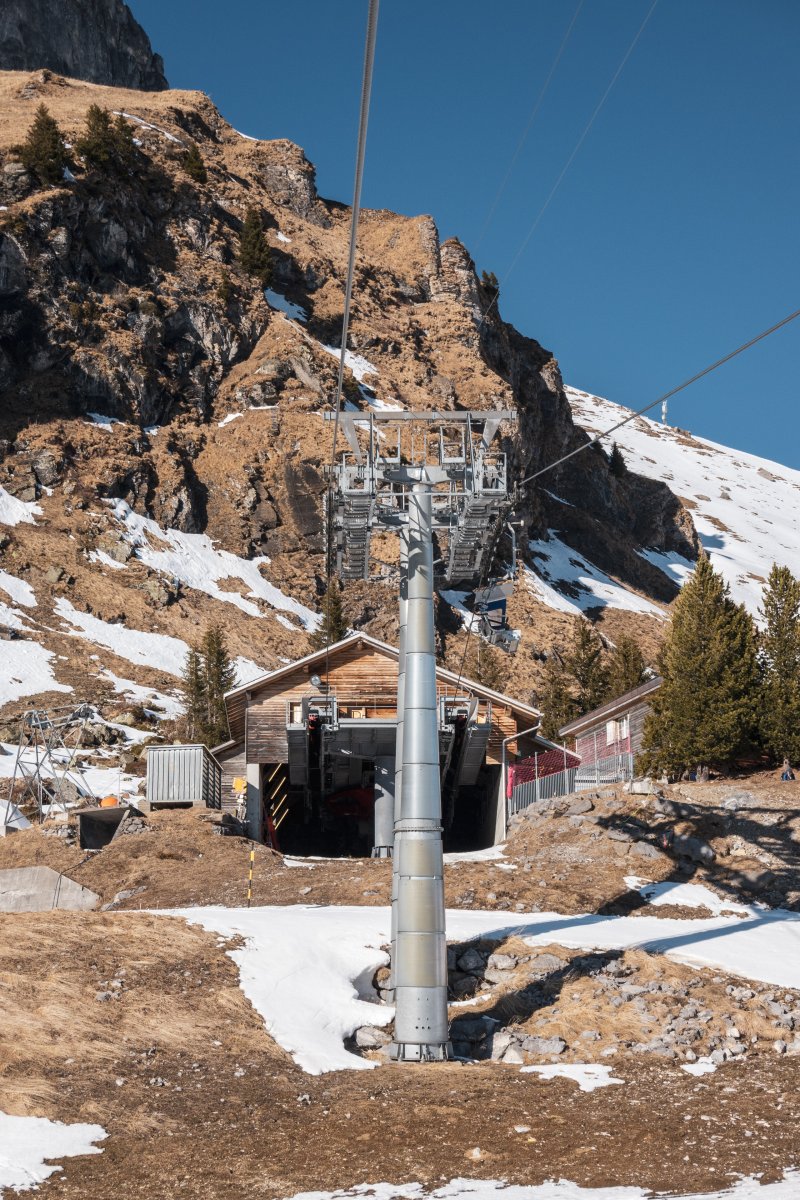

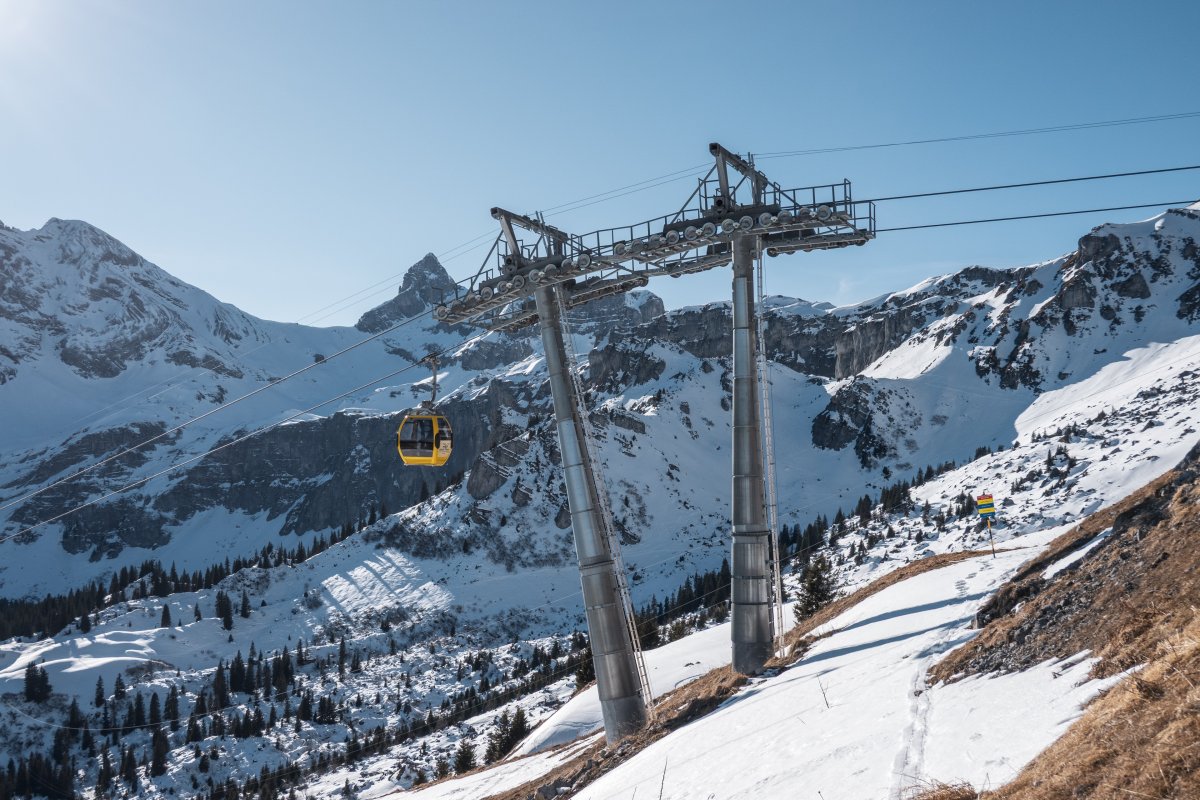

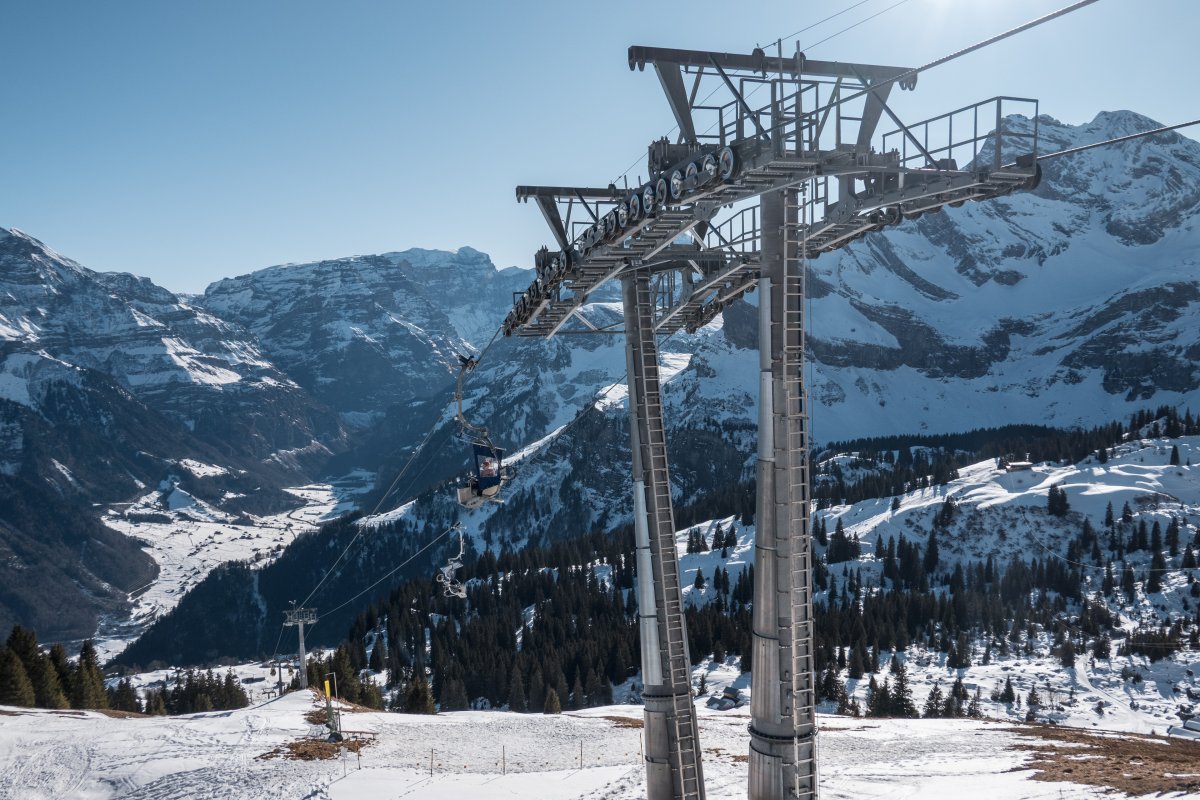

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.93862 N / 8.98687 E, Top station 46.95603 N / 8.98457 E
