Ropeway Database - 2-SBF Allmiboden-Allmendhubel (Mürren)
2-SBF Allmiboden-Allmendhubel
Last update: 26.04.2022 12:38 (Updated by Sicht11)
Photo provided by: salvi11
Technical data
| Bottom station altitude | 1810 | m |
| Top station altitude | 1931 | m |
| Difference in altitude | 121 | m |
| Length | 297 | m |
| Capacity | 1000 | P/h |
| Travel time | 1,7 | min |
| Speed | 2,8 | m/s |
| Number of towers | 3 | |
| Number of carriers | 32 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Doppelmayr | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
2-SBF Allmiboden-Allmendhubel
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

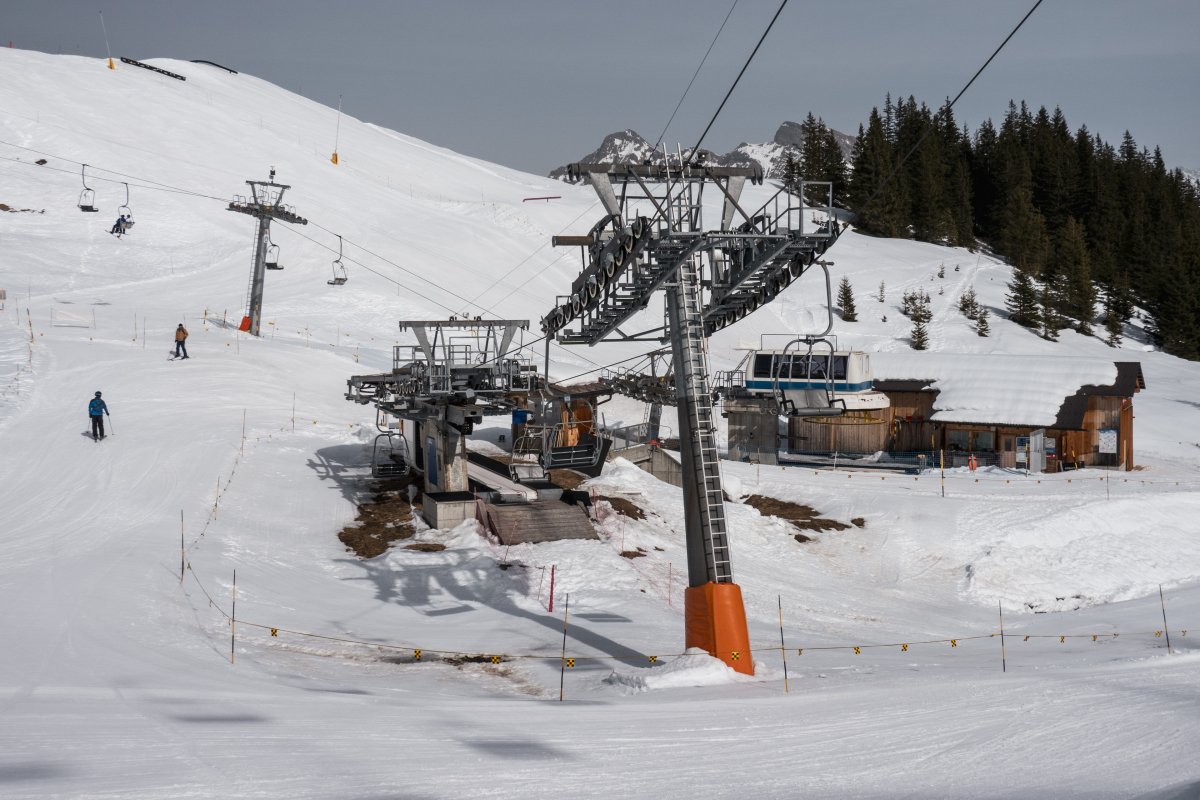

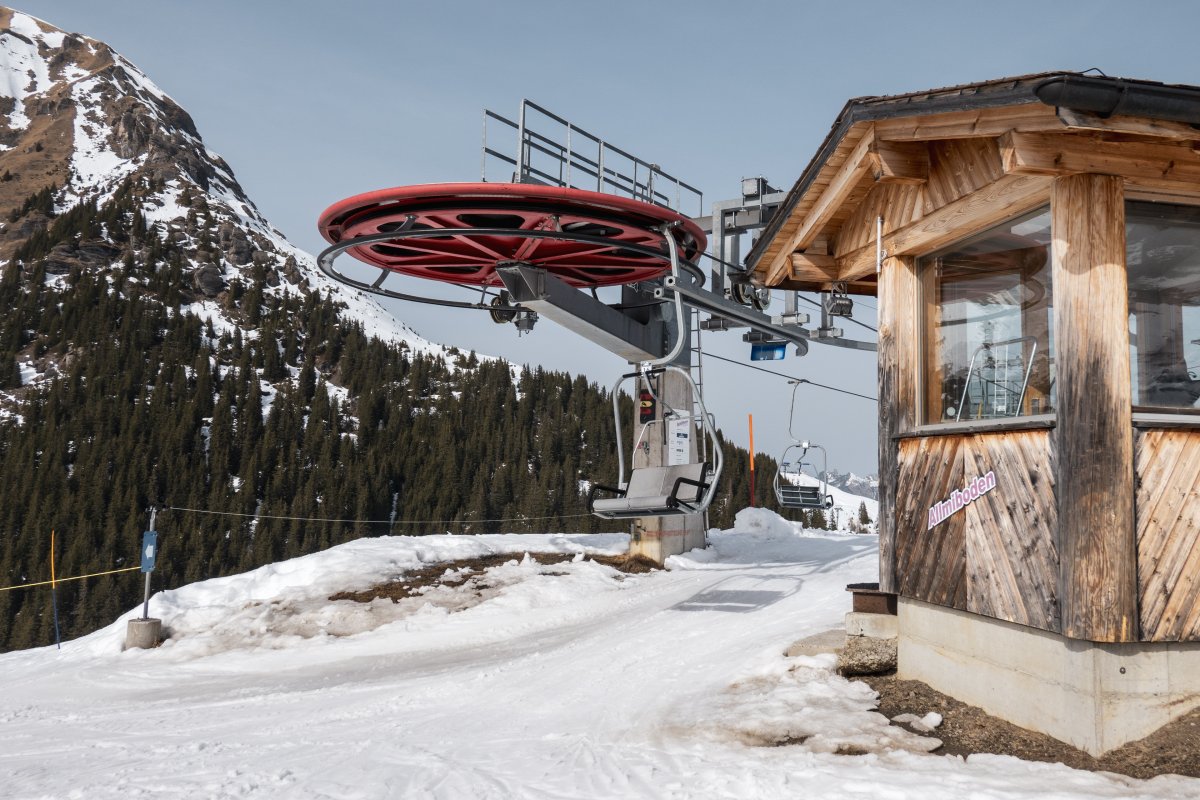

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.56611 N / 7.88889 E, Top station 46.56435 N / 7.8873 E
Location of the installation: Google Maps • Swisstopo
