Ropeway Database - 4-SBK/B Winteregg-Maulerhubel (Mürren)
4-SBK/B Winteregg-Maulerhubel
Last update: 07.05.2025 23:35 (Updated by Sicht11)
Photo provided by: Sicht11
Technical data
| Bottom station altitude | 1588 | m |
| Top station altitude | 1942 | m |
| Difference in altitude | 354 | m |
| Length | 1370 | m |
| Capacity | 1600 | P/h |
| Travel time | 4,5 | min |
| Speed | 5 | m/s |
| Number of towers | 11 | |
| Number of carriers | 66 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Garaventa | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | 2024 Erhöhung der Kapazität von 49 Sesseln und 1200 P/h auf 66 Sessel und 1600 P/h. | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
4-SBK/B Winteregg-Maulerhubel
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

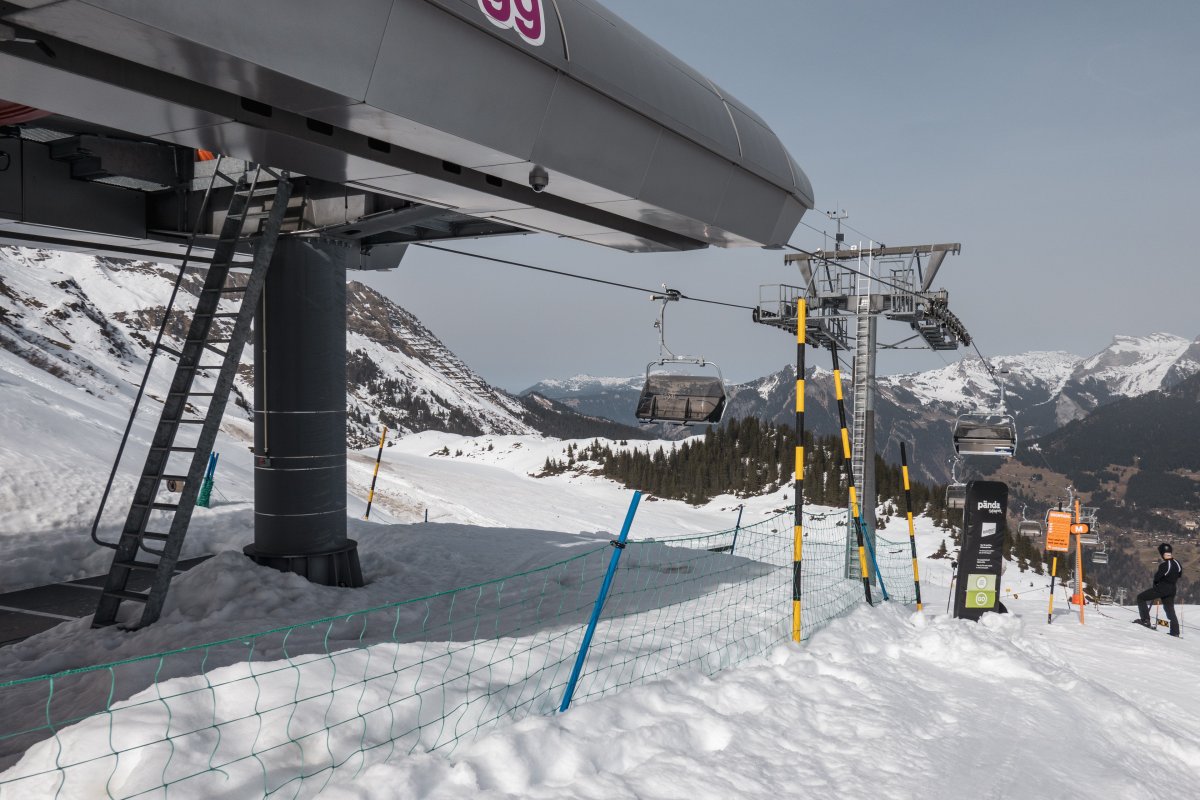

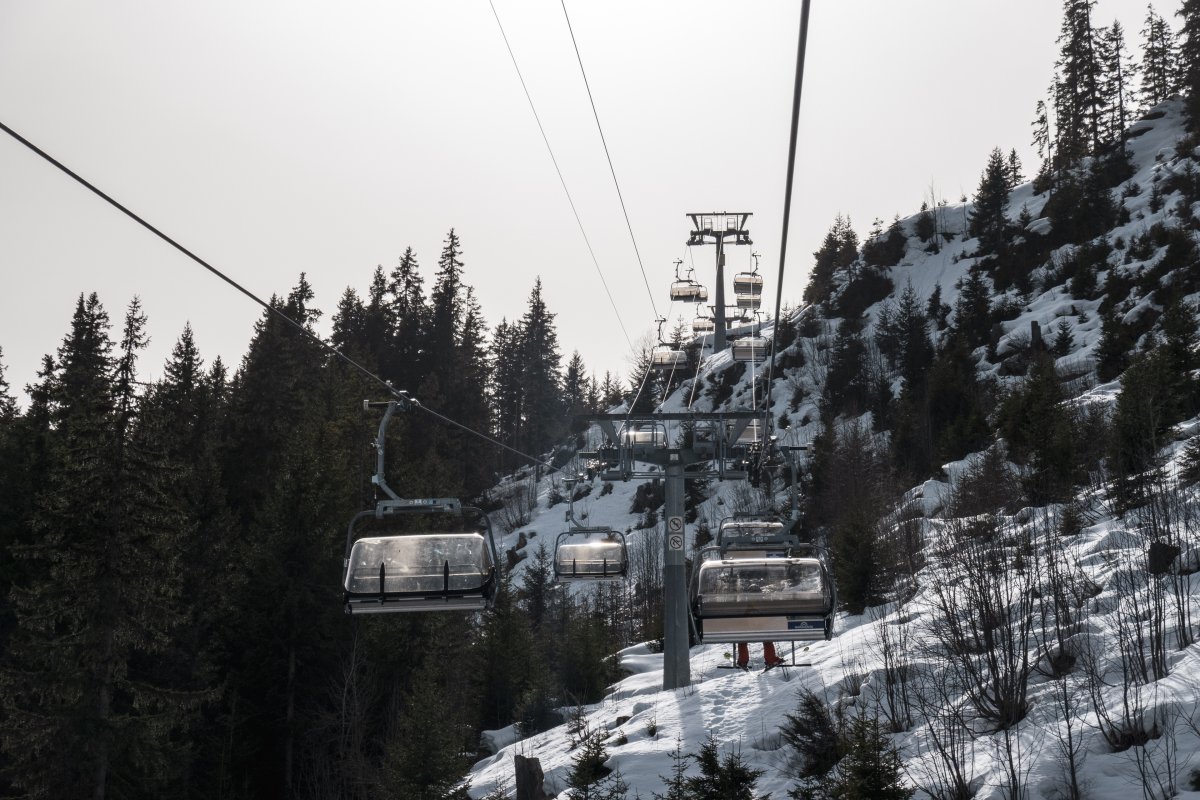

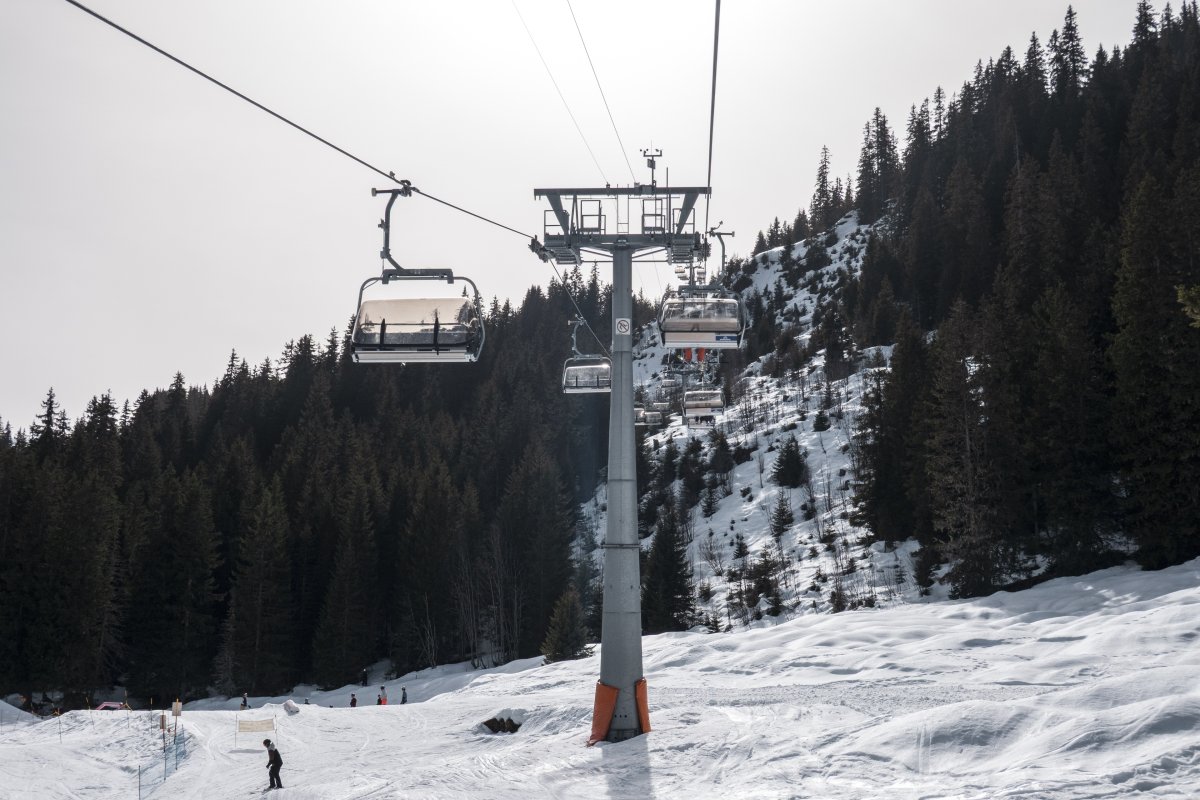

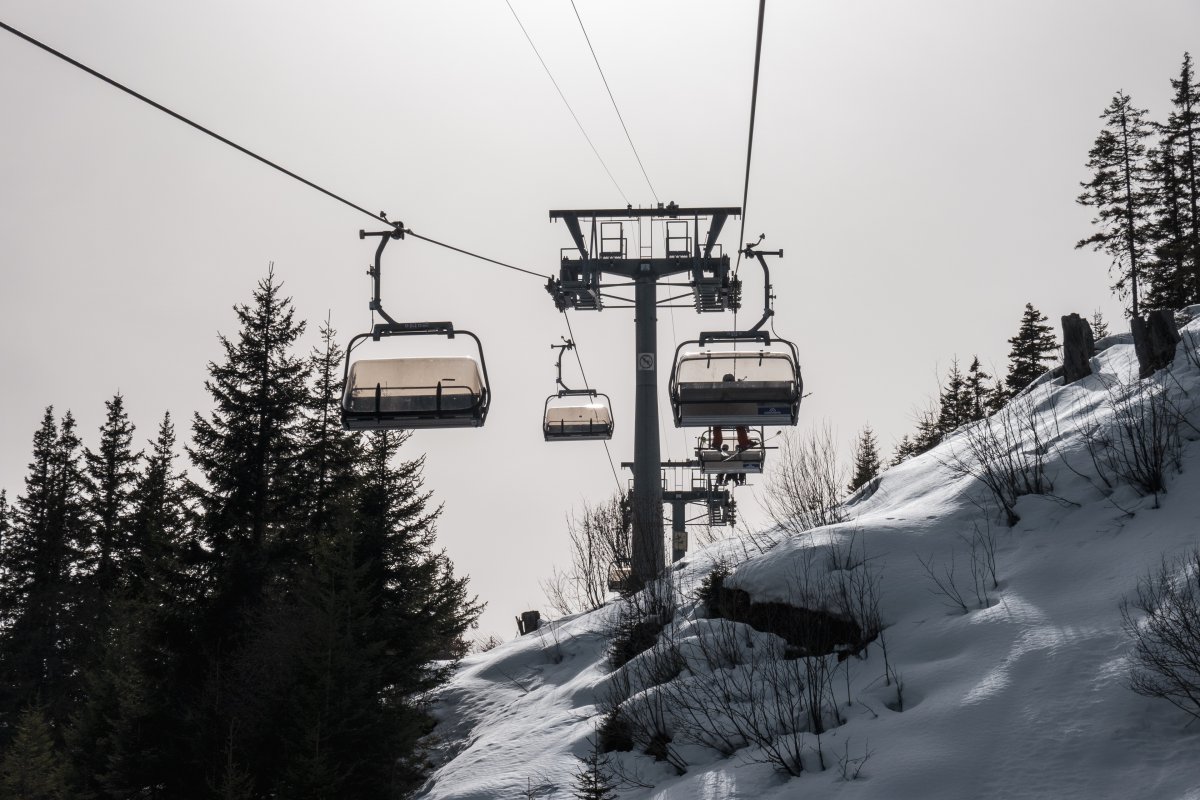

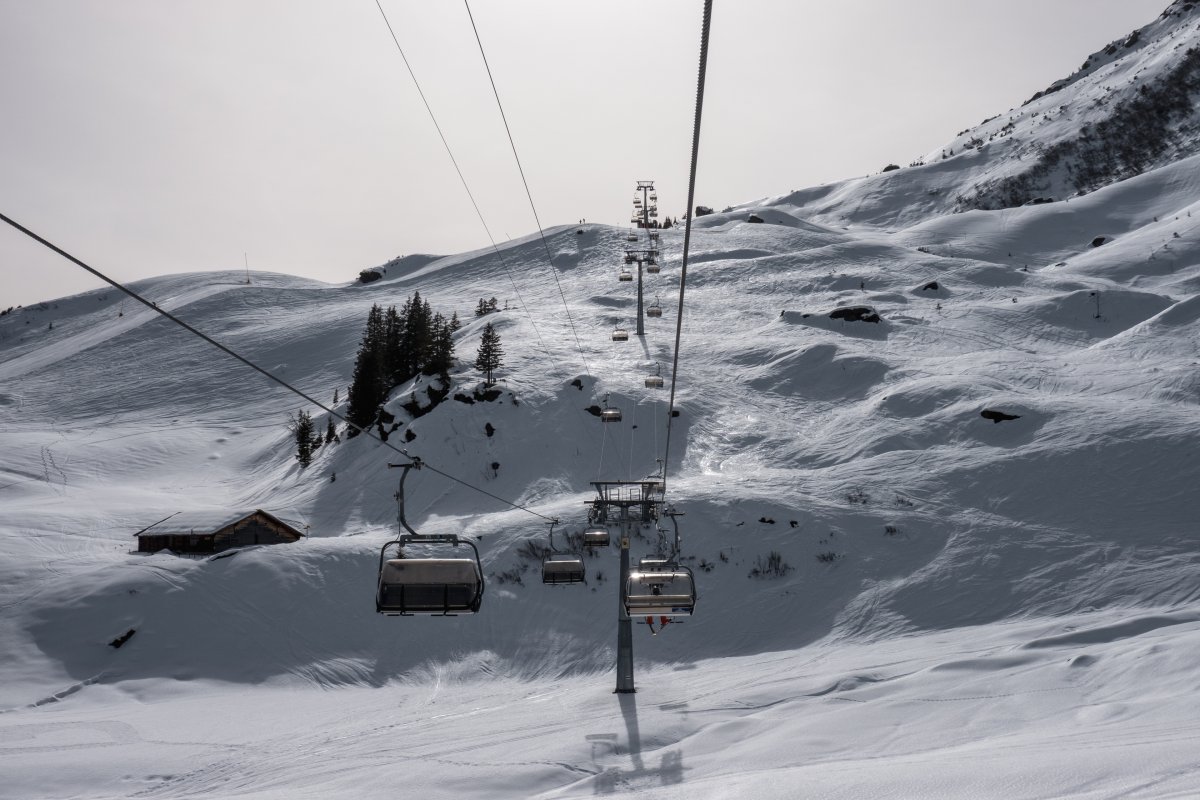

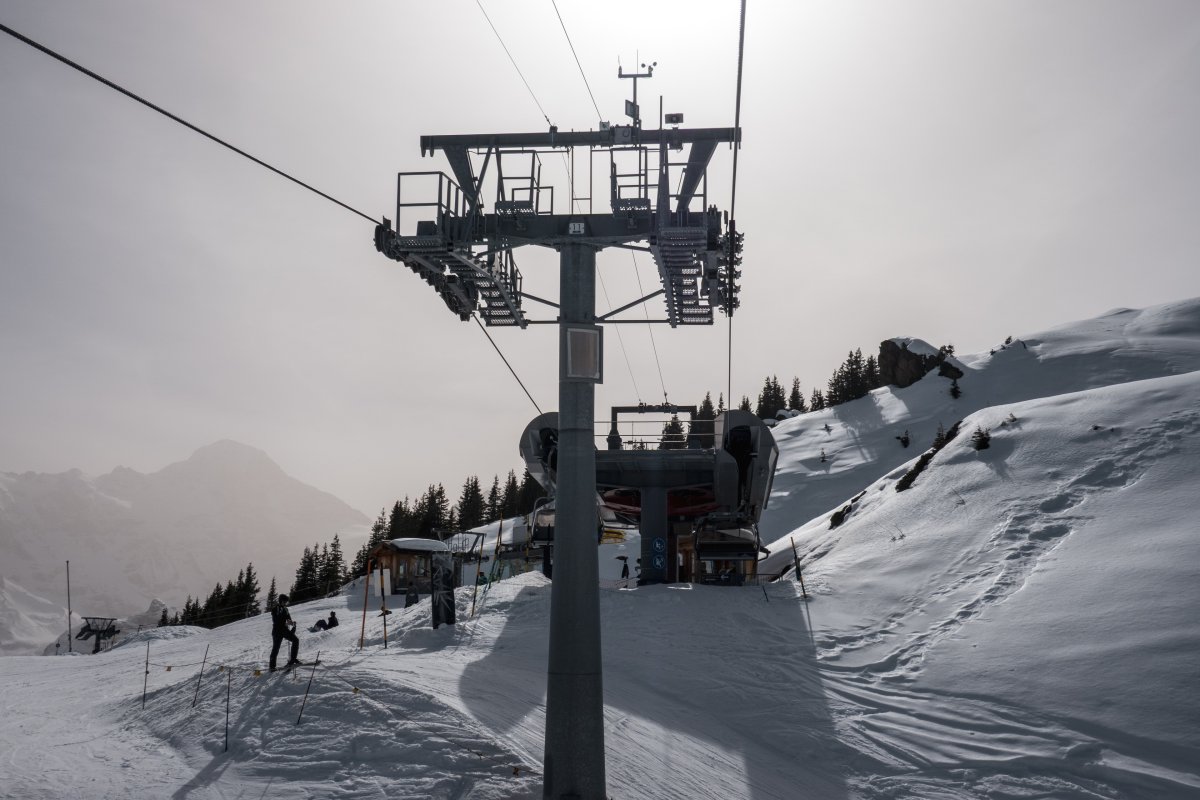

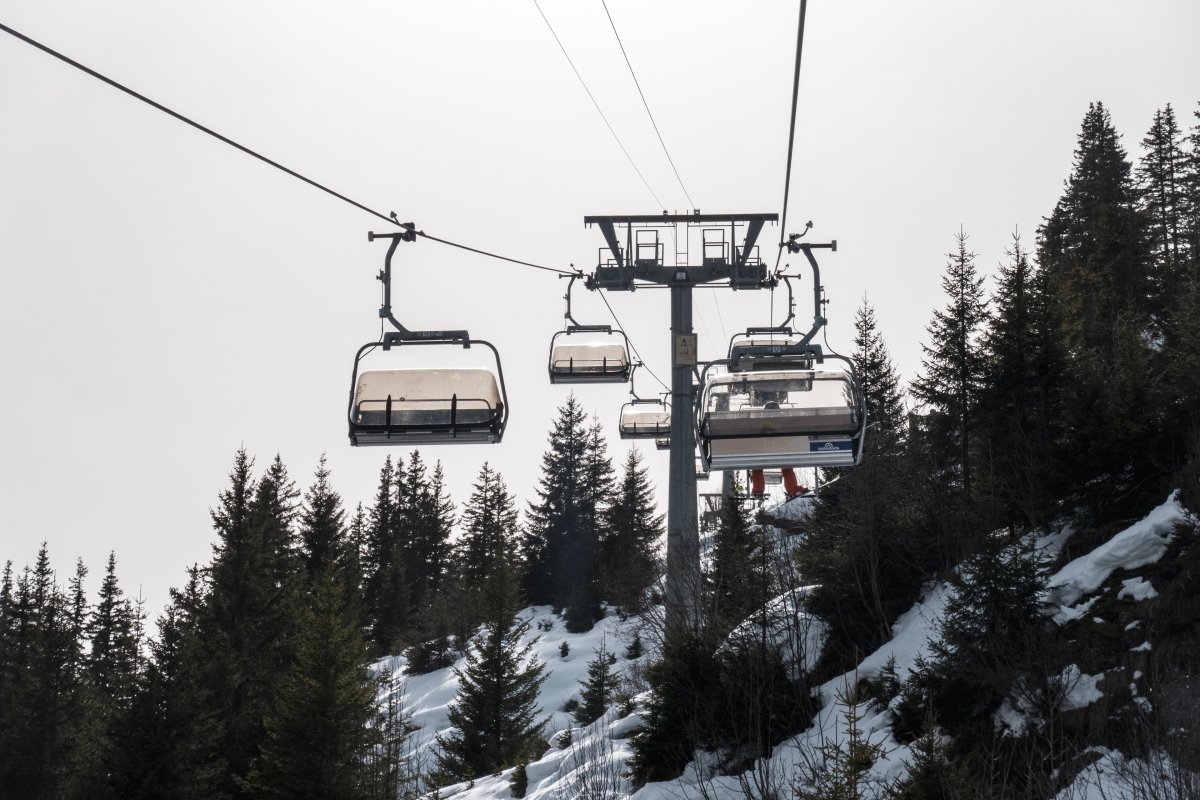

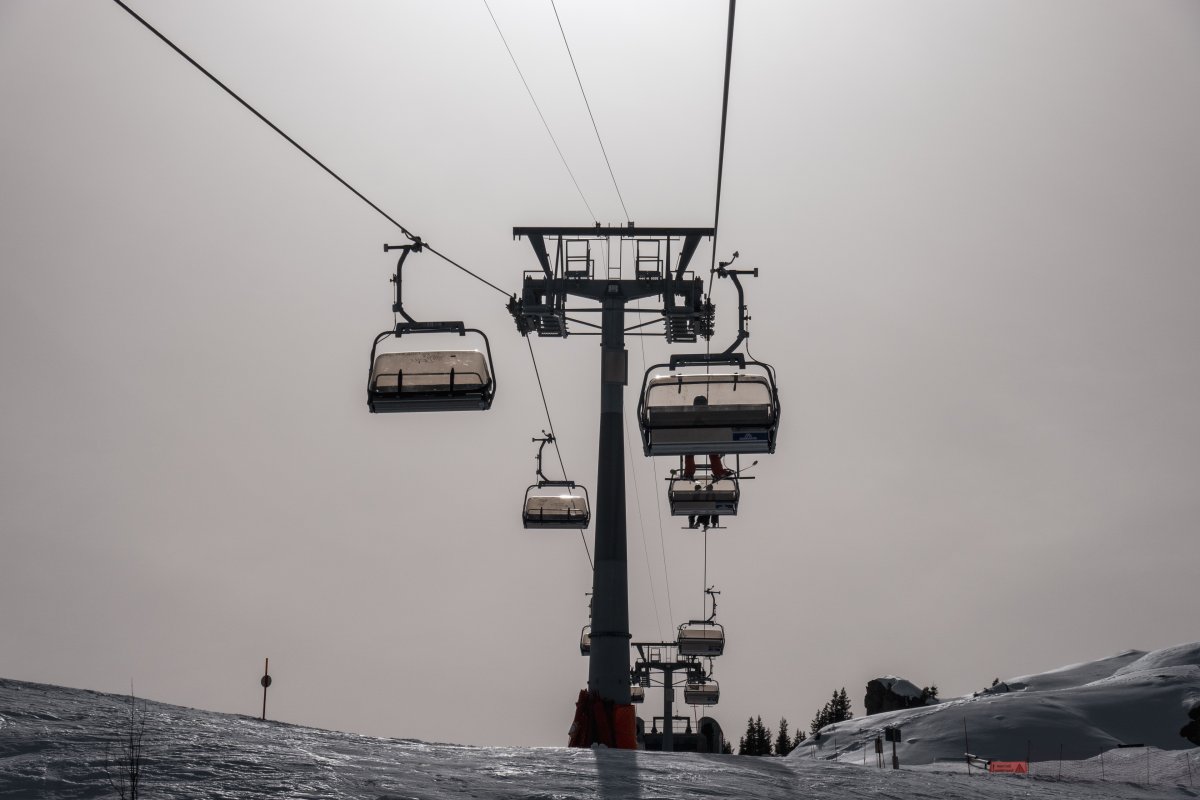

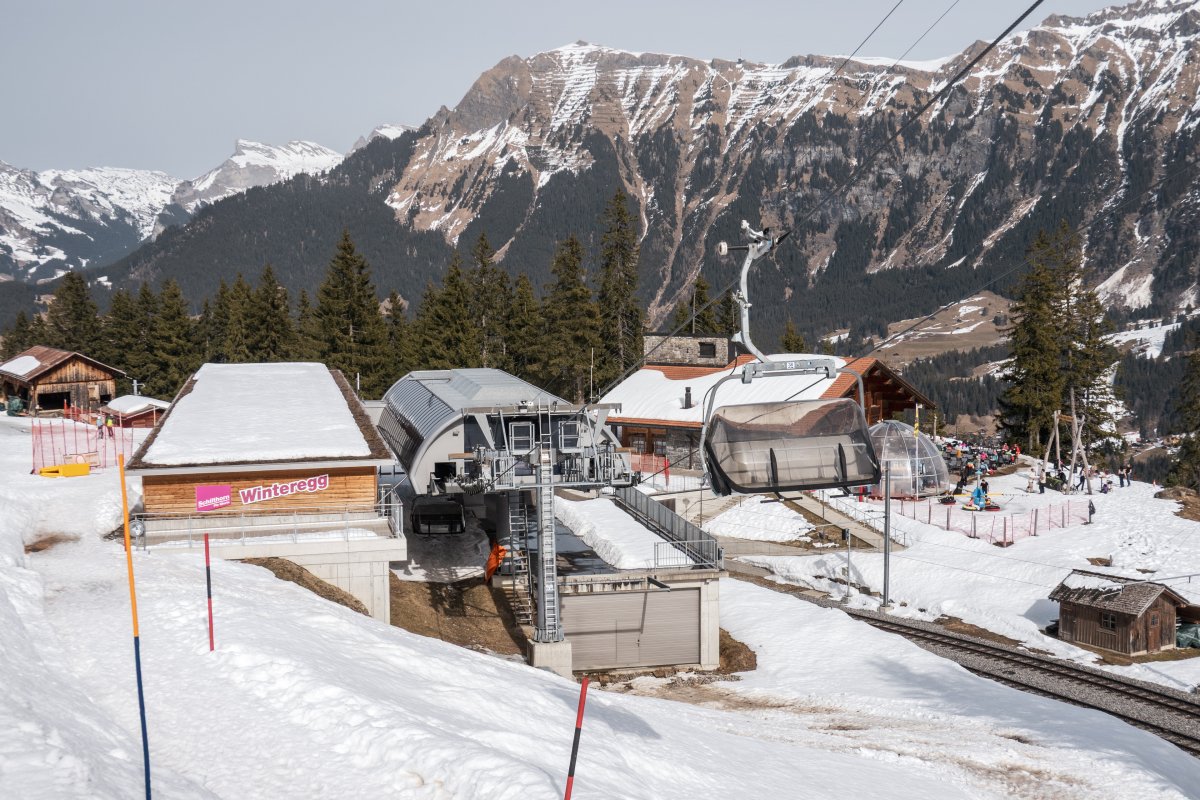

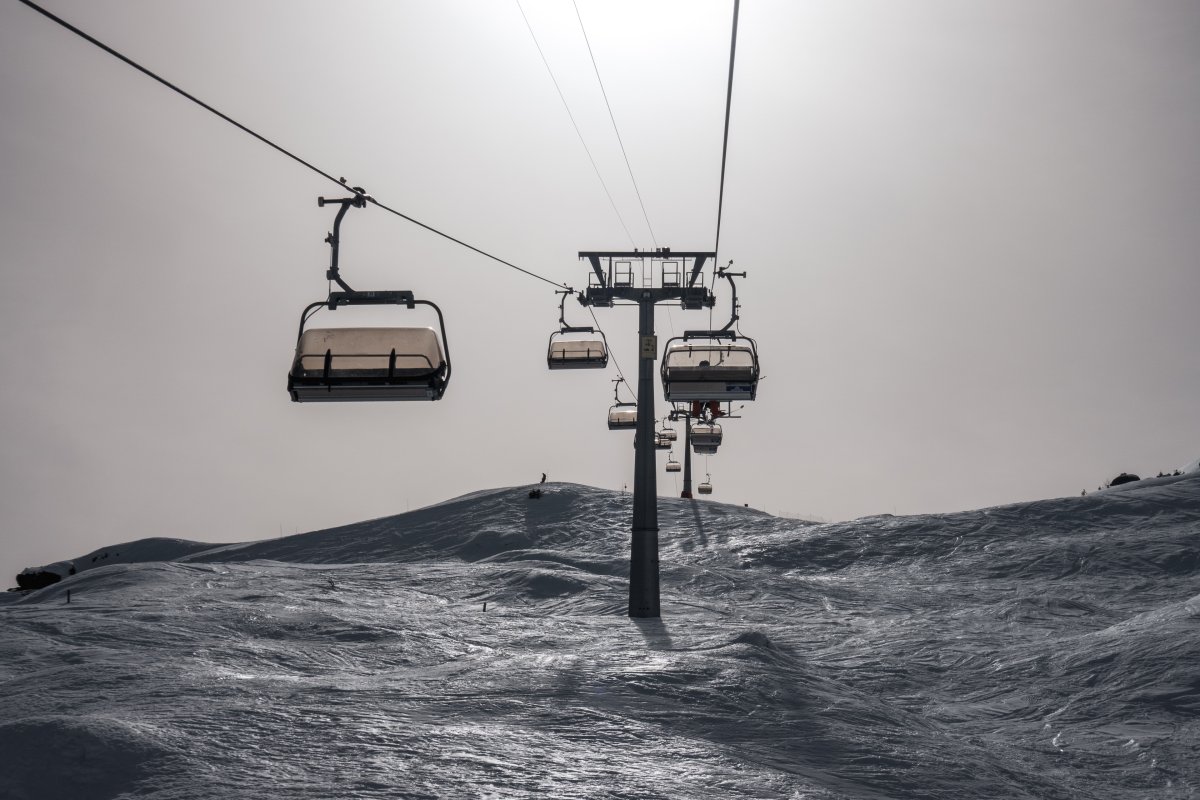

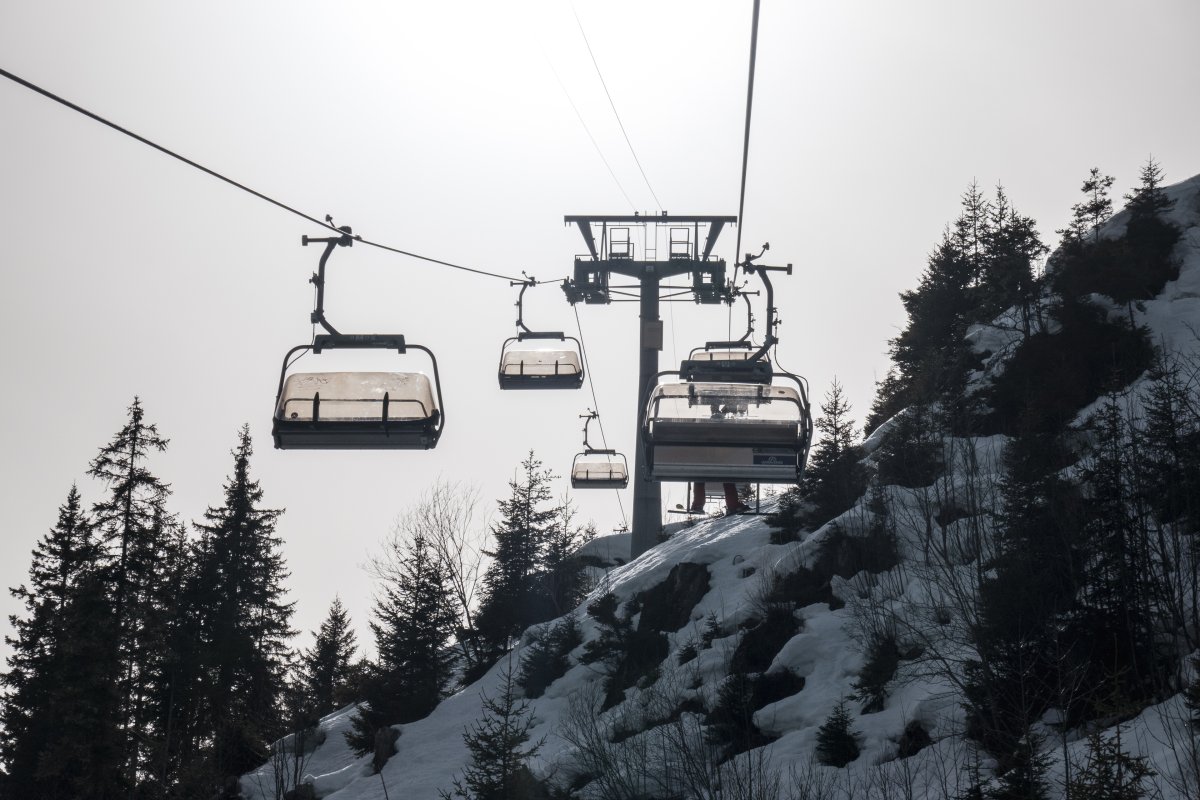

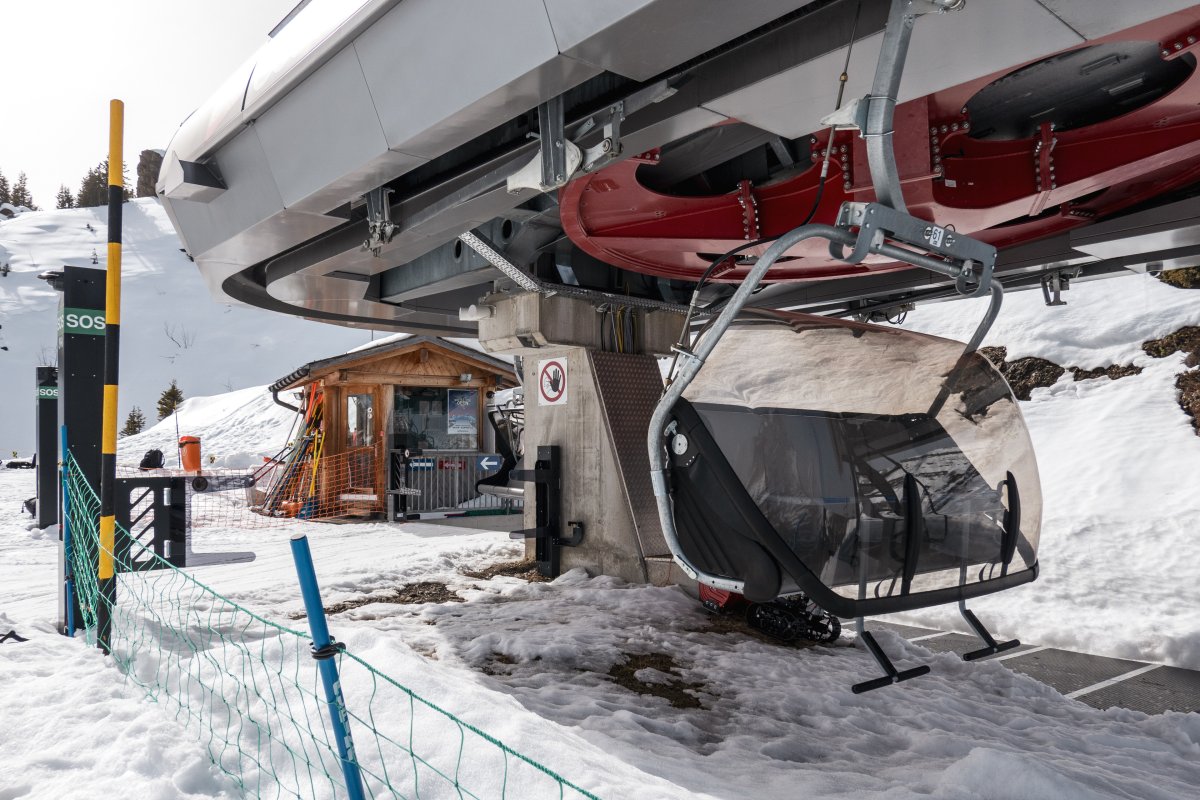

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.58151 N / 7.89573 E, Top station 46.57087 N / 7.88783 E
Location of the installation: Google Maps • Swisstopo
