10-KBK Lenk-Rothenbach-Metsch
Last update: 25.12.2014 23:30 (Updated by swisstrains)
Photo provided by: salvi11
Technical data
| Bottom station altitude | 1073 | m |
| Top station altitude | 1469 | m |
| Difference in altitude | 396 | m |
| Length | 886 | m |
| Capacity | 2400 | P/h |
| Travel time | 2,5 | min |
| Speed | 6 | m/s |
| Number of towers | 8 | |
| Number of carriers | 30 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Sigma | |
| Rope manufacturer | ||
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
10-KBK Lenk-Rothenbach-Metsch
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

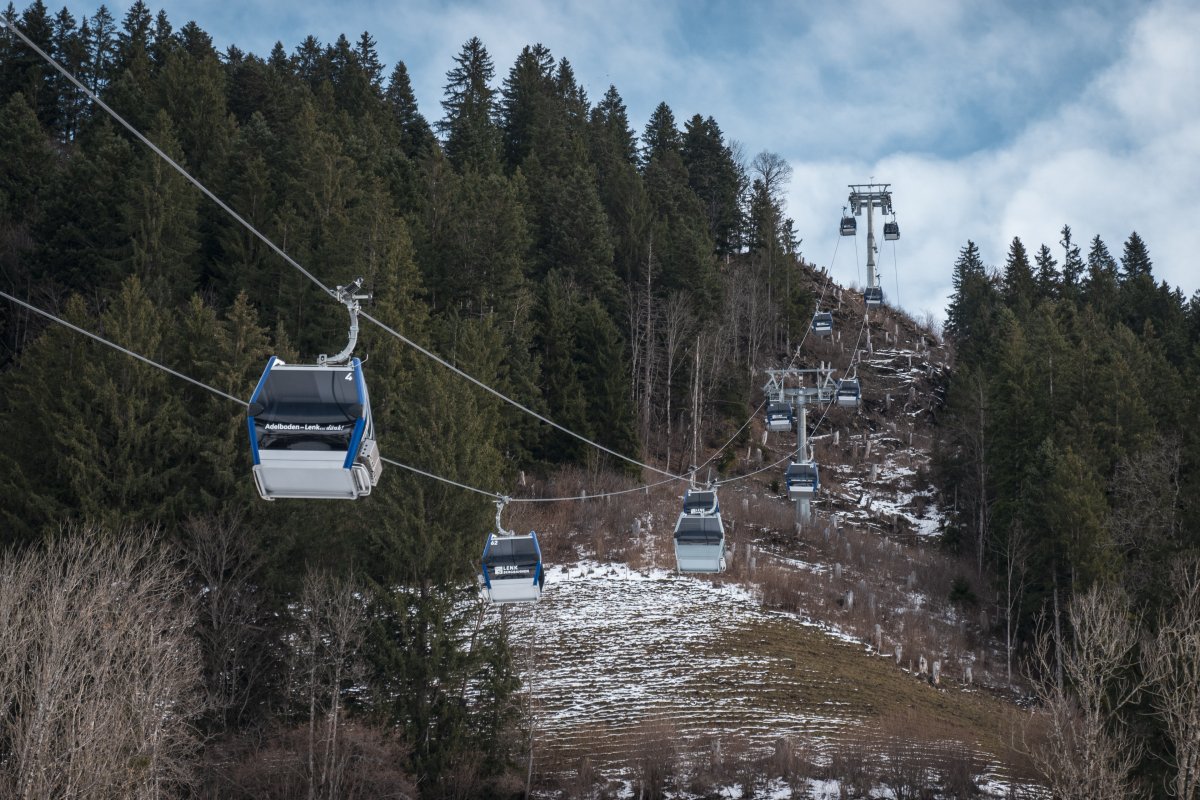

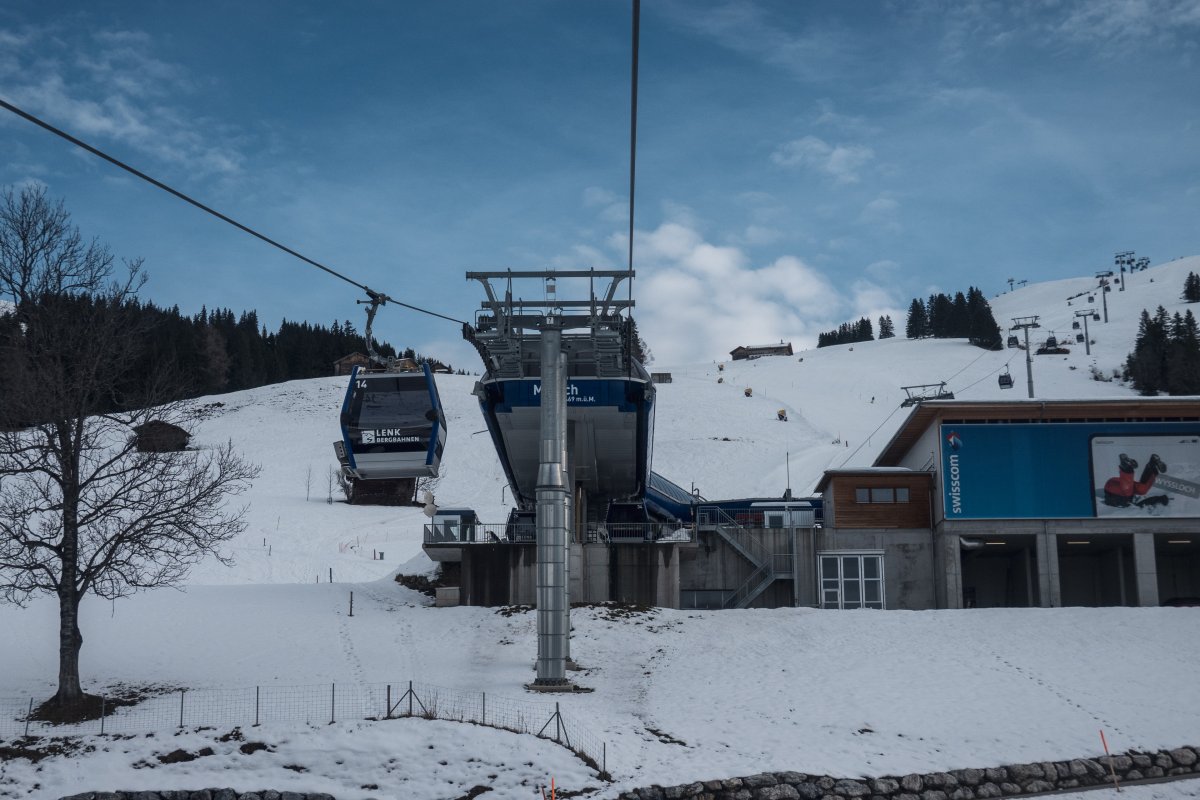

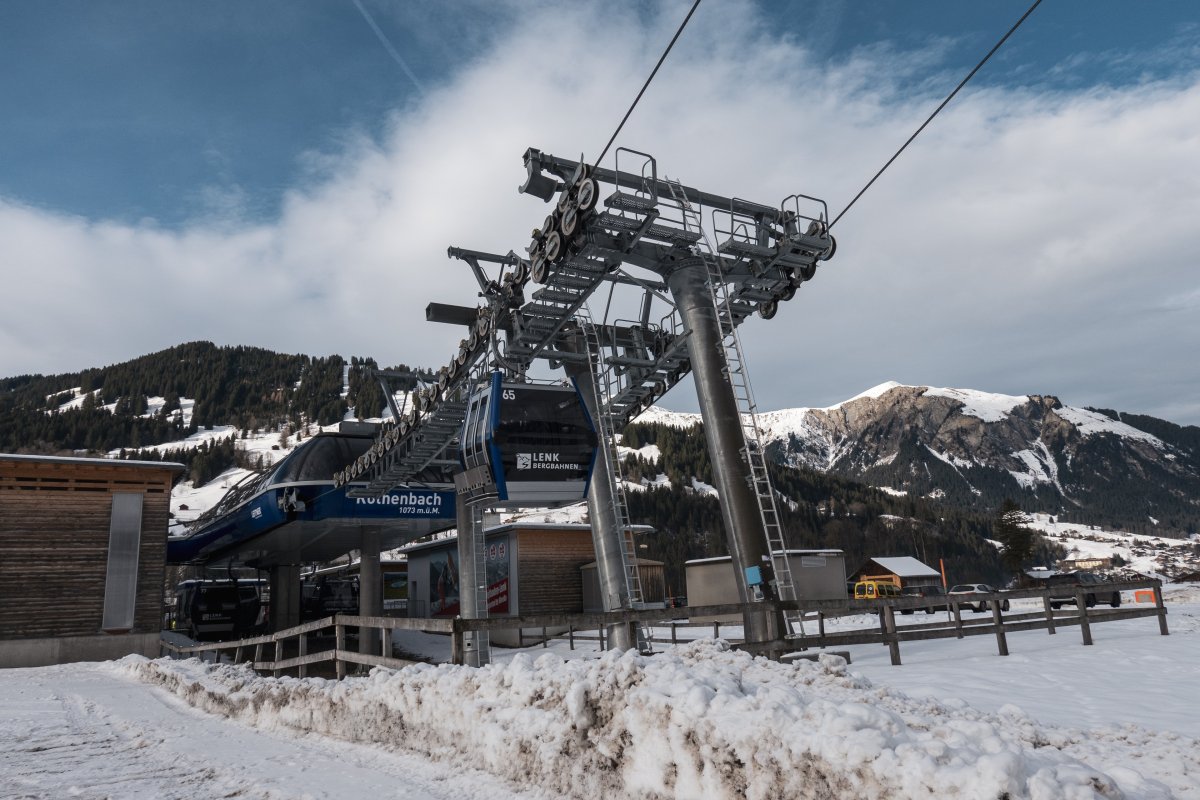

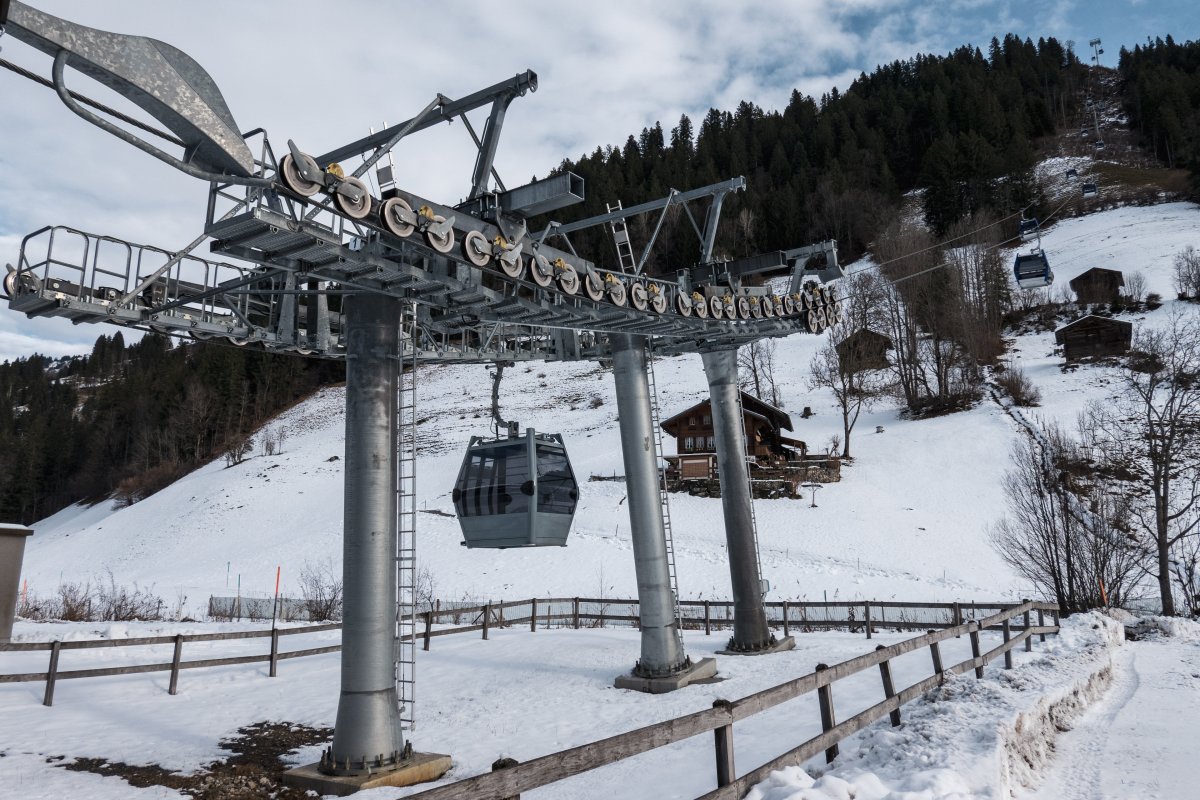

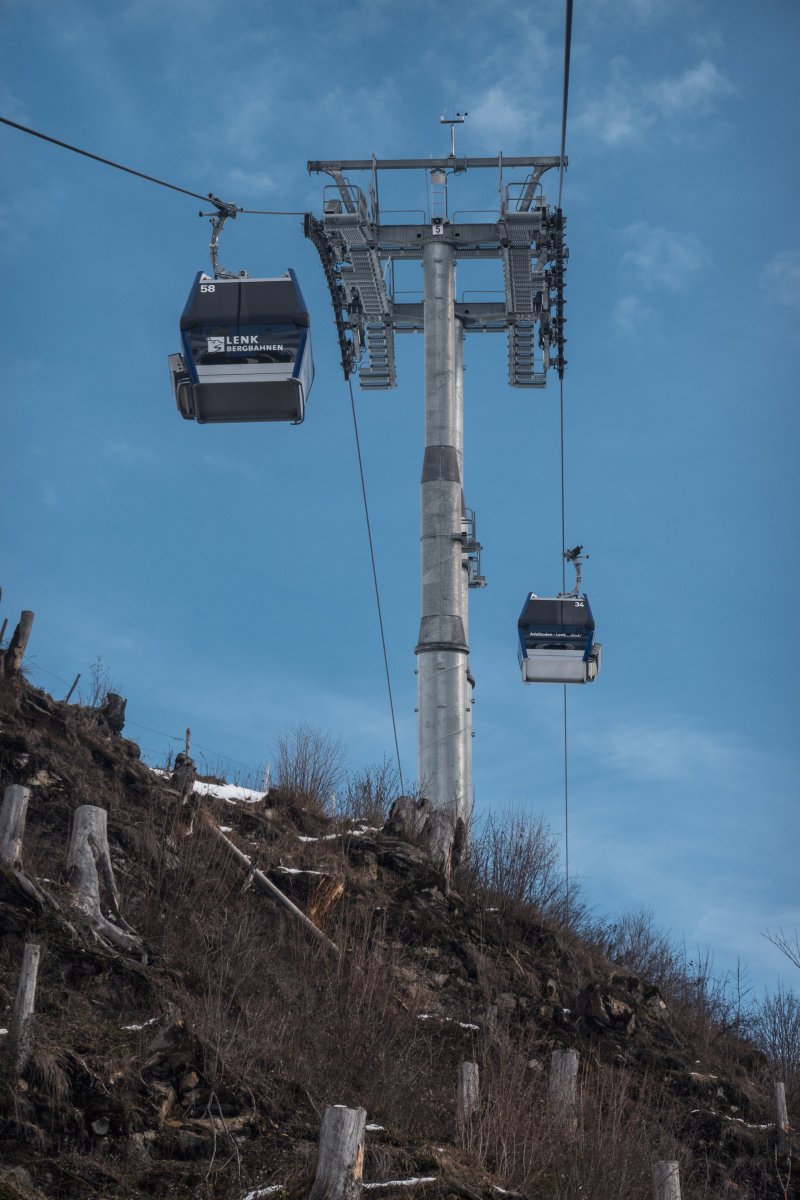

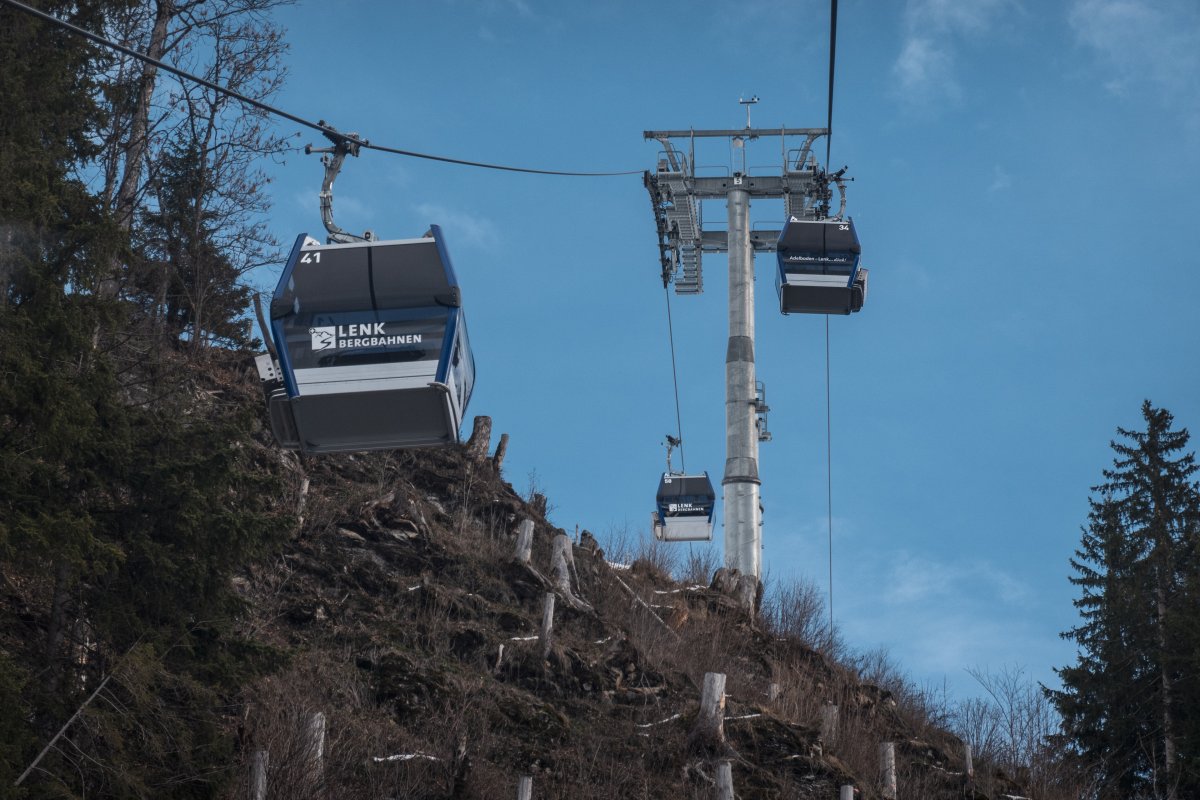

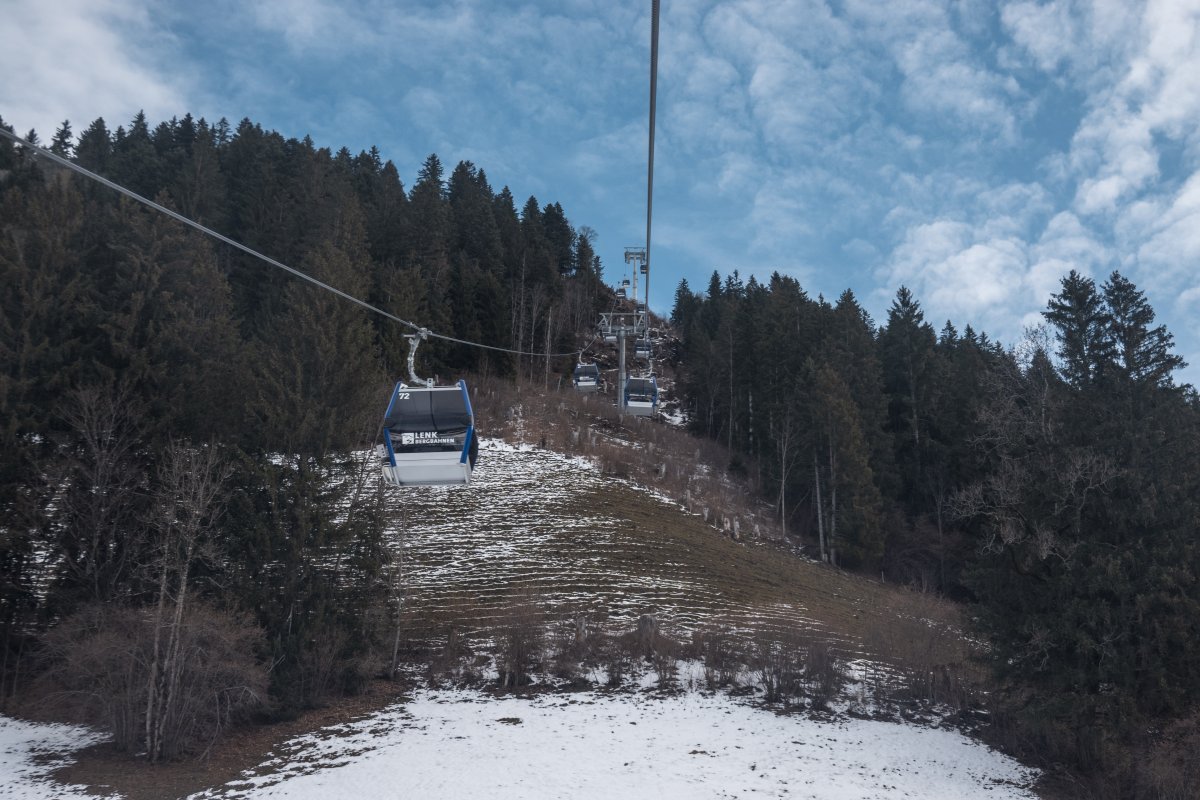

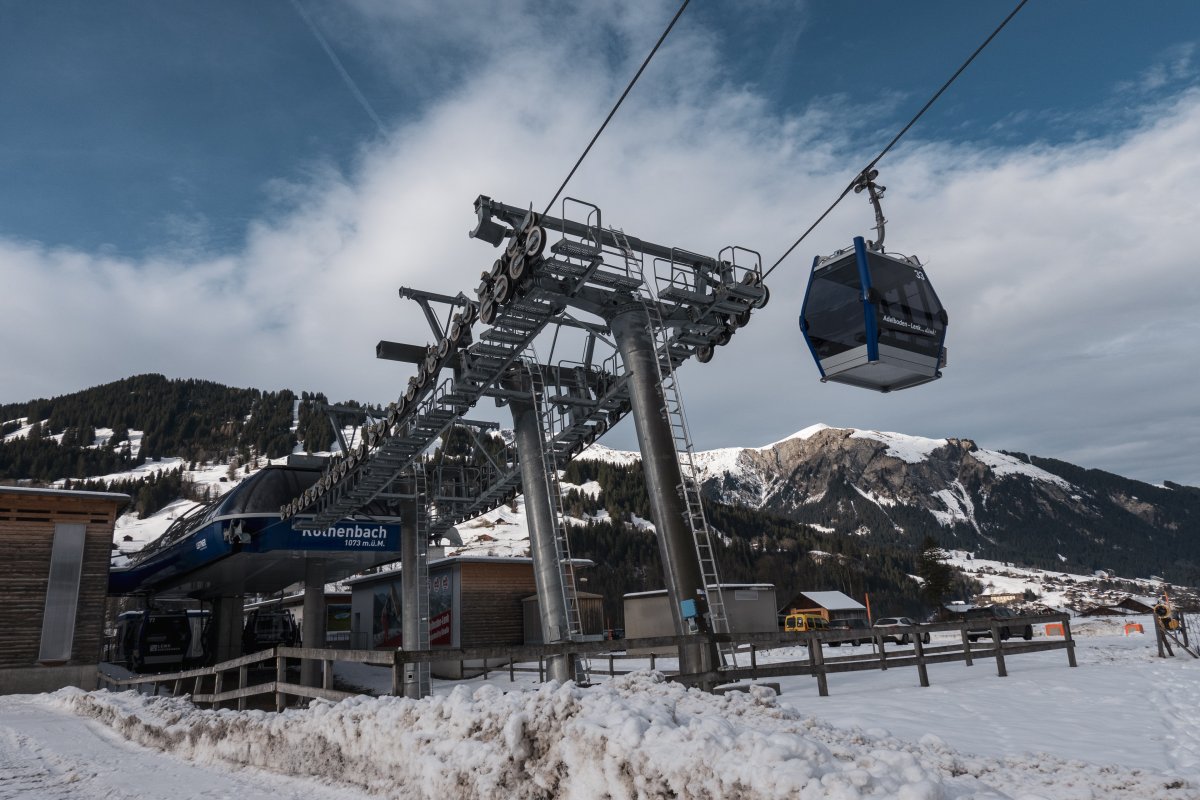

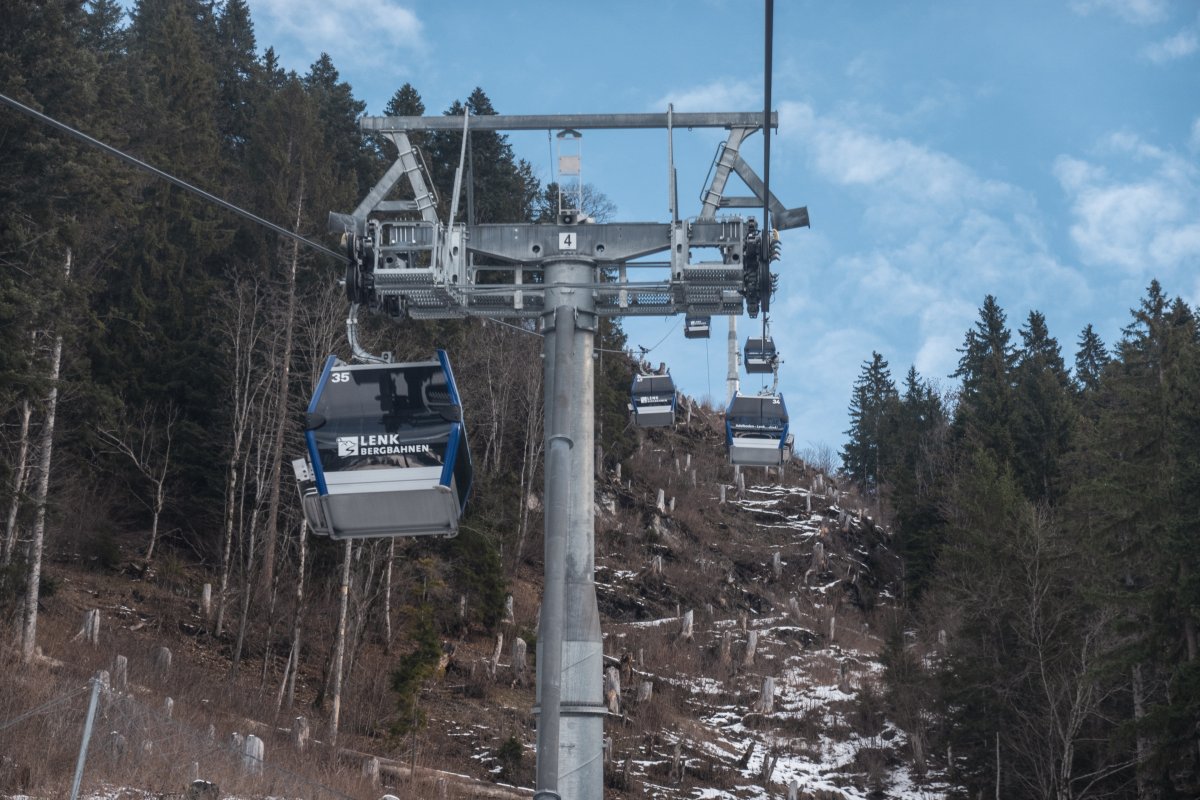

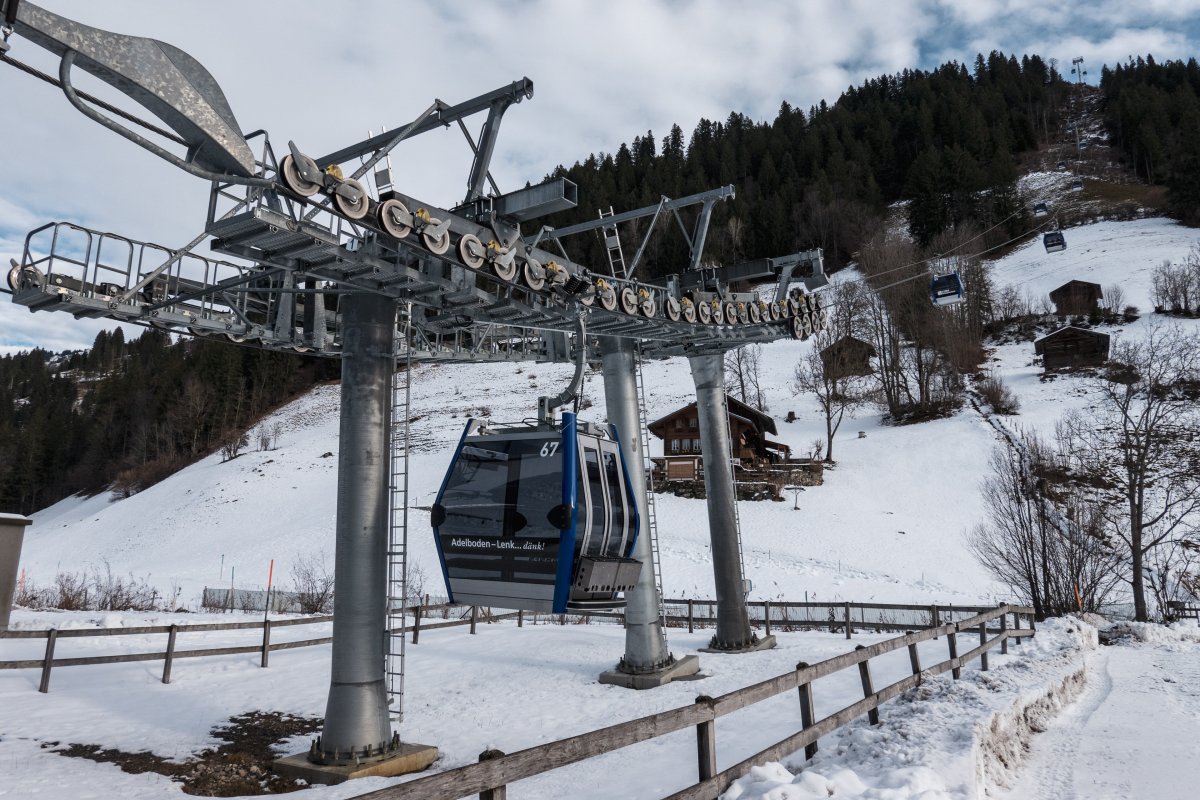

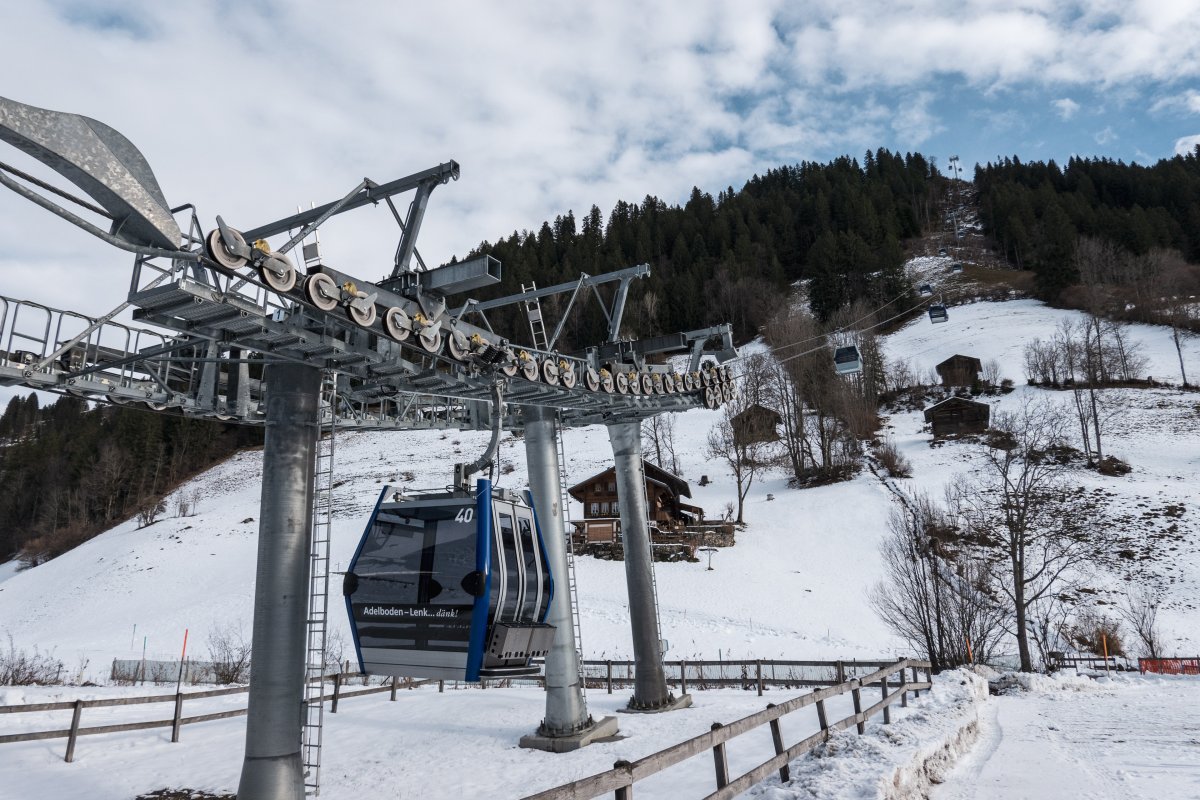

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.44212 N / 7.45741 E, Top station 46.44437 N / 7.46705 E
