Aerial Tramway Pranzaira-Albigna in Vicosoprano
8-person Aerial Tramway Pranzaira-Albigna
AI Abstract
The Pranzaira-Albigna ropeway in Vicosoprano (Grisons) was built in 2016 and connects the valley station located at 1200 m with the mountain station at 2100 m. The length is 2440 meters. The ropeway was constructed by the manufacturer Garaventa. The maximum capacity is 40 people per hour.
| Country |
|
|---|---|
| Canton / State |
|
| Location | Vicosoprano |
| Name | Pranzaira-Albigna |
| Type | 8-LPB (LPBF-K8) |
| Operating Time | 2016 - To date |
| Manufacturer | Garaventa |
| Status |
 |
- Country: Switzerland
- Canton / State: Grisons
- Location: Vicosoprano
- Name: Pranzaira-Albigna
- Type: 8-LPB
- Operating Time: 2016-To date
- Year of construction: 2016
- Manufacturer: Garaventa
- Status: In operation
- Bottom station altitude: 1200 m
- Difference in altitude: 900 m
- Length: 2440 m
- Capacity: 40 P/h
- Travel time: 9,3 min
- Speed: 7 m/s
- Number of towers: 3
- Number of carriers: 2
- Drive terminal: Bottom station
- Tensioning terminal: Top station
- Carrier manufacturer: CWA
- Rope manufacturer: Fatzer
- Electronics manufacturer: Frey
- Transportation uphill: Yes
- Transportation downhill: Yes
- Remarks: Nutzlast maximal 5000 kg.
Frequently asked questions
What is the ropeway Pranzaira-Albigna?
The Pranzaira-Albigna ropeway is a 8-person Aerial Tramway in Vicosoprano and connects the valley station at 1200 m to the mountain station at 2100 m.
What is the hourly passenger capacity of the Pranzaira-Albigna ropeway?
The maximum capacity of the Pranzaira-Albigna ropeway is 40 people per hour.
When was the Pranzaira-Albigna ropeway constructed?
The Pranzaira-Albigna ropeway was constructed in 2016.
Where is the Pranzaira-Albigna ropeway located?
The Pranzaira-Albigna ropeway is operating in Vicosoprano (Switzerland).
How long is the Pranzaira-Albigna ropeway?
The diagonal length of the Pranzaira-Albigna ropeway is 2440 meters.
What is the elevation gain of the Pranzaira-Albigna ropeway?
The Pranzaira-Albigna ropeway covers an elevation gain of 900 meters.
Who is the manufacturer of the Pranzaira-Albigna ropeway?
The Pranzaira-Albigna ropeway was constructed by the company Garaventa.
Technical data
| Bottom station altitude | 1200 | m |
|---|---|---|
| Top station altitude | 2100 | m |
| Difference in altitude | 900 | m |
| Length | 2440 | m |
| Capacity | 40 | P/h |
| Travel time | 9,3 | min |
| Speed | 7 | m/s |
| Number of towers | 3 | |
| Number of carriers | 2 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | Nutzlast maximal 5000 kg. | |
Chronicle
-
-
-

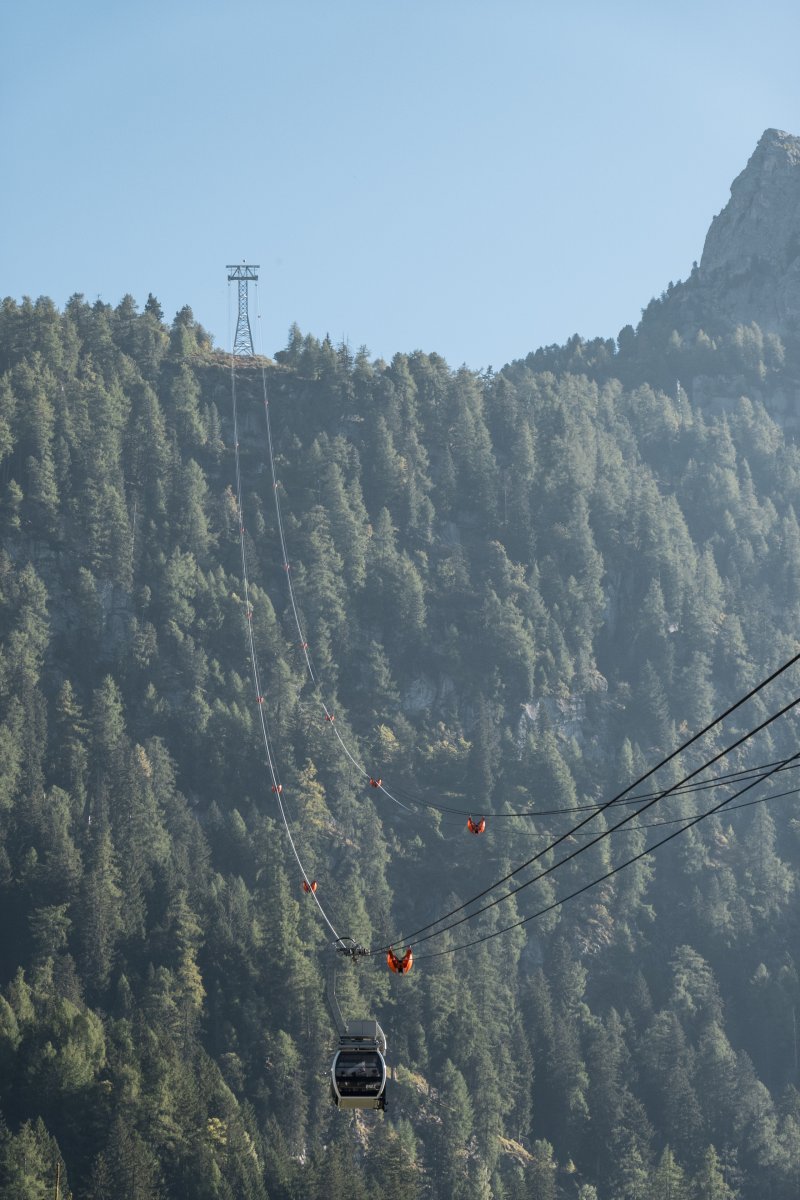

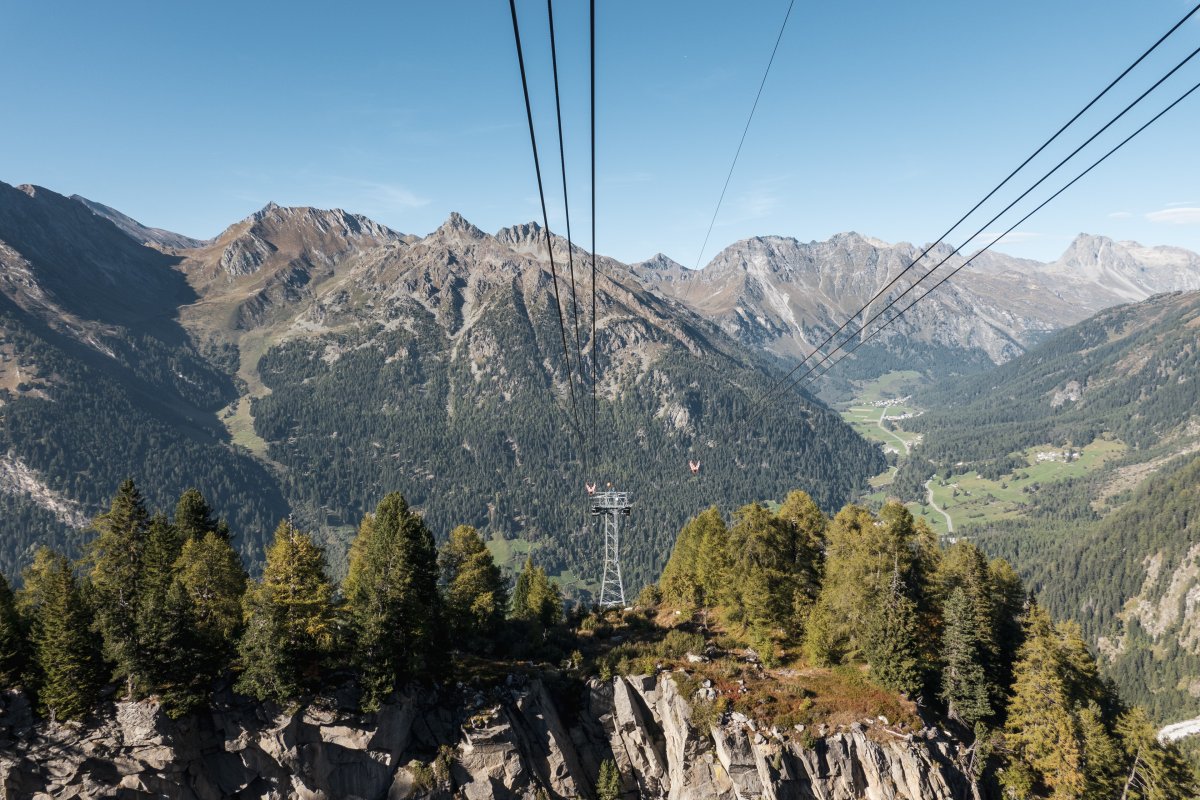

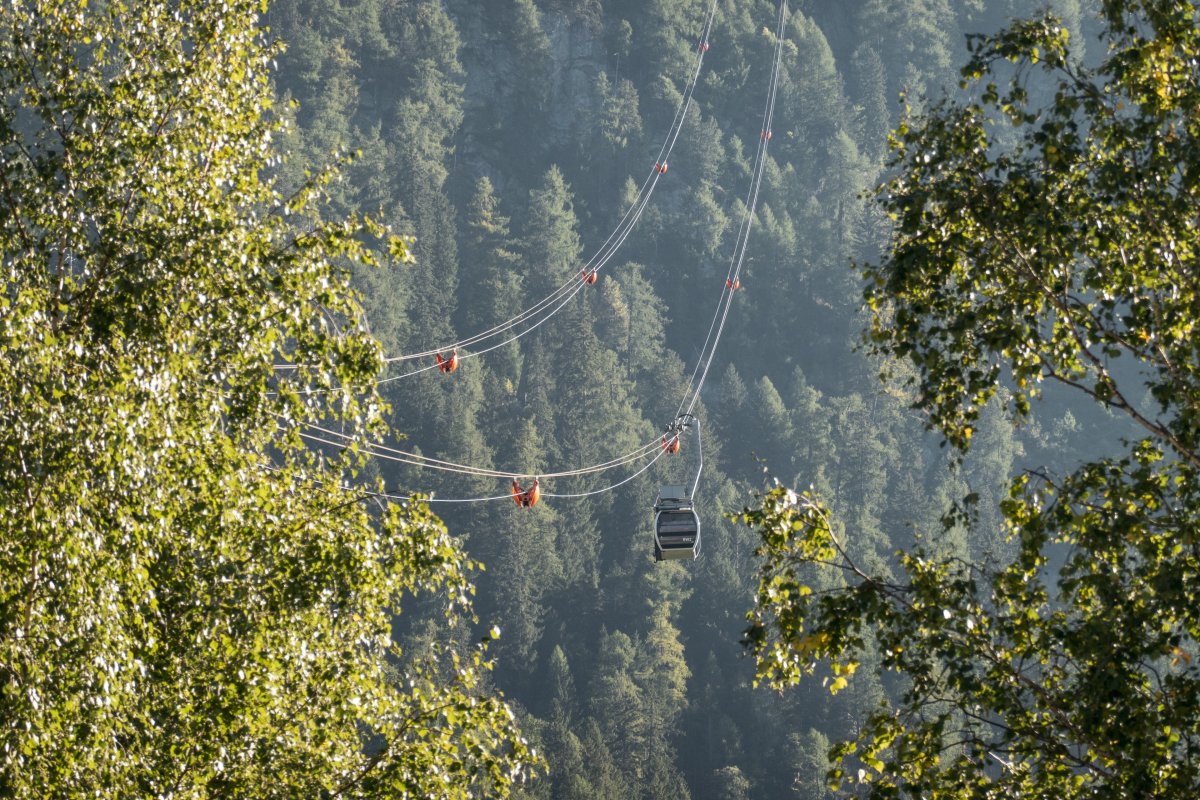

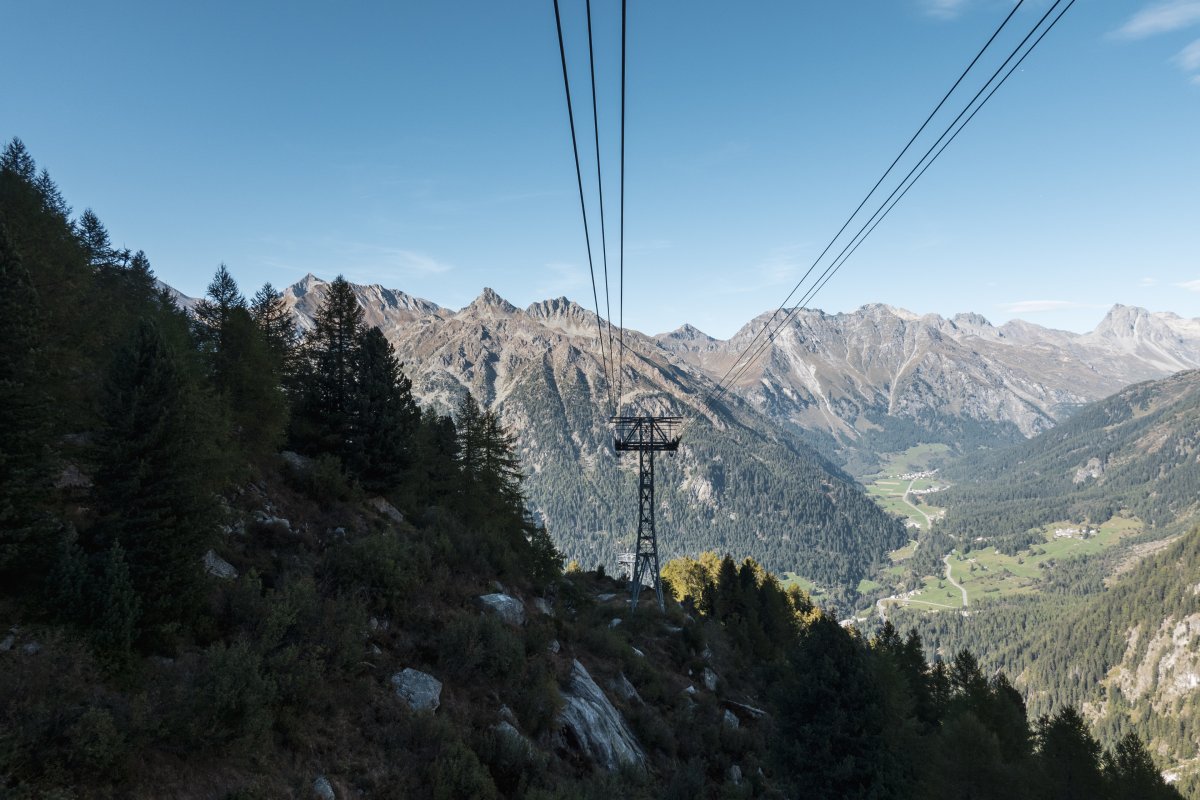

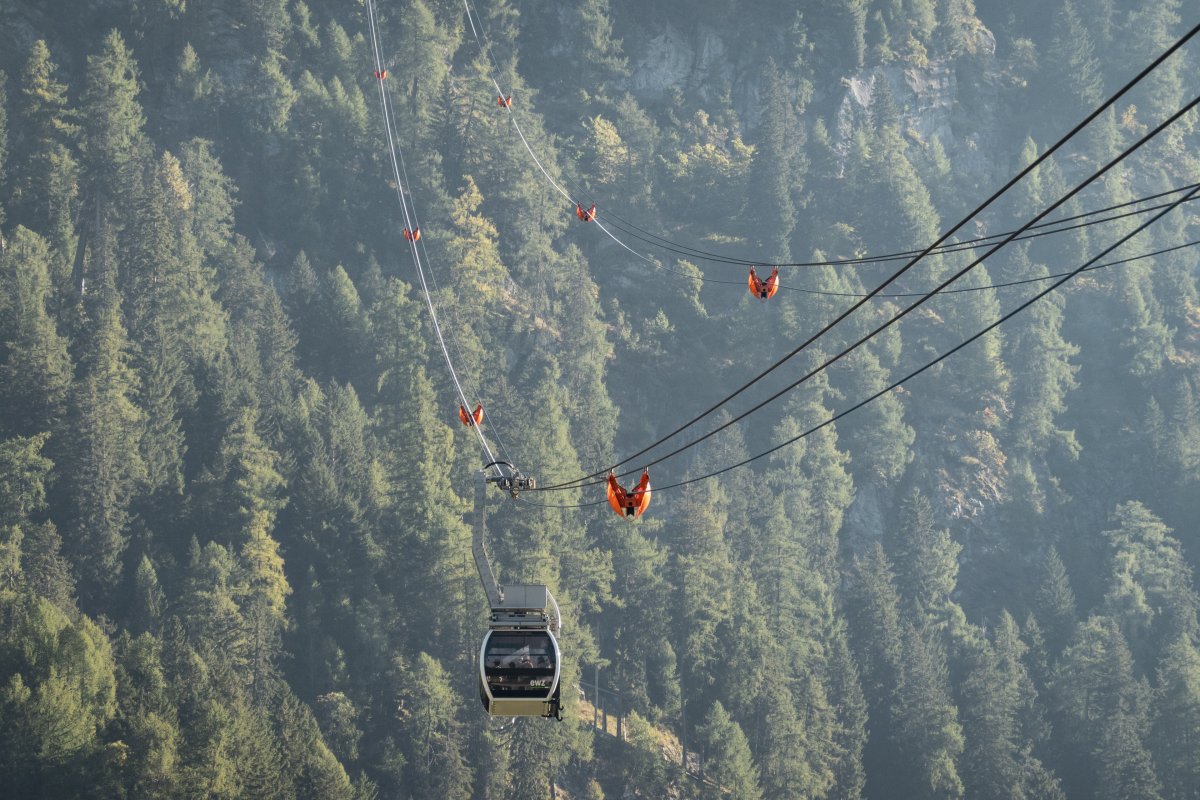

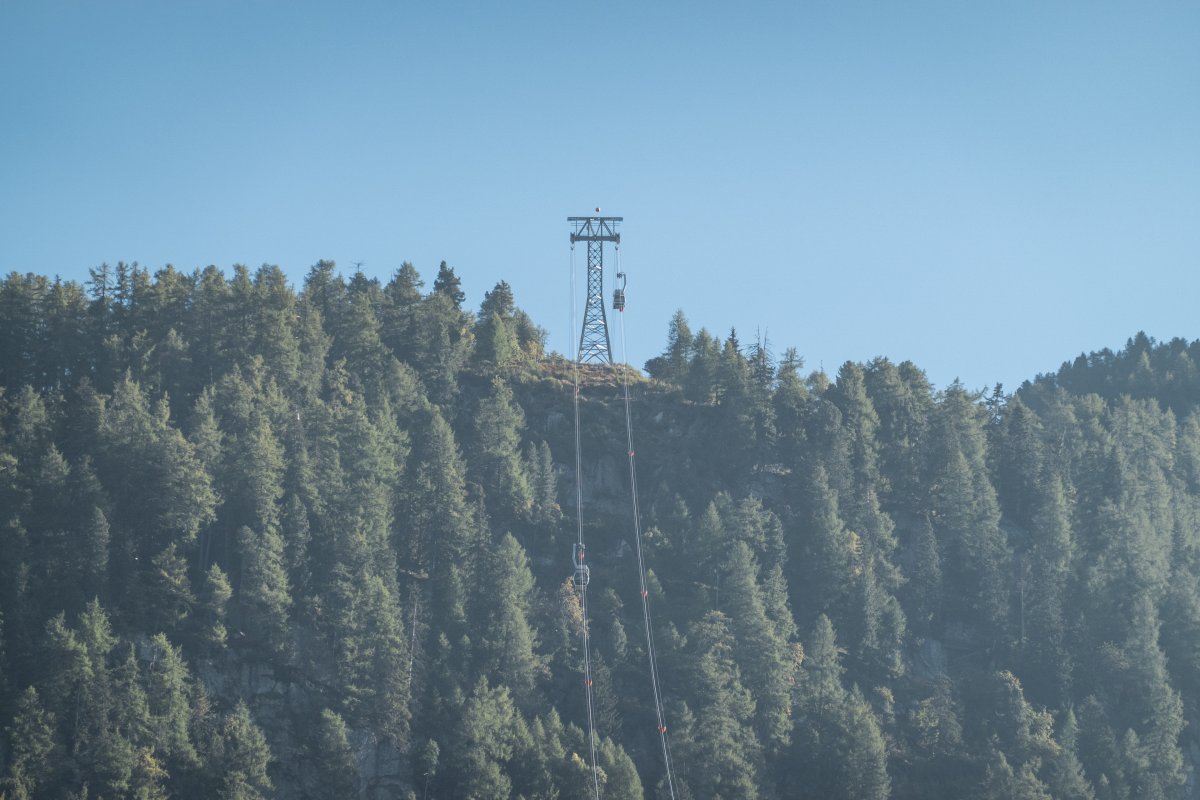

Photos of this ropeway
Videos of this ropeway
Location of the installation
Coordinates (decimal): Bottom station 46.35808 N / 9.64411 E, Top station 46.33786 N / 9.64549 E
Location of the installation: Google Maps • Swisstopo
