Ropeway Database - 120-LPB Eibsee-Zugspitze (Garmisch-Partenkirchen)
120-LPB Eibsee-Zugspitze
Last update: 08.06.2019 12:52 (Updated by swisstrains)
Photo provided by: swisstrains
Technical data
| Bottom station altitude | 999 | m |
| Top station altitude | 2944 | m |
| Difference in altitude | 1945 | m |
| Length | 4467 | m |
| Capacity | 580 | P/h |
| Travel time | 8,75 | min |
| Speed | 10,6 | m/s |
| Number of towers | 1 | |
| Number of carriers | 2 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |

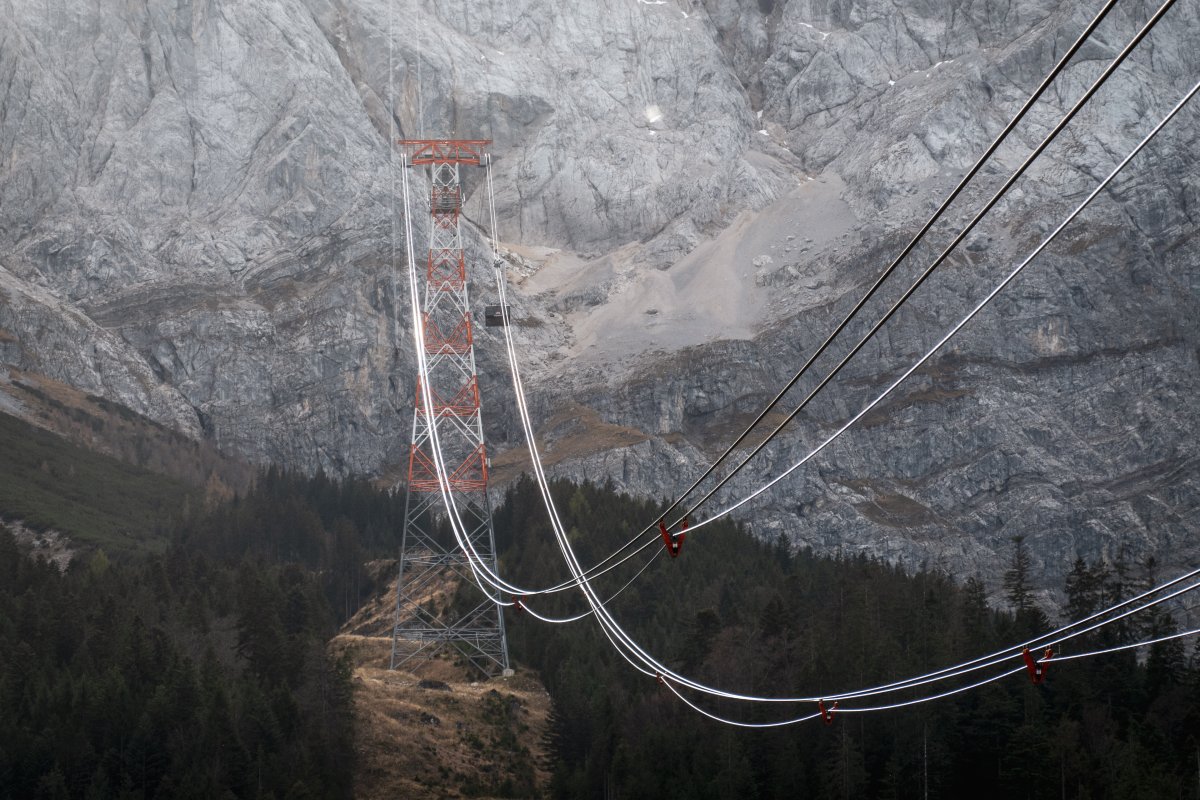

| Remarks | Weltweit höchste Stahlbaustütze für Pendelbahnen: 127 m, weltweit grösster Gesamthöhenunterschied in einer Sektion: 1.945 m sowie weltweit längstes freies Spannfeld: 3.213 m. | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
120-LPB Eibsee-Zugspitze
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

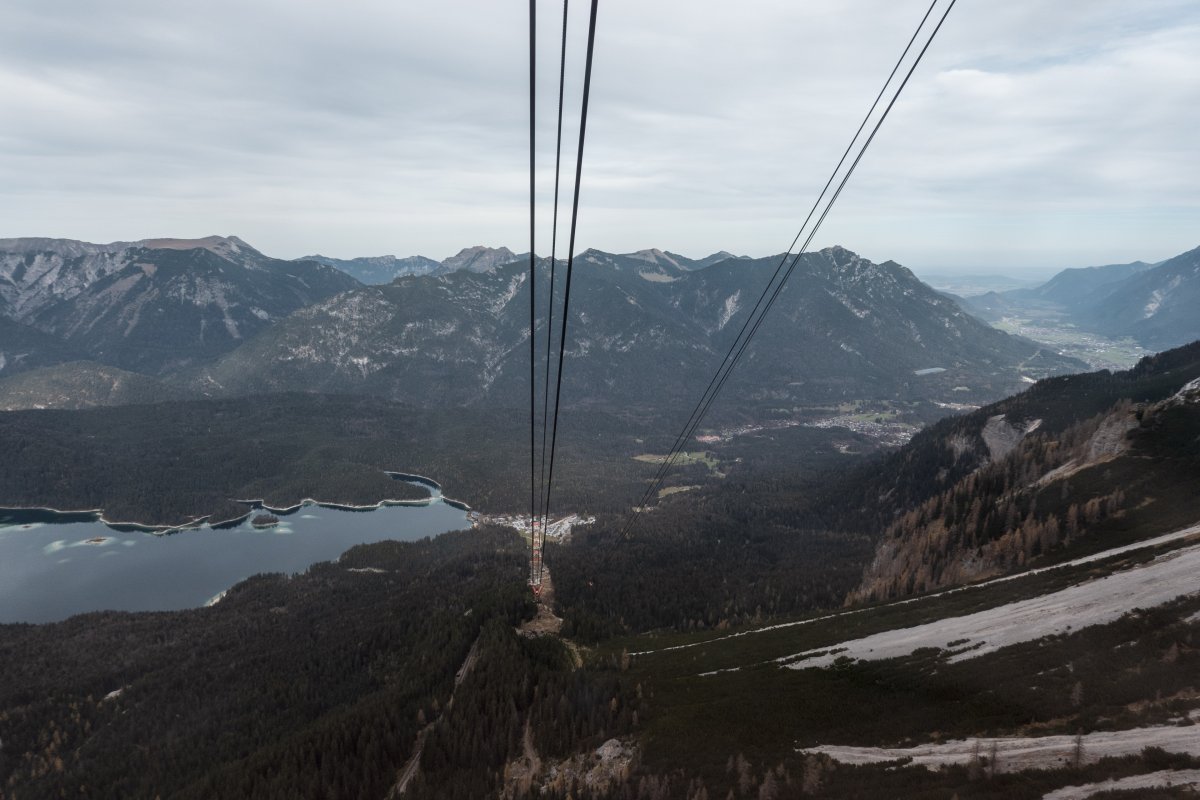

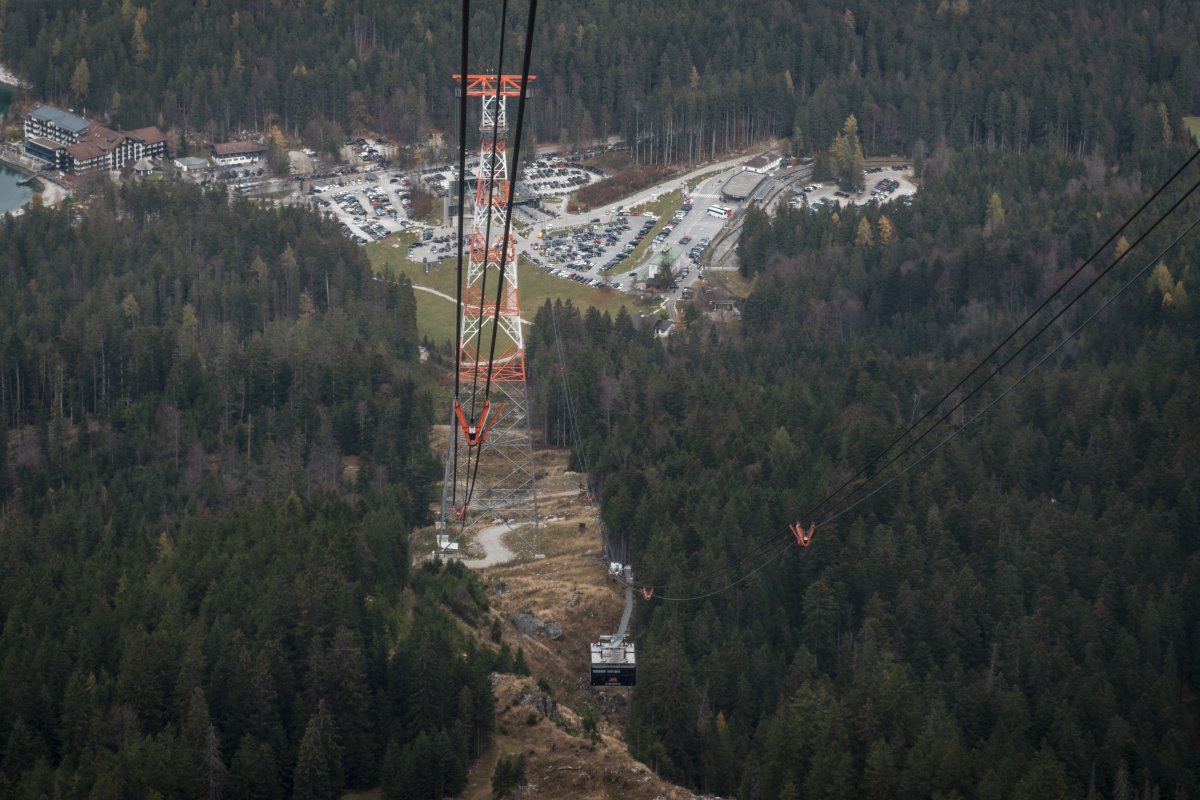

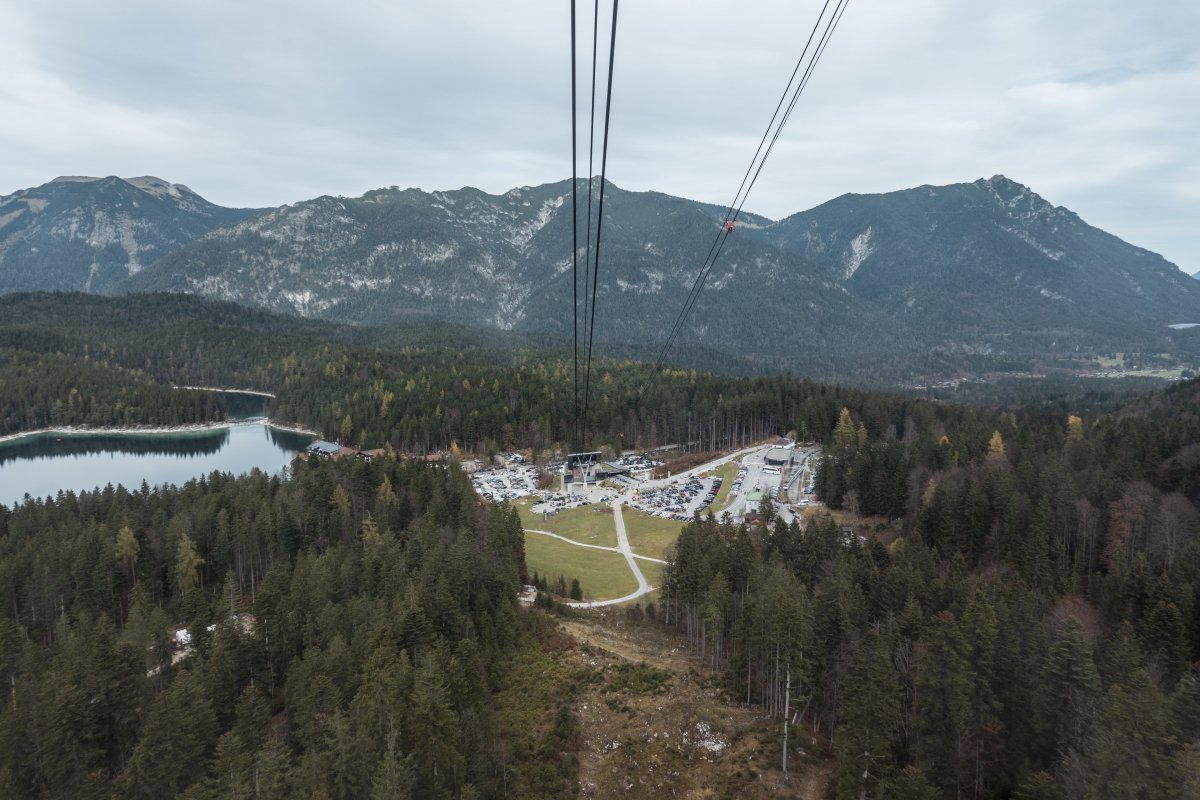

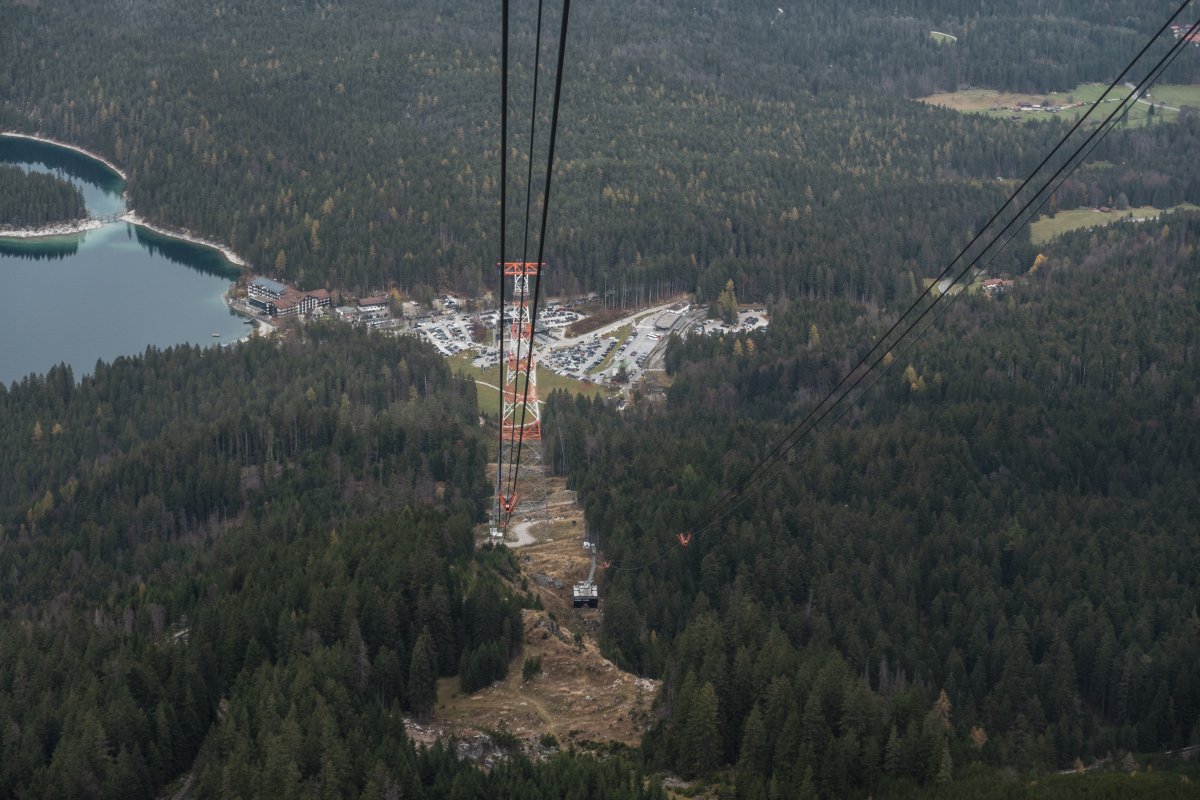

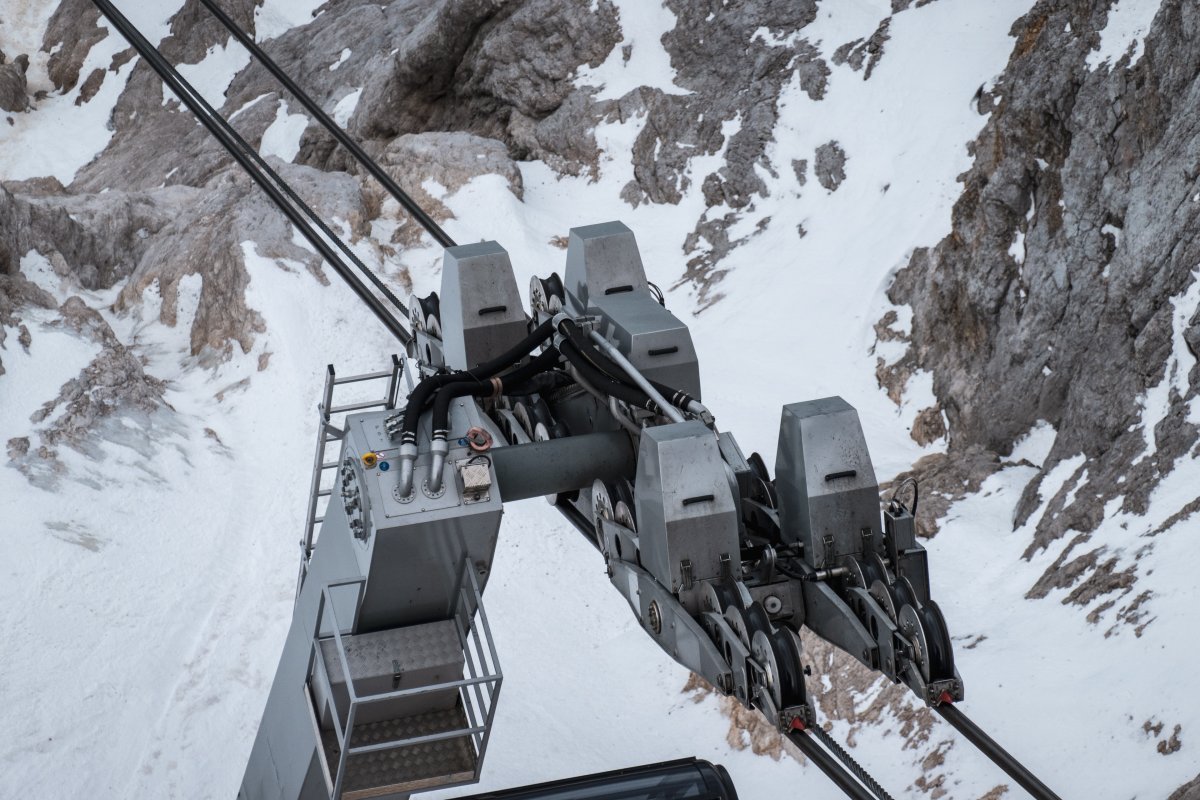

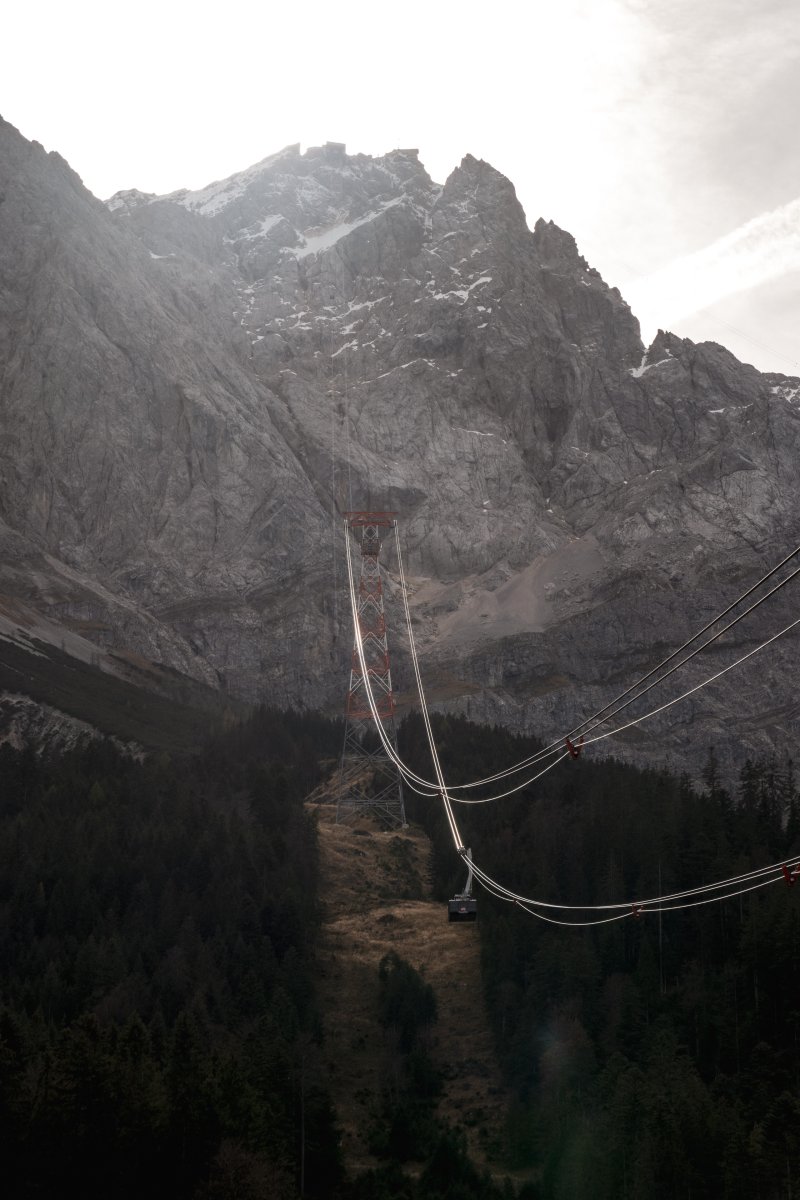

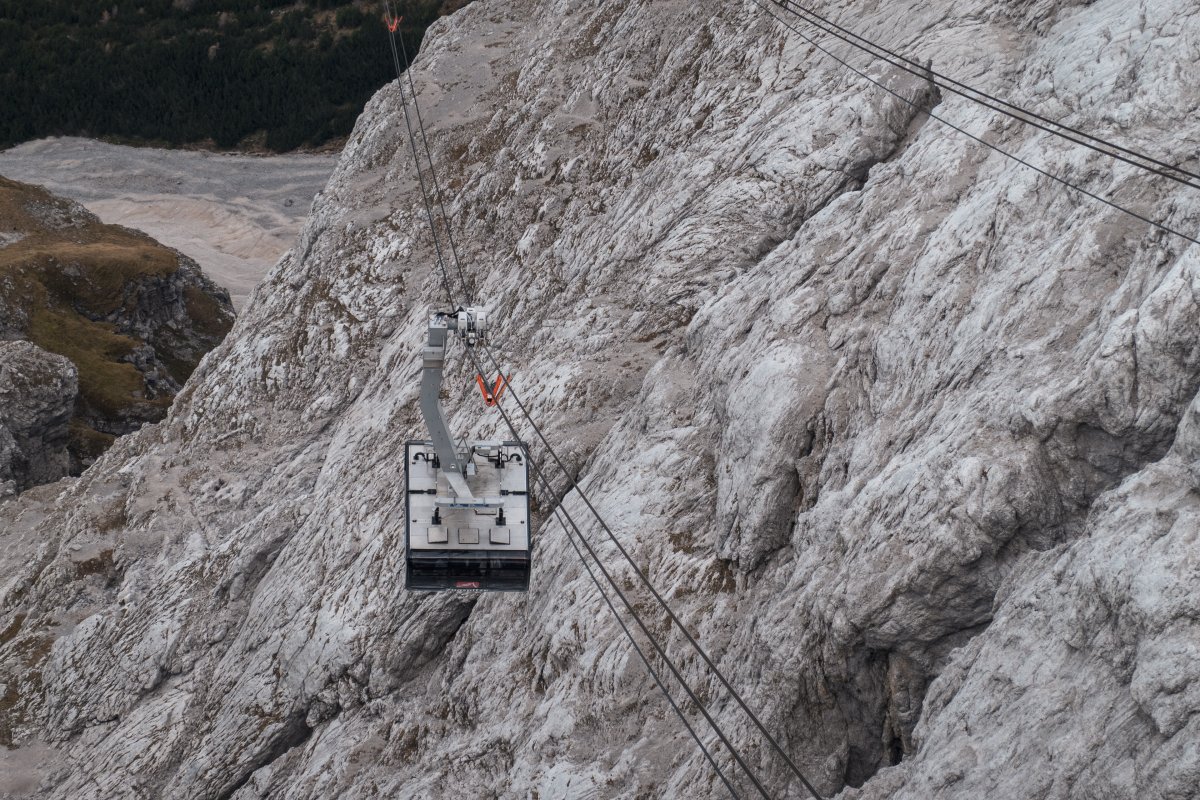

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 47.45664 N / 10.99217 E, Top station 47.42128 N / 10.98542 E
