Ropeway Database - 80-LPB Garmisch-Partenkirchen-Osterfelderkopf (Garmisch-Partenkirchen)
80-LPB Garmisch-Partenkirchen-Osterfelderkopf
Last update: 02.07.2021 12:27 (Updated by Wankbahn)
Photo provided by: swisstrains
Technical data
| Bottom station altitude | 746 | m |
| Top station altitude | 2033 | m |
| Difference in altitude | 1287 | m |
| Length | 3800 | m |
| Capacity | 500 | P/h |
| Travel time | 9 | min |
| Speed | 10 | m/s |
| Number of towers | 3 | |
| Number of carriers | 2 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Zarges | |
| Rope manufacturer | ||
| Electronics manufacturer | AEG | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | Das Zugseilspanngewicht befindet sich in der Bergstation, das Tragseilspanngewicht in der Talstation. | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
80-LPB Garmisch-Partenkirchen-Osterfelderkopf
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

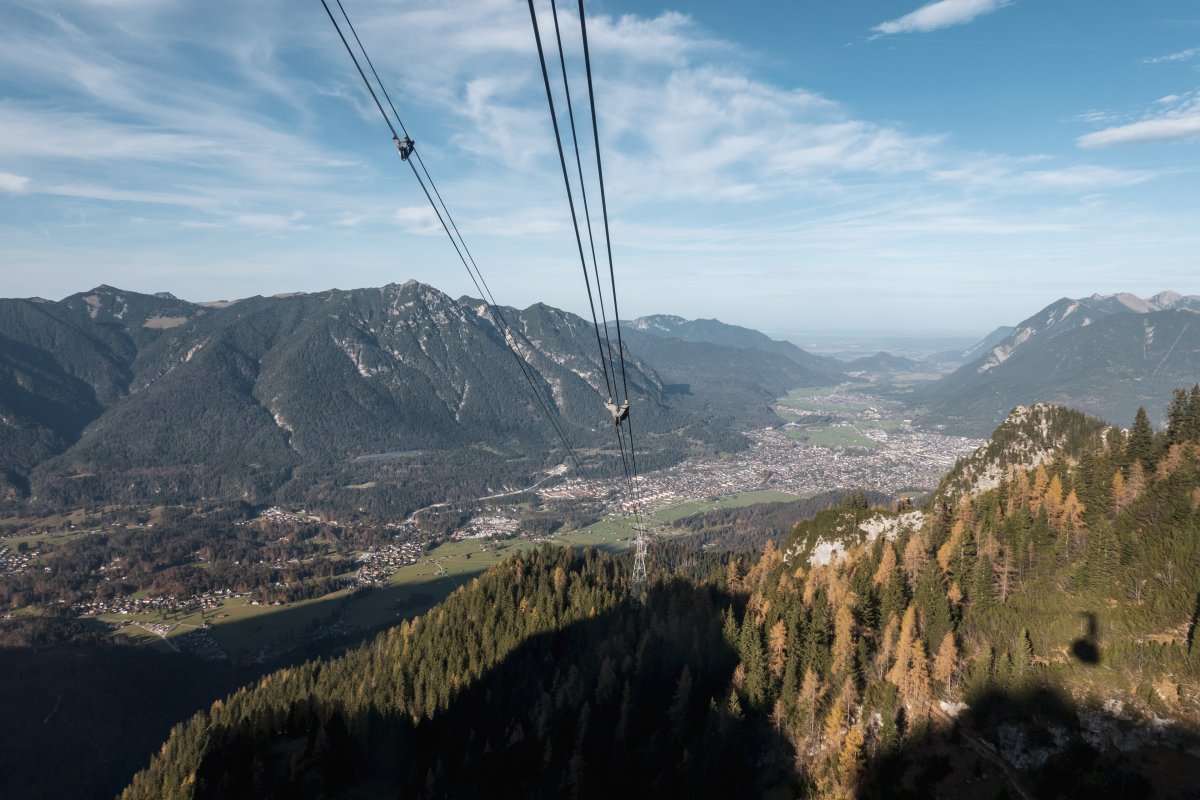

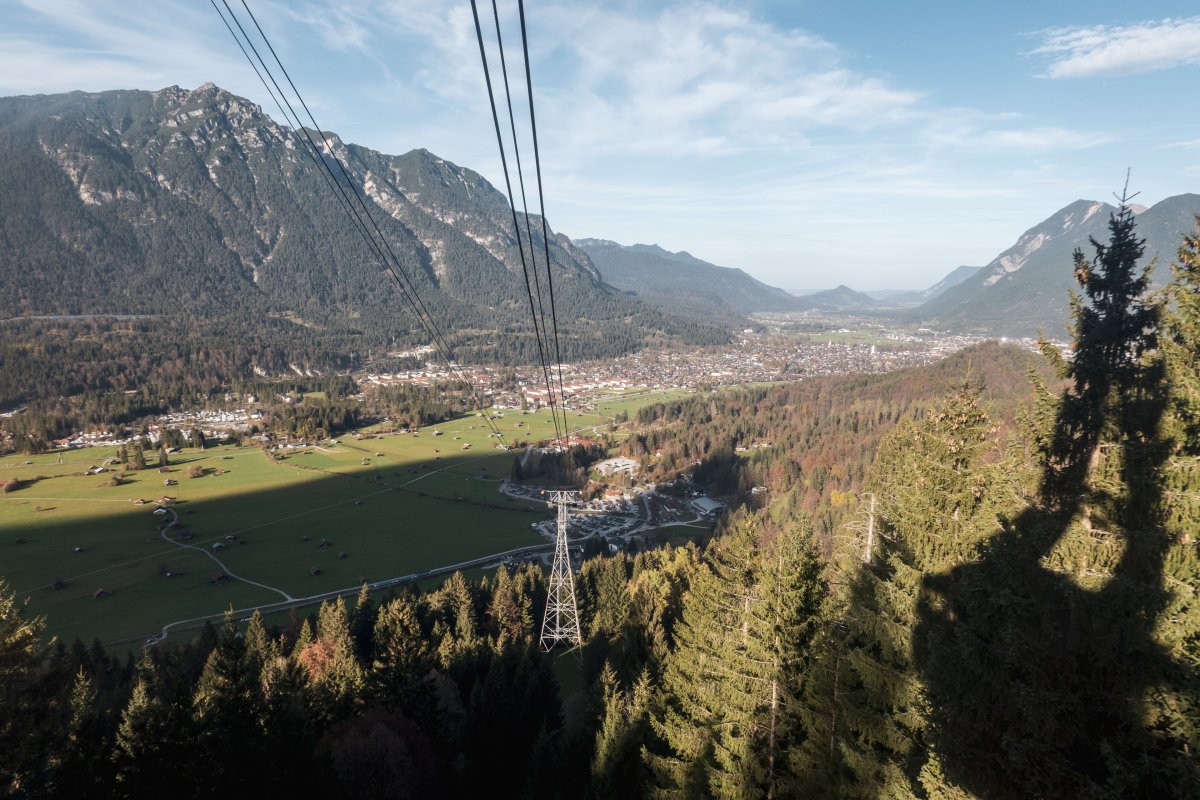

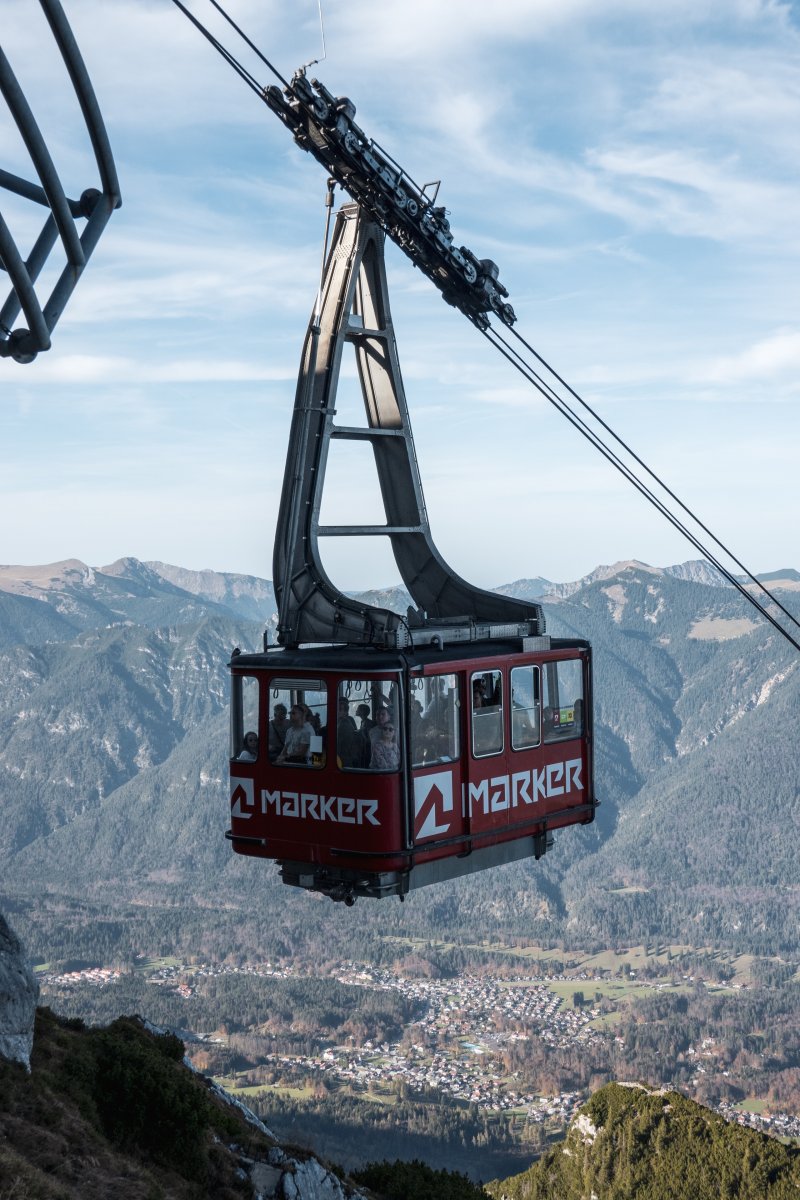

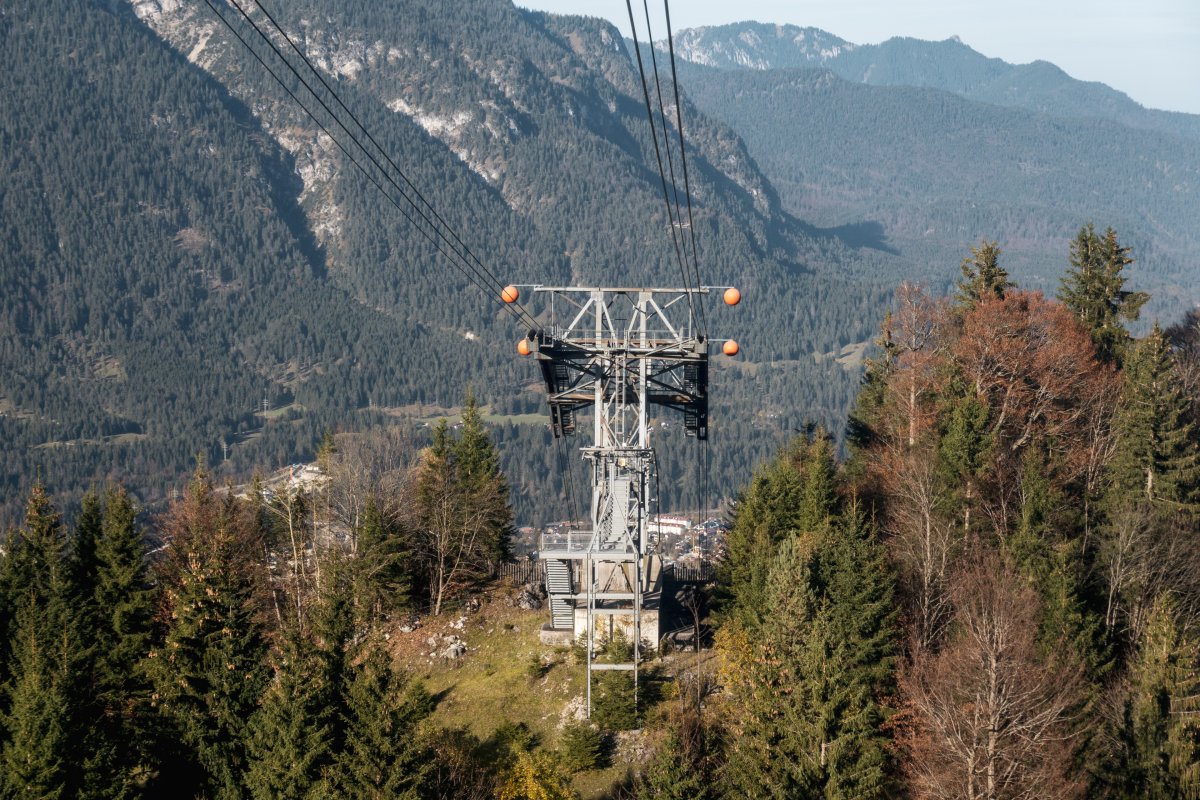

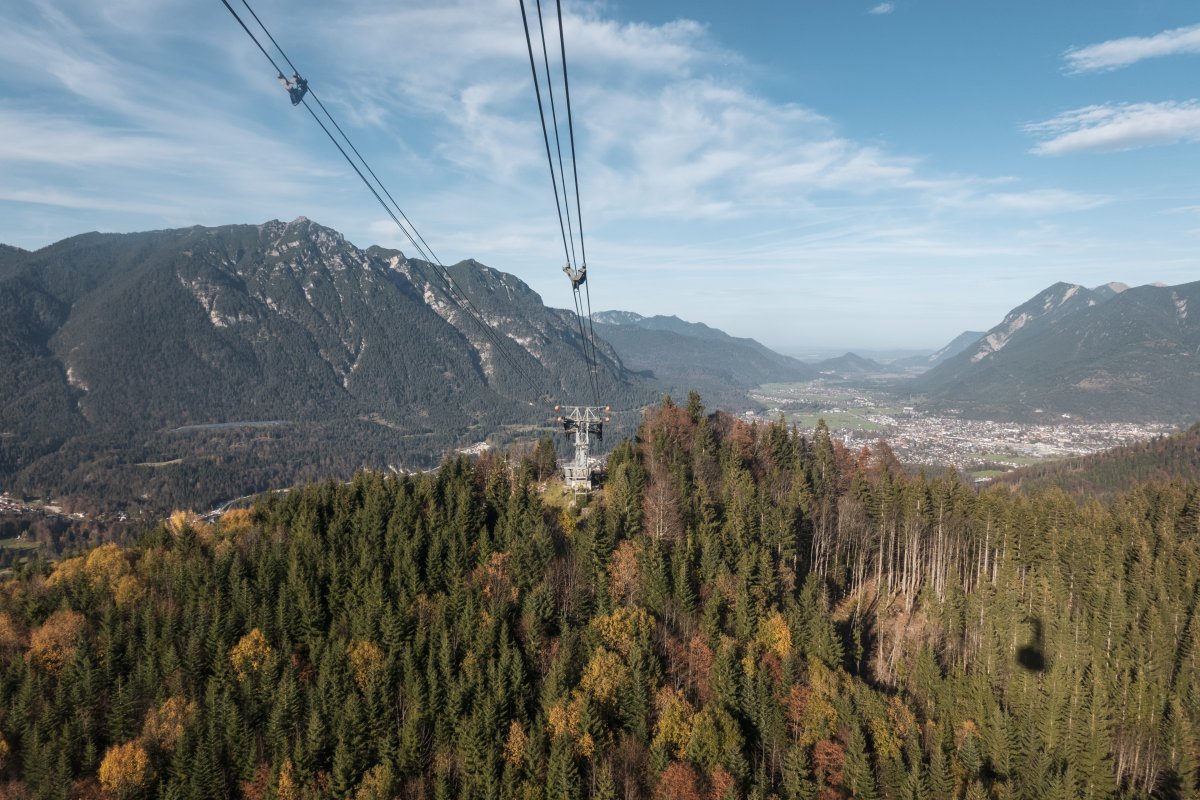

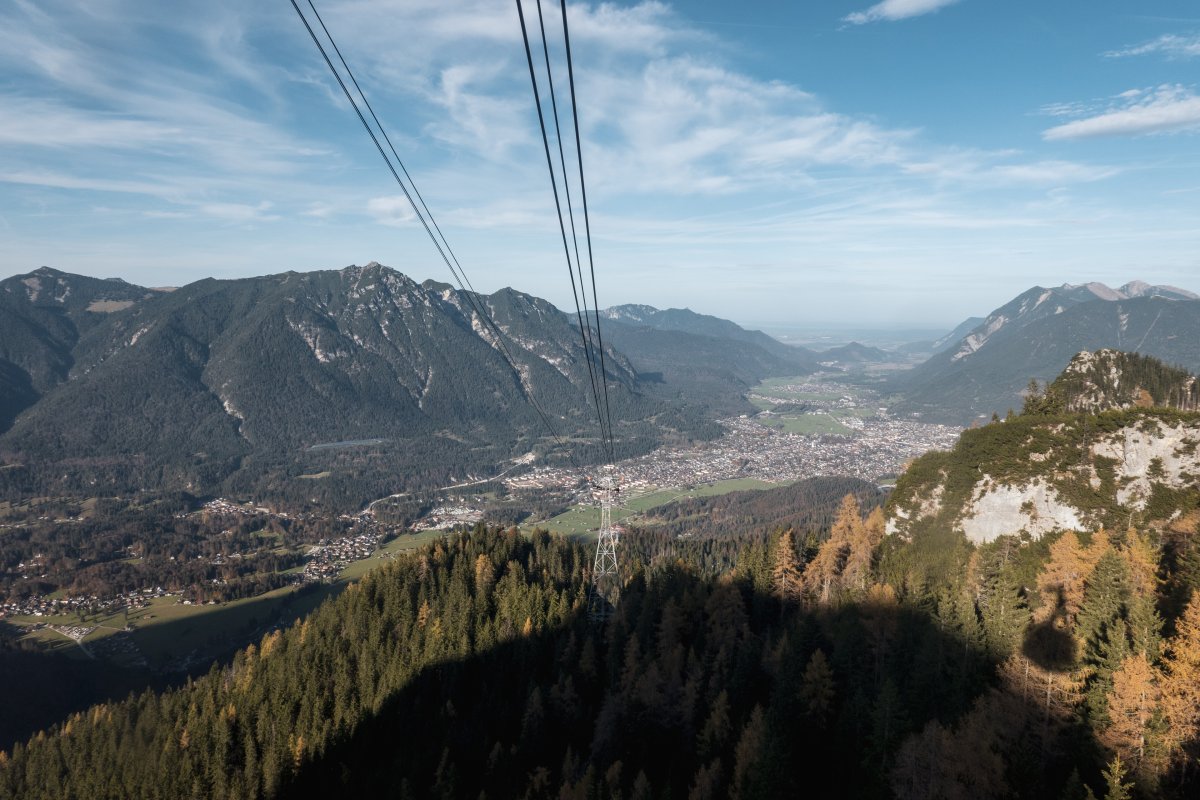

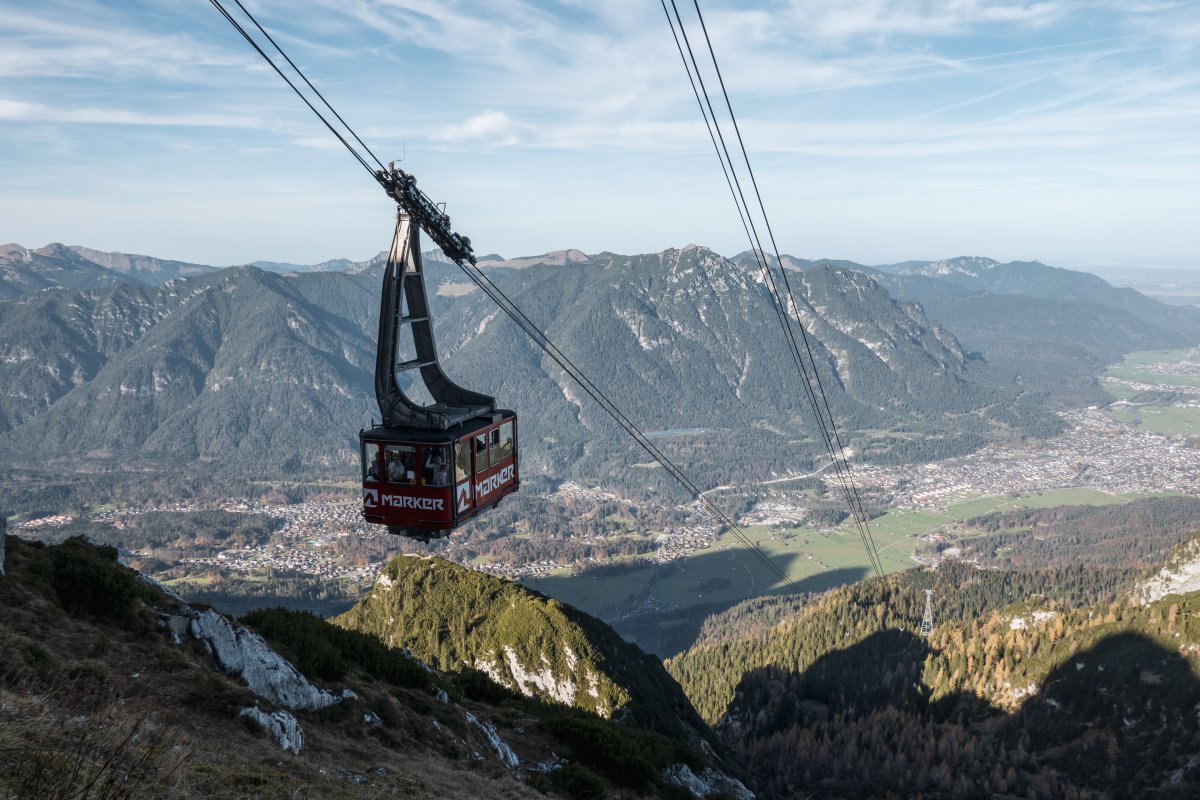

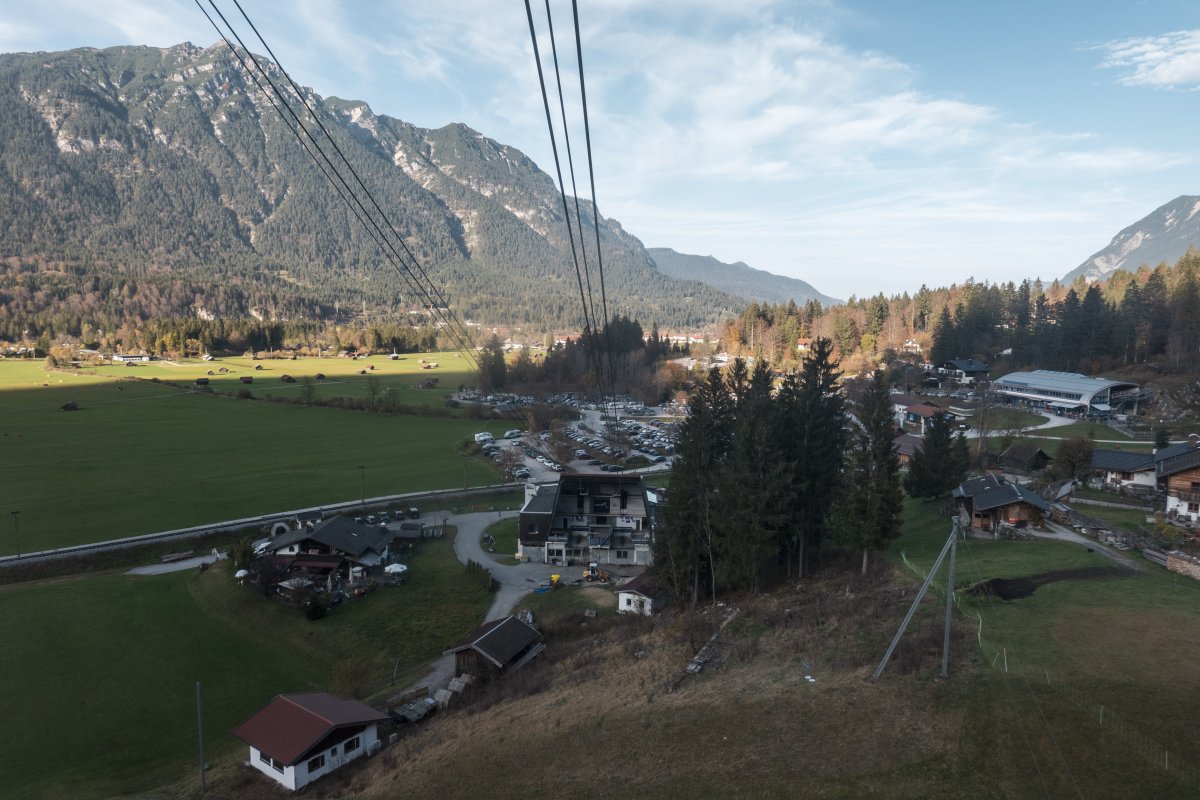

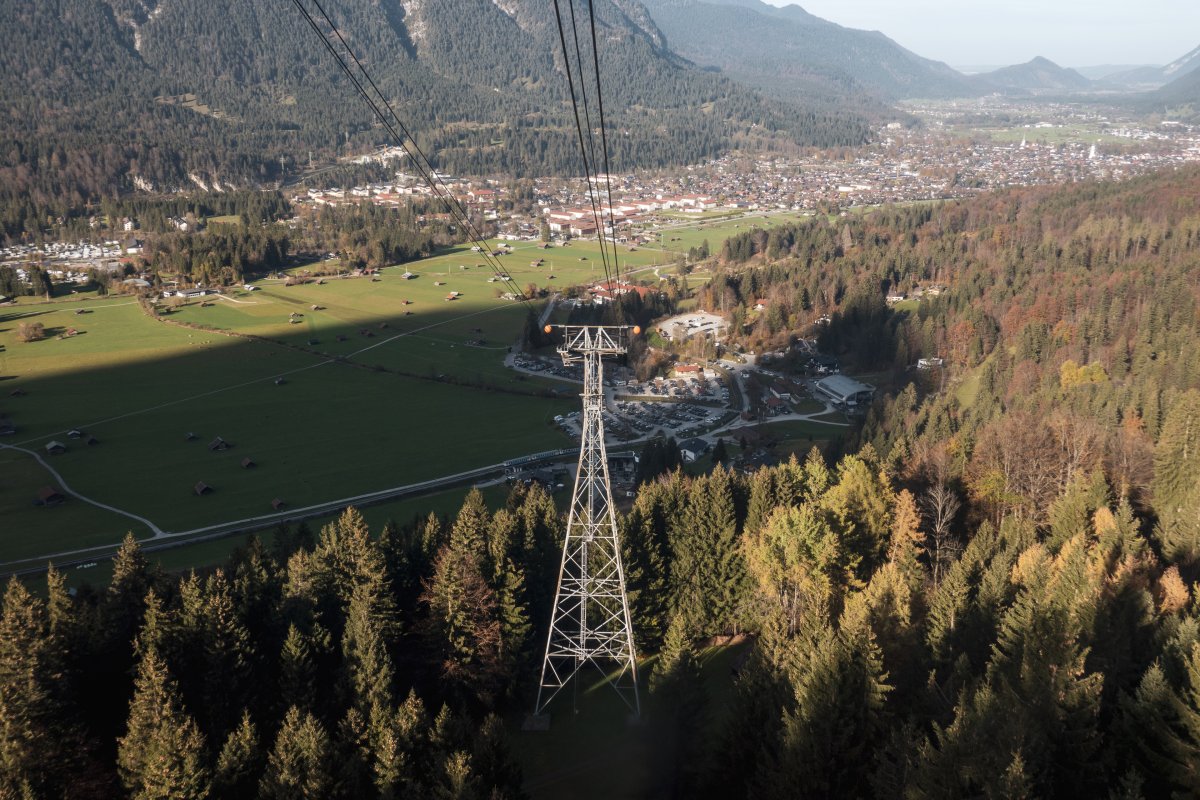

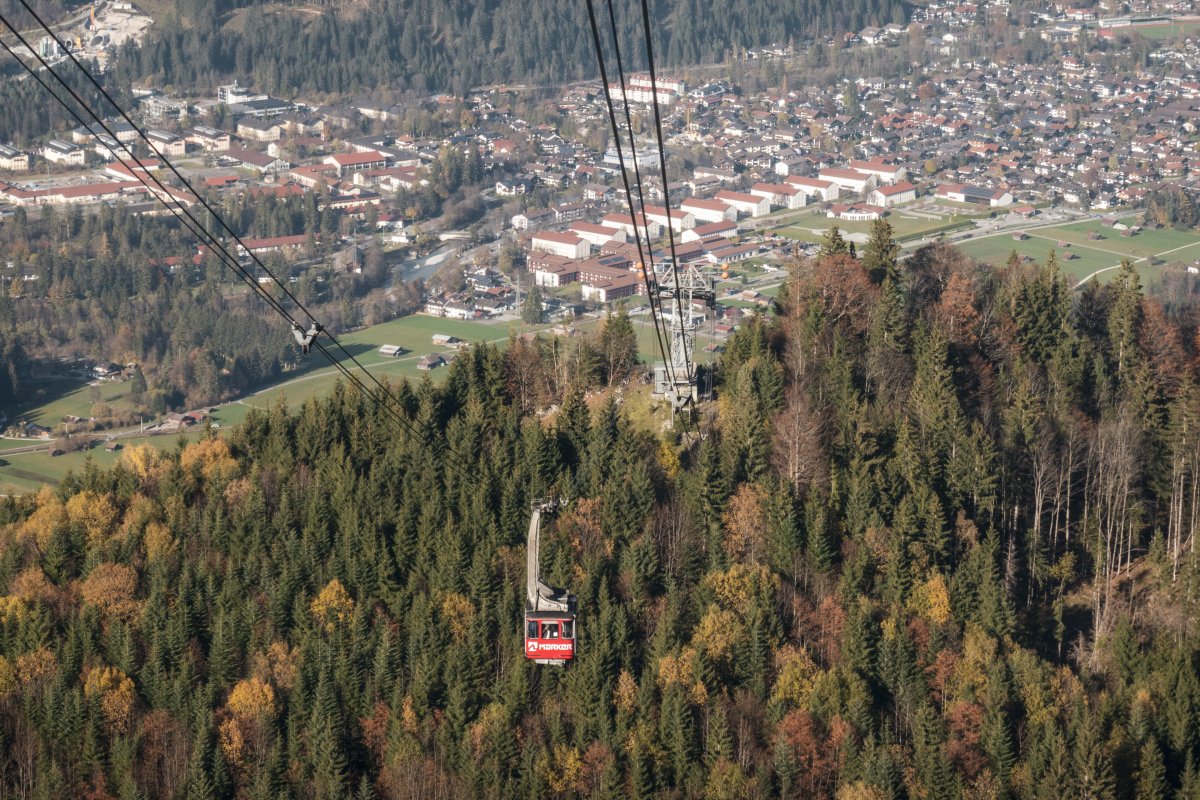

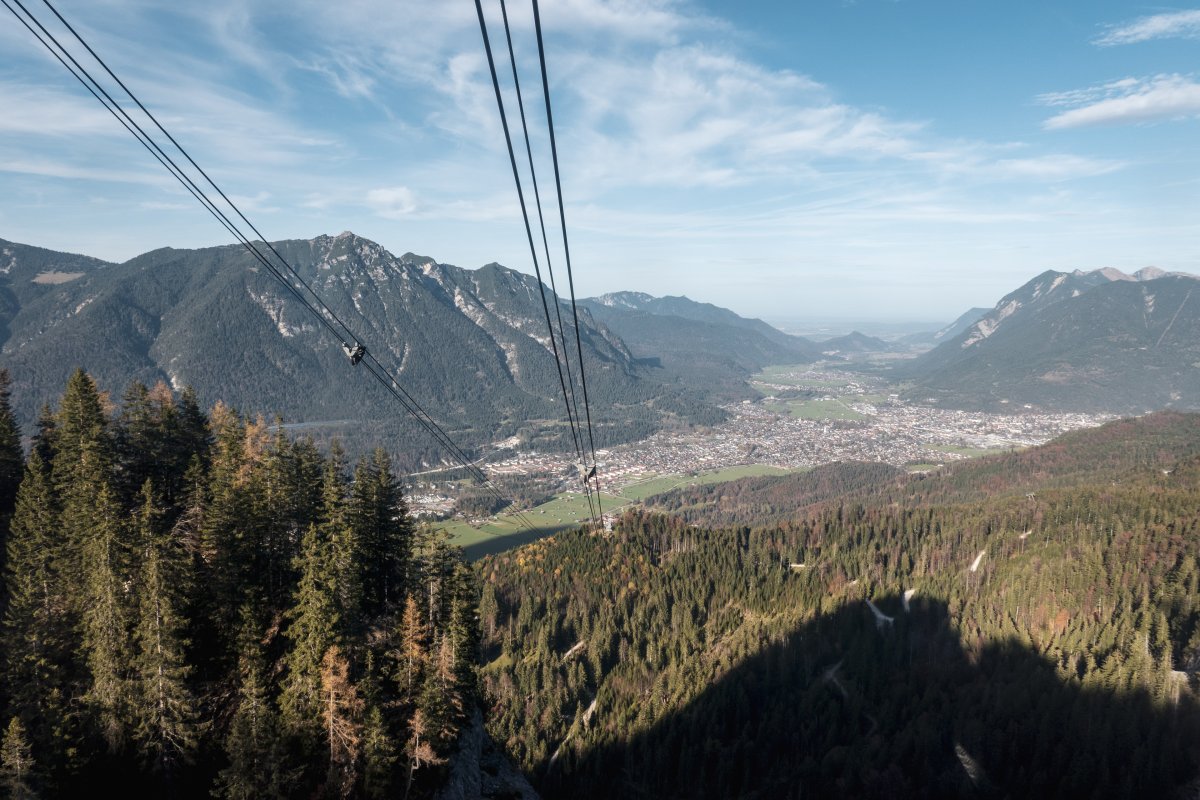

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 47.47069 N / 11.06129 E, Top station 47.43929 N / 11.05101 E
