Ropeway Database - 12-LPB Unter dem Birg-Engstligenalp 1 (Adelboden)
12-LPB Unter dem Birg-Engstligenalp 1
Last update: 05.03.2022 18:58 (Updated by Sicht11)
Photo provided by: Sicht11
Technical data
| Bottom station altitude | 1407 | m |
| Top station altitude | 1966 | m |
| Difference in altitude | 559 | m |
| Length | 1199 | m |
| Capacity | 120 | P/h |
| Travel time | 5,5 | min |
| Speed | 4,5 | m/s |
| Number of towers | 1 | |
| Number of carriers | 2 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | De Giorgi | |
| Rope manufacturer | Brugg | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
12-LPB Unter dem Birg-Engstligenalp 1
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

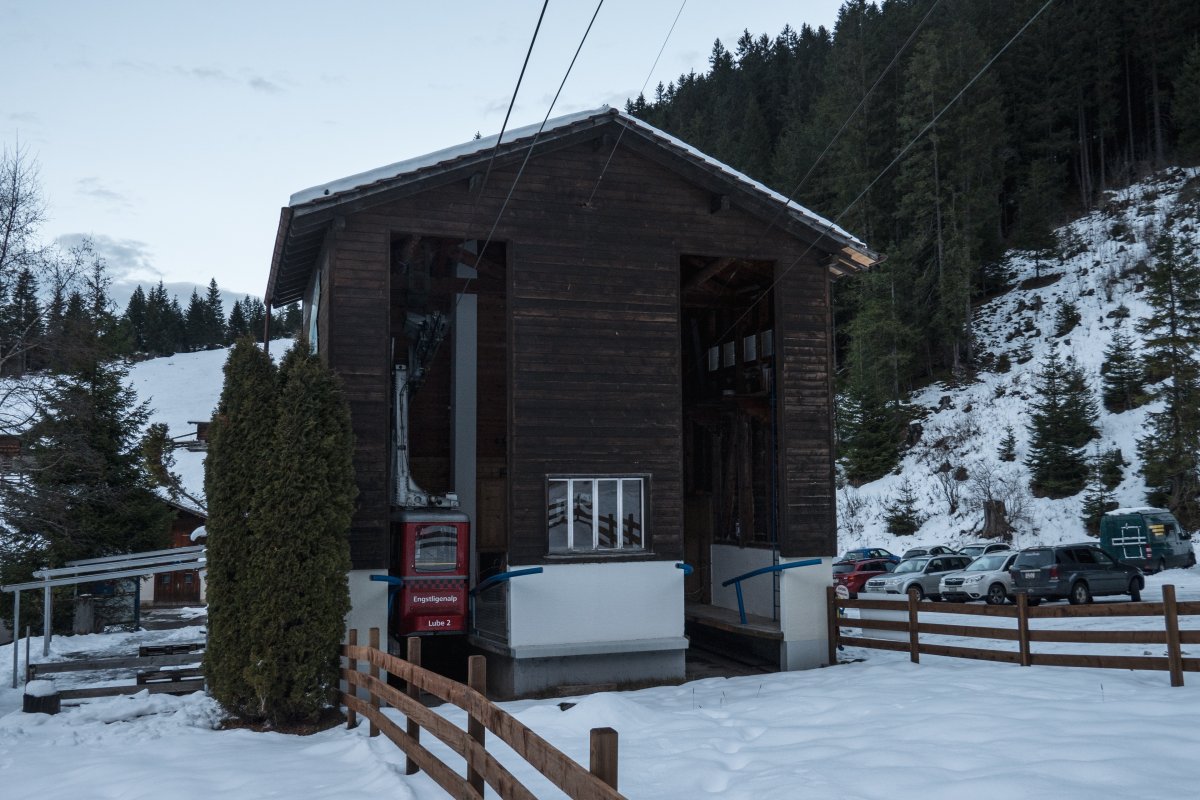

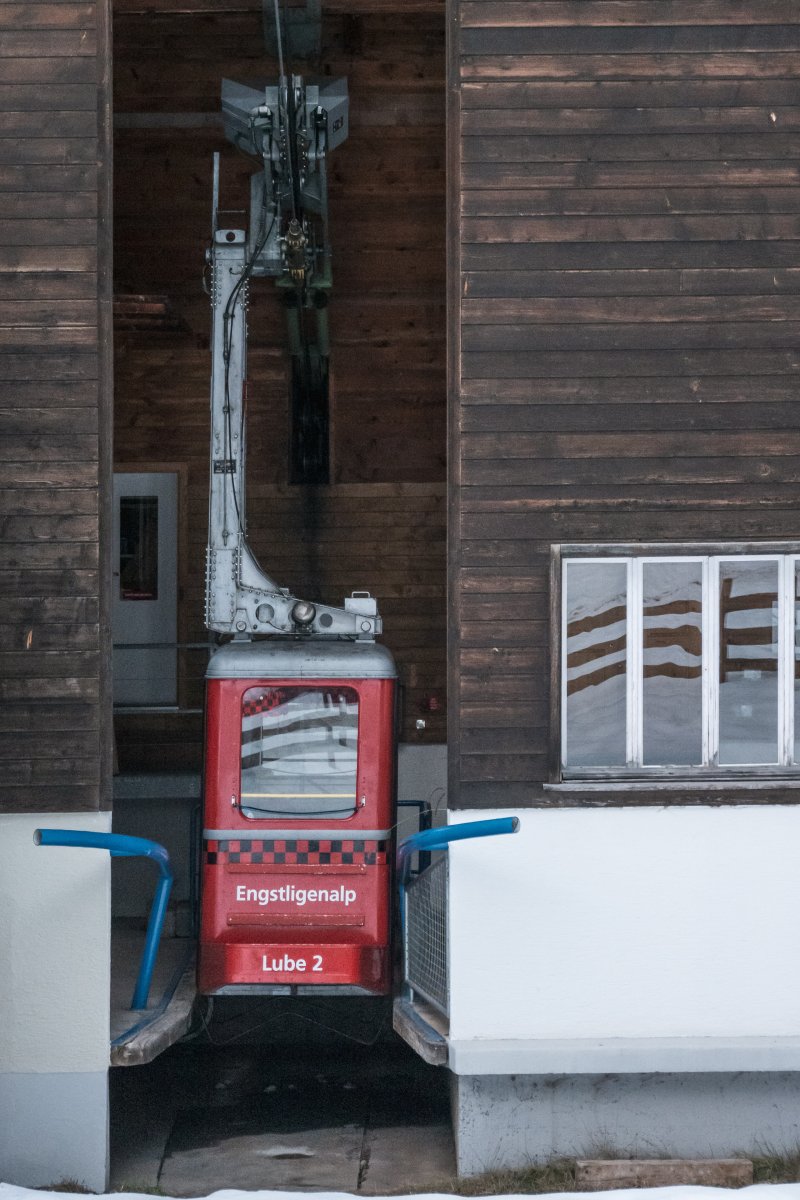

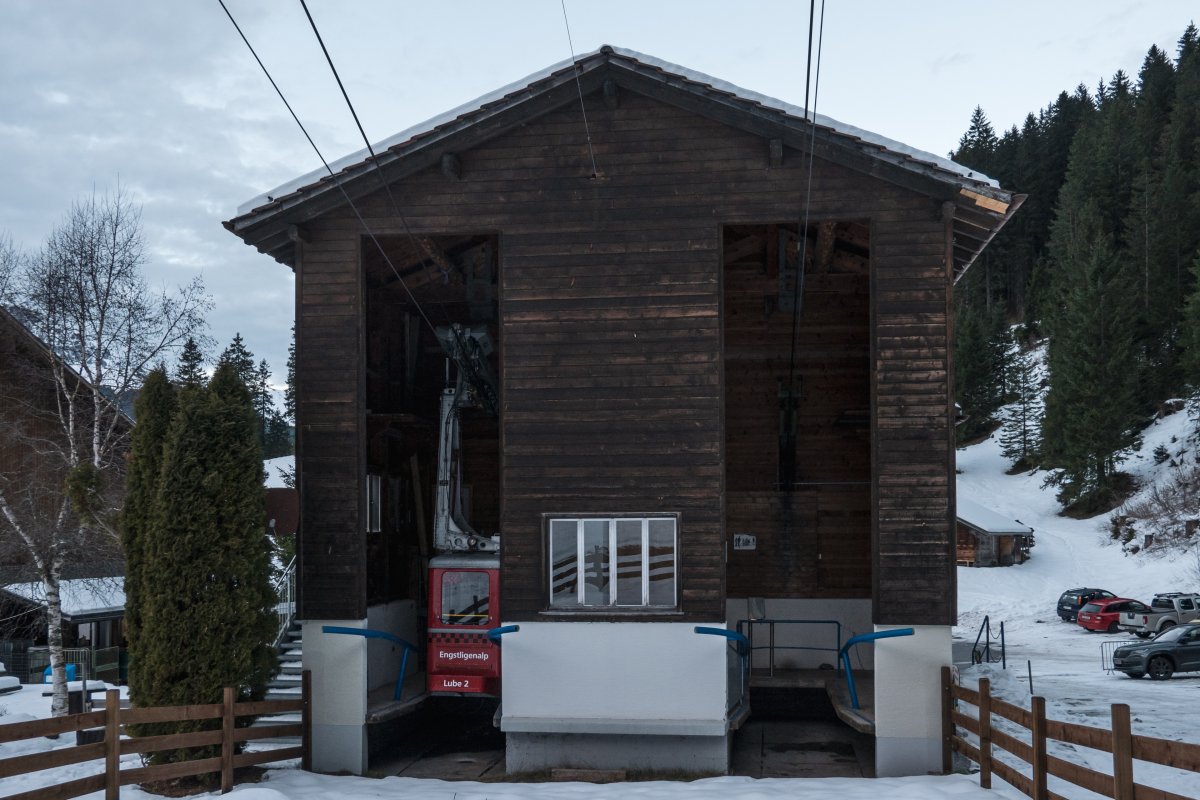

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.45897 N / 7.56673 E, Top station 46.44941 N / 7.56532 E
Location of the installation: Google Maps • Swisstopo
