Ropeway Database - 10-KBK Tuftern-Kumme (Zermatt)
10-KBK Tuftern-Kumme
Last update: 31.12.2020 12:59 (Updated by swisstrains)
Photo provided by: swisstrains
Technical data
| Bottom station altitude | 2135 | m |
| Top station altitude | 2660 | m |
| Difference in altitude | 525 | m |
| Length | 1345 | m |
| Capacity | 1500 | P/h |
| Travel time | 4,7 | min |
| Speed | 6 | m/s |
| Number of towers | 9 | |
| Number of carriers | 24 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | Typ AURO 2 «Autonomous Ropeway Operation», erste fernüberwachte KBK der Schweiz. | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
10-KBK Tuftern-Kumme
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

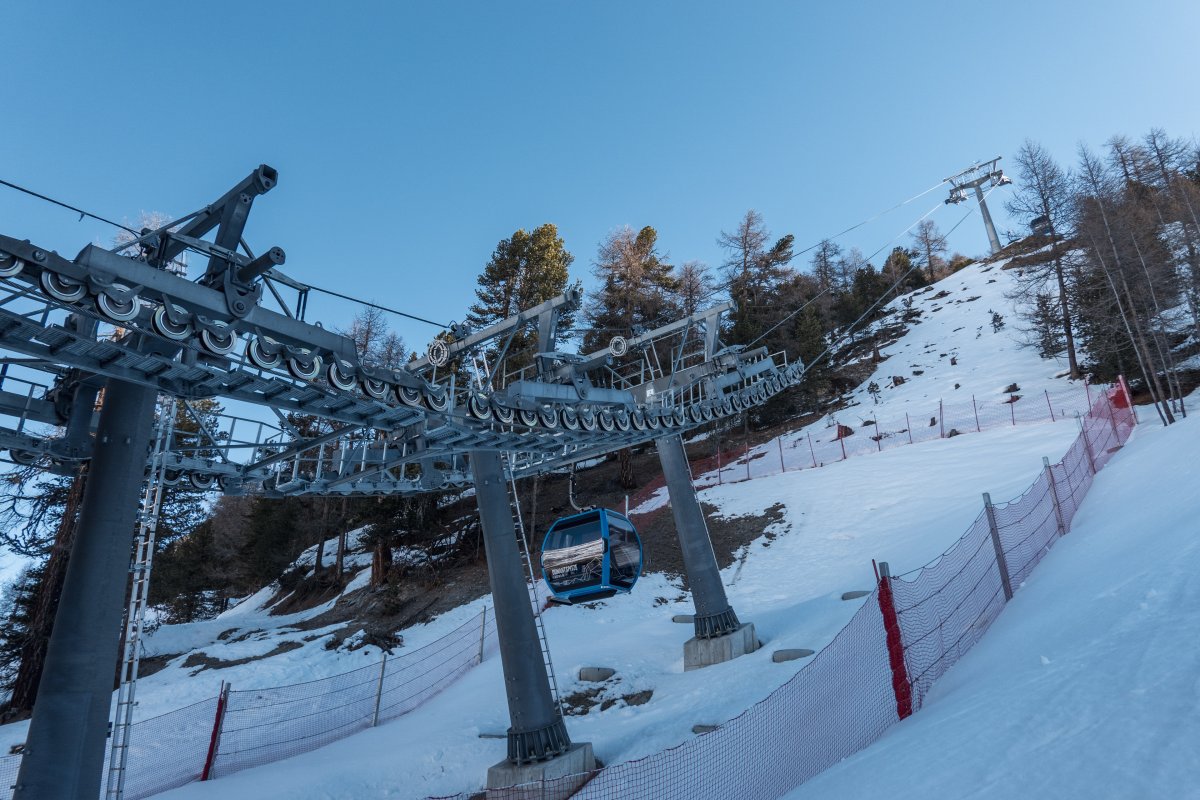

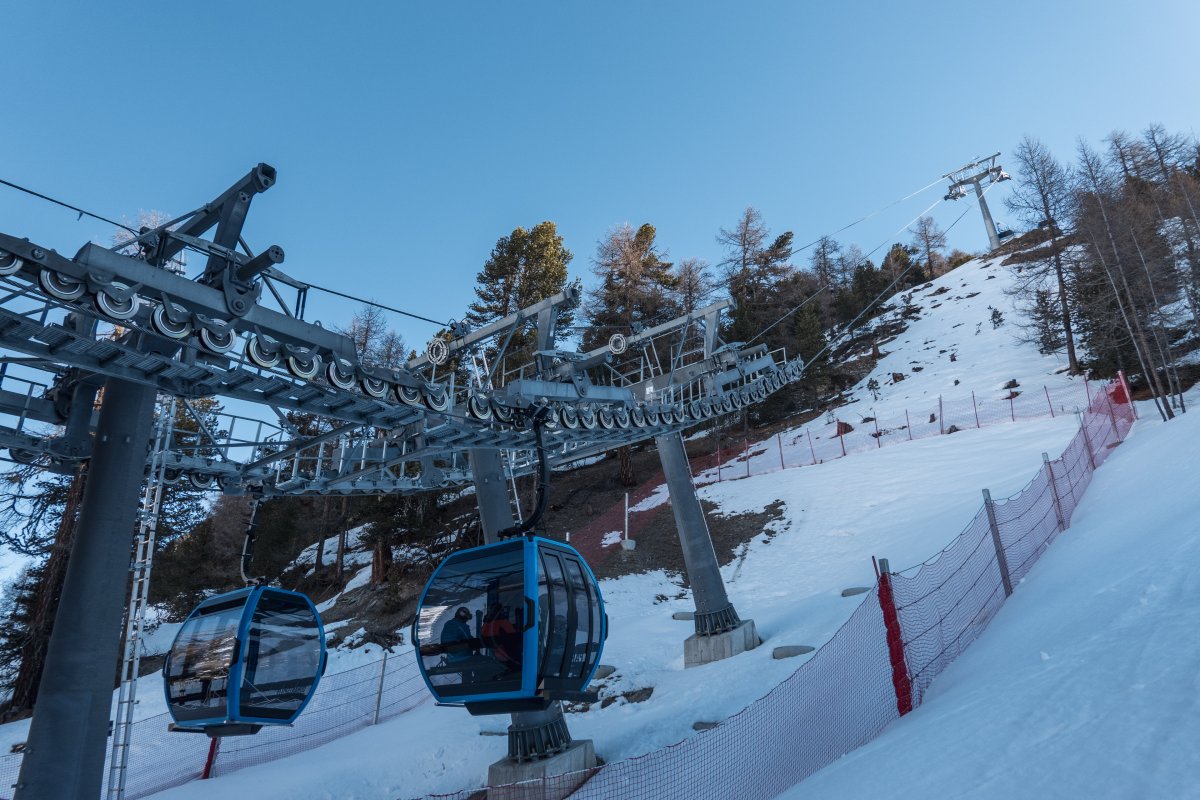

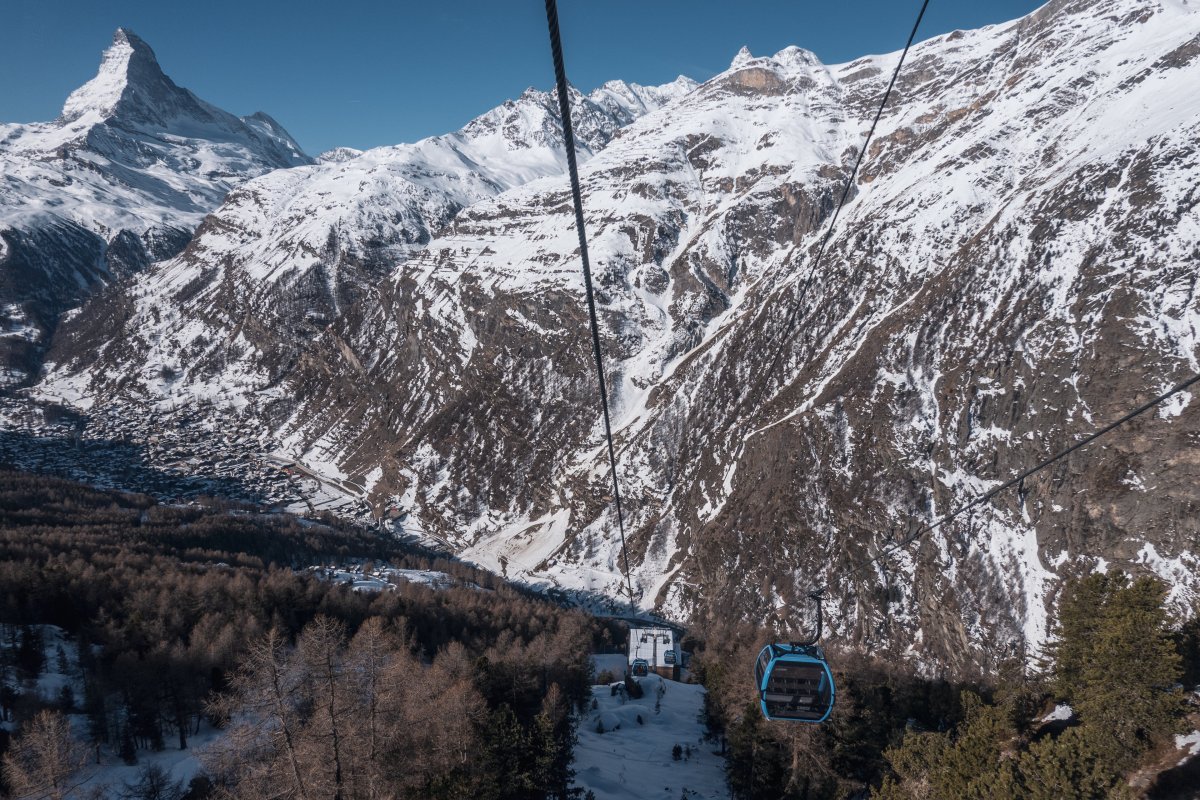

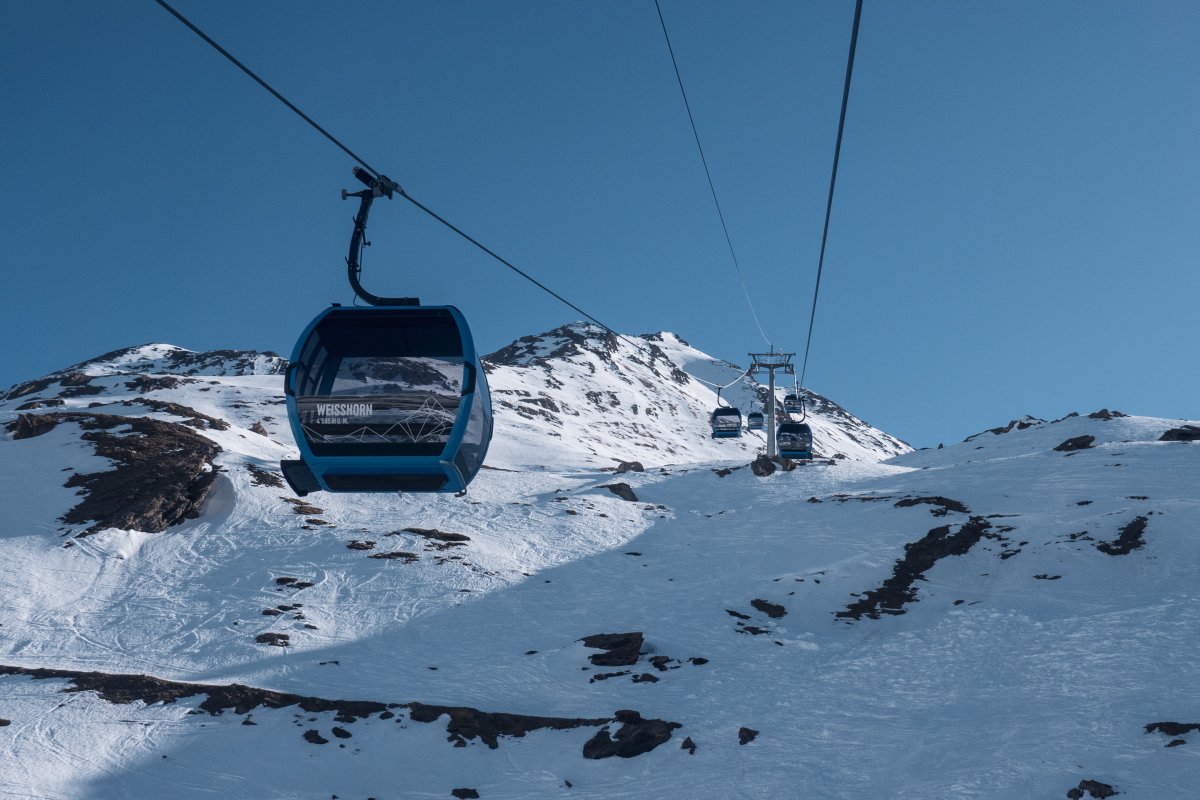

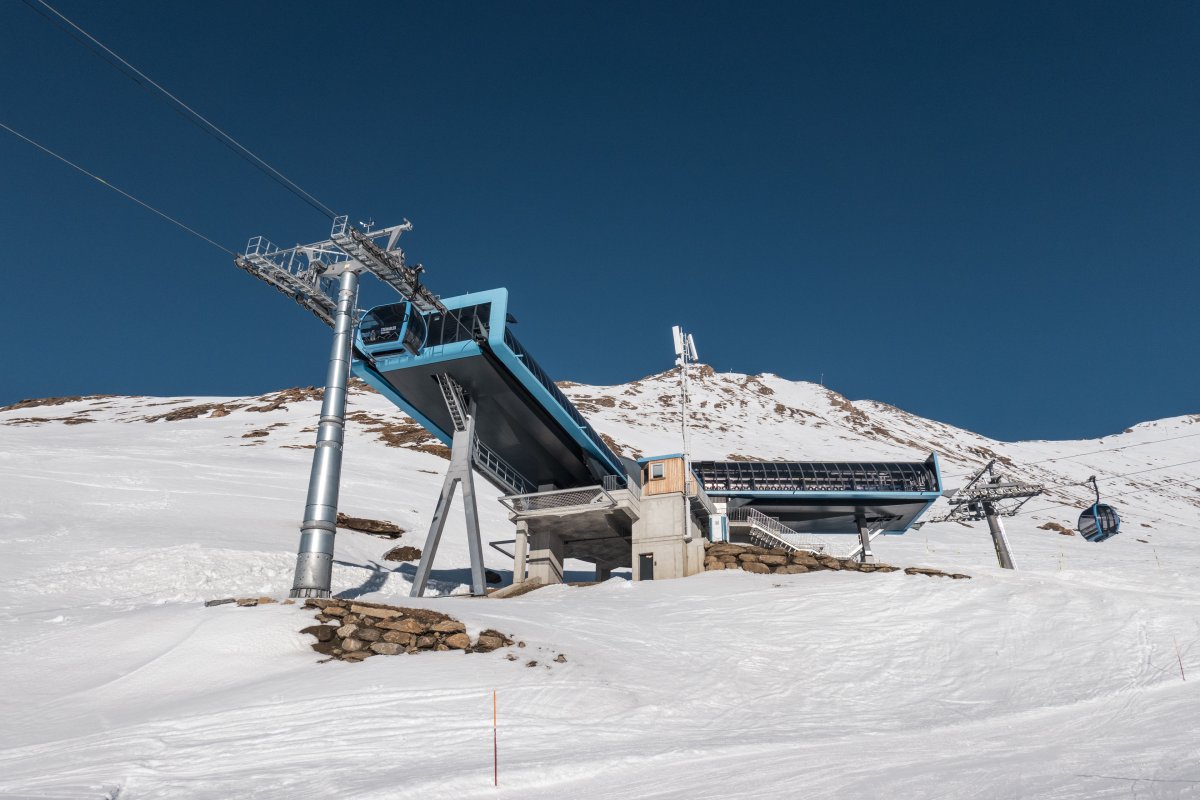

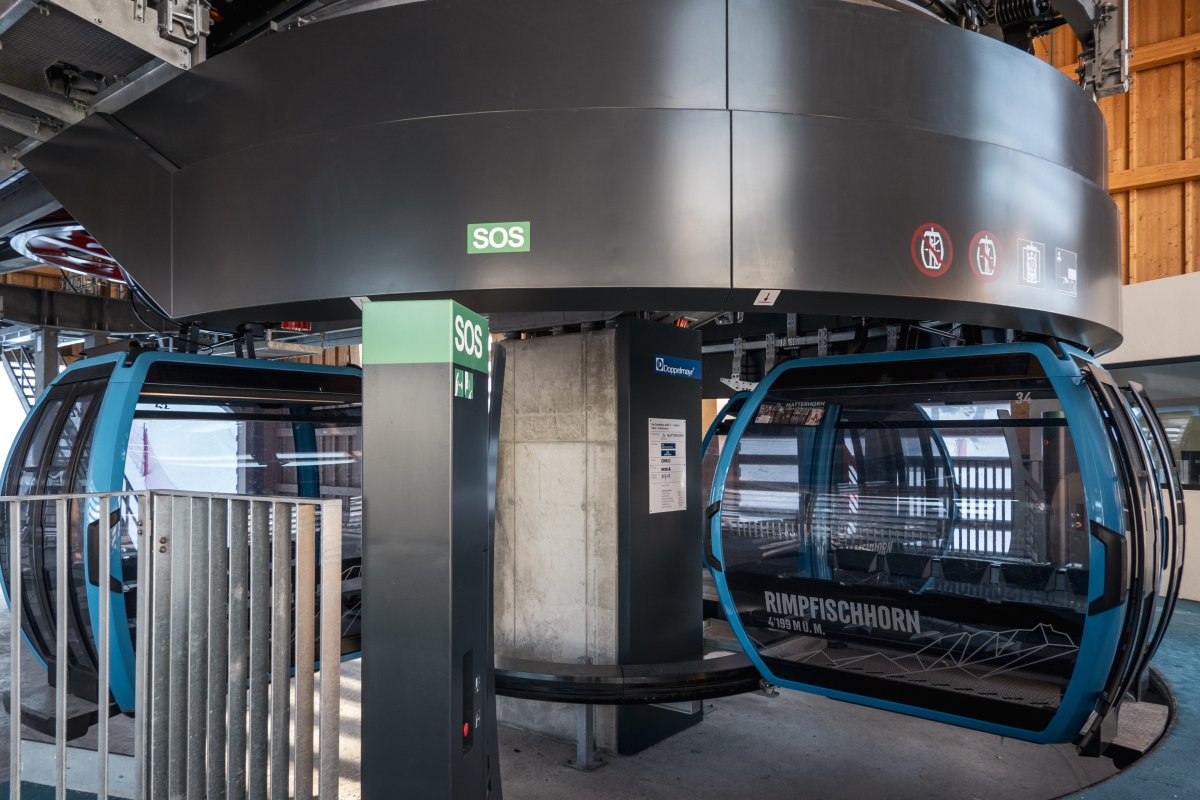

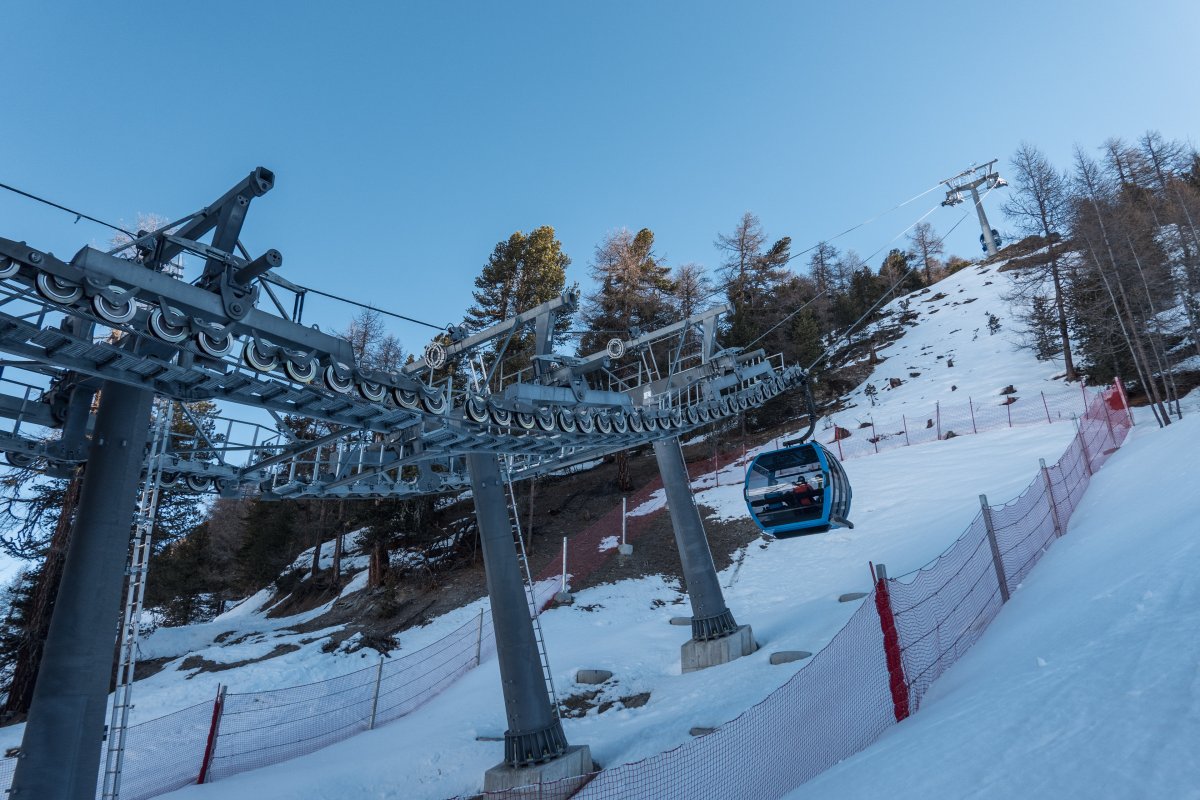

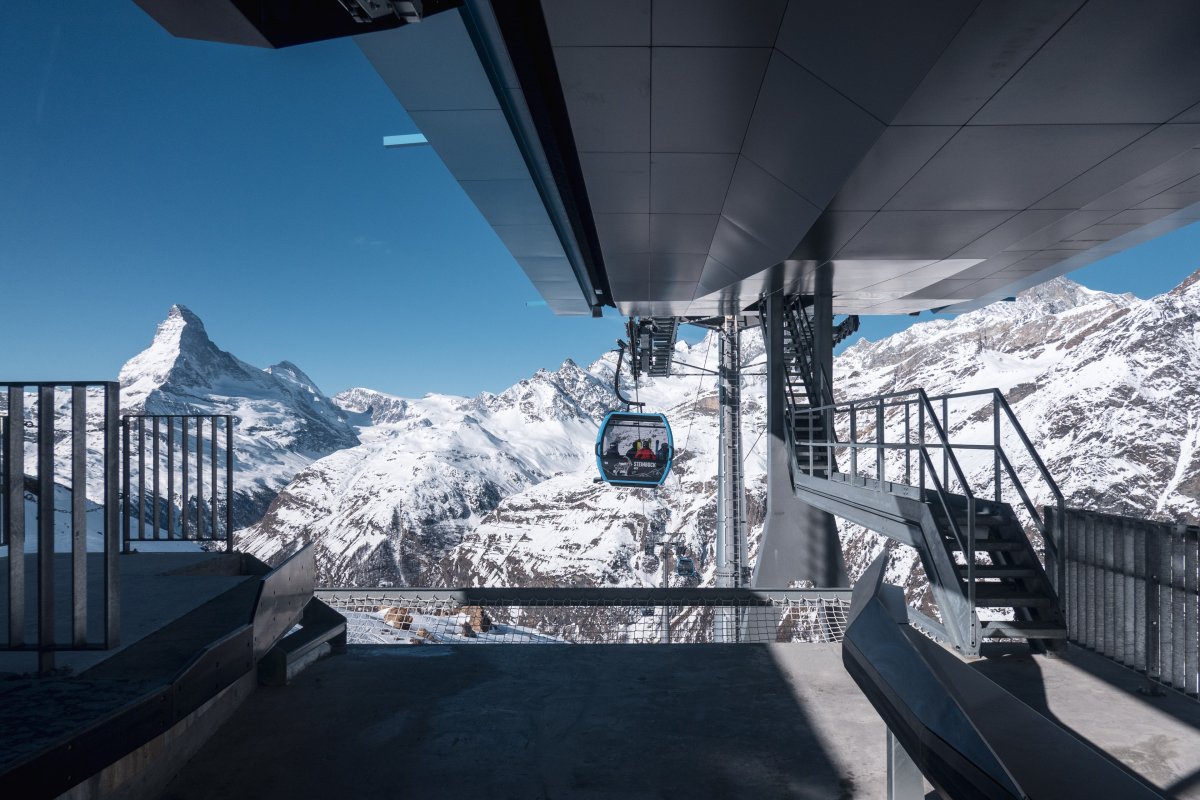

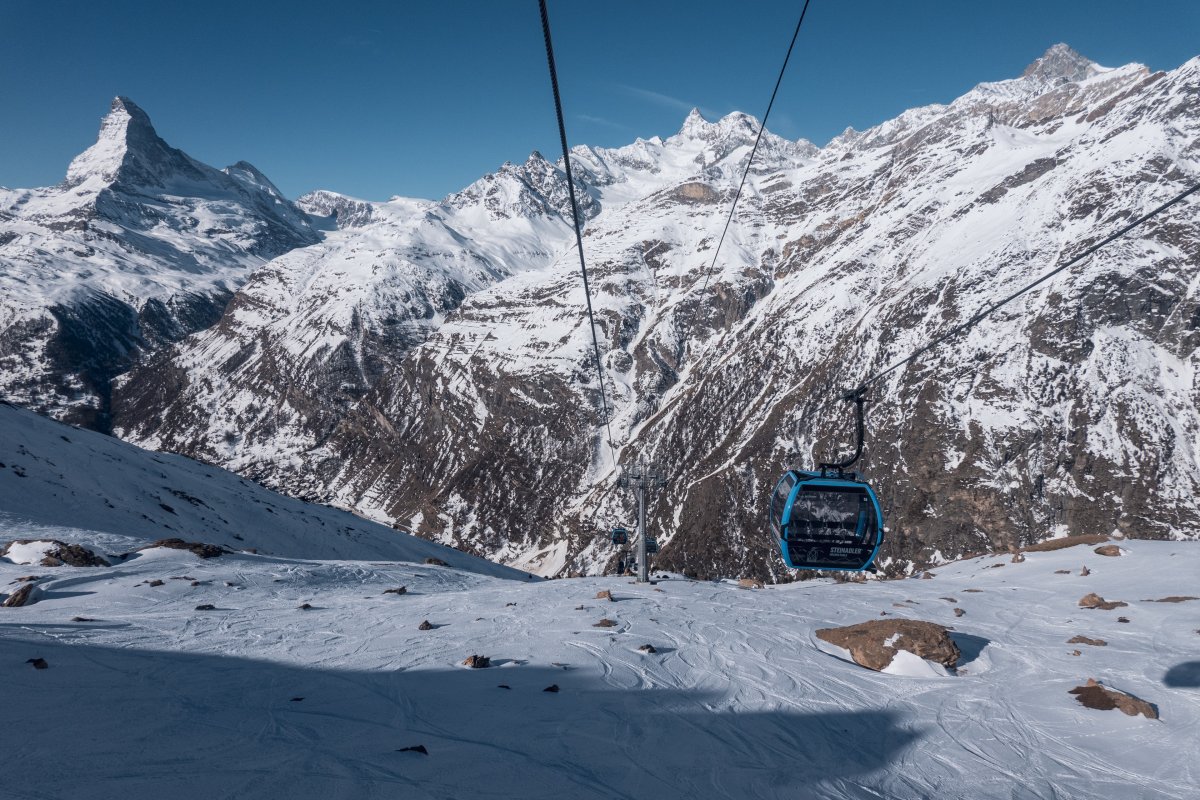

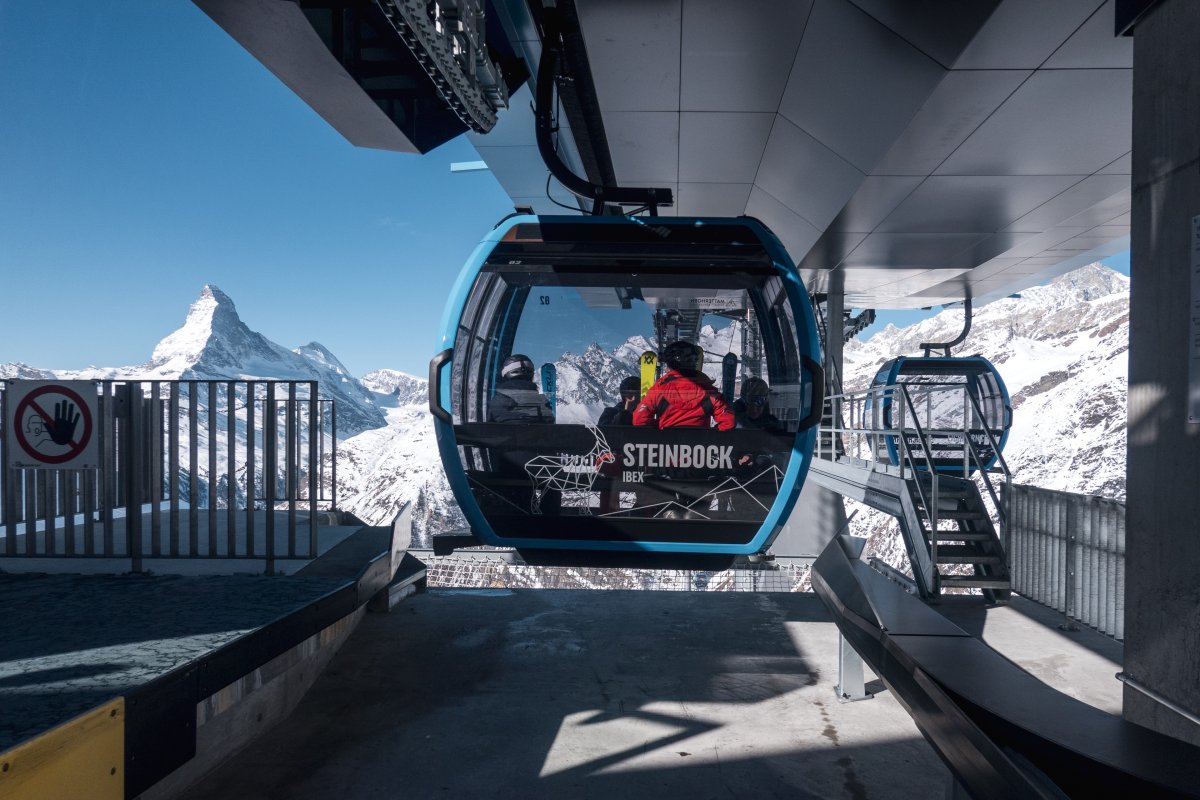

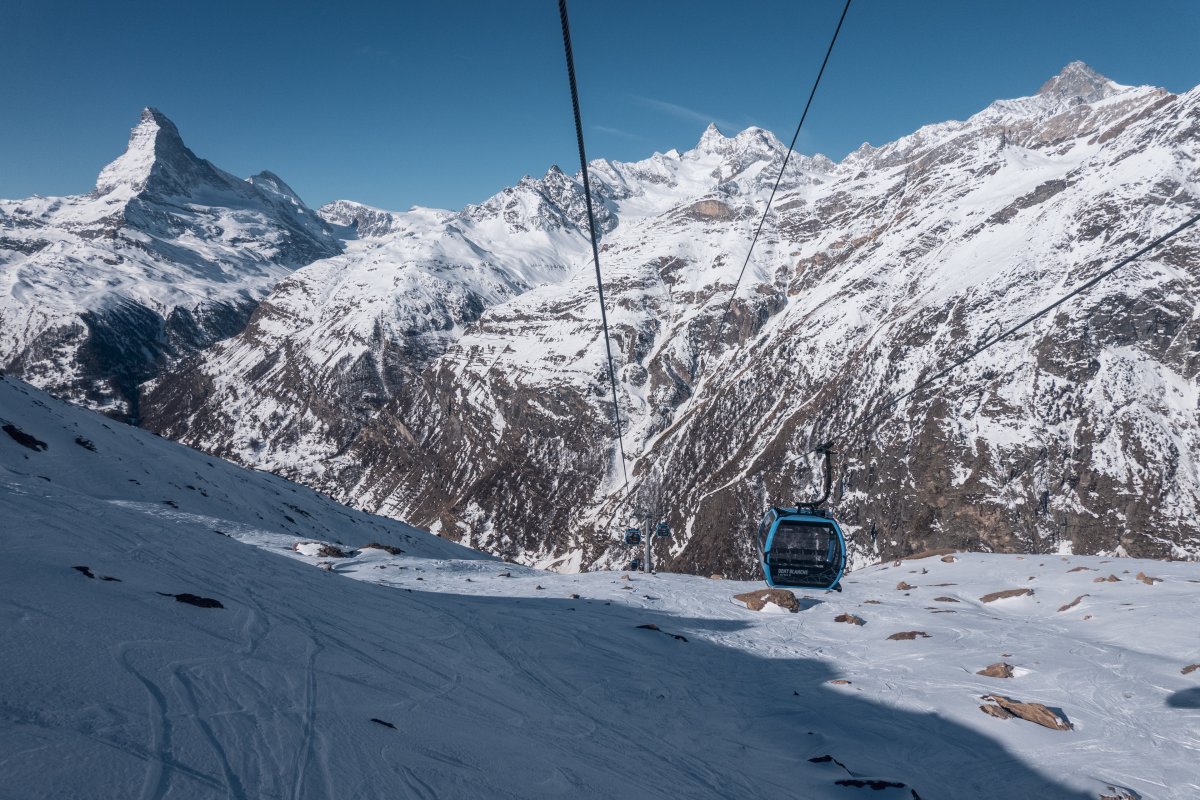

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.03553 N / 7.77299 E, Top station 46.03558 N / 7.78959 E
Location of the installation: Google Maps • Swisstopo
Please enable marketing cookies to view this content.
Map legend:
Ropeway in operation
Ropeway out of operation
Ropeway dismantled
