Ropeway Database - 10-KBK Verbier-Croix des Ruinettes 1 (Verbier)
10-KBK Verbier-Croix des Ruinettes 1
Last update: 16.01.2022 18:35 (Updated by swisstrains)
Photo provided by: Jubiproduction
Technical data
| Bottom station altitude | 1534 | m |
| Top station altitude | 2200 | m |
| Difference in altitude | 666 | m |
| Length | 1584 | m |
| Capacity | 3200 | P/h |
| Travel time | 6,1 | min |
| Speed | 6 | m/s |
| Number of towers | 14 | |
| Number of carriers | 66 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | CWA | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | Ausbau auf 74 Kabinen und 3600 P/h möglich. | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
10-KBK Verbier-Croix des Ruinettes 1
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

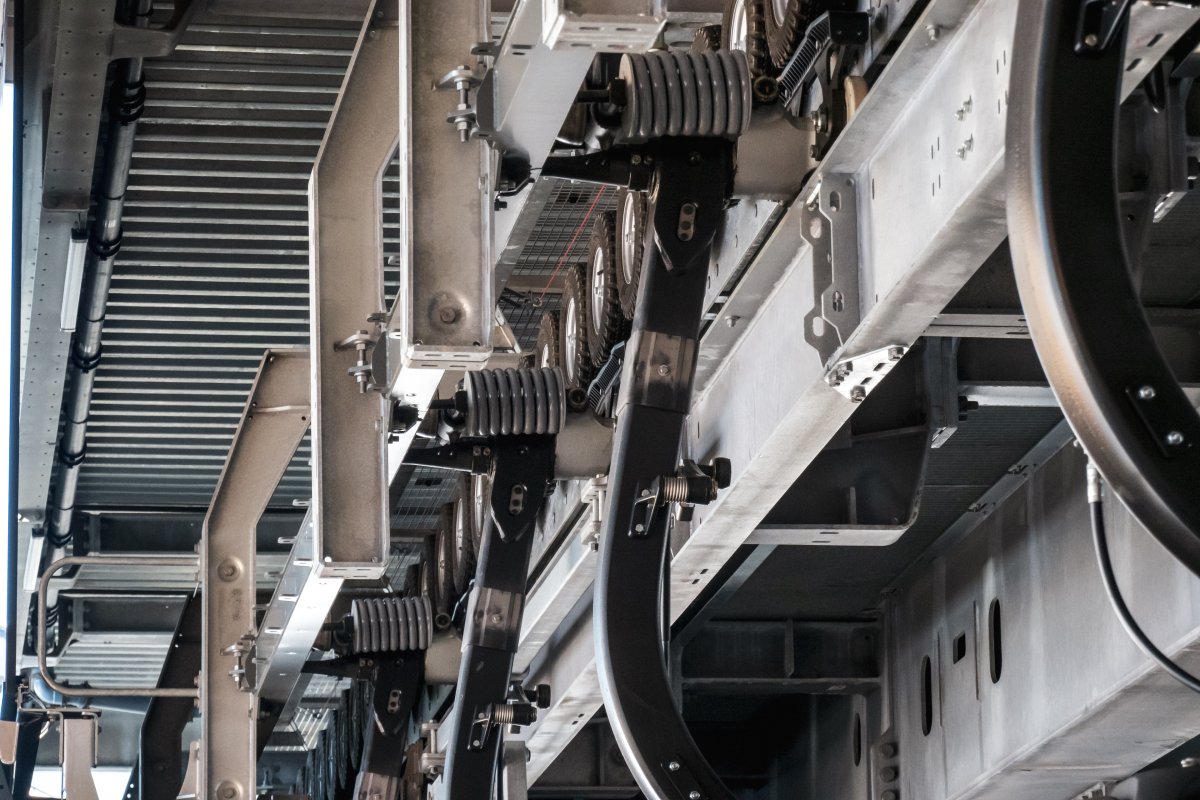

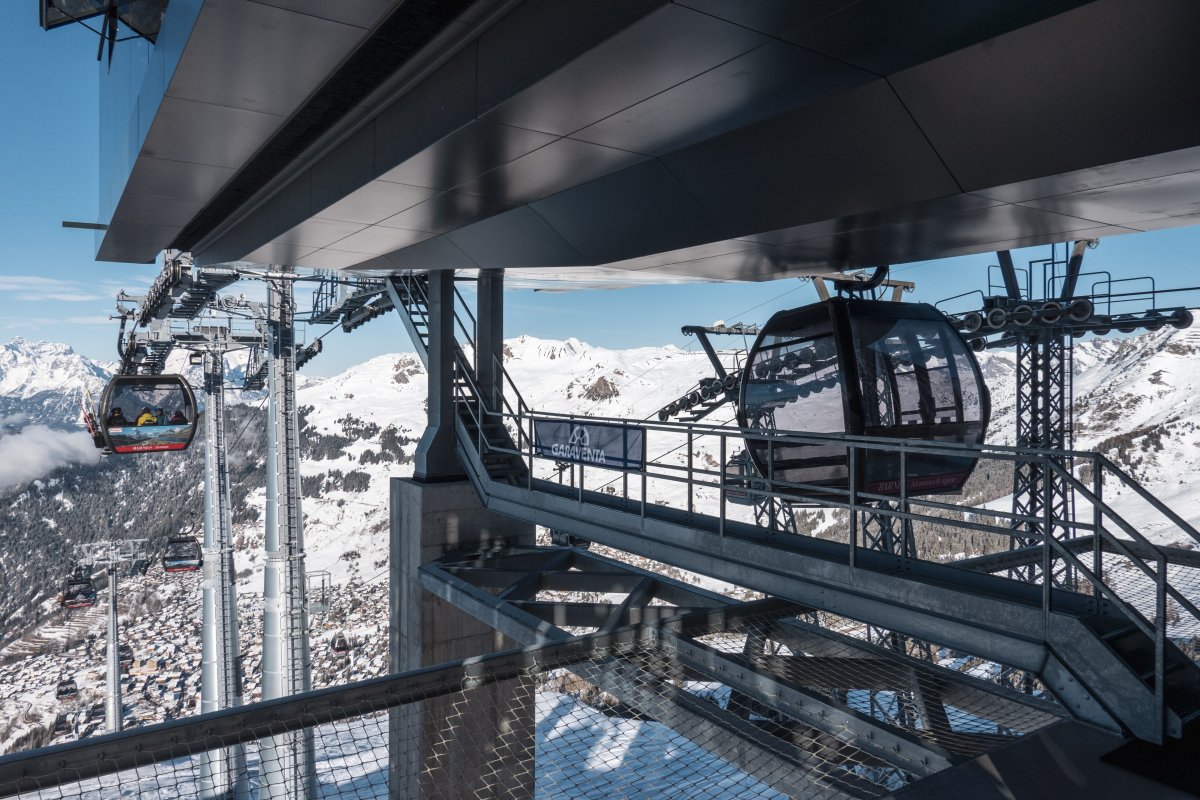

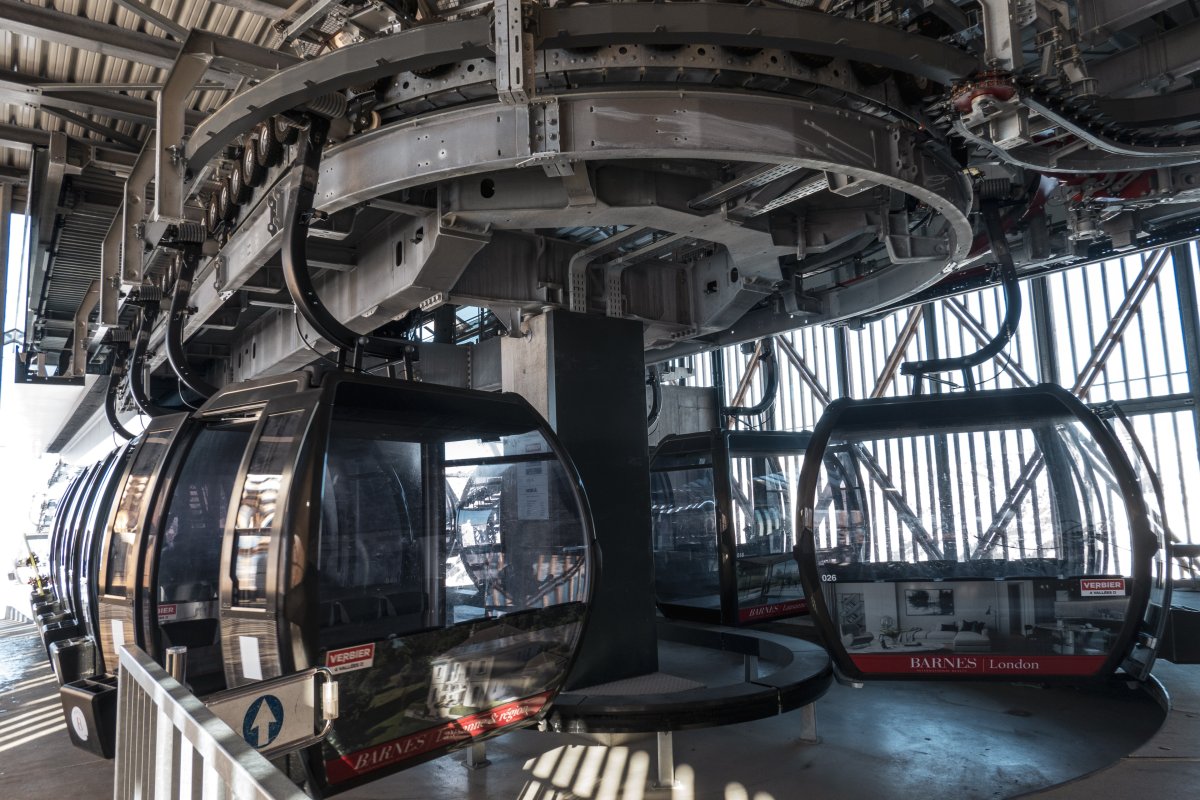

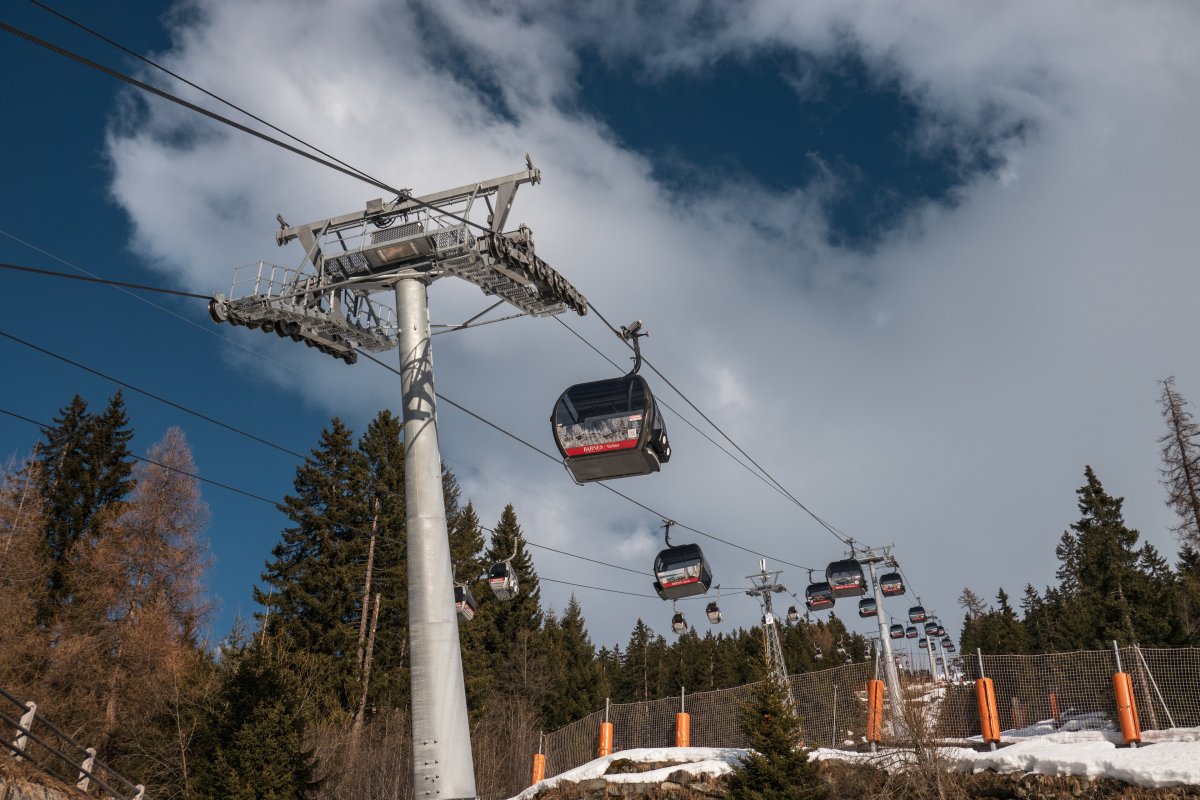

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.09351 N / 7.23393 E, Top station 46.09113 N / 7.2527 E
Location of the installation: Google Maps • Swisstopo
