Gondola Segnes-Nagens Sura in Flims
10-person Gondola Segnes-Nagens Sura
AI Abstract
The Segnes-Nagens Sura cable car in Flims (built in 2024) spans a distance of 400 meters, covering an elevation difference between 2094 m and 2186 m. It was built by Bartholet. The maximum capacity is 1500 people per hour.
| Country |
|
|---|---|
| Canton / State |
|
| Location | Flims (Flims-Laax-Falera) |
| Name | Segnes-Nagens Sura |
| Type | 10-KBK (LUMK-K10) |
| Operating Time | 2024 - To date |
| Manufacturer | Bartholet |
| Status |
 |
- Country: Switzerland
- Canton / State: Grisons
- Location: Flims (Flims-Laax-Falera)
- Name: Segnes-Nagens Sura
- Type: 10-KBK
- Operating Time: 2024-To date
- Year of construction: 2024
- Manufacturer: Bartholet
- Status: In operation
- Bottom station altitude: 2094 m
- Difference in altitude: 92 m
- Length: 400 m
- Capacity: 1500 P/h
- Travel time: 2,9 min
- Speed: 4,2 m/s
- Number of towers: 6
- Number of carriers: 108 (total)
- Drive terminal: Bottom station
- Tensioning terminal: Top station
- Carrier manufacturer: Bartholet
- Rope manufacturer: Fatzer
- Electronics manufacturer: Sisag
- Transportation uphill: Yes
- Transportation downhill: Yes
- Remarks: Weltweit erstes sogenanntes RopeTaxi. Fahrgäste wählen ihr Ziel in den Stationen selbst, die Kabinen befahren die Strecke daraufhin nur nach Bedarf.
Frequently asked questions
What is the ropeway Segnes-Nagens Sura?
The Segnes-Nagens Sura ropeway is a 10-person Gondola in Flims and connects the valley station at 2094 m to the mountain station at 2186 m.
What is the hourly passenger capacity of the Segnes-Nagens Sura ropeway?
The maximum capacity of the Segnes-Nagens Sura ropeway is 1500 people per hour.
When was the Segnes-Nagens Sura ropeway constructed?
The Segnes-Nagens Sura ropeway was constructed in 2024.
Where is the Segnes-Nagens Sura ropeway located?
The Segnes-Nagens Sura ropeway is operating in Flims (Switzerland).
How long is the Segnes-Nagens Sura ropeway?
The diagonal length of the Segnes-Nagens Sura ropeway is 400 meters.
What is the elevation gain of the Segnes-Nagens Sura ropeway?
The Segnes-Nagens Sura ropeway covers an elevation gain of 92 meters.
Who is the manufacturer of the Segnes-Nagens Sura ropeway?
The Segnes-Nagens Sura ropeway was constructed by the company Bartholet.
Technical data
| Bottom station altitude | 2094 | m |
|---|---|---|
| Top station altitude | 2186 | m |
| Difference in altitude | 92 | m |
| Length | 400 | m |
| Capacity | 1500 | P/h |
| Travel time | 2,9 | min |
| Speed | 4,2 | m/s |
| Number of towers | 6 | |
| Number of carriers | 108 (total) | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Bartholet | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | Weltweit erstes sogenanntes RopeTaxi. Fahrgäste wählen ihr Ziel in den Stationen selbst, die Kabinen befahren die Strecke daraufhin nur nach Bedarf. | |
Chronicle
-
-
-
-

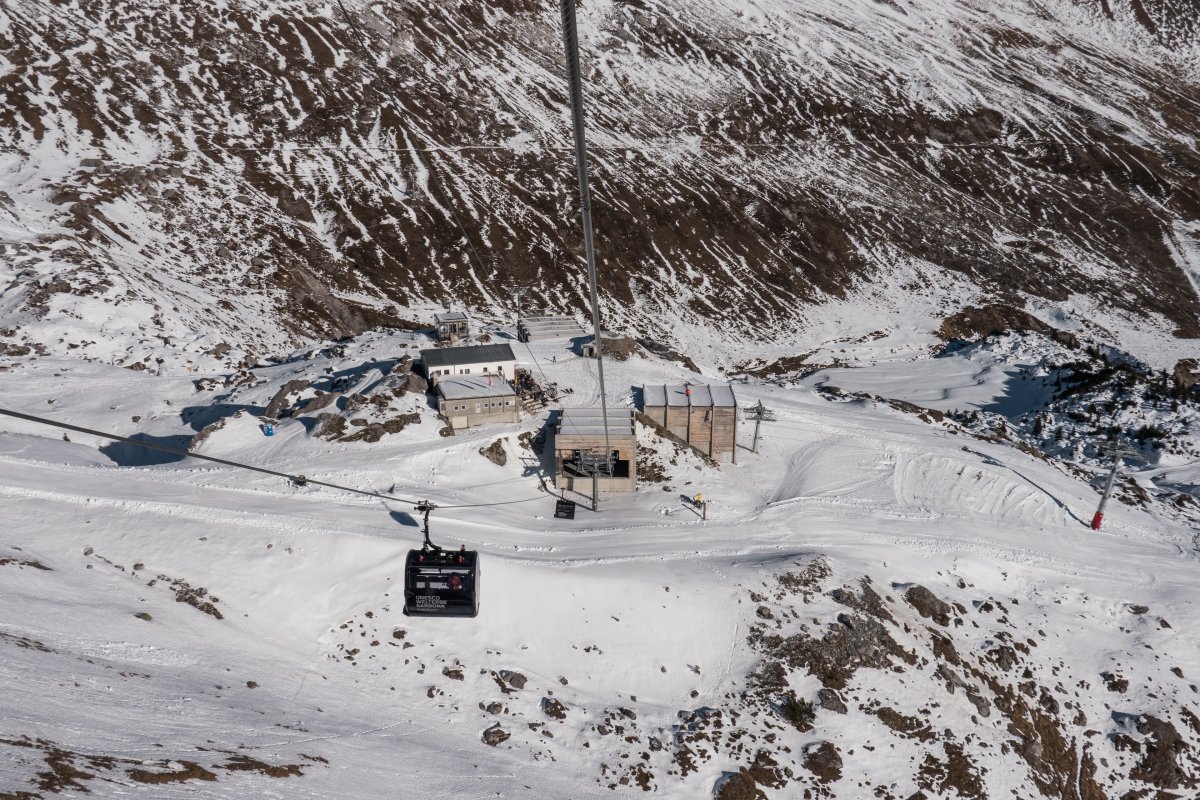

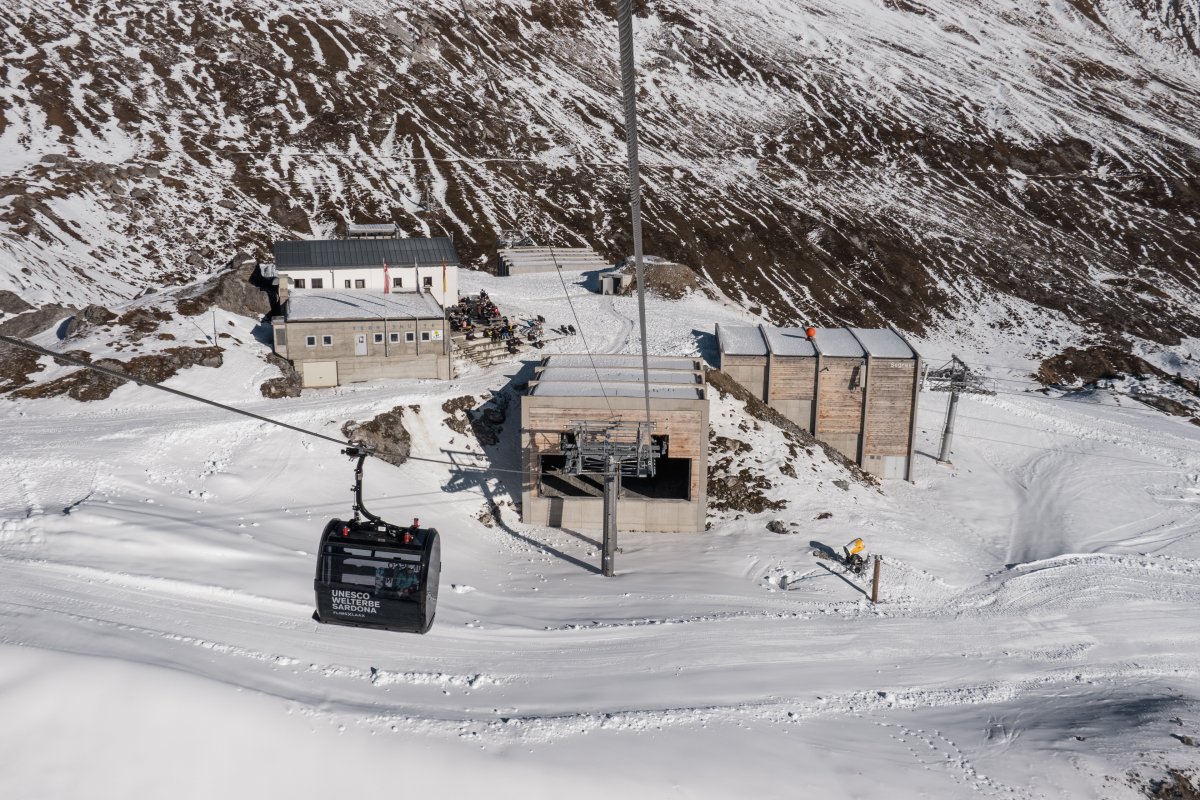

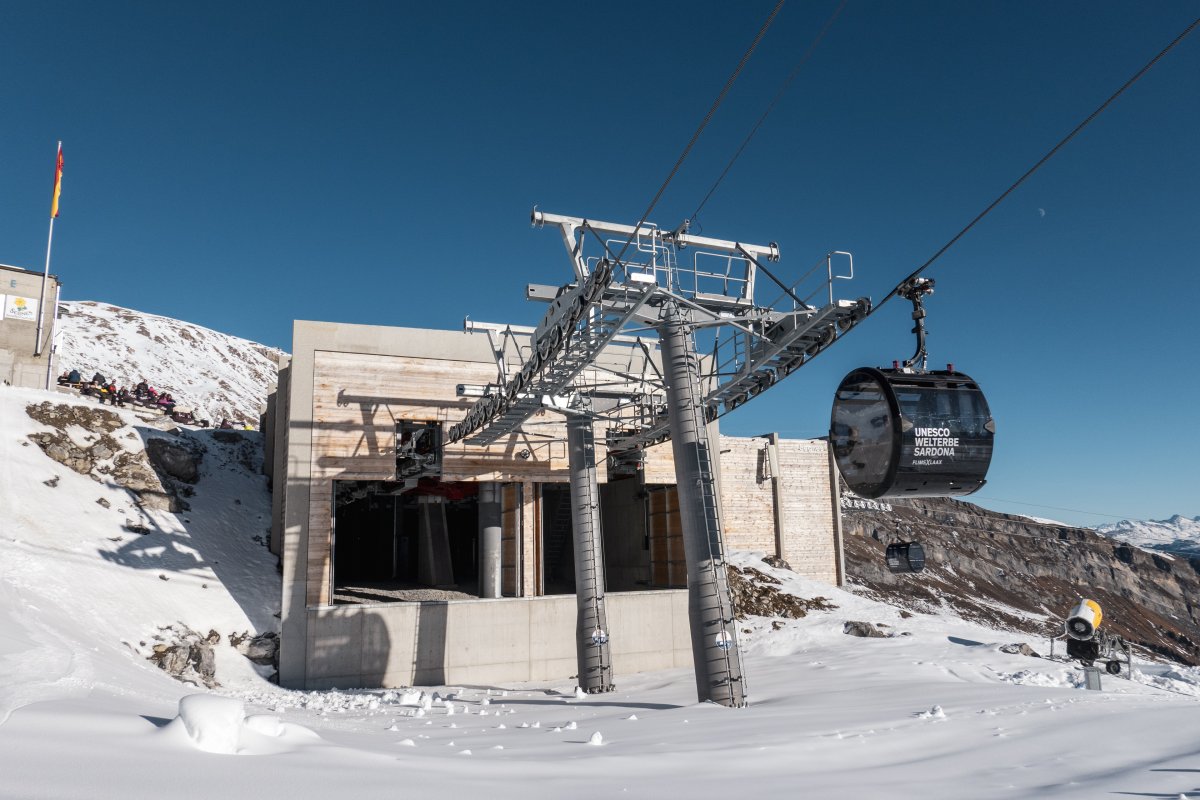

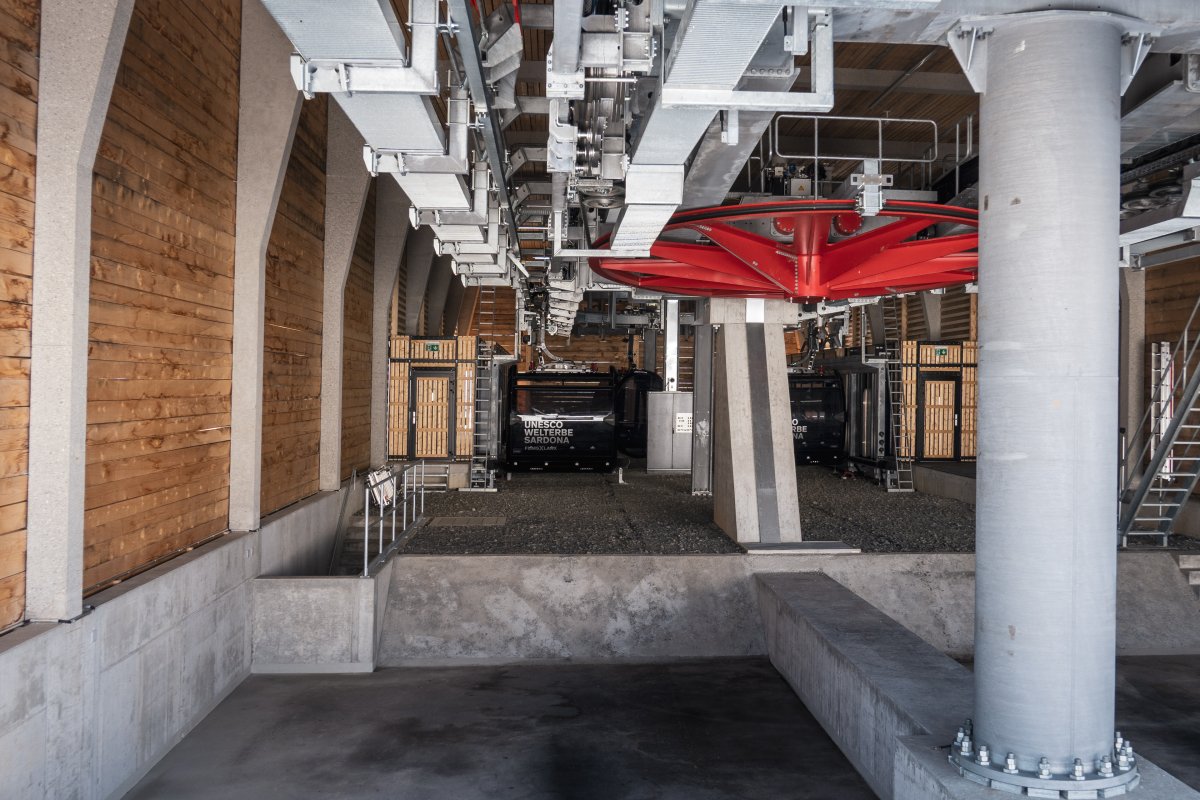

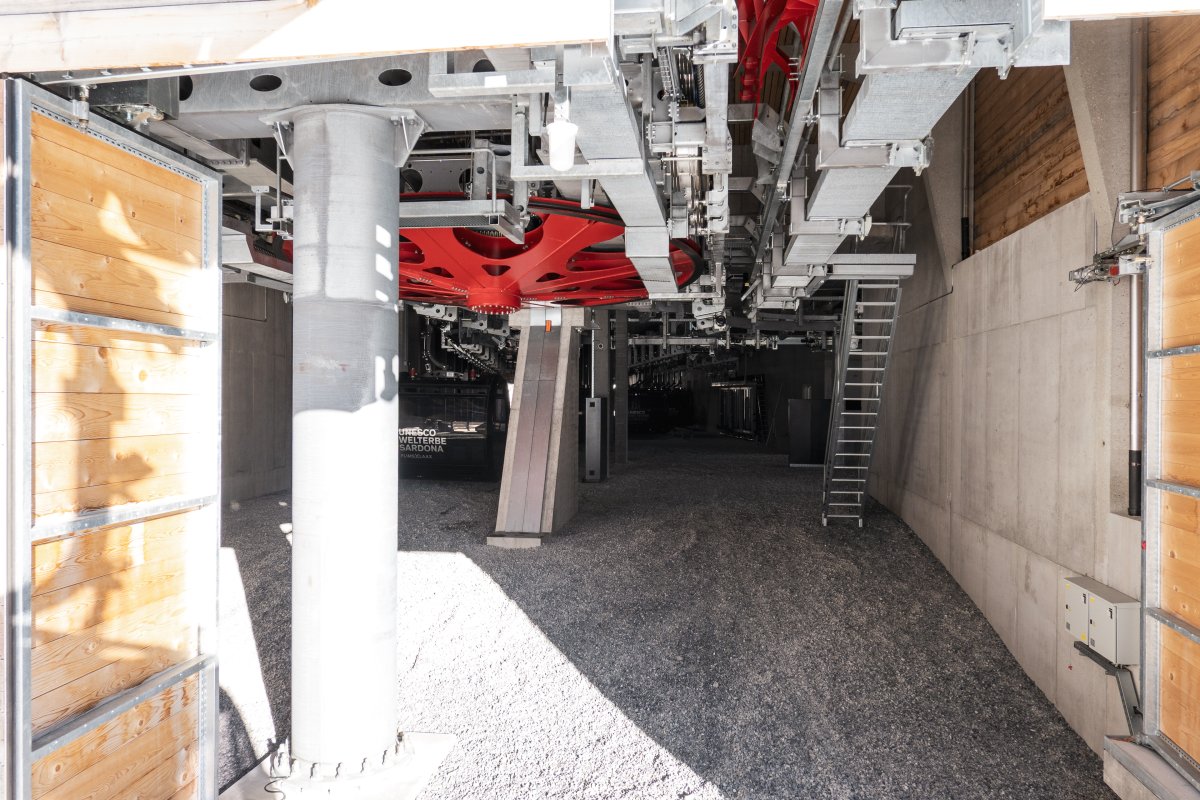

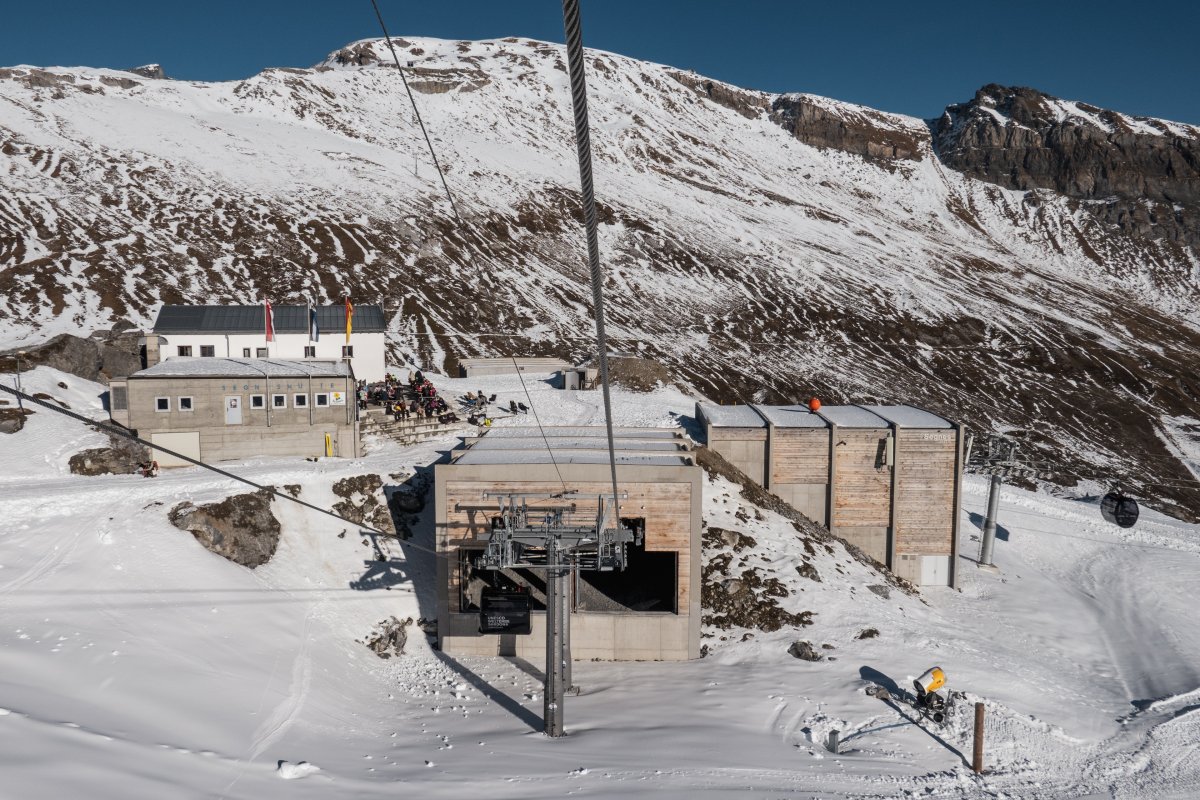

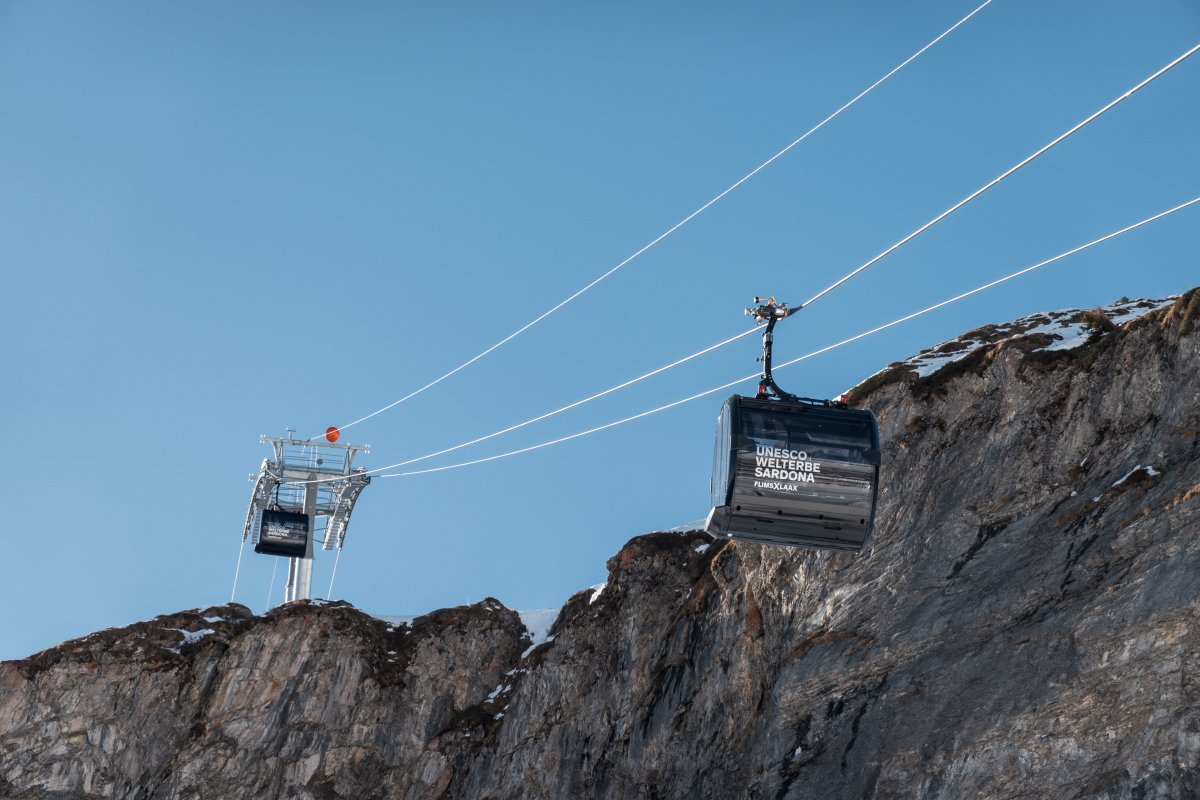

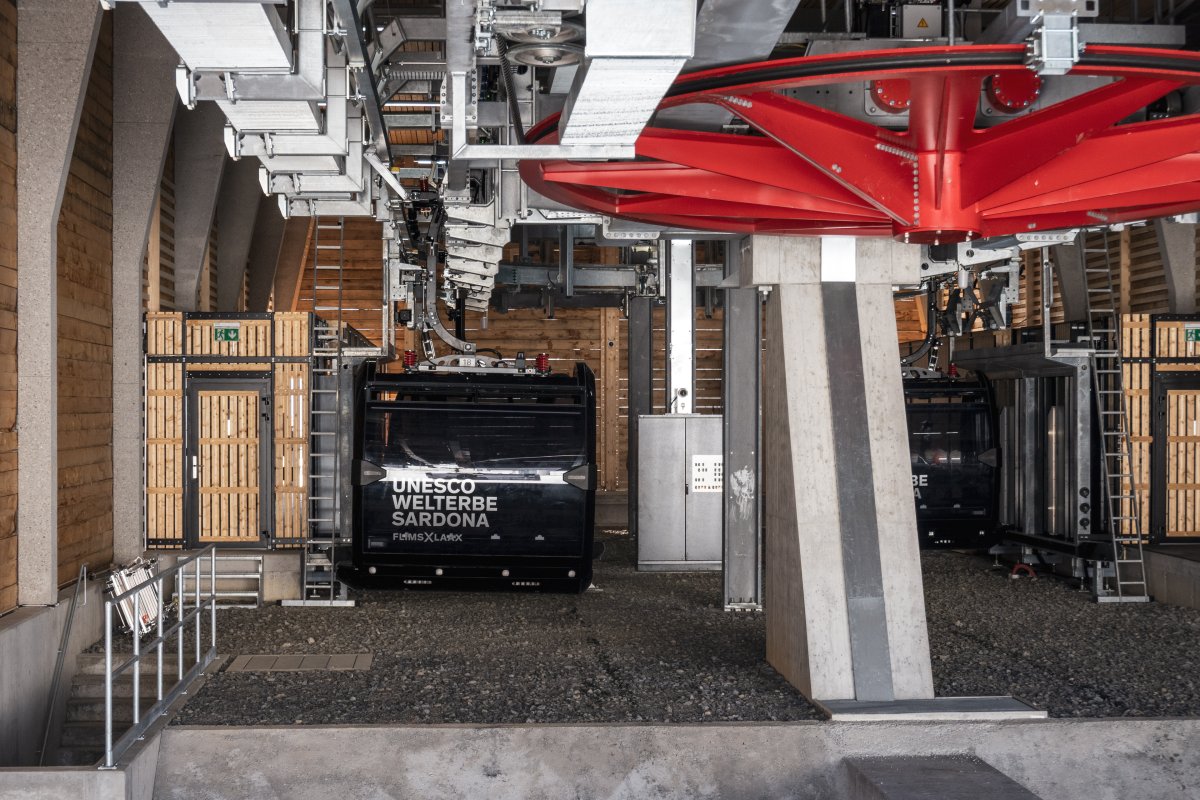

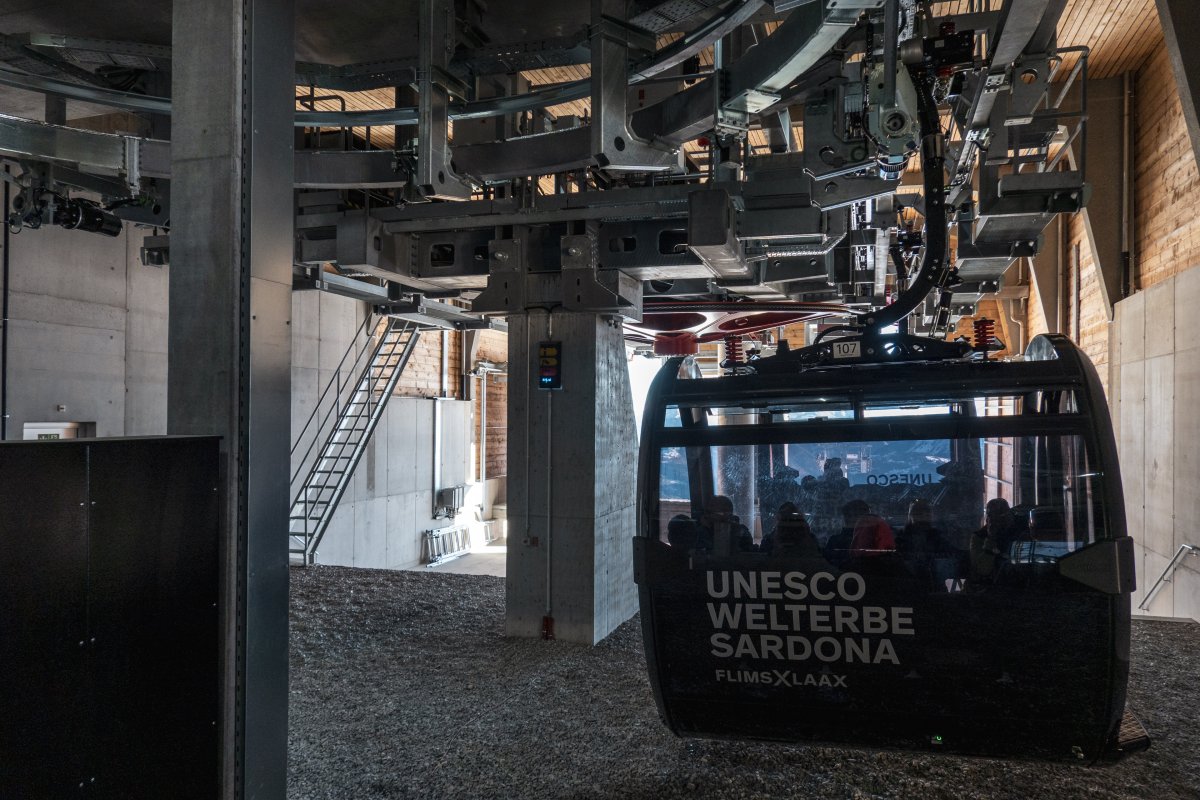

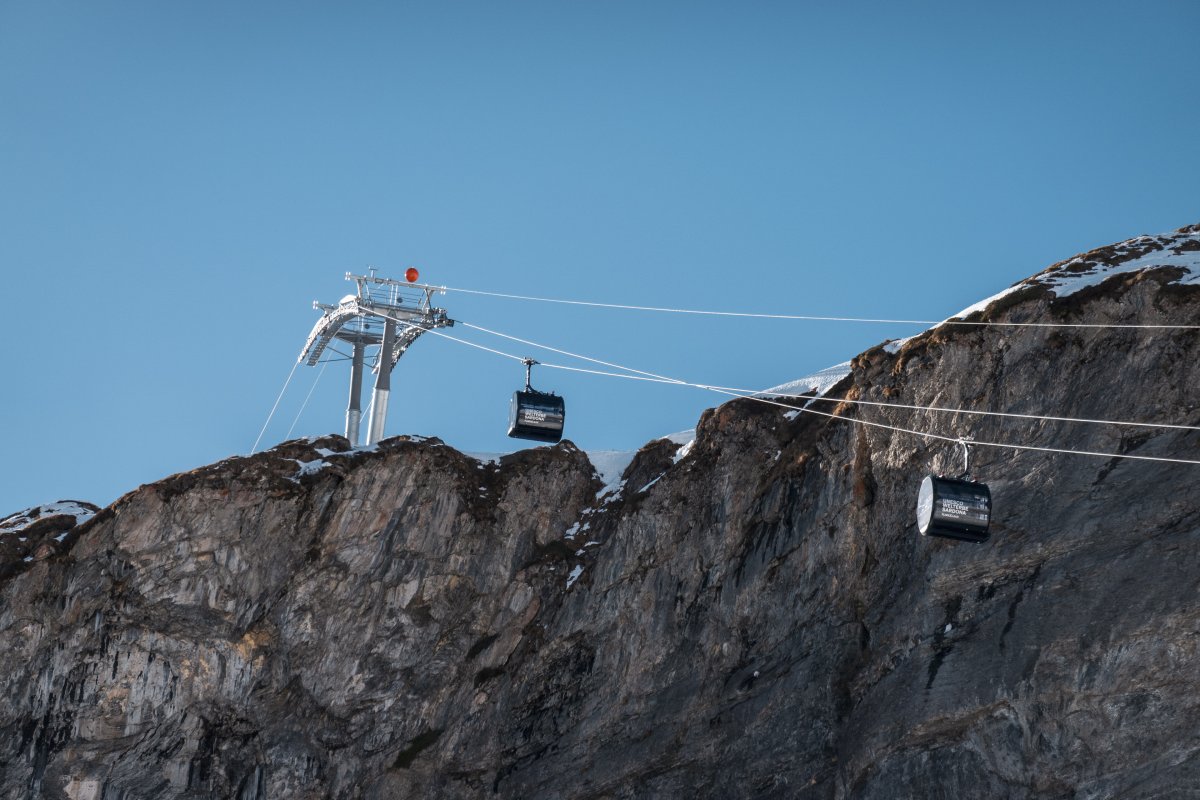

Photos of this ropeway
Videos of this ropeway
Location of the installation
Coordinates (decimal): Bottom station 46.86749 N / 9.24003 E, Top station 46.86544 N / 9.23579 E
Location of the installation: Google Maps • Swisstopo
