Ropeway Database - 2-SBF Maulerhubel (Mürren)
2-SBF Maulerhubel
Last update: 12.08.2022 11:28 (Updated by Sicht11)
Photo provided by: salvi11
Technical data
| Bottom station altitude | 1805 | m |
| Top station altitude | 1940 | m |
| Difference in altitude | 135 | m |
| Length | 513 | m |
| Capacity | 1000 | P/h |
| Travel time | 3,46 | min |
| Speed | 2,3 | m/s |
| Number of towers | 6 | |
| Number of carriers | 63 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Top station | |
| Carrier manufacturer | Leitner | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Sisag | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | None | |
Chronicle
The installation was previously located in the following place
-
-
2-SBF Maulerhubel
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

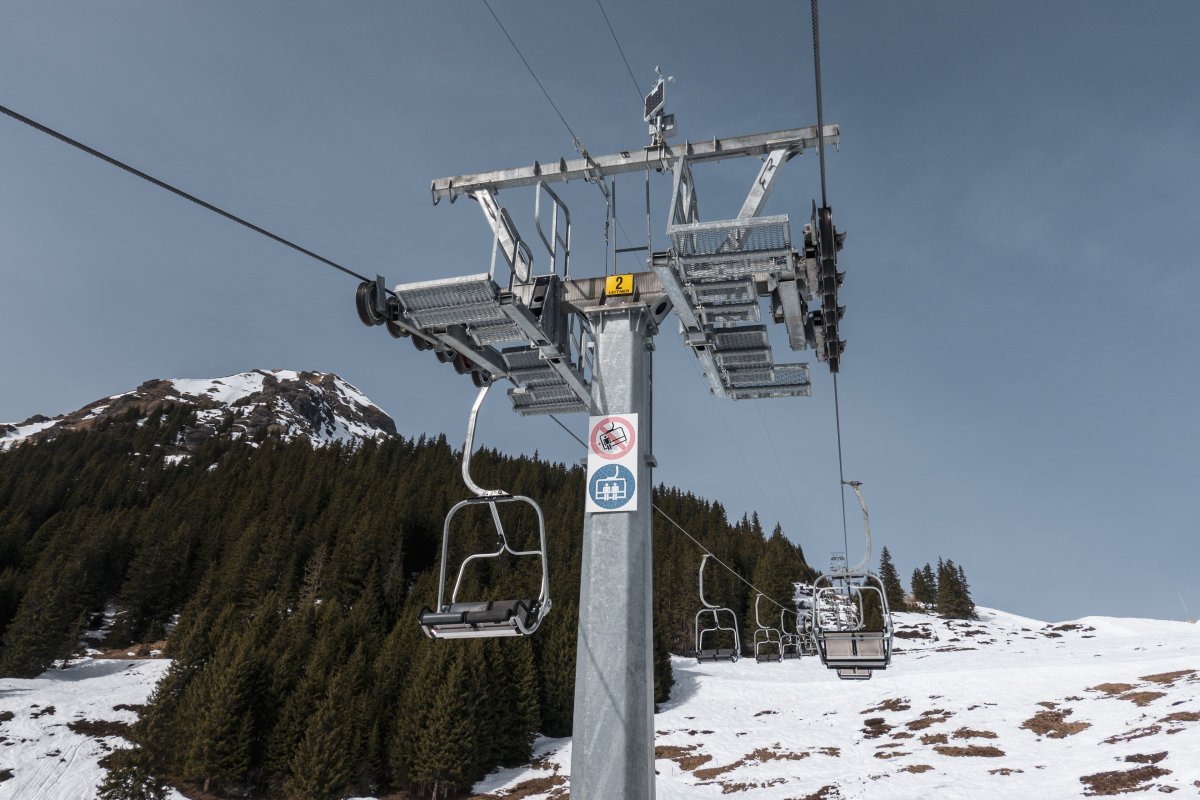

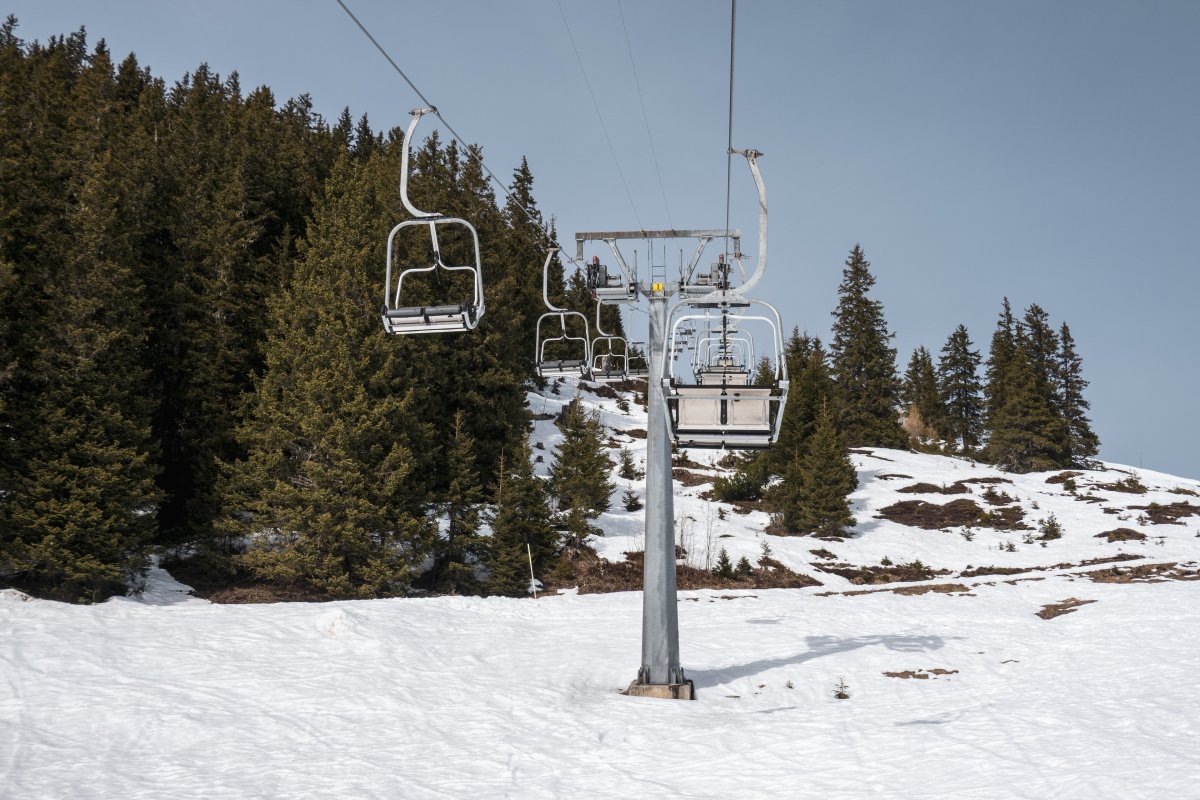

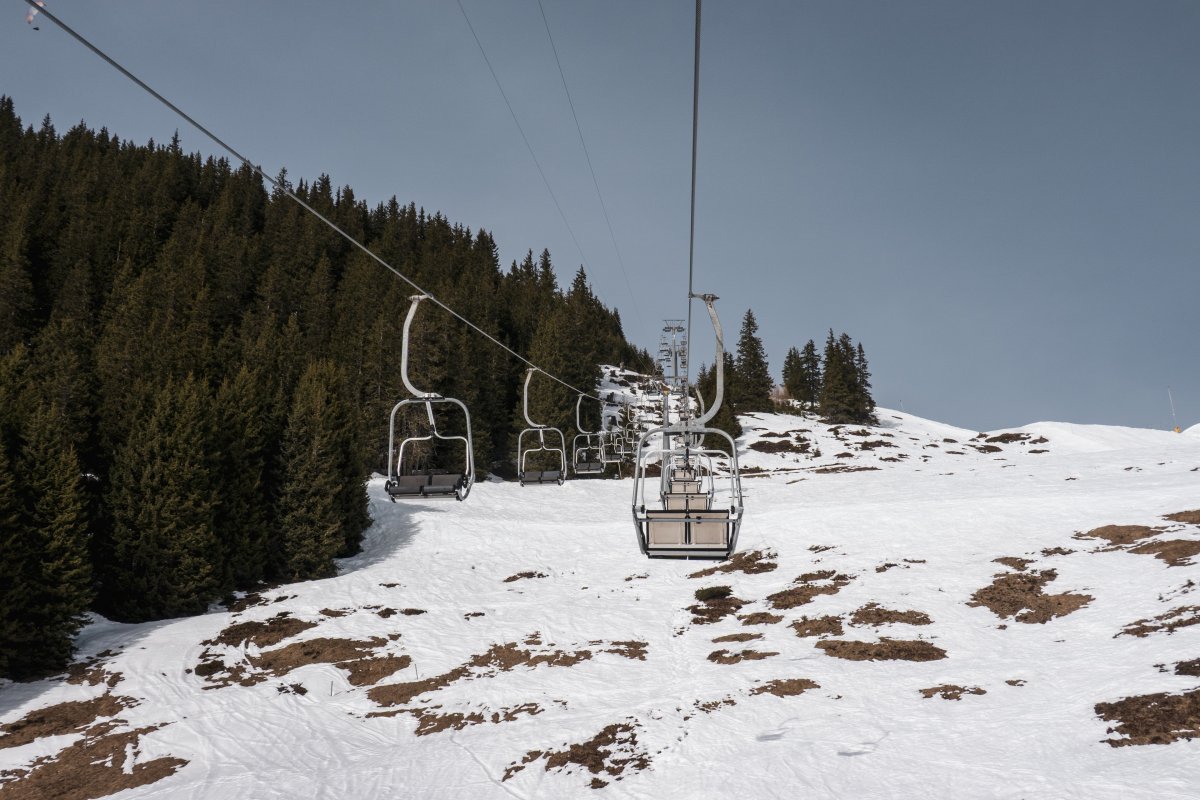

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.56627 N / 7.88931 E, Top station 46.5706 N / 7.88771 E
Location of the installation: Google Maps • Swisstopo
