Ropeway Database - 4-LPB Grimselnollen-Hausenegg (Grimsel)
4-LPB Grimselnollen-Hausenegg
Last update: 10.01.2015 19:11 (Updated by migi)
Photo provided by: Felix
Technical data
| Bottom station altitude | 1960 | m |
| Top station altitude | 2214 | m |
| Difference in altitude | 254 | m |
| Length | 954 | m |
| Capacity | 16 | P/h |
| Travel time | 7 | min |
| Speed | 2,5 | m/s |
| Number of towers | 3 | |
| Number of carriers | 1 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | ||
| Carrier manufacturer | ||
| Rope manufacturer | ||
| Electronics manufacturer | Gubler | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |

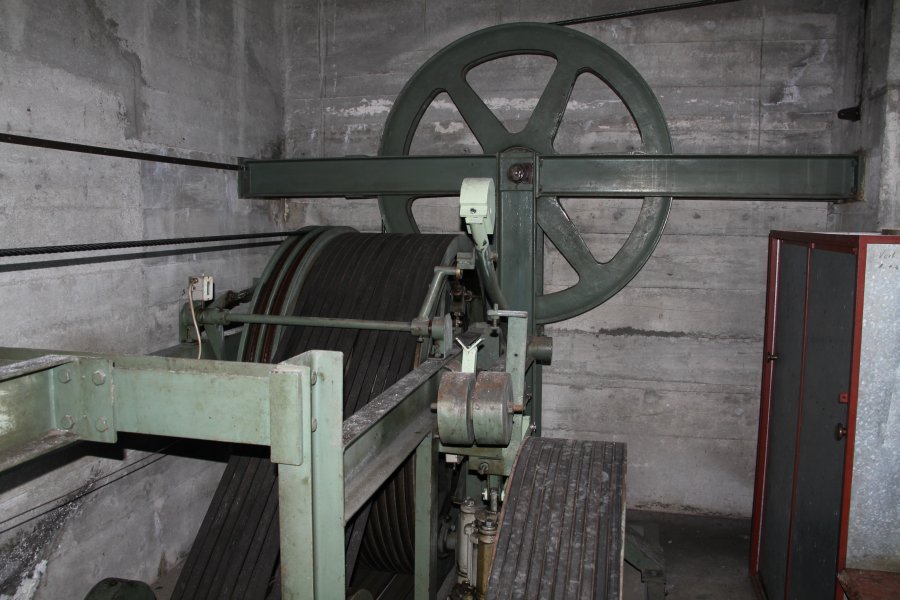

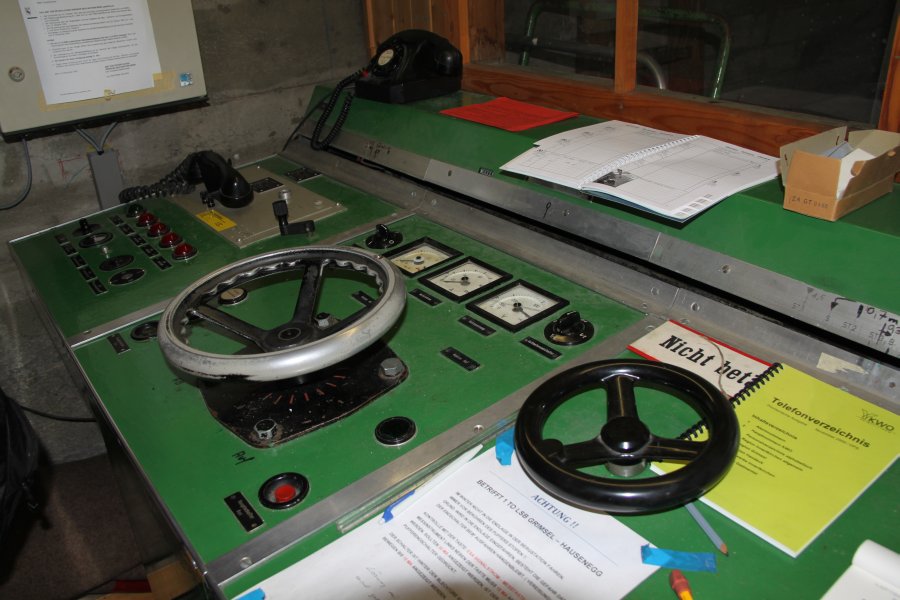

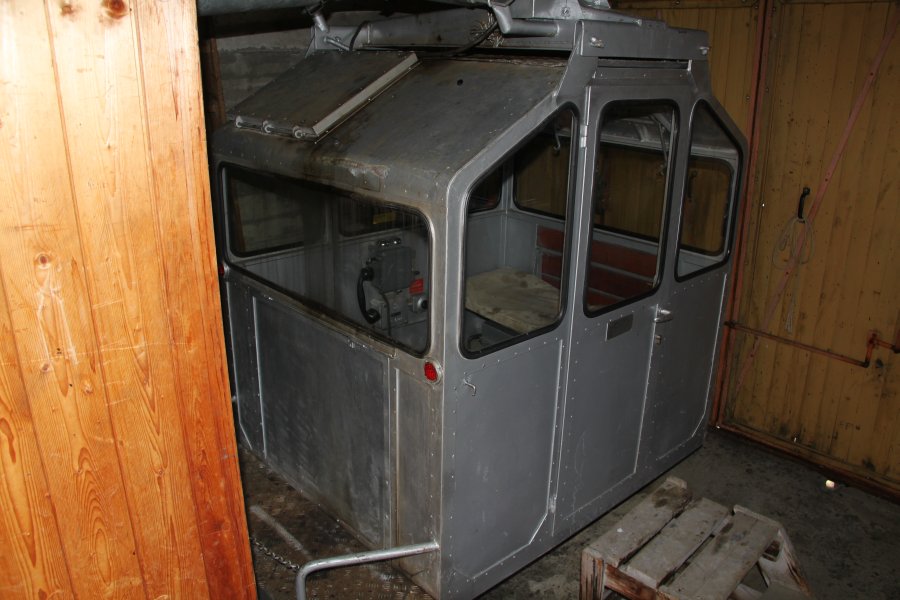

| Remarks | Die gesamte Bahntechnik inklusive Antrieb, Kommandopult und Kabine wurde aufgrund des historischen Werts eingelagert um sie später bei passender Gelegenheit der Öffentlichkeit präsentieren zu können. | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
4-LPB Grimselnollen-Hausenegg
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.57124 N / 8.33193 E, Top station 46.56311 N / 8.33023 E
Location of the installation: Google Maps • Swisstopo • Swisstopo (historisch)
Please enable marketing cookies to view this content.
Map legend:
Ropeway in operation
Ropeway out of operation
Ropeway dismantled
