Ropeway Database - 80-LPB Beckenried-Klewen (Beckenried)
80-LPB Beckenried-Klewen
Last update: 15.11.2022 19:05 (Updated by migi)
Photo provided by: Felix
Technical data
| Bottom station altitude | 450 | m |
| Top station altitude | 1600 | m |
| Difference in altitude | 1150 | m |
| Length | 3074 | m |
| Capacity | 550 | P/h |
| Travel time | 7 | min |
| Speed | 10 | m/s |
| Number of towers | 4 | |
| Number of carriers | 2 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | ||
| Carrier manufacturer | CWA | |
| Rope manufacturer | ||
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | 2014 Erneuerung von Antrieb, Steuerung und Kabinen für 70 Personen; Bahn hat je einen Zwischenausstieg an Stütze 2 und 3. | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
80-LPB Beckenried-Klewen
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

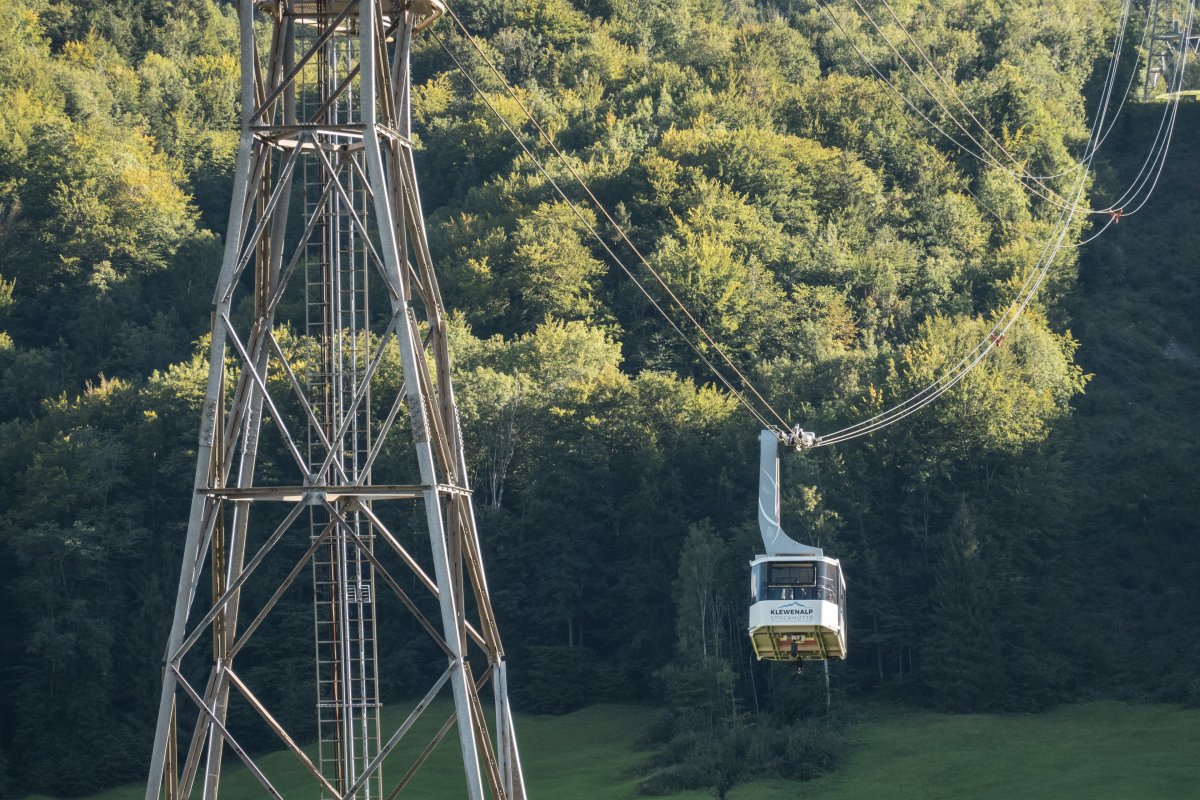

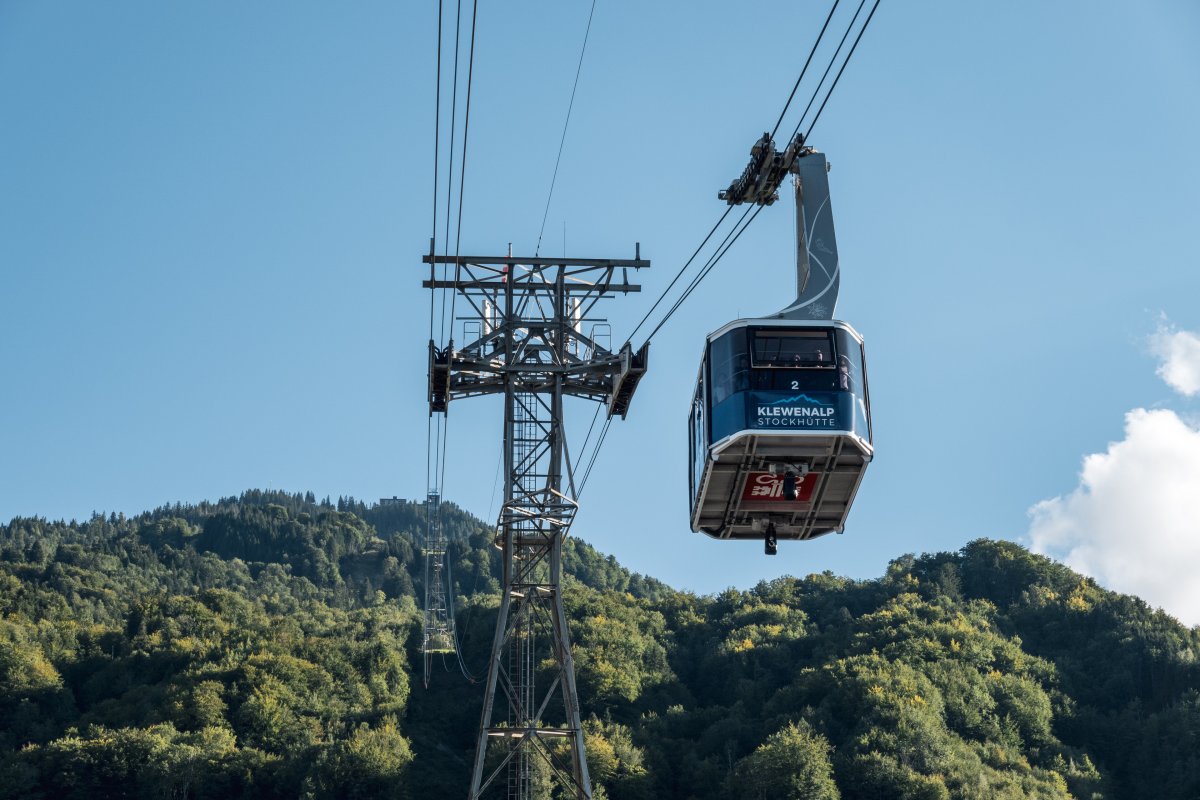

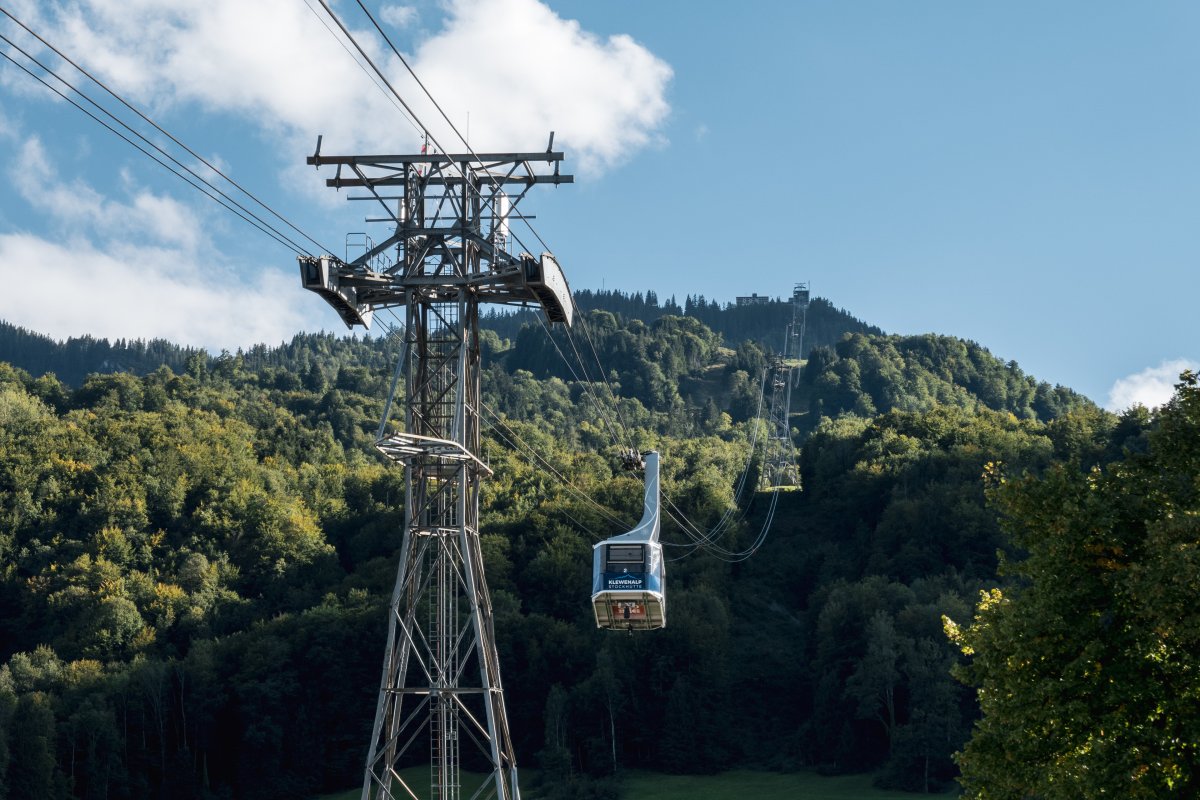

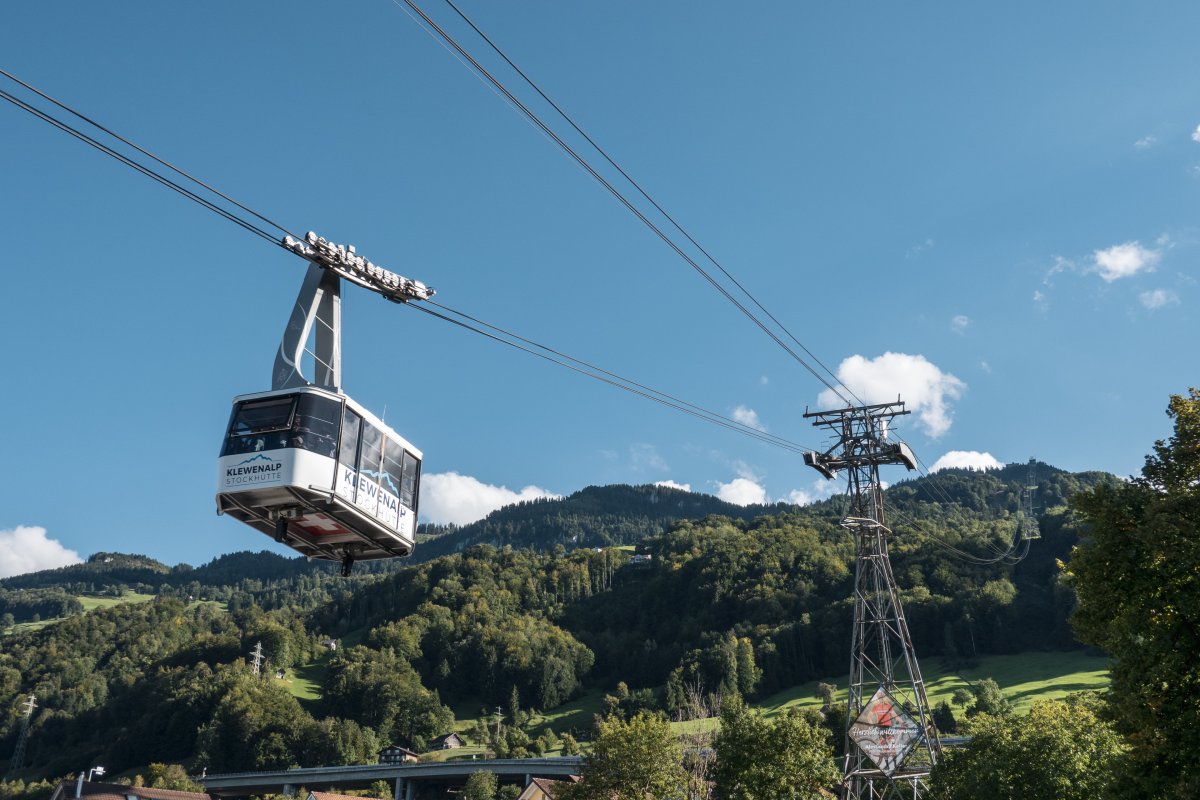

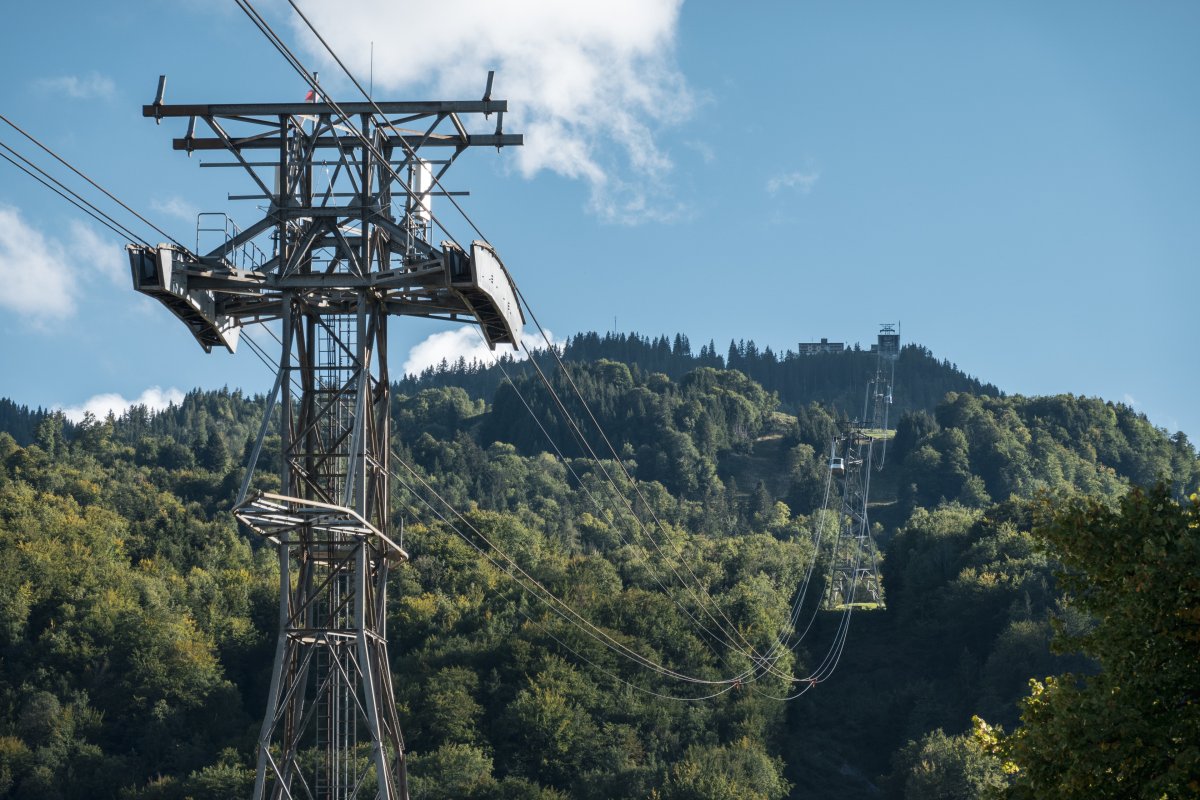

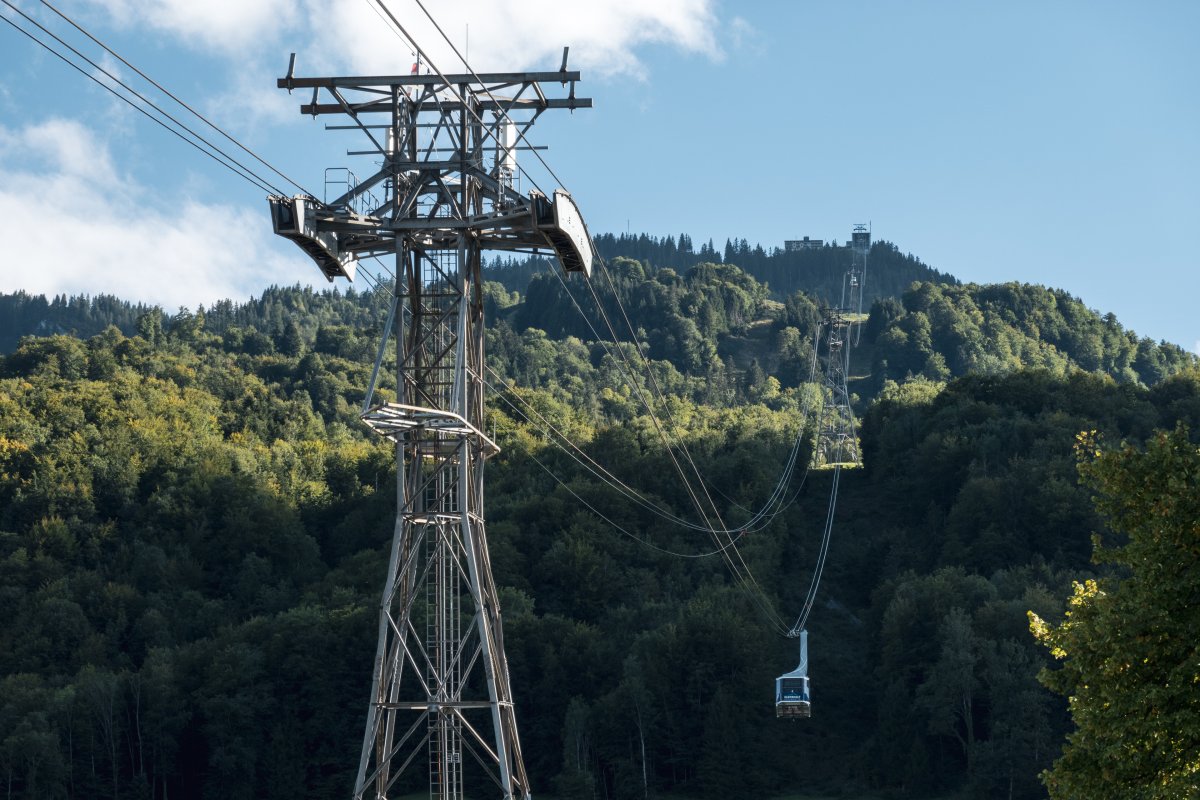

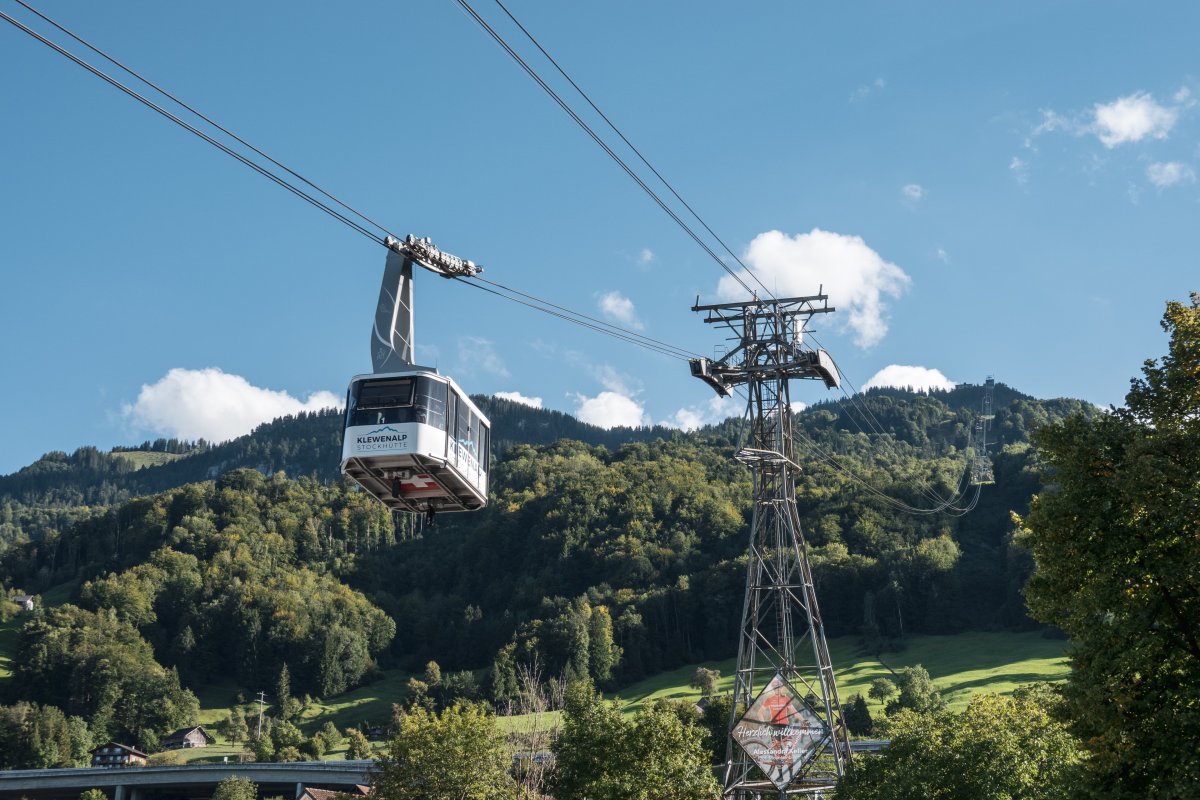

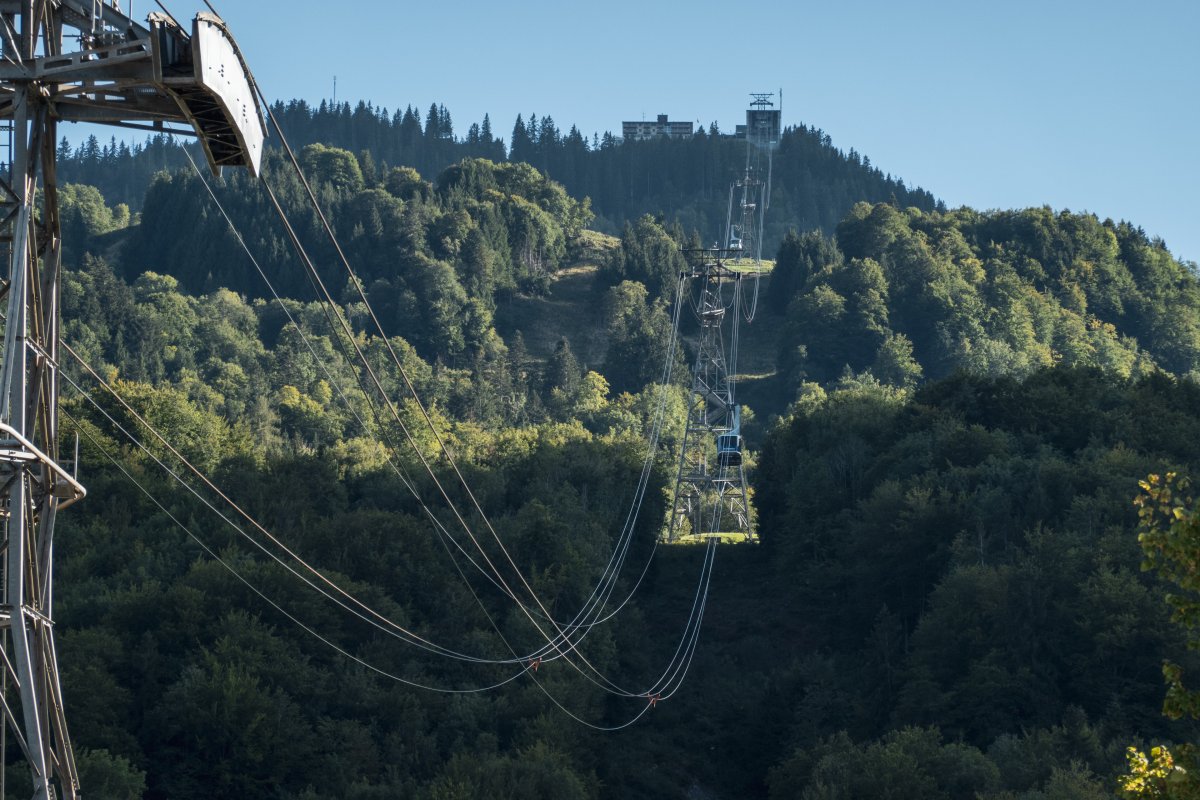

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.96621 N / 8.47319 E, Top station 46.9406 N / 8.47299 E
Location of the installation: Google Maps • Swisstopo
