Ropeway Database - 4-KBK Marbach-Marbachegg (Marbach)
4-KBK Marbach-Marbachegg
Last update: 04.03.2012 13:45 (Updated by salvi11)
Photo provided by: Dani
Technical data
| Bottom station altitude | 888 | m |
| Top station altitude | 1476 | m |
| Difference in altitude | 588 | m |
| Length | 1958 | m |
| Capacity | 1000 | P/h |
| Travel time | 6,4 | min |
| Speed | 5 | m/s |
| Number of towers | 14 | |
| Number of carriers | 62 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Gangloff | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | ||
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
4-KBK Marbach-Marbachegg
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

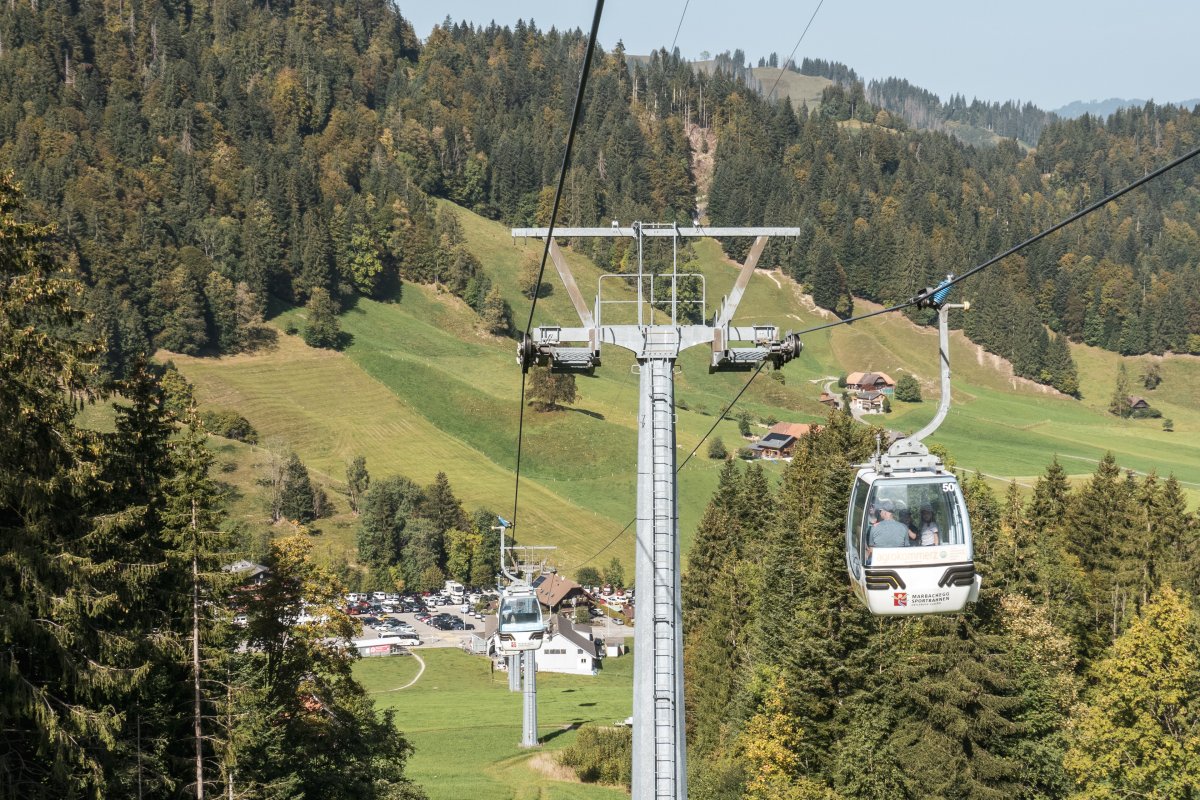

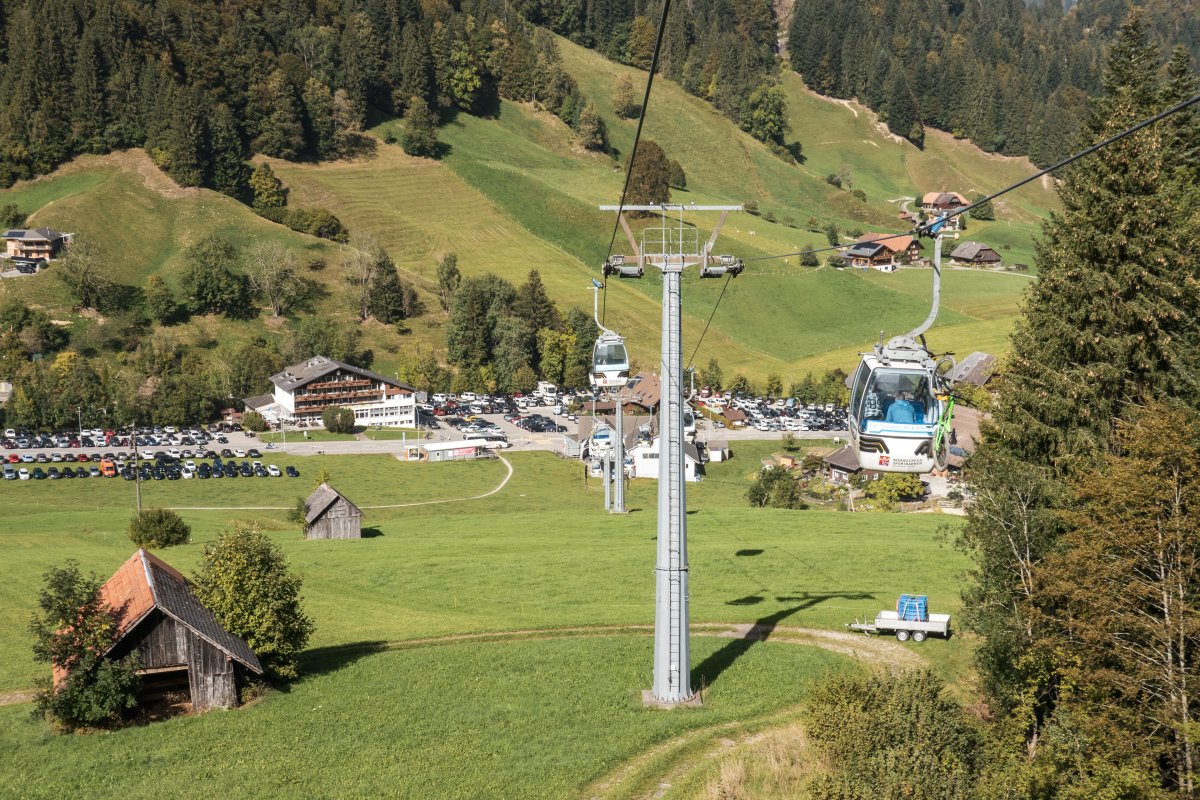

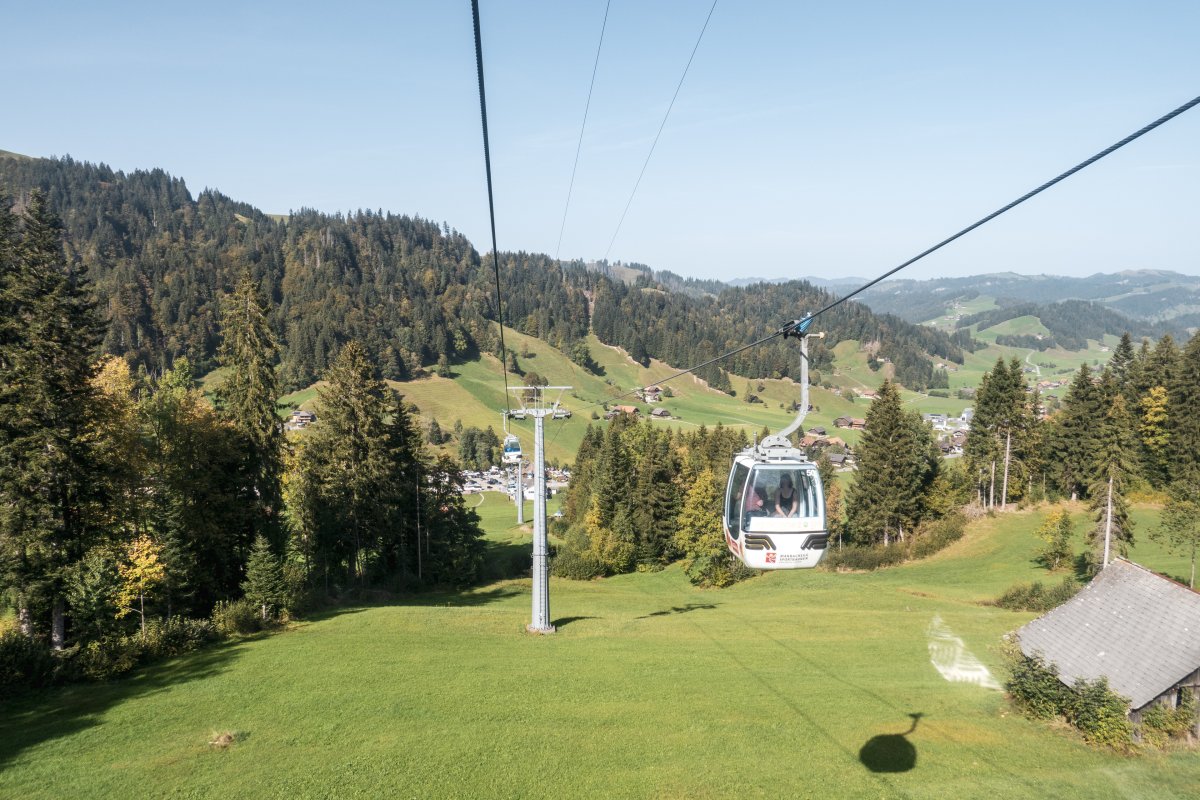

Photos of this ropeway
Videos of this ropeway
Please enable marketing cookies to view this content.
Location of the installation
Coordinates (decimal): Bottom station 46.84994 N / 7.89555 E, Top station 46.83528 N / 7.90608 E
Location of the installation: Google Maps • Swisstopo
Please enable marketing cookies to view this content.
Map legend:
Ropeway in operation
Ropeway out of operation
Ropeway dismantled
