Ropeway Database - 6-SBK/B Rotstöckli-Kleintitlis (Engelberg)
6-SBK/B Rotstöckli-Kleintitlis
Last update: 25.10.2021 15:48 (Updated by Sicht11)
Photo provided by: Edo Martinenghi
Technical data
| Bottom station altitude | 2864 | m |
| Top station altitude | 3044 | m |
| Difference in altitude | 180 | m |
| Length | 675 | m |
| Capacity | 1200 | P/h |
| Travel time | 2,5 | min |
| Speed | 4,8 | m/s |
| Number of towers | 6 | |
| Number of carriers | 15 | |
| Drive terminal | Top station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Garaventa | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | No | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
The installation was previously located in the following place
-
-
6-SBK/B Rotstöckli-Kleintitlis
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-

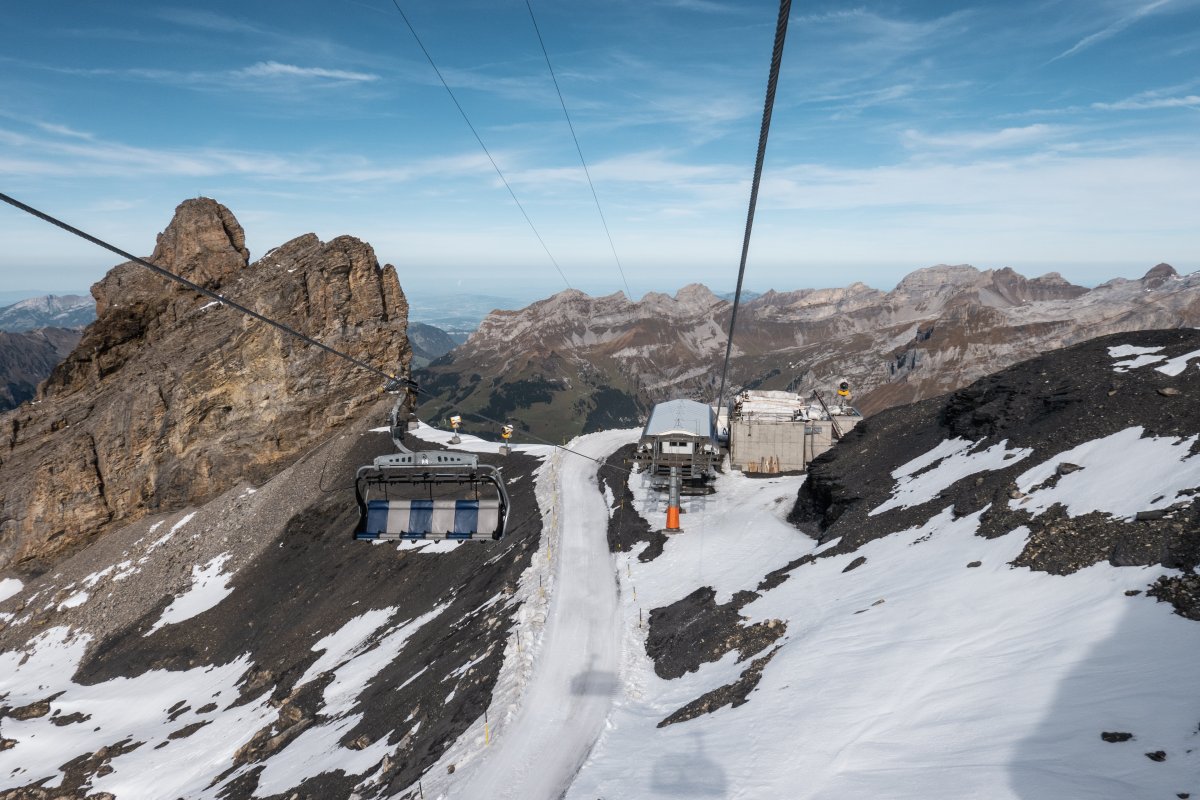

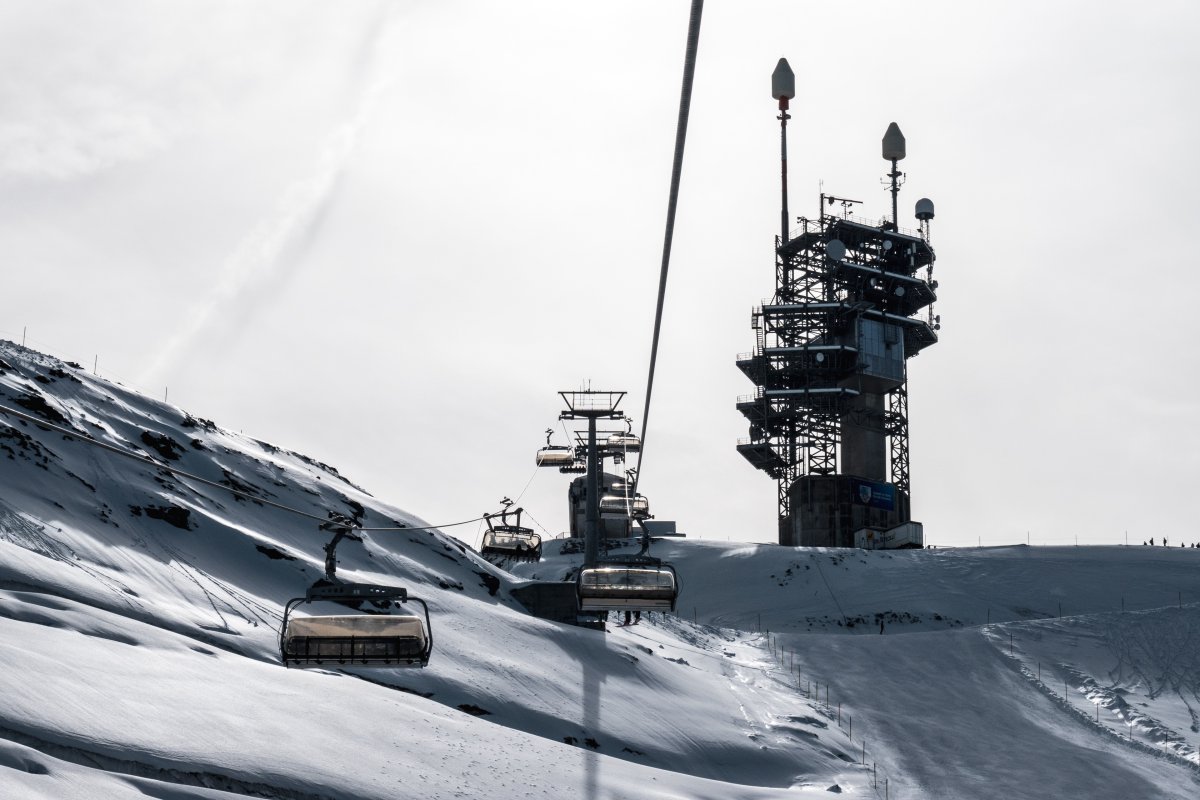

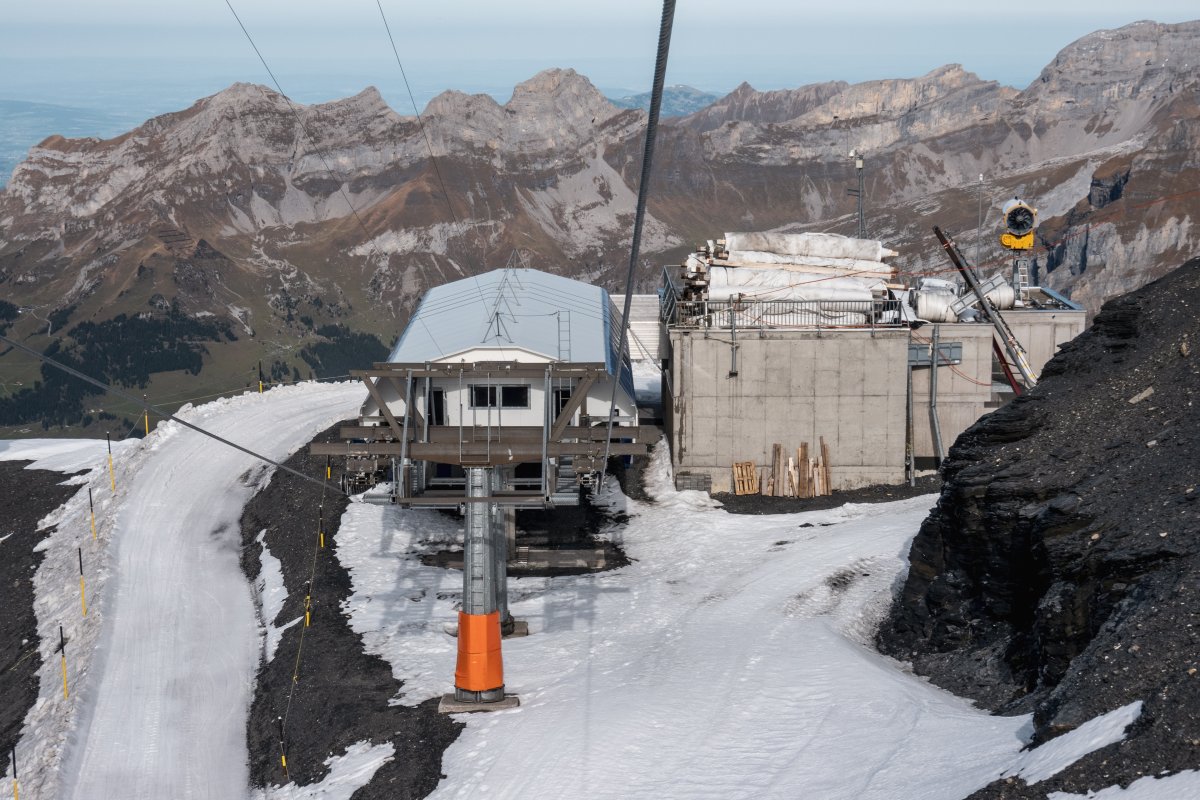

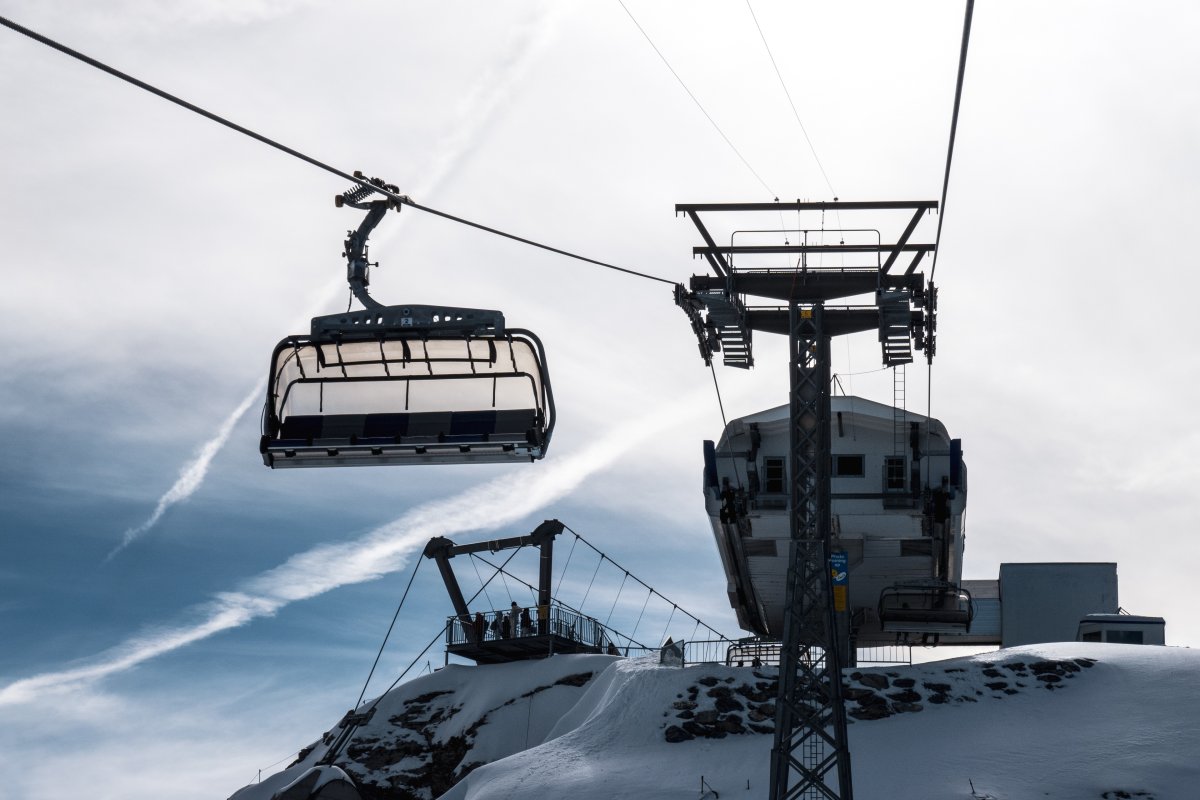

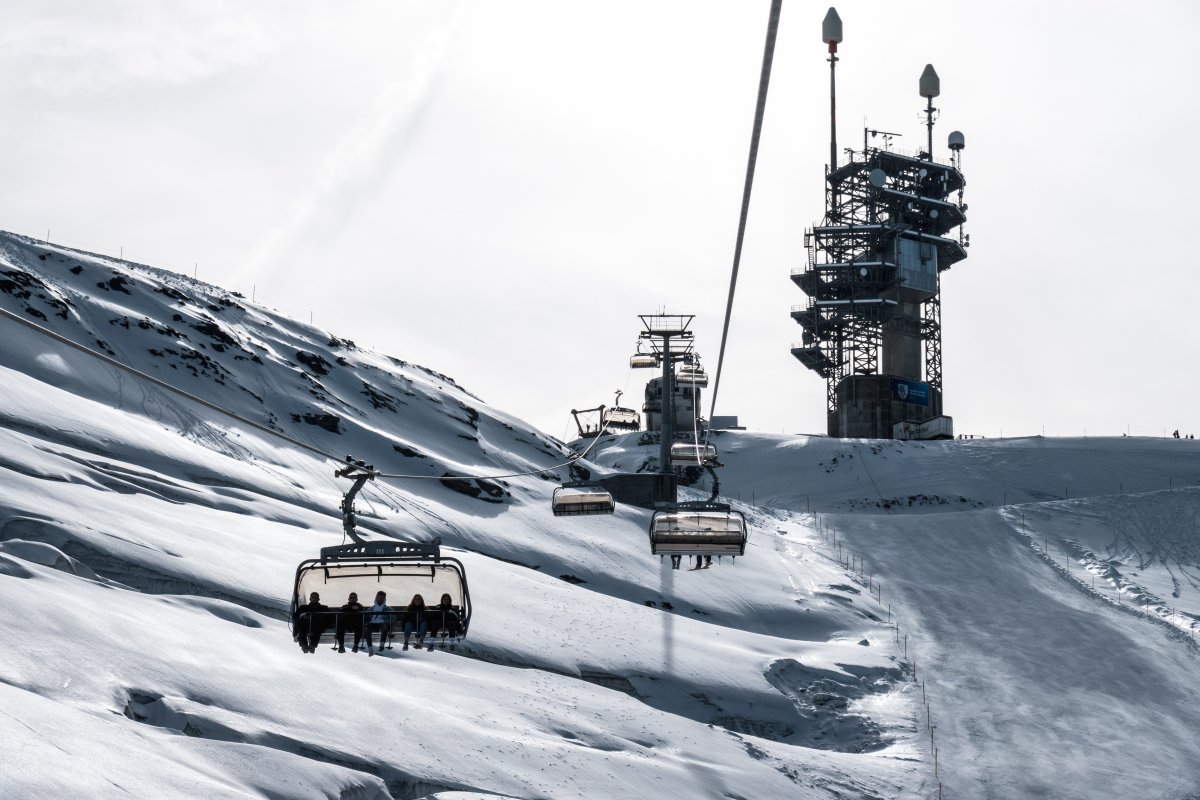

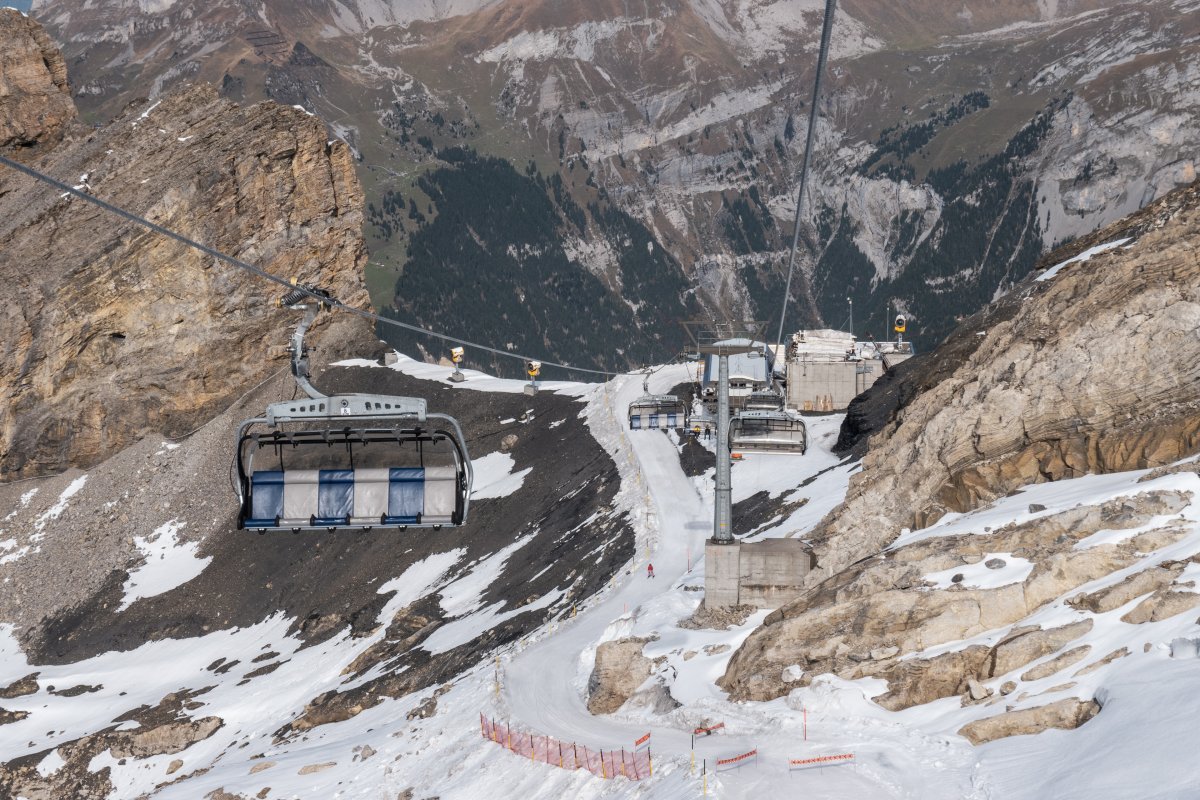

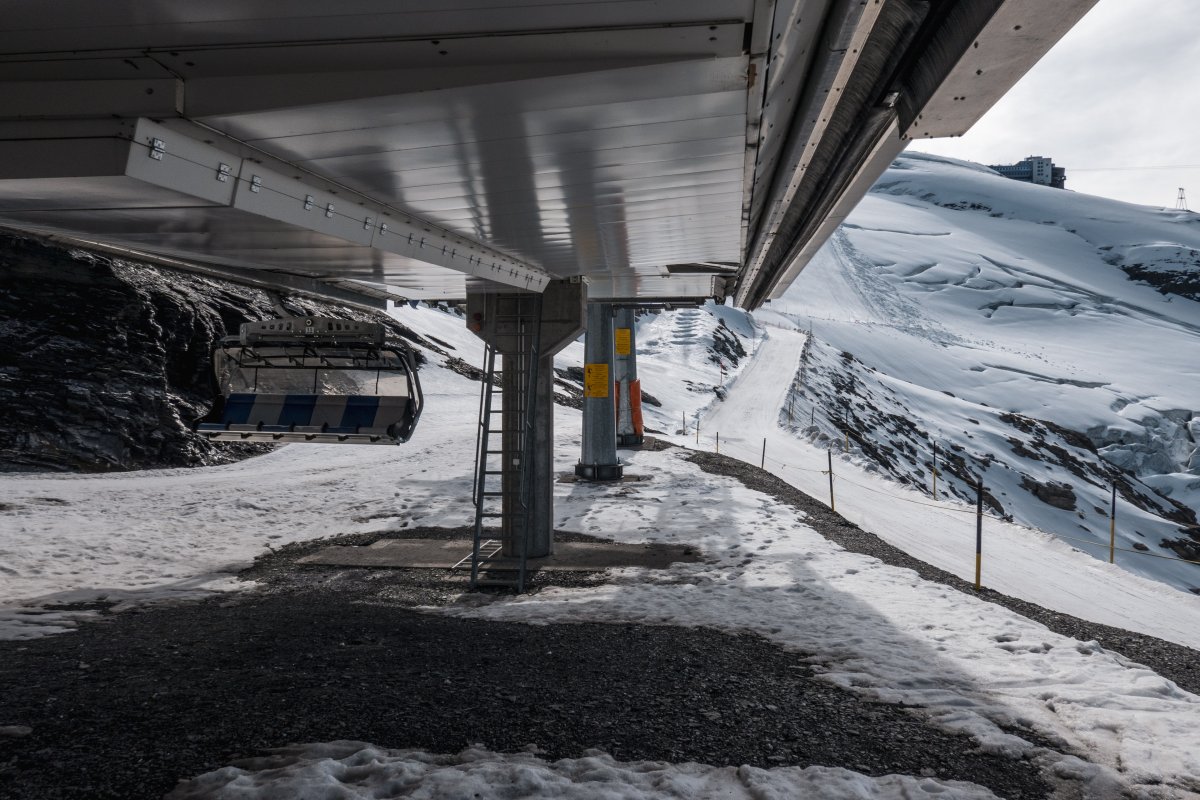

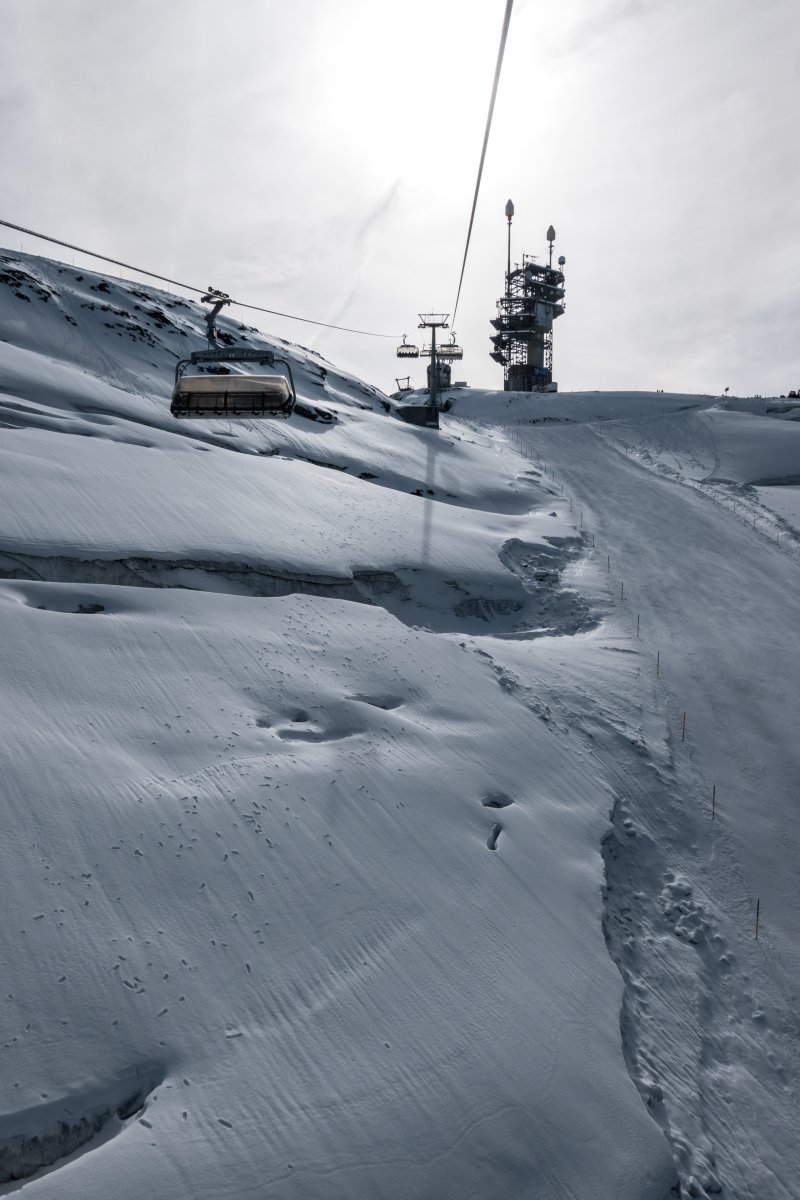

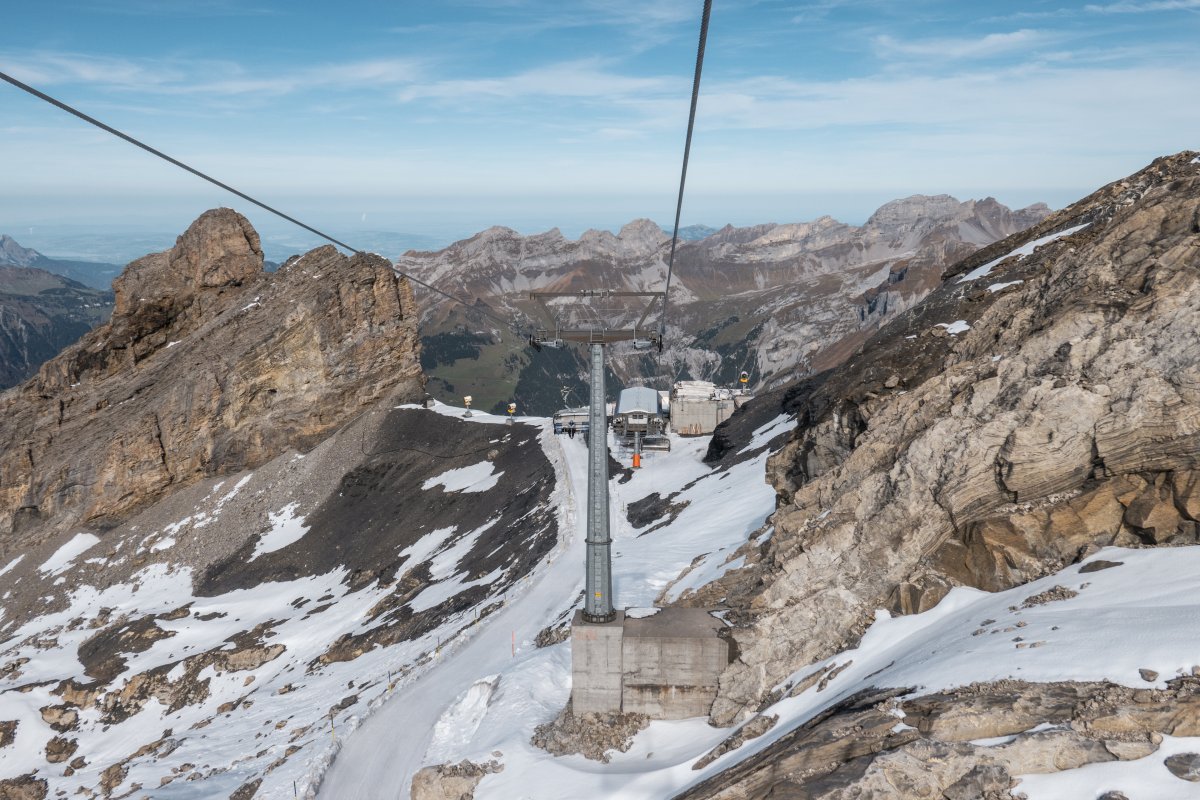

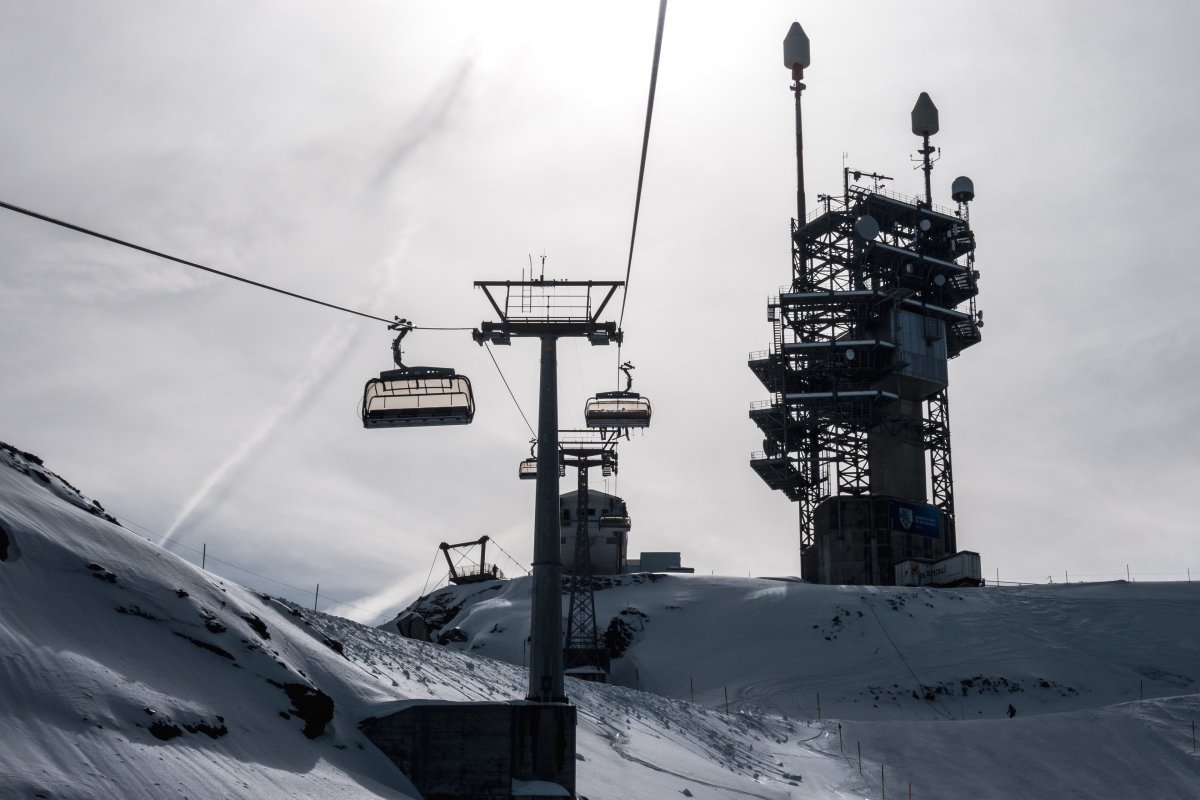

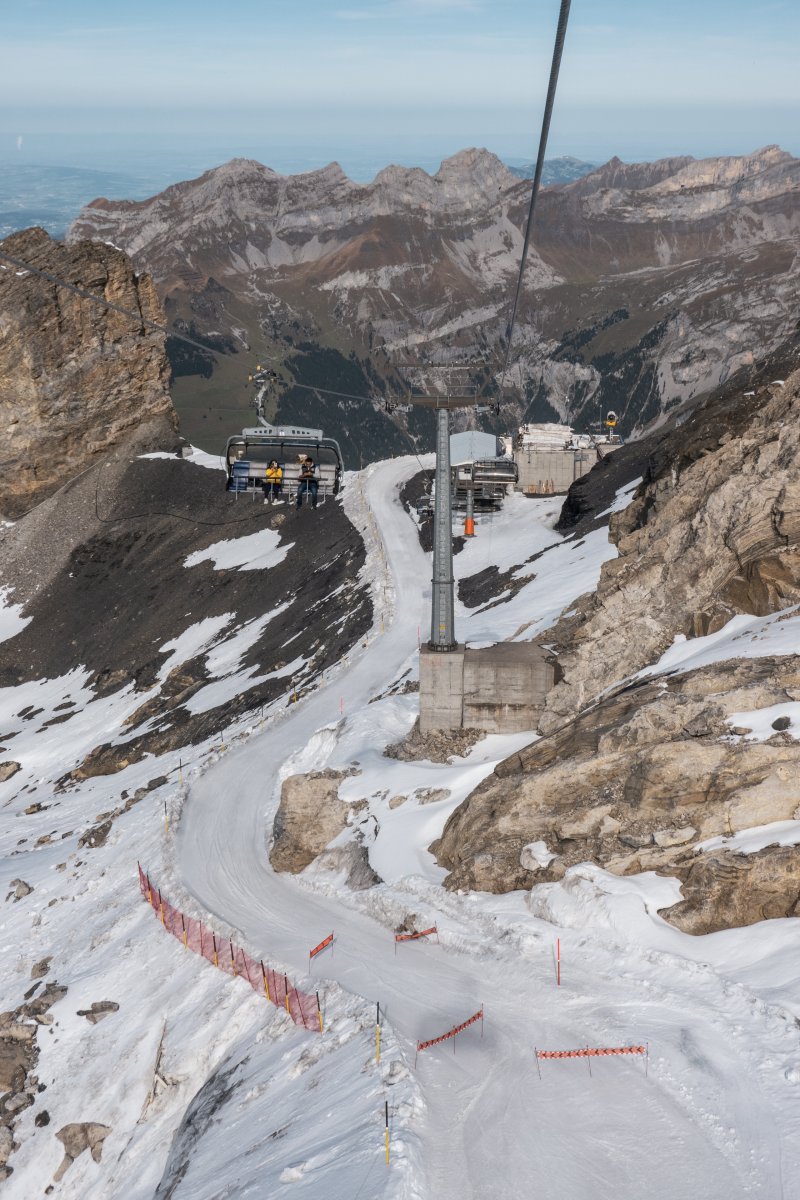

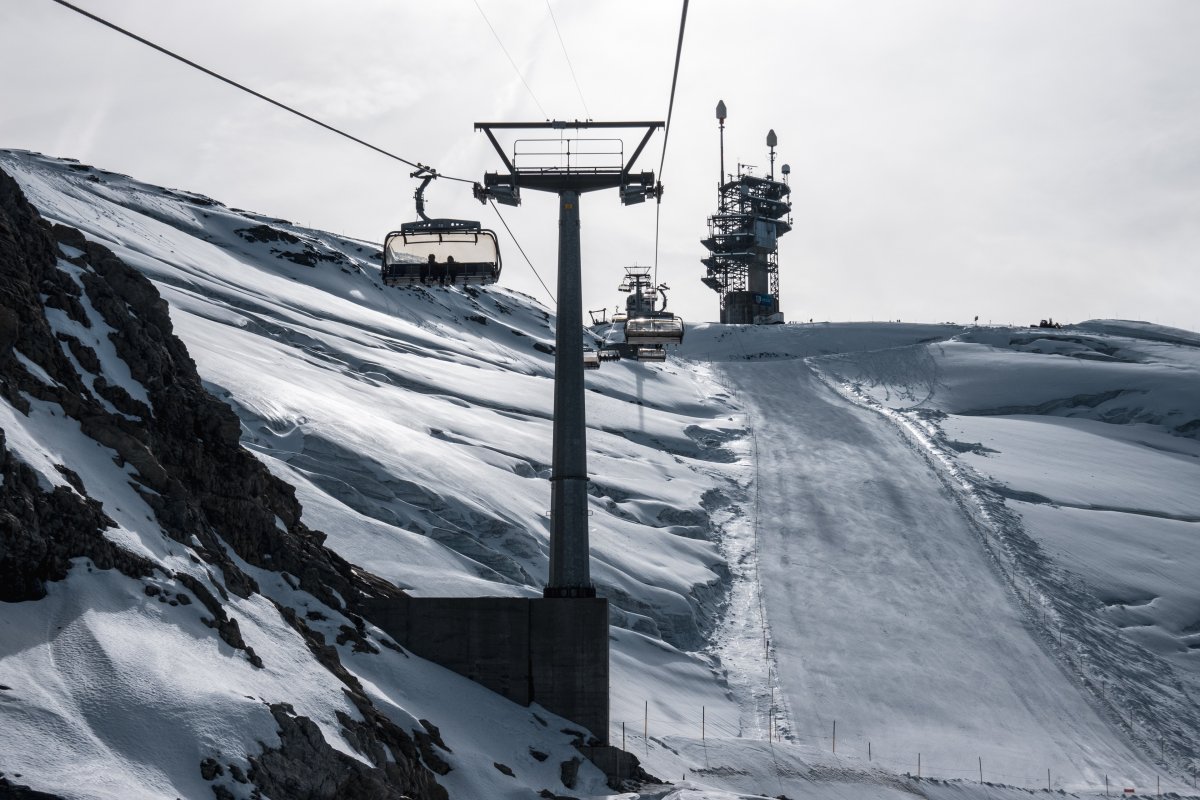

Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 46.77667 N / 8.42718 E, Top station 46.77083 N / 8.42636 E
Location of the installation: Google Maps • Swisstopo
