Ropeway Database - 1-SBF Schanze Einsiedeln (Einsiedeln)
1-SBF Schanze Einsiedeln
Last update: 08.06.2019 12:48 (Updated by swisstrains)

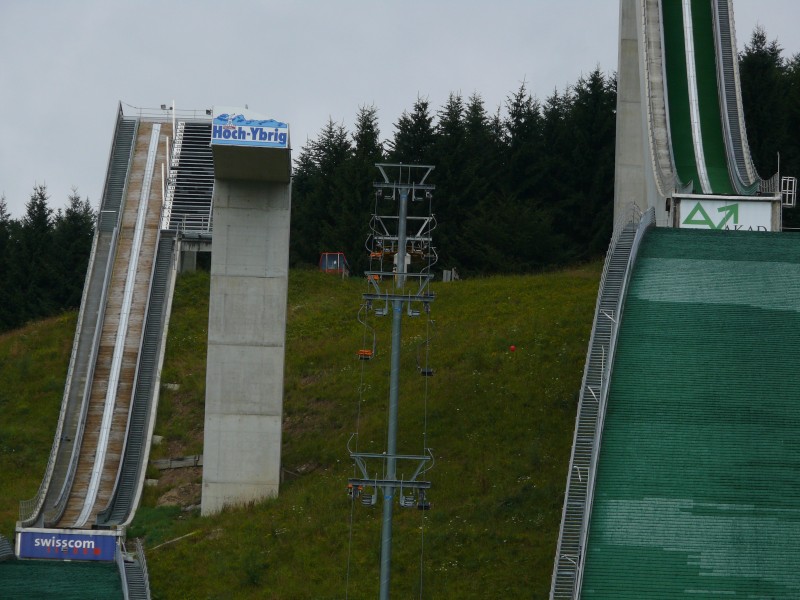

Photo provided by: swisstrains
Technical data
| Bottom station altitude | 885 | m |
| Top station altitude | 961 | m |
| Difference in altitude | 76 | m |
| Length | 236 | m |
| Capacity | 240 | P/h |
| Travel time | 2,6 | min |
| Speed | 1,5 | m/s |
| Number of towers | 4 | |
| Number of carriers | 16 | |
| Drive terminal | Bottom station | |
| Tensioning terminal | Bottom station | |
| Carrier manufacturer | Bartholet | |
| Rope manufacturer | Fatzer | |
| Electronics manufacturer | Frey | |
| Transportation uphill | Yes | |
| Transportation downhill | Yes | |
| Remarks | None | |
Chronicle
The installation replaces the following ropeway(s)
-
-
The installation was previously located in the following place
-
-
1-SBF Schanze Einsiedeln
After dismantling, the installation was set up again at the following location
-
-
The installation was replaced by the following ropeway(s)
-
-
Photos of this ropeway
Videos of this ropeway
Currently, there are no videos of this ropeway available.
Location of the installation
Coordinates (decimal): Bottom station 47.13607 N / 8.73995 E, Top station 47.1366 N / 8.73713 E
Location of the installation: Google Maps • Swisstopo
